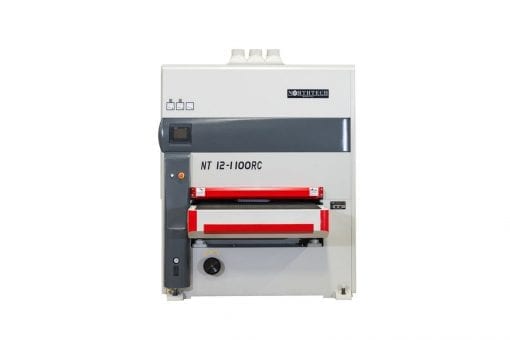

Northtech NT 12-1100RP Dual Head Wide Belt Sander
This is a very robust machine. It weighs more than most 3 head machines. With its 12″ diameter 30 hp first head, 25 hp combination second head, and feed speeds of 20-90 FPM it will sand efficiently and cost-effectively.
For current product availability and our most competitive price delivered, please contact us using the “Request A Quote” button below. Due to vendor restrictions, we cannot always advertise our highly competitive pricing online.
Northtech NT 12-1100RP
• Working Width: 43″
• Sanding Heads: (2) * (1) 12″ 70 durometer spiral fluted roller * (1) 3-1/4” Pad
• Sanding Belt Length: 103″
• Main Spindle Motor: 30HP / 25HP
• Feed Motor: 3HP with Inverter
• Table Movement Motor (PLC Touch Screen): 1HP
• Configuration: Spiral Grooved Rubber Roller – Pad
• Roller Diameter (in): 12″ – 6″
• Size Of Sanding Belt: 43″ x 103″
• Feed Speed: 20 – 90 FPM
• Conveyor Speed Display: PLC Touch Screen
• Table Height 37″ / Table Lift 4.75″ by PLC Touch Screen
• Air Jet Cleaner: Two Sets
• (1) Brush Roller 1HP
• HZ & Voltage: 60HZ / 460V, 3PH
• Weight Net / Gross: 6,664 / 7276 lbs.
• Dimensions: L88″ x W74″ x H92″
• Warranty is one-year parts.
• All machines tested stateside ensuring trouble-free start-up.
Specifications:
- Machine Hp. = 60 hp.
- Voltage/ Freq. = 460 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 72 Amps
- Configuration = Roller, Pad
- 1st Head = 30 Hp. 12” Spiral Fluted 70 D
- 2nd Head = 25 Hp. 3-1/4” Pad
- Brush Motor Hp. = 1 Hp.
- Feed Hp. = 3 Hp.
- Feed System = 43” Rubber Feed Mat
- Drive System = Gear Box Inverter Controlled
- Feed Speed = 20 – 90 FPM
- Variable Speed = Inverter Controlled
- Elevation Hp. = 3 Hp.
- Elevation Sys. = (4) Post Jack Screw
- Elevation Style = Auto Touch Screen Control
- Total Hp. = 60 Hp.
- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 230 Volt
- Programmable = Elevation
- Touch Screen = 8” Digital Touch Screen
- Min. Length = 20”
- Max. Width = 43”
- Min. Thickness = .196”
- Max. Thickness = 4-7/8”
- Sandpaper Size = 43” x 103”
- Platen Specs. = 4” x 43” with 8” Graphite
- 1st Belt Speed = 4850 FPM
- 2nd Belt Speed = 2950 FPM
- Oscillation Sty = Pneumatic Controlled
- Oscillation Rte = 20 Cycles/Minute
- Oscillation Trv = 1/2”
- Cleaning System = Oscillating Jet Blow Off
- Tracking Style = Pneumatic Dust Proof Eye
- Tension Style = Pneumatic
- Dust Collection = (10) 5” @ 6810 CFM
- Dust Port Out = 5”
- Digital Display = Touch Screen 8”
- Idle Rollers = (8) Idle Rollers
- Pressure Shoes = (3) Sets
- Hold Down Style = Spring Loaded Pressure Shoes
- Emergency Stop = (1) Push Putton (2) Bars
- Brake System = (3) Pneumatic Dual Caliper Dis
- Frame Const. = 1/2” Steel Construction
- Decible Rating = 77 dB
- Net Weight = 6,661 Lbs.
- Gross Weight = 7,276 Lbs.
- Machine Dims. = 88” x 74” x 92”
- Packaging Dims = 95” x 79” x 93”
