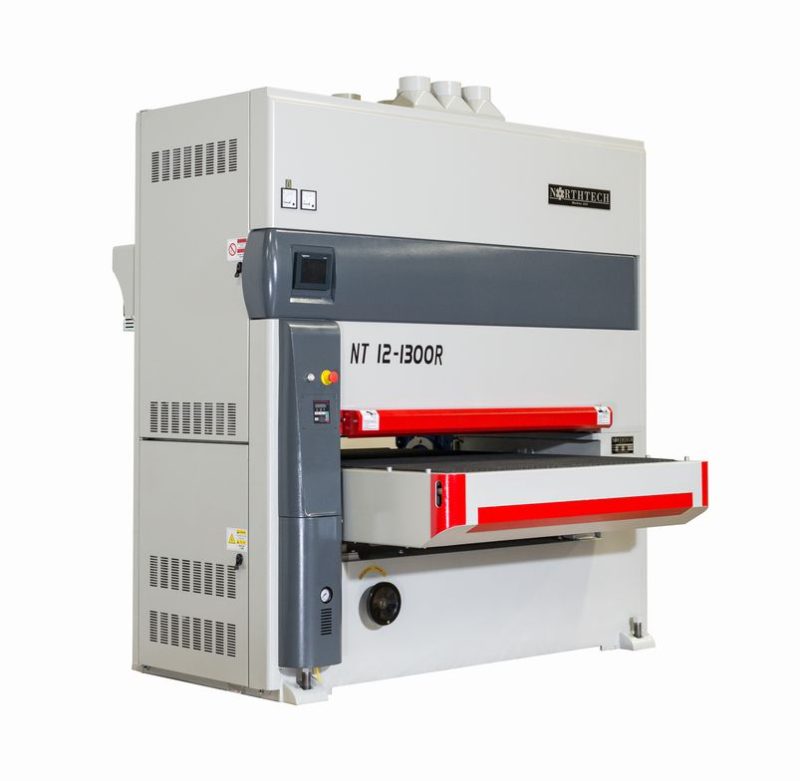

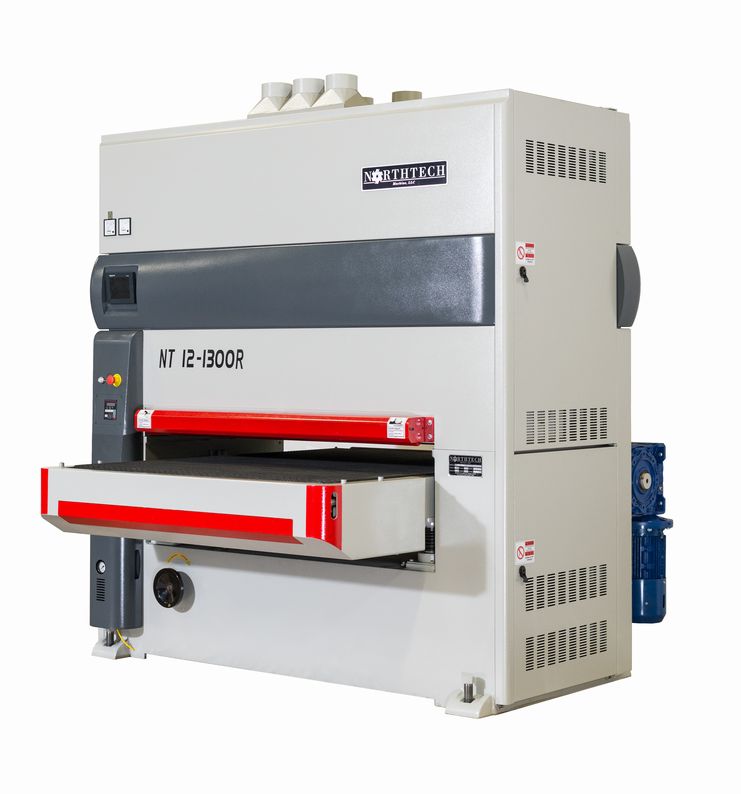

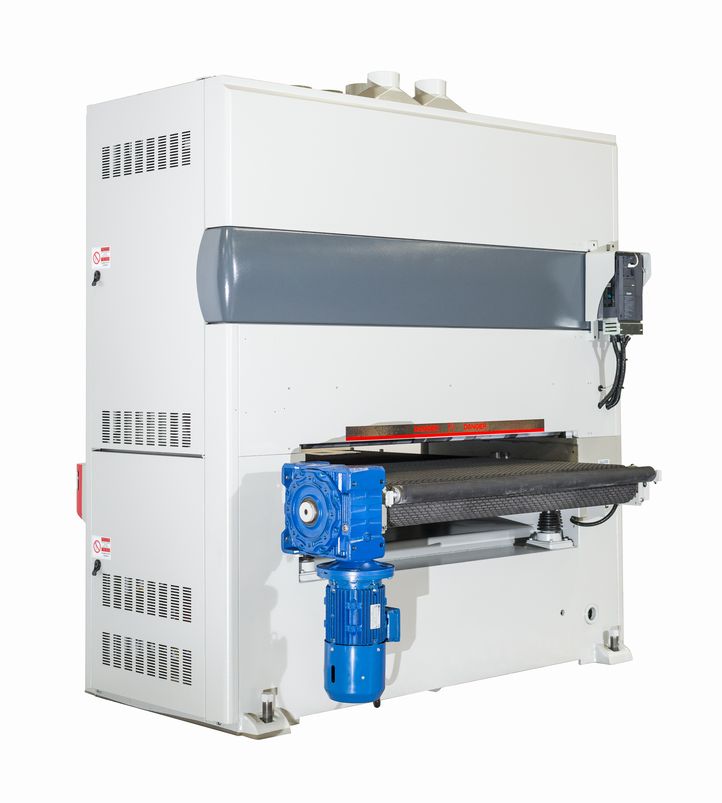

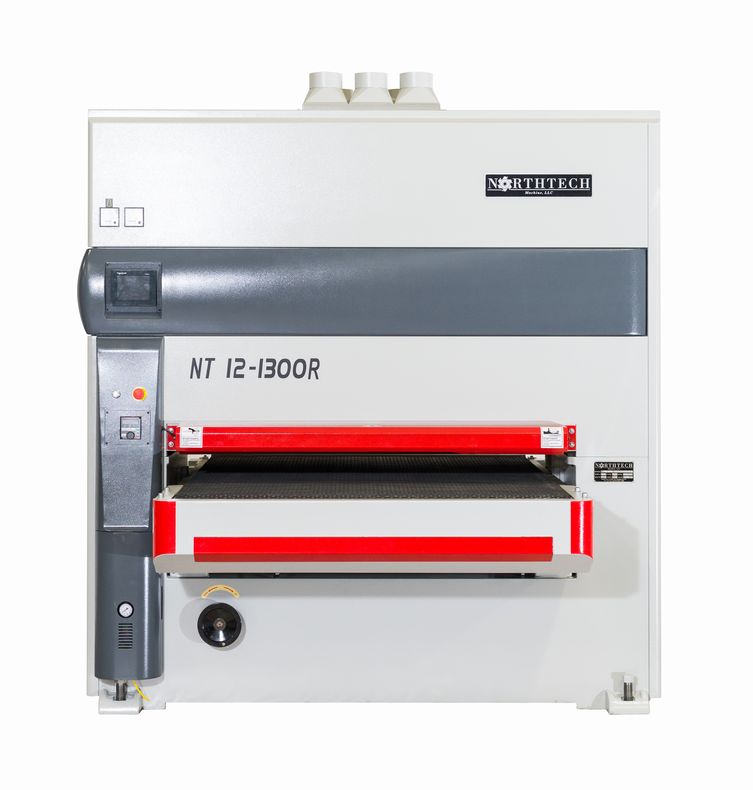

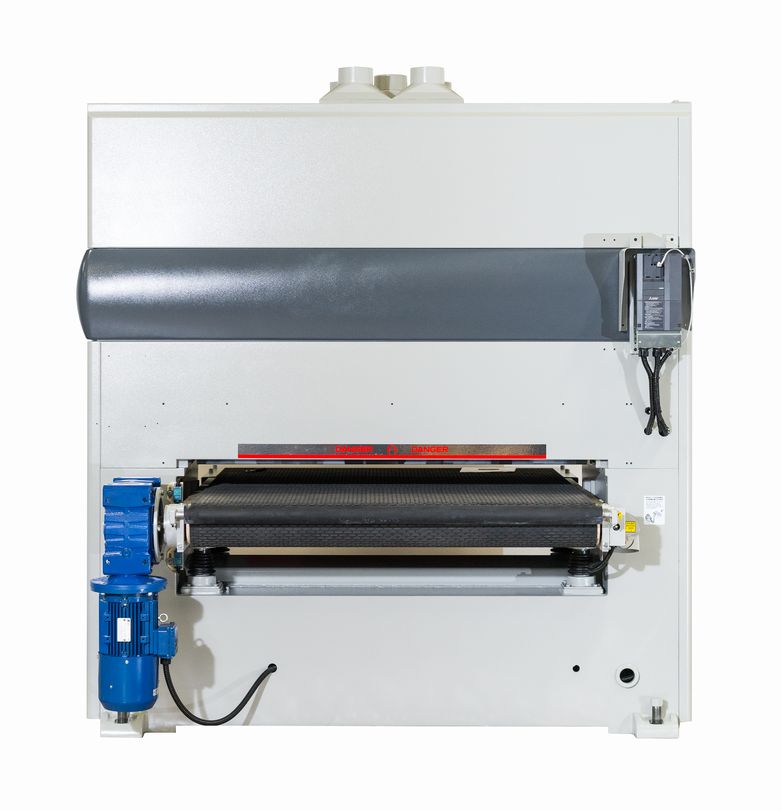

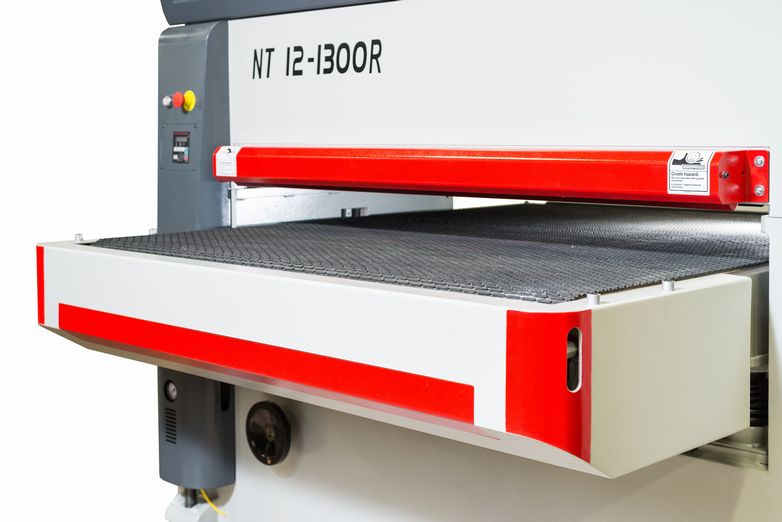

Northtech NT 12‑1300R Wide Belt Sander W/Brush Head
This is a very robust machine. With its larger diameter 12″ head and 40 hp main motor it is capable of powering thru material with ease. The second station is a cleaning brush.
For current product availability and our most competitive price delivered, please contact us using the “Request A Quote” button below. Due to vendor restrictions, we cannot always advertise our highly competitive pricing online.
Northtech NT 12-1300R
• Working Width: 51″
• Sanding Heads: (1) * (1) 12″ spiral fluted steel roller
• Sanding Belt Length: 103″
• Main Spindle Motor: 40HP
• Feed Motor: 3HP with Inverter
• Table Movement Motor (PLC Touch Screen): 1HP
• Configuration: Steel Roller
• Roller Diameter (in): 12″
• Size Of Sanding Belt: 53″ x 103″
• Feed Speed: 15 – 60 FPM
• Conveyor Speed Display: PLC Touch Screen
• Table Height 37″ / Table Lift 4.75″ by PLC Touch Screen
• Air Jet Cleaner: One Set
• (1) Brush Roller 1HP
• HZ & Voltage: 60HZ / 460V, 3PH
• Weight : 6,600 lbs.
• Dimensions: 84″L x 78″W x 99″H
• (1) Toolbox
• Warranty is one-year parts
• All machines are tested stateside prior to shipment providing trouble-free start-up.
Specifications:
- Main Motor Hp. = 40 hp.
- Machine Hp. = 45 hp.
- Voltage/ Freq. = 460 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 53 Amps
- Configuration = Spiral Fluted Steel Roller
- 1st Head = 40 Hp. 12” Spiral Fluted Steel
- Brush Motor Hp. = 1 Hp.
- Feed Hp. = 3 Hp.

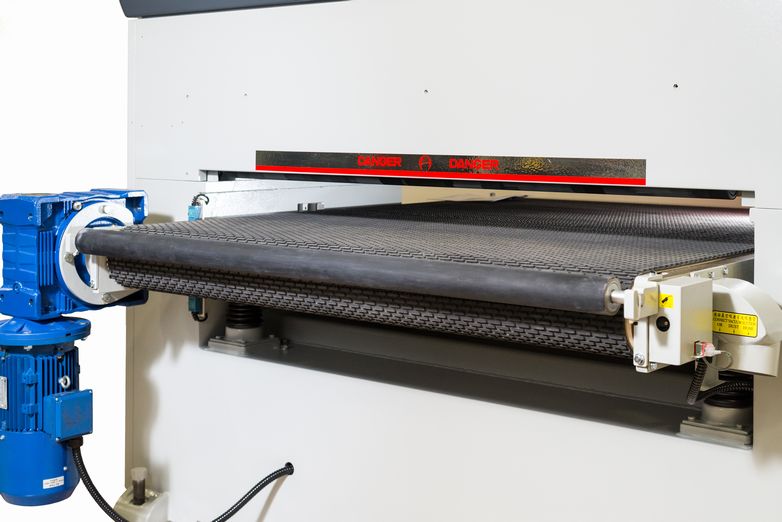

- Feed System = 51” Rubber Feed Mat
- Drive System = Gear Box Inverter Controlled
- Feed Speed = 15 – 60 FPM
- Variable Speed = Inverter Controlled
- Elevation Hp. = 1 Hp.
- Elevation Sys. = (4) Post Jack Screw
- Elevation Style = Auto Touch Screen Control
- Total Hp. = 45 Hp.
- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 230 Volt
- Programmable = Elevation
- Touch Screen = 8” Digital Touch Screen
- Min. Length = 16”
- Max. Width = 51”
- Min. Thickness = .196”
- Max. Thickness = 4-3/4”
- Sandpaper Size = 53” x 103”
- Roller Type = 12” Spiral 11/16 Flute Steel
- 1st Belt Speed = 4725 FPM
- Oscillation Sty = Pneumatic Controlled
- Oscillation Rte = 20 Cycles/Minute
- Oscillation Trv = 1/2”
- Cleaning System = Oscillating Jet Blow Off

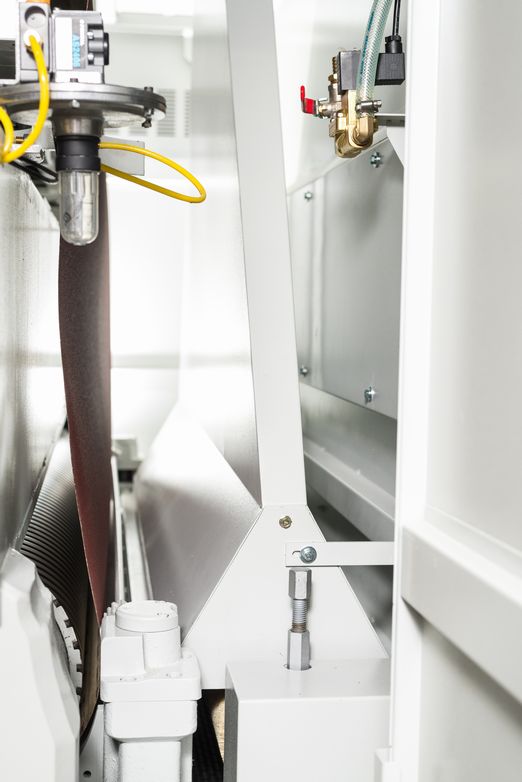

- Tracking Style = Pneumatic Dust Proof Eye
- Tension Style = Pneumatic

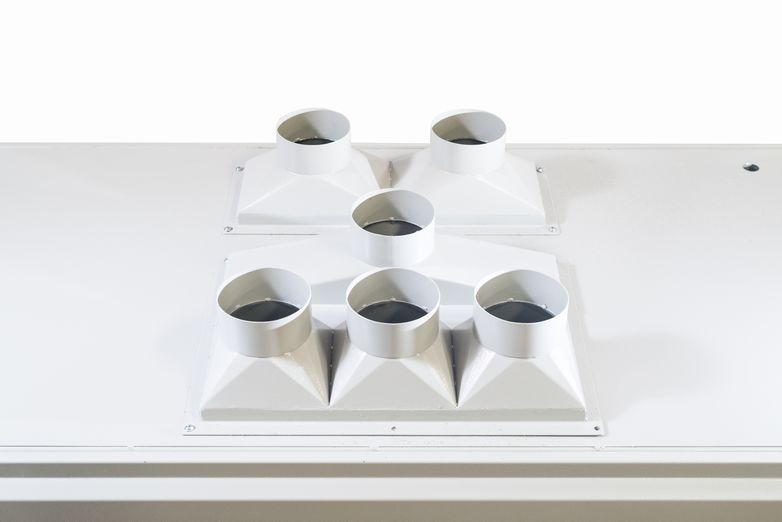

- Dust Collection = (6) 5” @ 5886 CFM
- Dust Port Out = 5”
- Digital Display = Touch Screen 8”
- Conveyor = Seamless
- Pressure Shoes = 5” x 51” Steel
- Hold Down Style = Pressure Shoes/Rubber Rollers
- FLR Included = Filter, Lubricator, Regulater
- Recommended CFM = 681 CFM @ Extraction Points
- Emergency Stop = (1) Push Putton (2) Bars

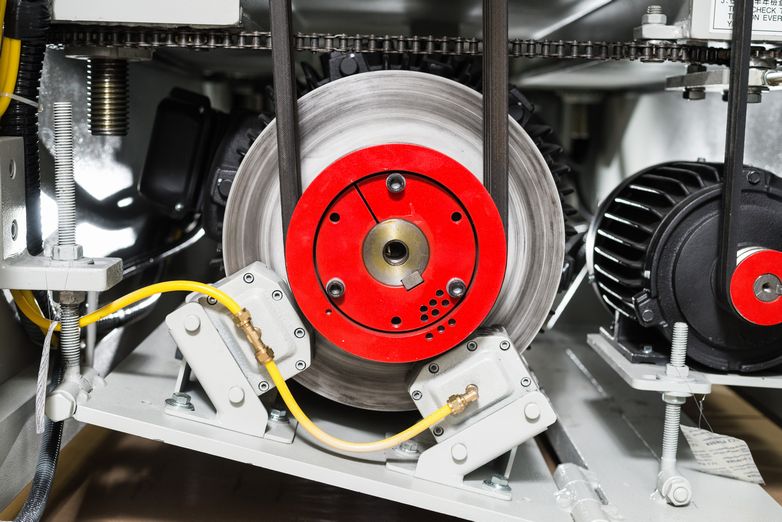

- Brake System = (3) Pneumatic Dual Caliper Dis
- Frame Const. = 1” Steel Construction
- Measure Meth. = Digital
- Surface Toler. = .019” – .039”
- Decible Rating = 75 dB
- Net Weight = 6600 Lbs.
- Gross Weight = 7480 Lbs.
- Machine Dims. = 88” x 74” x 92”
- Packaging Dims = 91” x 90” x 99”
