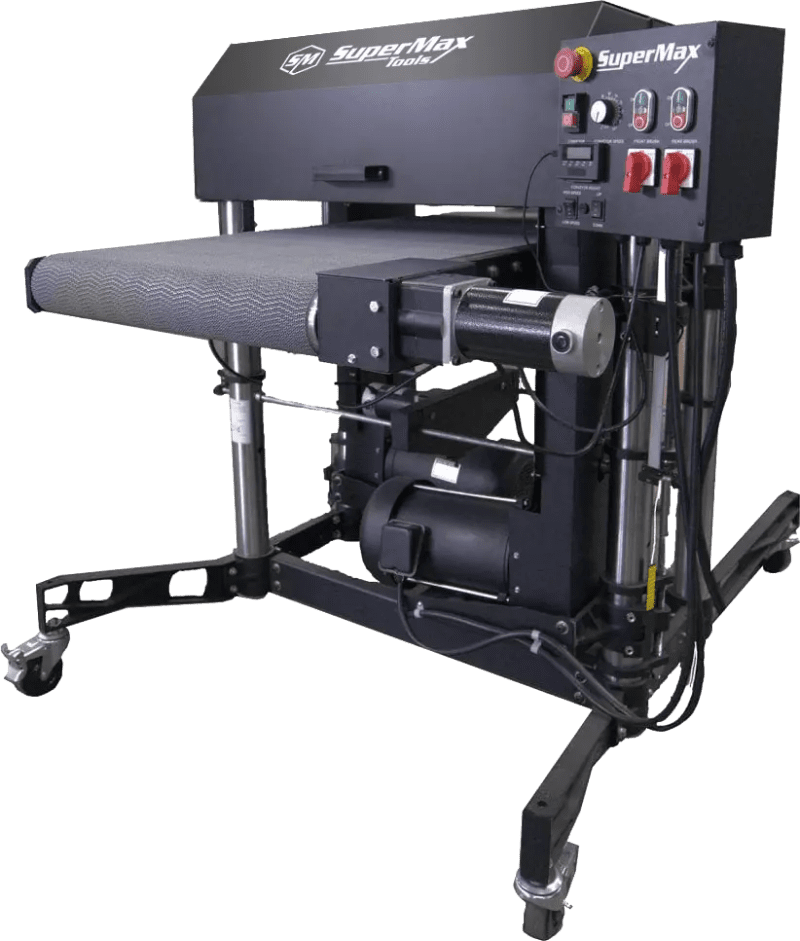

These easy to use machines come with an extremely low learning curve and offer many different features which include: quick change brush heads, infinitely variable brush and conveyor speeds to allow for endless finish possibilities, adjustable tension rollers to prevent stock slippage, and precision height adjustments. Our SuperBrush™ sanders come in sizes ranging from 24″ to 49″ with single and/or double brush head offerings to meet all your finishing needs.
Sanding Capacity
Maximum Width: 24″, 36″, or 49″
Minimum Length: 11″
Maximum Thickness: 9″, varies with brush style
Minimum Thickness: 1/32″, varies by application
Dimensions (H x W x D)
24″ model: 67″ x 46″ x 54″
36″ model: 67″ x 58″ x 54″
49″ model: 50″ x 71″ x 31″

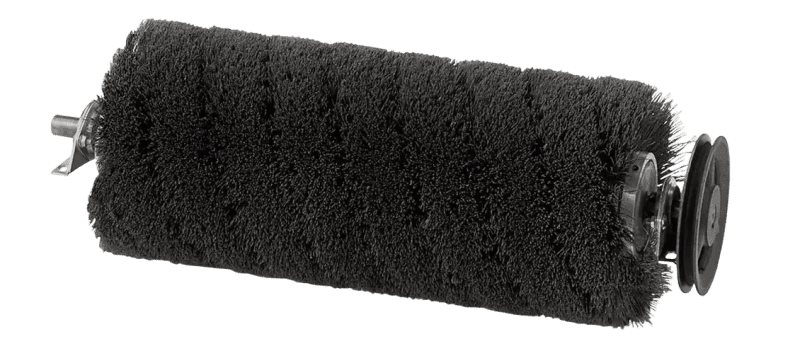

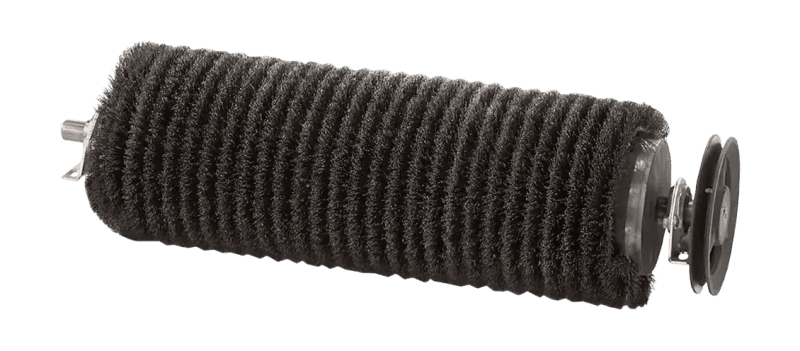

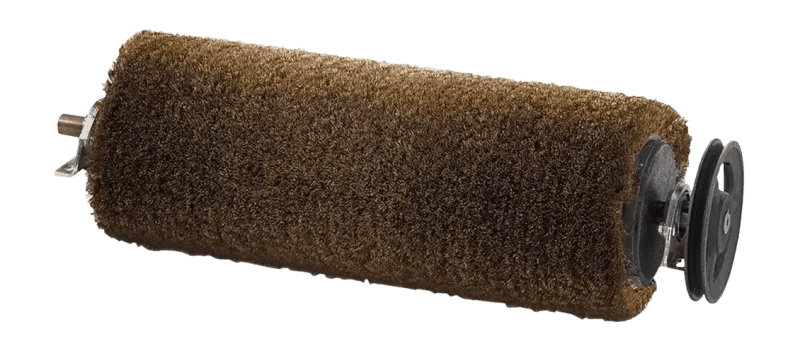

Brush
9″ – 12″ typical diameter
Typical Bristle Length
1-1/2″ – 3″
Speed
Ranged variable, 400-1200 RPM brush
Dust Hood
24″ model: Four (4), 4″ vacuum ports, 1800 CFM min.
36″ model: Six (6), 4″ vacuum ports, 1800 CFM min.
49″ model: Six (6), 4″ vacuum ports, 2400 CFM min.
Drive Motor (TEFC)
24″, 36″ models: (2) 7-1/2HP 49″ models: (2) 10HP
Power Requirements
24,″ 36″ models: 208-230V, 60HZ, 3 Ph, 20 amp service (2) 49″ model:208-230V, 60HZ, 3 Ph, 30 amp service (2)
Shipping Weight (lbs)
24″ model: 1100
36″ model: 1340
49 model: 1550
Conveyor Motor
220 in.-lb. torque, direct drive D.C. motor, ranged variable 0-30 FPM
