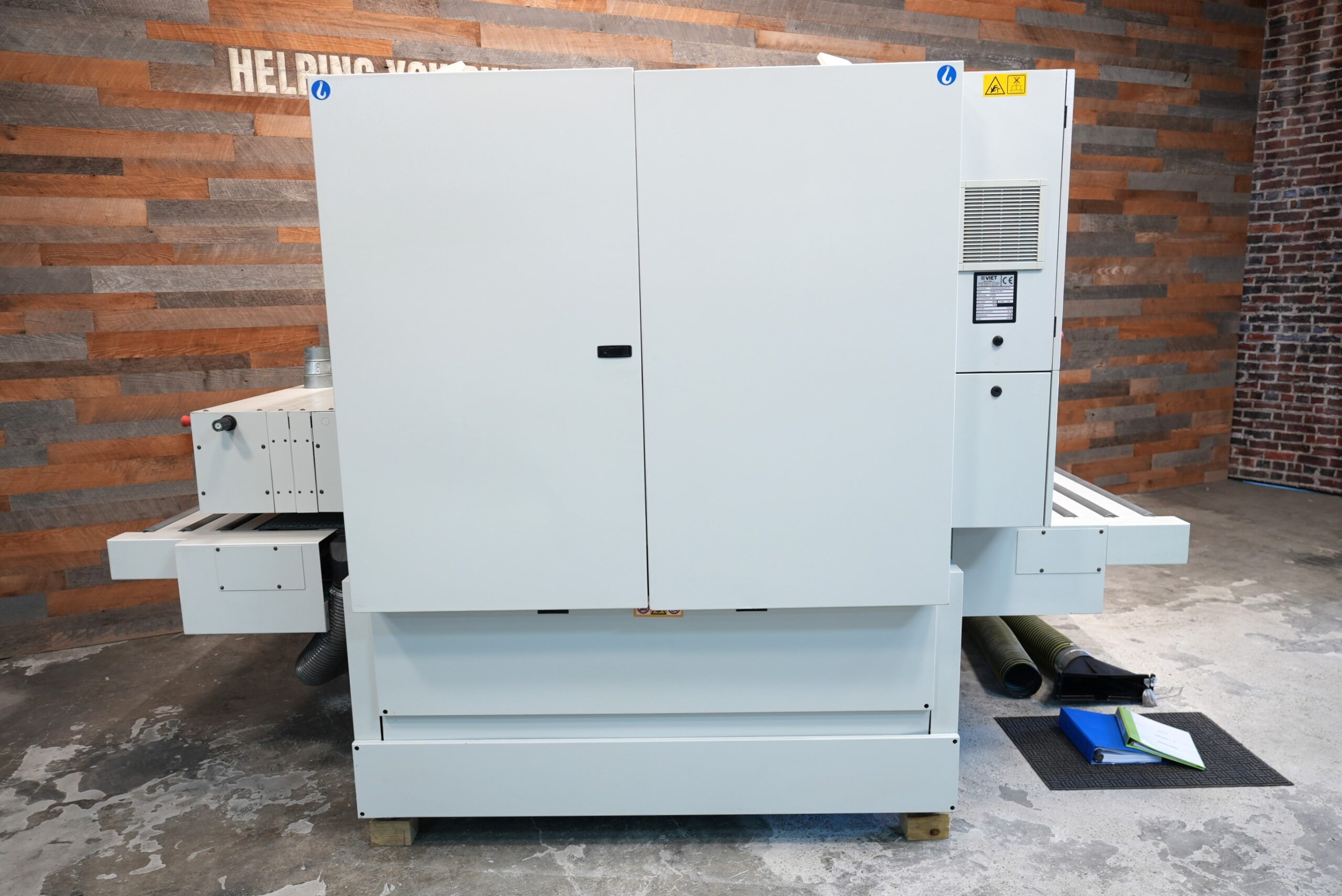

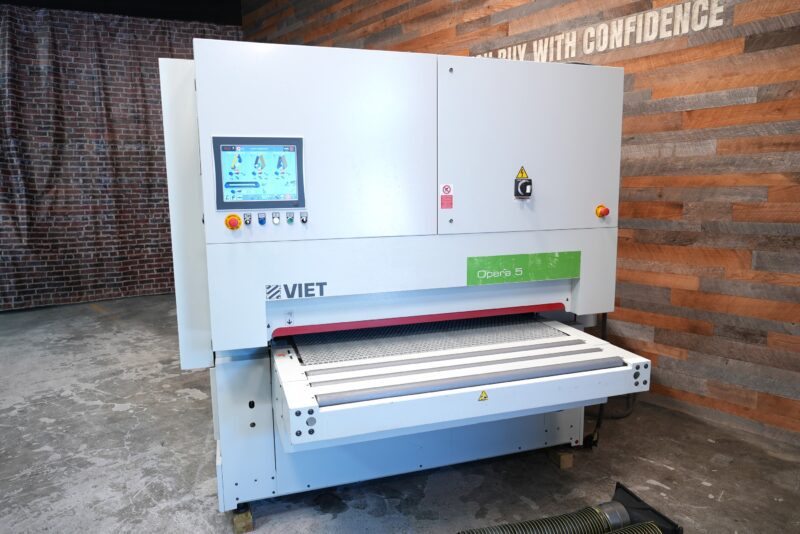

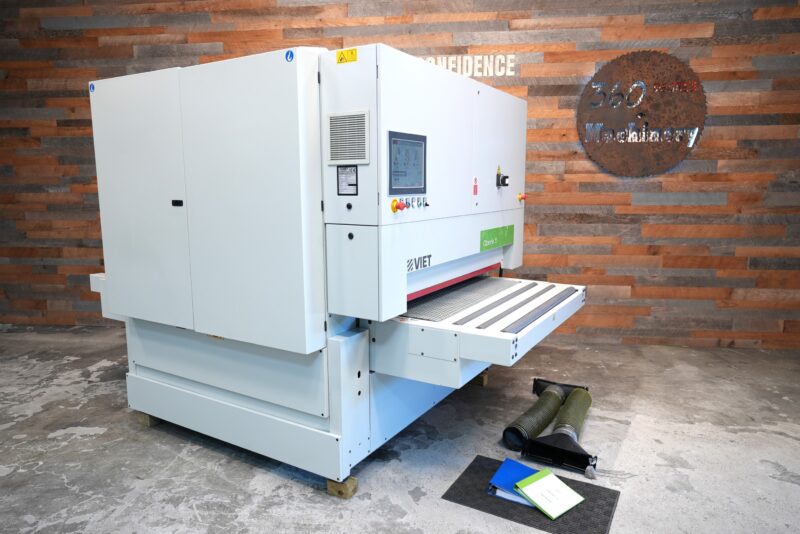

2017 Biesse Viet Opera 5 (3) Head 53″ Wide Belt Sander With (3) Segmented Platens

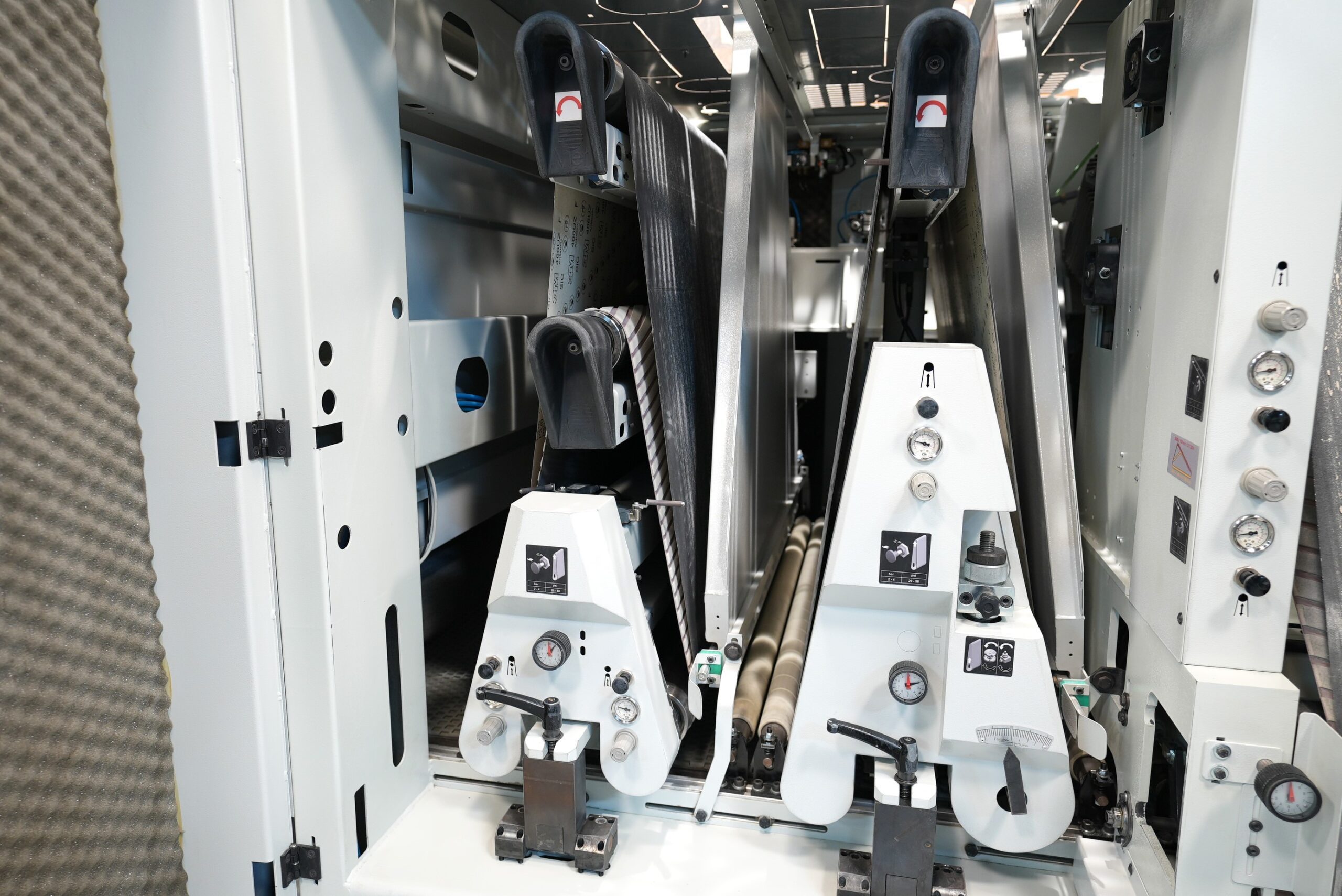

This 2017 Biesse Viet Opera 5-3.3 CKF 53″ wide calibrating sander has a total of 3,277 run (conveyor) hours. This is a very loaded, lower hour, very hard to find wide belt sander. This Opera does have a constant pass line with a 53″ width capacity and a 3 mm-200 mm or 7.87″ thickness capacity. To the right above the infeed of the machine is a digital thickness calibration unit. The first head is a variable speed (.2-16 m/s), segmented platen, 6″ wide cross belt with a chevron belt, powered by a 18.5 kw motor that also has air wands. The second head is a variable speed (3-13 m/s), segmented platen, 6″ helical grooved combination head, powered by a 22 kw motor that also has air wands. The third head is a variable speed (2.8-12.5 m/s), segmented platen head, with a chevron belt, powered by a 15 kw motor with air wands. The forth head is a Scotch-Brite head powered by a 1.1 KW motor after which you will find an an antistatic bar followed by air blowers. The vacuum bed is powered by a 4.6 kw blower that is located under the sander to save space. The feed-mat is powered by a 4 kw motor with variable speed via a VFD with feed speeds from 4 to 18 m/min. The feed-mat also has air wands underneath. All the controls on this Opera are up front via a touch screen.

This fully functional machine has been fully cleaned, checked, and is ready to work from the time you receive it. This is our guarantee to both you and your company.
