Spindle Arrangement
- 1st: Bottom horizontal: 7.5 HP, 6,000 RPM, 1-13/16″ spindle
- 2nd: Right vertical: 15 HP (Shared), 6,000 RPM, 1-13/16″ spindle
- 3rd: Left vertical: 15 HP (Shared), 6,000 RPM, 1-13/16″ spindle
- 4th: Top horizontal: 7.5 HP, 6,000 RPM, 1-13/16″ spindle
Feed System
- Feeding motor: 3 HP with inverter
- Elevation motor: 1/2 HP
- Feeding speed: 20 – 80 FPM
Product Dimensions
- Width: 10mm – 230mm (3/8″ – 9-1/2″)
- Thickness: 8mm – 170mm (5/16″ – 6-1/2″)
- Minimum length: 27″ Single-piece feed
Features:
- Infeed table length: 60″
- The table is hard chrome plated
- (2) Powered bed rollers
- (1 set) Moulder heads (Included)
- Horizontal: (2) 5″ x 9″; 4 wing, 1-13/16″ heads
- Vertical: (2) 5″ x 4″; 4 wing, 1-13/16″ heads
- Dust collection: (5) 125mm (5″) dust ports requiring
- 681 CFM @ each point of extraction
- Gross weight: 7,380 lbs.
- Gross weight: 7,900 lbs.
- Machine dimensions: (L) 120″ x (W) 77″ x (H) 74″
- Packing dimensions: (L) 140″ x (W) 82″ x (H) 93″
- (1) Toolbox
- Warranty is one-year parts
- All machines are tested at the factory prior to shipment providing trouble-free start-up.
Specifications:
- Reverse Motor = Feed Motor
- Voltage/ Freq. = 230/460 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 180/90 Amps
- Configuration = 4 Head
- Spindle Arrang. = Bottom Right Left Top
- 1st Spindle = 7.5 HP, 6,000RPM, 1-13/16″
- 2nd Spindle = 15 HP (Shared), 6,000RPM, 1-13/16″
- 3rd Spindle = 15 HP (Shared) , 6,000RPM, 1-13/16″
- 4th Spindle = 7.5 HP, 6,000RPM, 1-13/16″
- Spindle Diam. = 1-13/16”
- Spindle RPM = 6000 Rpm
- Under Nut Cap. = Horiz. 9-7/8” Vert. 7”
- Feed Hp. = 7.5 Hp.
- Feed System = Synchronized gearbox feed sys
- Drive System = Inverter controlled 7.5HP feed
- Feed Speed = 30 – 120 FPM
- Variable Speed = Inverter Controlled
- Reverse Feed = Yes
- Elevation Hp. = 1/2 Hp.
- Elevation Style = Up/Down Switch
- Elevation Sys. = Jack Screw / Gib System
- Total Hp. = 43 Hp.

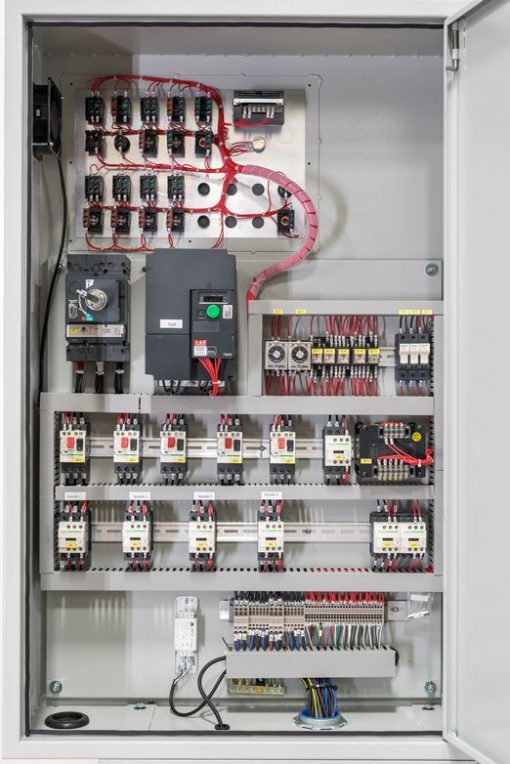

- Electronics = UL Approved Components
- Dual Voltage = 208/300 Volt
- Control Voltage = 110 Volt
- Pass-Line = 35”
- Min. Length = 27” Single Piece
- Min. Width = 3/8”
- Max. Width = 9-1/2”
- Min. Thickness = 3/8”
- Max. Thickness = 6-1/2”
- Roller Type = Steel / Rubber

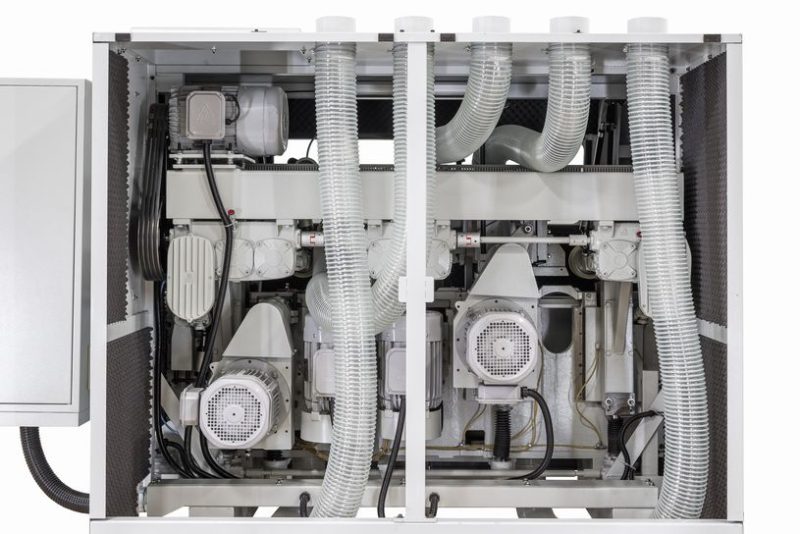

- Dust Collection = (5) 5” @ 3405 CFM Total
- Digital Display = Feed
- Powered Rollers = (12) 2” x 5-5/8”
- Idle Rollers = (2) 1” x 5-5/8”
- Pressure Shoes = (1) 7-1/8” X 8-3/4”
- Hold Down Style = Pressure Shoes/Rubber Rollers
- Emergency Stop = (2) Push Button
- Guarding = Full Cabinet Enclosure
- Grease Manifold = Remote Grease Manifold
- Oiler = Auto Oiler

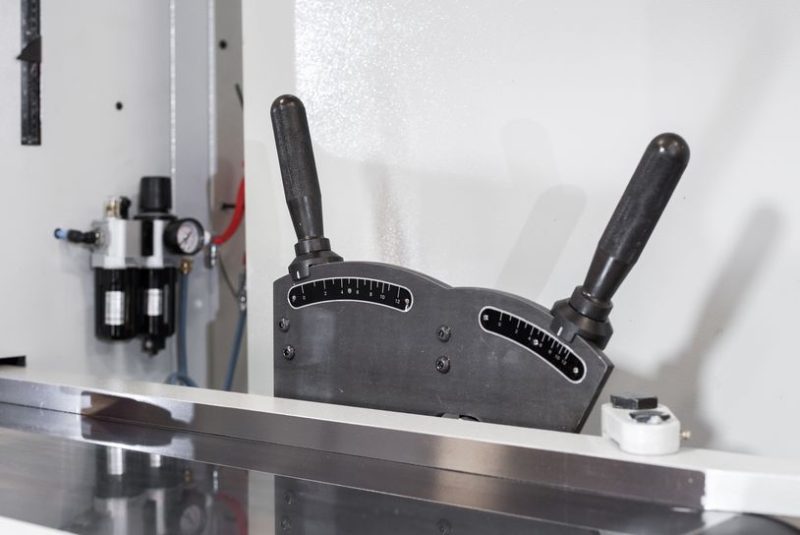

- Fence Type = Adjustable Fence
- Fence Dims. = 1” x 60”
- Frame Const. = Cast/Steel Construction
- Worktable Dims. = 10-3/4” x 117”
- Chrome Bed = .004” Chrome Plated Bed
- Noise Bed Fing. = Noise Reduction
- Measure Meth. = Siko Counter
- Decible Rating = 64 dB
- Net Weight = 7380 Lbs.
- Gross Weight = 7880 Lbs.
- Machine Dims. = 120” x 82” x 92-1/2”
- Packaging Dims = 140” x 82” x 92-1/2”
