Northtech NT N6230 Six-Spindle Moulder
*All Northtech moulders are highly customizable. Many options, including digital positioning control, additional feed rollers, and feed magazines are available. We are unable to maintain a complete updated list online. Please click the “Request A Quote” button below the description for more information and tell us about your needs!

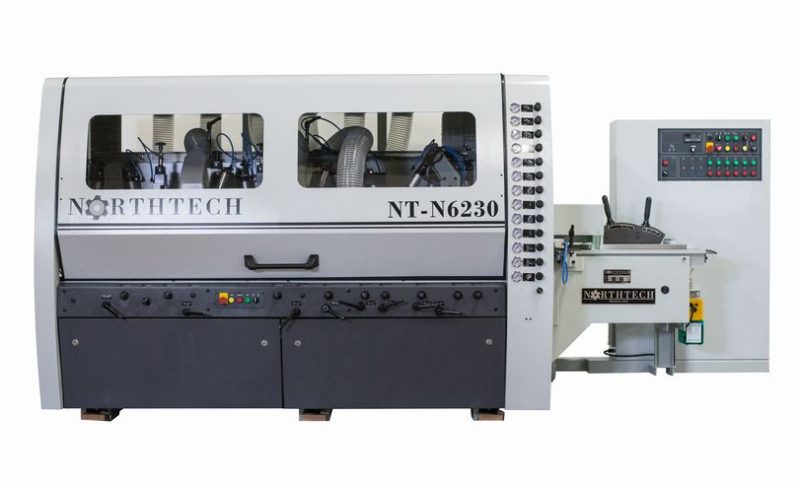

This is Northtech’s NT N6230 six-spindle four-side moulder, featuring two (2) 15 HP top spindles, two (2) 15 HP bottom spindles, and 10 HP vertical spindles on both left and right sides. One (1) complete set of 5″-diameter four-wing cutter heads is included to get you set up and producing quicker. The 7.5 HP feed system with twelve (12) powered rollers [nine top + three bottoms] delivers inverter-controlled feed-rates up to 120 FPM allowing you to strike an optimal balance between operator- and machine-cycle time to minimize wasteful wait time amid operations. A full enclosure, six (6) 5″-inch dust collection ports, optional spindle brakes, motorized elevation control, and unique noise-dampening fingers further protect worker health and safety.
ⓘ Unlock Your Best Price!
By clicking the button below, you'll receive personalized pricing tailored to your needs, including available discounts and accurate shipping costs. We're committed to offering you the best value, but some of our special rates can't be displayed online.Don't miss out – request your quote now!
Spindle Arrangement
- 1st: Bottom horizontal: 15HP, 6,000 RPM, 40mm spindle
- 2nd: Right vertical: 10HP, 6,000 RPM, 40mm spindle
- 3rd: Left vertical: 10HP, 6,000 RPM, 40mm spindle
- 4th: Top horizontal: 15HP, 6,000 RPM, 40mm spindle
- 5th: Top horizontal: 15HP, 6,000 RPM, 40mm spindle
- 6th: Bottom horizontal: 15HP, 6,000 RPM, 40mm spindle
Feed System
- Feeding motor: 7-1/2 HP with inverter
- Elevation motor: 1/2 HP
- Feeding speed: 20 – 120 FPM
Product Dimensions
- Width: 10mm – 230mm (3/8″ – 9-1/2″)
- Thickness: 8mm – 170mm (5/16″ – 6-1/2″)
- Minimum length: 300mm (12″)
Features:
- Infeed table length: 1300mm (51″)
- Table is hard chrome plated
- (3) Powered bed rollers
- (1) Auxiliary short stock roller
- (1 set) Moulder heads
- Horizontal: (4) 5″ x 9″; 4 wing, 40mm heads
- Vertical: (2) 5″ x 4″; 4 wing, 40mm heads
- Dust collection: (6) 125mm (5″) dust ports requiring 681 CFM @ each point of extraction
- Net weight: 9,039 lbs.
- Gross weight: 10,362 lbs.
- Machine dimensions: (L) 150″ x (W) 83″ x (H) 84″
- Packing dimensions: (L) 168″ x (W) 76″ x (H) 71″
- (1) Toolbox
- Warranty is one-year parts
- All machines are tested at the factory prior to shipment providing trouble-free start-up.
Specifications:
- Reverse Motor = Feed Motor
- Machine Hp. = 88 Hp.
- Voltage/ Freq. = 230/460 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 210/105 Amps
- Spindle Arrangement = Bottom Right Left Top Top Bottom
- 1st Spindle = 15HP, 6,000 RPM, 40mm spindle
- 2nd Spindle =10HP, 6,000 RPM, 40mm spindle
- 3rd Spindle = 10HP, 6,000 RPM, 40mm spindle
- 4th Spindle = 15HP, 6,000 RPM, 40mm spindle
- 5th Spindle = 15HP, 6,000 RPM, 40mm spindle
- 6th Spindle = 15HP, 6,000 RPM, 40mm spindle
- Spindle Diam. = 40 mm
- Spindle RPM = 6000 Rpm
- Under Nut Cap. = Horiz. 9-7/8” Vert. 7”
- Feed Hp. = 7.5 Hp.
- Feed System = Synchronized gearbox feed sys
- Drive System = Inverter-controlled 7.5HP feed
- Feed Speed = 20 – 120 FPM
- Variable Speed = Inverter Controlled
- Elevation Hp. = 1/2 Hp.
- Elevation Style = Up/Down Switch
- Elevation Sys. = Jack Screw / Gib System
- Total Hp. = 88 Hp.
- Electronics = UL Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 220V Control Voltage
- Assisted Start = Wye-Delta 15 Hp Heads
- Pass-Line = 35-1/2”
- Min. Length = 12”
- Min. Width = 3/8”
- Max. Width = 9-1/2”
- Min. Thickness = 5/16”
- Max. Thickness = 6-1/2”
- Roller Type = Steel / Rubber
- Dust Collection = (6) 5” @ 5886 CFM
- Digital Display = Feed
- Powered Rollers = 9 Top 3 Bottom Powered Rollers
- Pressure Shoes = (2) 7-1/8” x 8-3/4”
- Hold Down Style = Pressure Shoes/Rubber Rollers
- Emergency Stop = (2) Push Button
- Guarding = Full Cabinet Enclosure
- Grease Manifold = Remote Grease Manifold
- Oiler = Auto Oiler
- Fence Type = Adjustable Fence
- Fence Dims. = 1” x 53-1/4”
- Brake System = Air Brakes On Motors
- Frame Const. = Cast/Steel Construction
- Worktable Dims. = 10-7/8” x 136”
- Chrome Bed = .004” Chrome Plated Bed
- Noise Bed Fing. = Noise Reduction
- Measure Meth. = Siko Counter
- Decible Rating = 76 dB
- Net Weight = 9039 Lbs.
- Gross Weight = 10800 Lbs.
- Machine Dims. = 158” x 75” x 71”
- Packaging Dims = 163” x 83” x 84”
