Northtech NT EM250 Linear End-Matcher

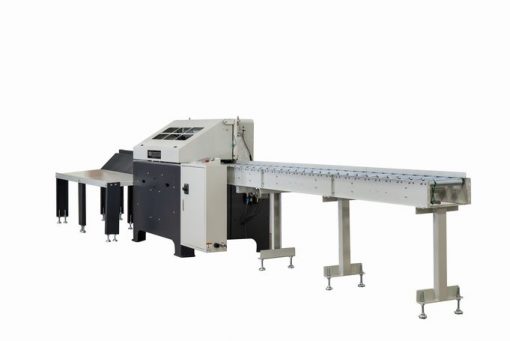

The Northtech NT EM250 fully automatic PLC touchscreen-controlled linear end-matcher features dual 5 HP motors powering the carbide-insert tongue and groove cutter heads, and comes with a 134″ powered infeed table and 88″ outfeed with dual-action pneumatic clamping and powered urethane rollers. The variable-speed feed system is fully adjustable between 80 and 400 feet per minute to keep up with large workloads. The machine is able to easily process material up to 10″ (W) by 1-3/8″ (H) with a minimum length of 11″.
ⓘ Unlock Your Best Price!
By clicking the button below, you'll receive personalized pricing tailored to your needs, including available discounts and accurate shipping costs. We're committed to offering you the best value, but some of our special rates can't be displayed online.Don't miss out – request your quote now!
Mechanical:
- Dual 5HP spindle motors 230, 3PH, 60 HZ
- 12 CFM @ 90 PSI required
- (1) 6” dust ports requiring 981 CFM @ point of extraction
Product Information:
- Width: 1-1/2” – 10”
- Thickness: 3/8” – 1-3/8”
- Length: 11” – unlimited
- Maximum Weight of Lumber: 32lbs
Features:
- 40mm spindles inside precision bearing
- 1HP PLC controlled feed system manages spindles position, part location and both infeed and outfeed hold downs
- Feed Speed: 80 – 400 FPM
- Pancake style T & G head, utilize carbide insert replacements for exacting repeatability (Included)
- Dual linear shaft guides for head movement
- Touchscreen interface with production tracking
- Chrome-plated table
- 134” Powered infeed and 88” outfeed
- Infeed and outfeed with dual action clamping system with (5) powered urethane rollers
- (3) Spring loaded bed rollers
- FLR included
- Fully automatic cycle operation
- Processing speed: 75’ / minute *Based on 6’ material length
- Net weight: 2,559 lbs.
- Machine dimensions without infeed / outfeed: (L) 72″ x (W) 33″ x (H) 55″
- Packing dimensions: (L) 78″ x (W) 39″ x (H) 63″
- (1) Toolbox
- Warranty is one-year parts
- All machines are tested stateside prior to shipment providing trouble-free start-up.
Specifications:
- Main Motor Hp. = 5 hp. x 2
- Machine Hp. = 12.5 hp.
- Voltage/ Freq. = 230 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 39 Amps
- Configuration = Toungue
- Spindle Arrang. = Groove
- 1st Spindle = 40mm 7400 Rpm Toungue
- 2nd Spindle = 40mm 7400 Rpm Groove
- Spindle Length = 5”
- Spindle Diam. = 40 mm
- Spindle RPM = 7400 Rpm
- Under Nut Cap. = 4-1/4”
- Feed Hp. = 1 Hp.
- Feed System = (5) 5-1/2” Poly Wheels
- Drive System = Gear Driven
- Feed Speed = 80 – 400 FPM
- Variable Speed = Programmable Feed Speed
- Elevation Style = Pneumatic
- Elevation Sys. = Pneumatic Cylinders
- Total Hp. = 12.5 Hp.
- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 24 Volt Control Voltage
- Programmable = Feed/Head Speed
- Touch Screen = 5-1/2” Touch Screen
- Pass-Line = 35-3/4”
- Min. Length = 10.63”
- Min. Width = 1-1/2”
- Max. Width = 10”
- Min. Thickness = .393”
- Max. Thickness = 1.375”
- Tooling = Tongue/Groove Insert Head
- Rows of Cutters = 8 Rows
- No. of Inserts = 48 Total Inserts
- Roller Type = 5-1/2” Poly Rollers
- Dust Collection = (1) 6” @ 981 CFM
- Dust Port Out = (1) 6”
- Cycles/Minute = 78 FPM on 6′ Material
- Conveyor = Powered Infeed Conveyor
- Powered Rollers = (5) 5-1/2” Powered Rollers
- Idle Rollers = (3) Idle Bed Rollers
- Hold Down Style = Pneumatic Rollers
- Total Clamps = (2) Clamps
- FLR Included = Filter, Lubricator, Regulator
- Recommended CFM = 3/8” Supply Line @ 90 Psi
- Emergency Stop = Push Button
- Guarding = Full Cabinet Enclosure
- Operation Style = Touch Screen Control
- Fence Type = Fixed Fence
- Frame Const. = 3/16” Steel Construction
- Worktable Dims. = 23-1/2” x 55-1/4”
- Table Const. = Steel
- Infeed Table = 133-1/2” Infeed
- Outfeed Table = 87-1/2” Outfeed
- Chrome Bed = .004” Chrome Plated Bed
- Measure Meth. = Precision Encoder
- Auto Cycle = Yes
- Decible Rating = 76 dB
- Net Weight = 2559 Lbs.
- Gross Weight = 2734 Lbs.
- Machine Dims. = 292-1/2” x 33-1/2” x 62”
- Packaging Dims = 78” x 39” x 63”
