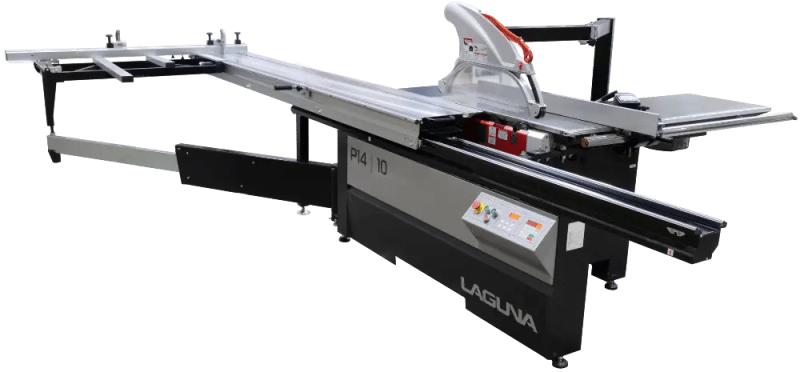

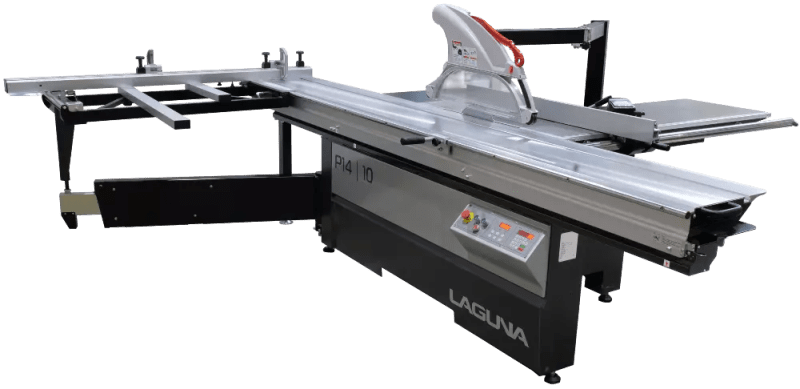

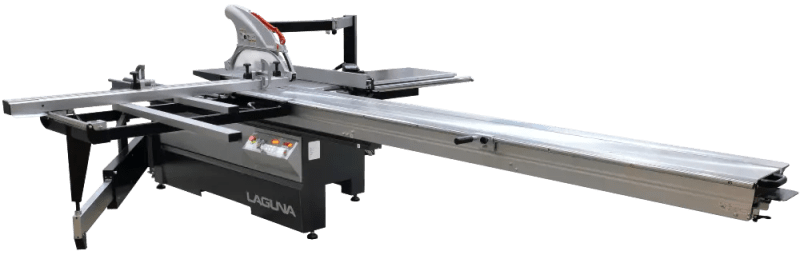

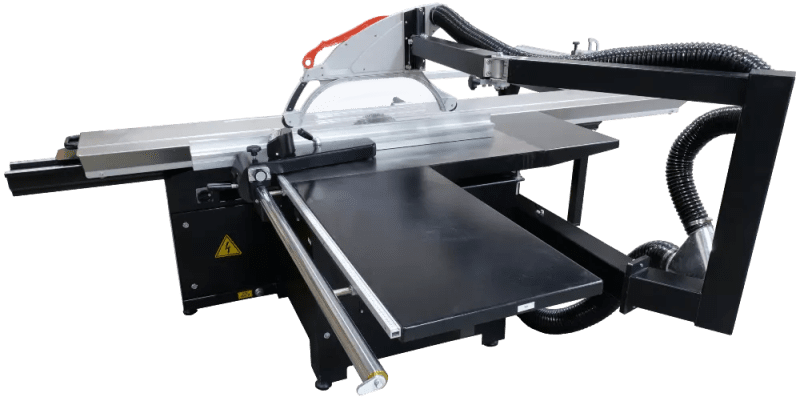

Laguna Tools P14|10 Panel Saw

$17,995.00

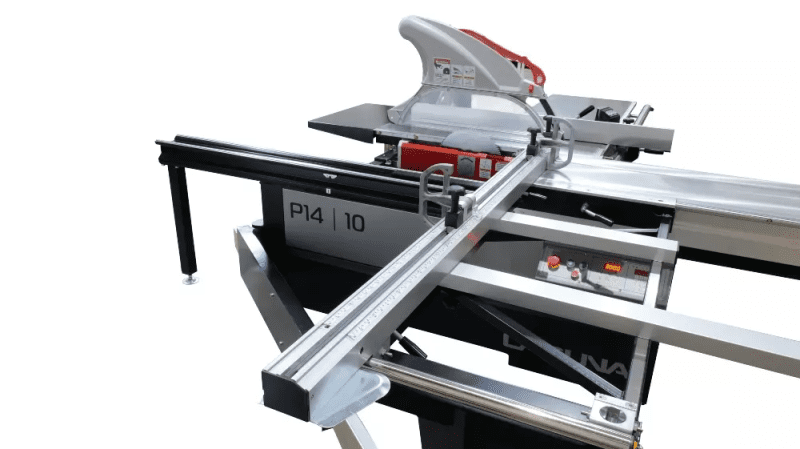

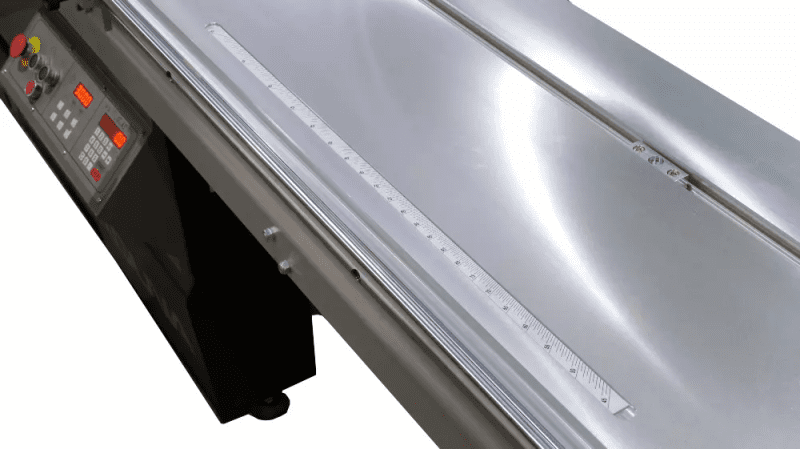

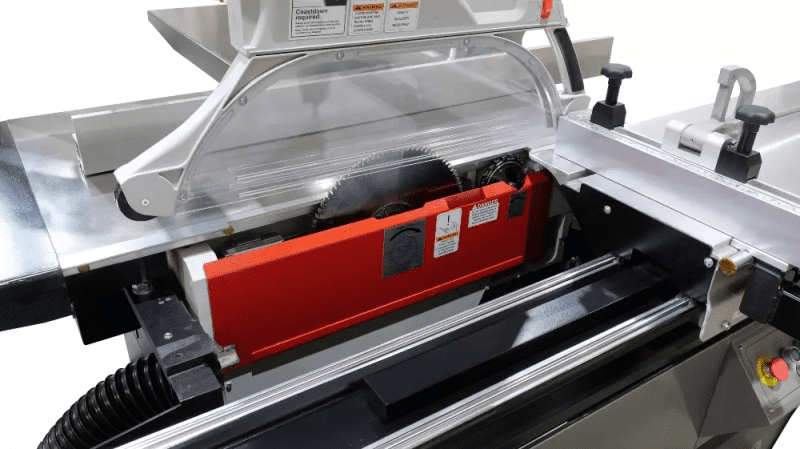

The sliding table is constructed of anodized aluminum. The dumbbell design is widely recognized as the superior choice for high-end sliders today. Ultra-smooth movement allows you to move the table effortlessly. The European-style 51″ rip fence consists of a heavy-duty casting riding on a micro-polished solid steel bar. On the backside of the casting is a small adjustable wheel to make sideways movement a breeze. The rip fence is outfitted with a micro-adjustment for fine-tuning; simply lock it in place and adjust the fence incrementally. The overhead guard comes standard with quick-change 90° and 45° guards; you can switch from one to the other in a matter of seconds. A nice detail is the swing-away function that allows you to quickly move the guard out of the way.

Features:
  • Max Main Saw Blade: 14″
  • Sliding Table Capacity: 10′ 6″
  • Motor Power: 7.5HP 220V/ 60Hz/ 3Ph
Guaranteed Safe Checkout

Credit

Laguna Tools P14|10 Panel Saw
Laguna Tools P14|10 Panel Saw
$17,995.00
Request a call back
(*Optional)

Sliding Table Capacity: 10′ 6″

Max Main Saw Blade: 14″

Max Cutting Height w/ Blade at 90°: 4-3/4″

Max Cutting Height w/ Blade at 45°: 2-3/4″

Main Motor Power: 7.5HP 220V/ 60Hz/ 3Ph

Main Saw Speed: 3000/4000/5000 RPM

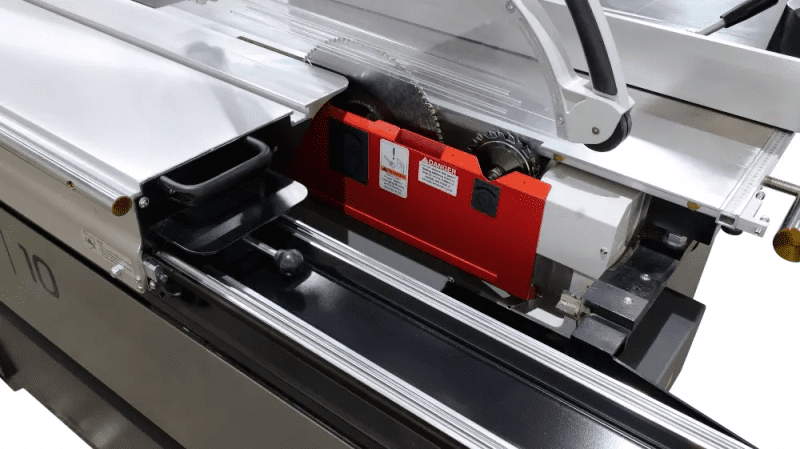

Scoring Saw Blade: Ø120mm

Scoring Saw Blade Bore: Ø20mm

Scoring Blade Speed: 8000 RPM

Scoring Motor Power: 1HP

Max Rip Capacity: 51″

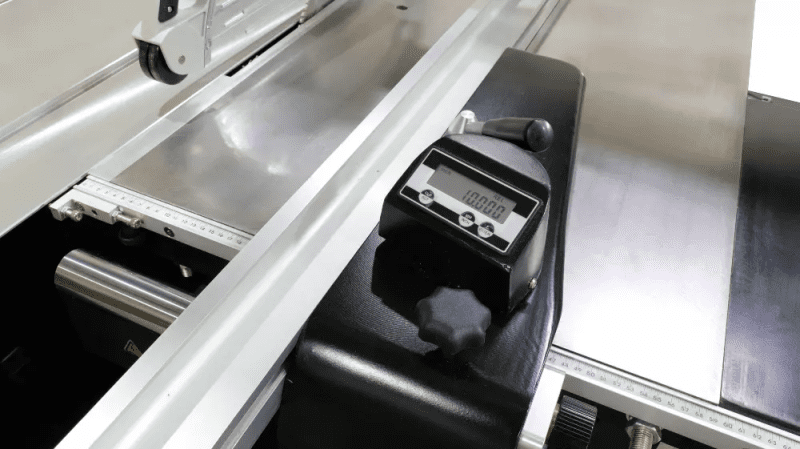

Manual Control For Cutting Width Adjustment w/ DRO

Digital Control For Saw Blade Tilting Adjustment

Motorized Control For Main Saw Blade Height Adjustment

Motorized Control For Scoring Saw Height Adjustment

Motorized Control For Scoring Saw +/- Direction Adjustment

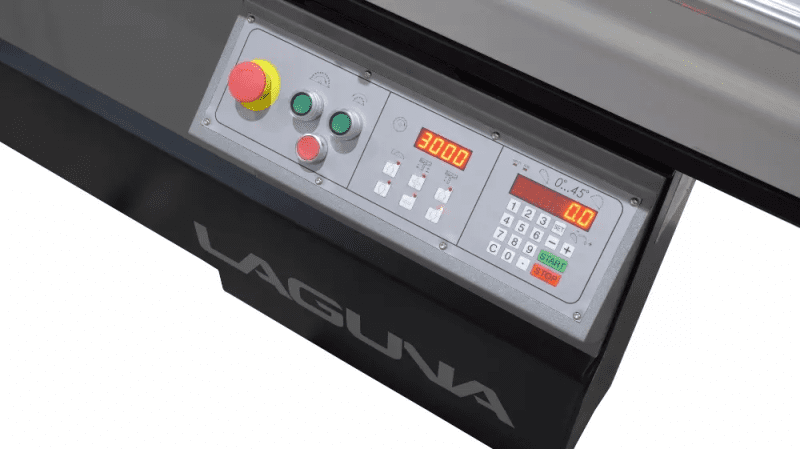

Digital Display For Blade Tilting Angle

Digital Display For Main Blade Speed RPM
