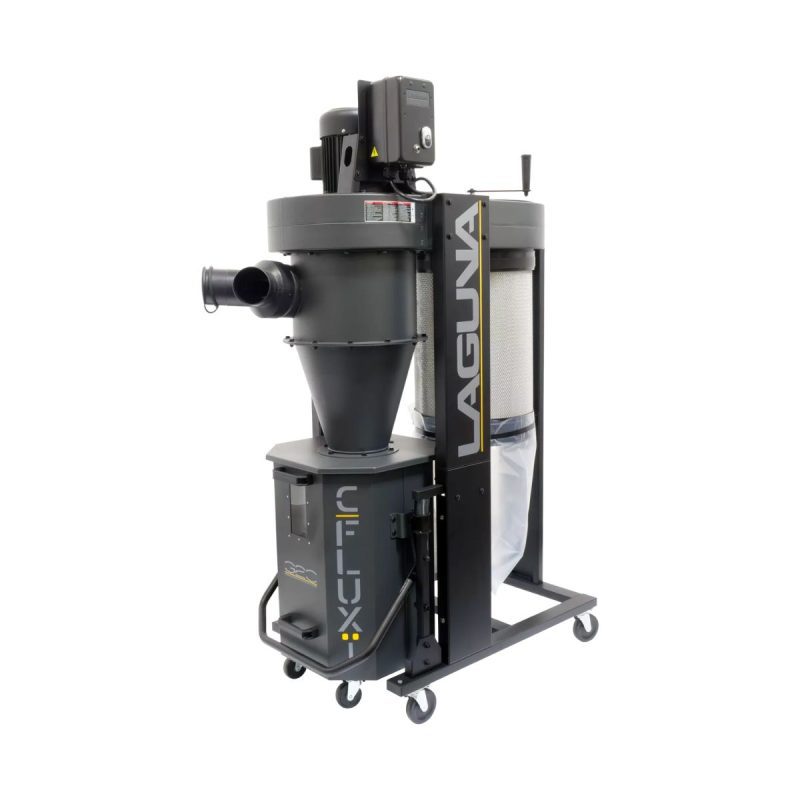

Laguna Tools C|Flux: 1 Dust Collector

$1,799.10

For the popular C|Flux cyclone dust collectors, we’ve kept the user-friendly aspects of the previous generation while adding smart new features to improve the user experience. Among the upgrades is a dual-paddle filter cleaning design, and a max level indicator to increase filter longevity. The iconic octagonal drum grows to an impressive 46-gallon capacity on the C|Flux 2 and 3 models, and the newly redesigned 3-piece drum construction requires far fewer joints and fasteners cutting assembly time, while the locking casters provide additional stability.

Features:

1.5 HP Motor
1314 CFM Maximum Air Flow
25 Gallon Octagon Drum

Description

Motor Specs: 1.5HP

Electrical Specs: 110V/220V / 60Hz / 1PH / 3450 RPM

Running AMP: (with 6″ inlet) 18.8A at 110V; 9.4A at 220V

Maximum Air Flow: 1314 CFM (Cubic Feet Per Minute)

Shop Setting Air Flow*: 900CFM

Max Static Pressure: 10.1″

Fan Size: 13.5″

Inlet: One 6″ or Two 4″ Ports

Remote Control: High Frequency

Collection Capacity: 25 Gallon Octagon Drum

Decibel Reading: 82 dB (@9.8ft)

Assembled Dimensions (L x W x H): 42″ x 25″ x 68″

Packing Size (L x W x H): 45″ x 28.3″ x 47″ (114.5 x 72 x 119.5 cm)

Machine Weight: 232 lbs. (105 kg)

Shipping Weight: 287 lbs. (130 kg)

Filter Specs

Filtering Area: 48.4 sq/ft (4.5 sq/m)

Cartridge Filter: 1 Micron, 15.74″ x 19.68″ (40 x 50 cm) x 1pc

* Shop Setting Air Flow measured with hoses connected to inlet. See Performance tab for more details.
