Northtech NT 2ST-15XL 2-Stage 15 HP Dust Collector
Cutting, sanding, and shaping create large amounts of dust, shavings, and other waste that can cause severe health and safety issues if not dealt with properly. Insufficient and ineffective dust-collectors also affect the machines they’re connected to, leading to decreased performance, lower productivity, increased maintenance, and costly repairs. Upgrading your shop with a Northtech dust collector is a simple and affordable step toward protecting your business, your health, and your bottom-line.

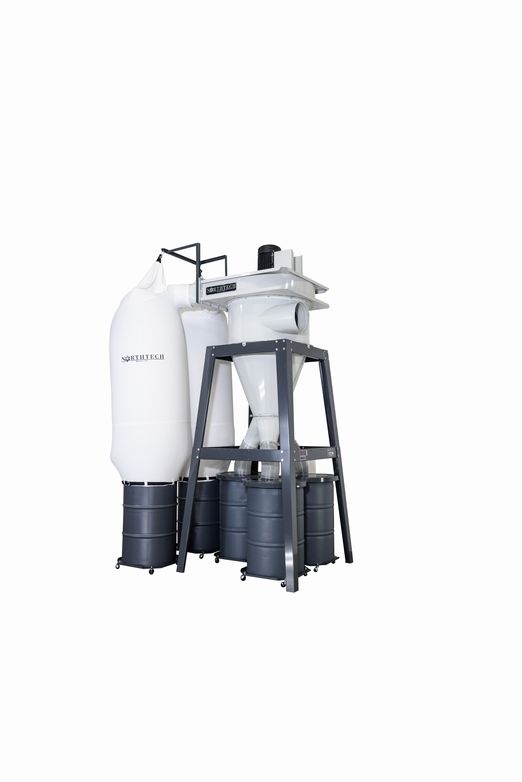

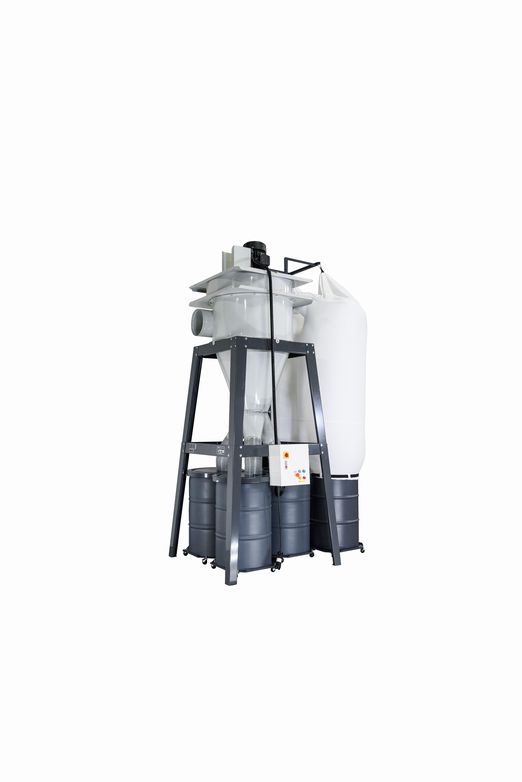

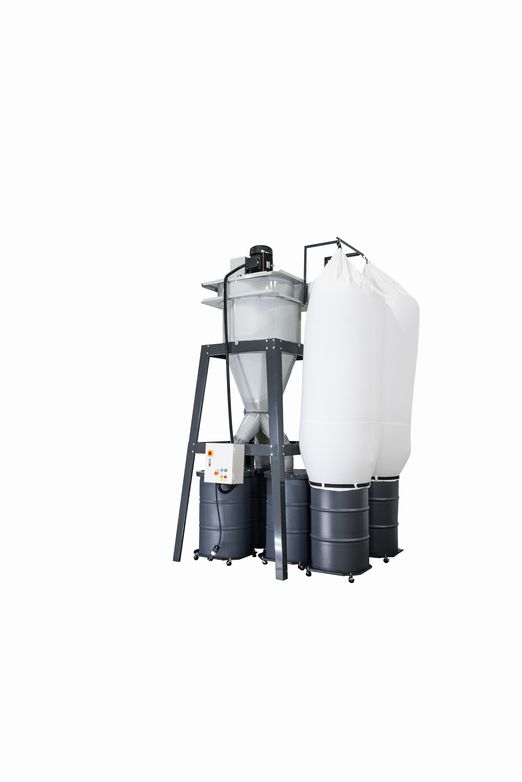

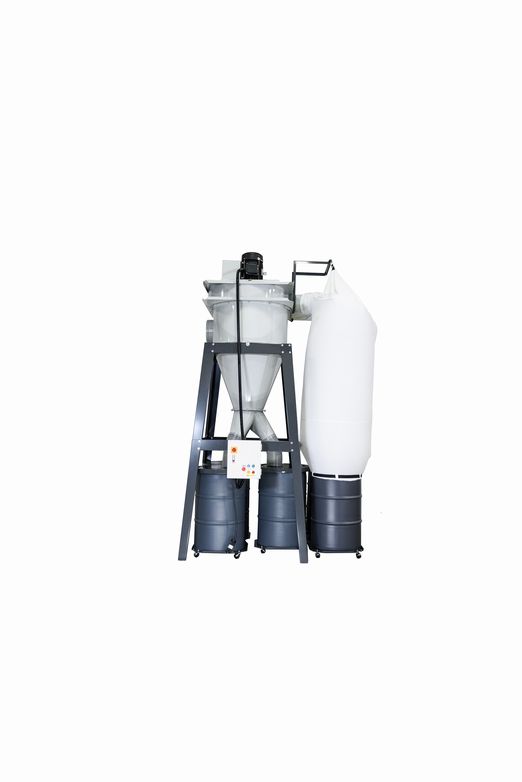

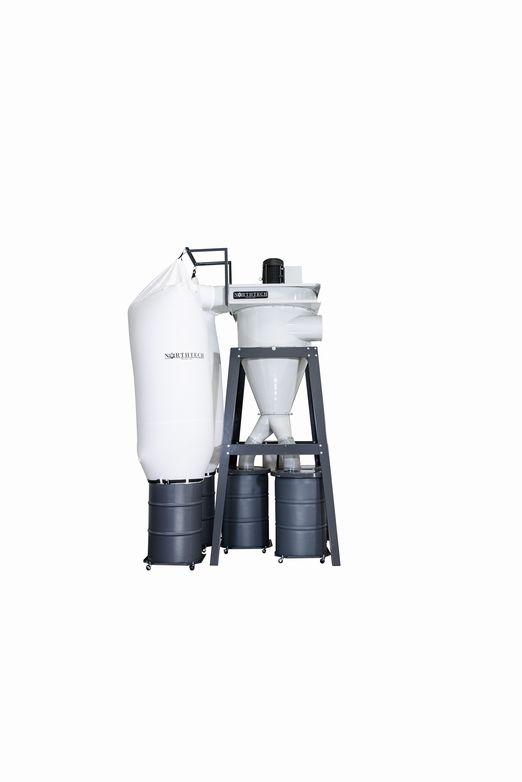

This two-stage dust collector from Northtech uses cyclonic separation to remove larger waste particles from the airstream before sending it to the filter bags, improving efficiency and effectiveness. The 12″ inlet and dual 10″ outlet dust ports help maintain the air velocity and CFM produced by the substantial 15 HP three-phase motor and large 25″ steel impeller. This system includes three (3) 55-gallon drum lids and five (5) drum dollies to get you set-up faster and simplify routine maintenance.
Contact us today for help choosing the best dust collector for your shop!
ⓘ Unlock Your Best Price!
Request a tailored quote now to get our best pricing for your needs, including any special discounts and accurate shipping costs!
Features:
- 2 Stage filtration
- Large diameter cyclone
- 15HP, 3PH
- Inlet diameter: 12”
- Air delivery: 6,200 CFM
- Airspeed: 7,800 FPM

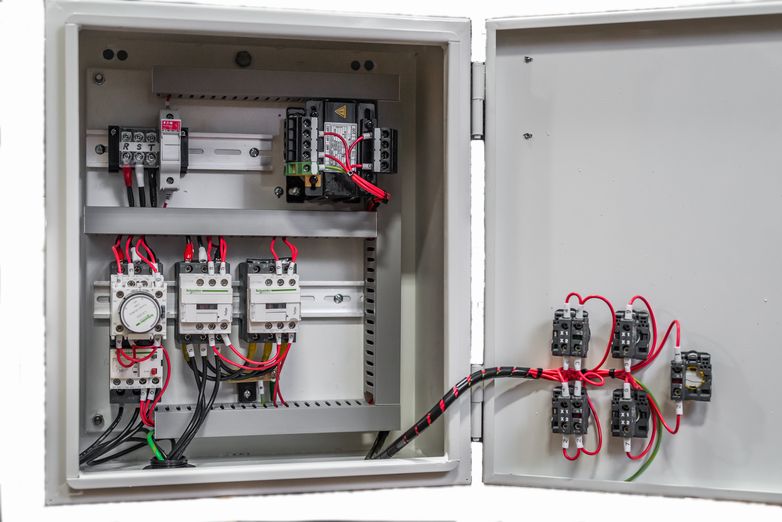

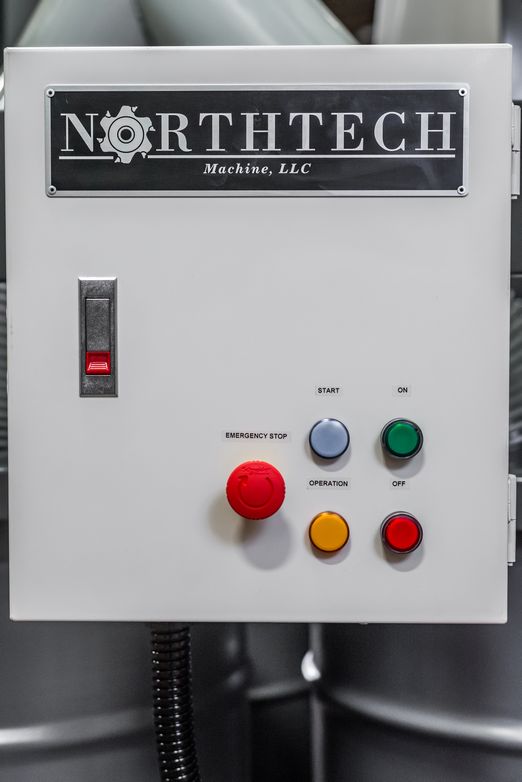

- Centralized controls inside dust proof enclosure
- (2) 10” x 24” x 90-1/2” Filter bags

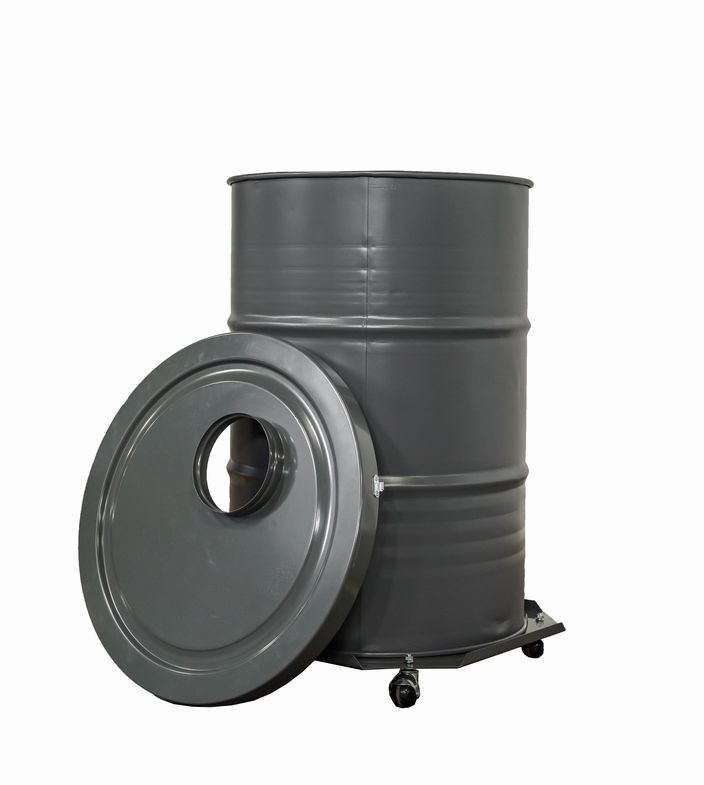

- (5) 55-gallon drum dollies included
- (3) 55-gallon drum lids included
- (1) Toolbox
- Machine weight N.W./G.W.: 1000/1165 lbs.
- Machine dimensions: (L) 80″ x (W) 61″ x (H) 138″
- Packing dimensions: (L) 51” x (W) 48” x (H) 73”
- Warranty is one-year parts
- All machines are tested stateside prior to shipment providing trouble-free start-up.
Specifications:

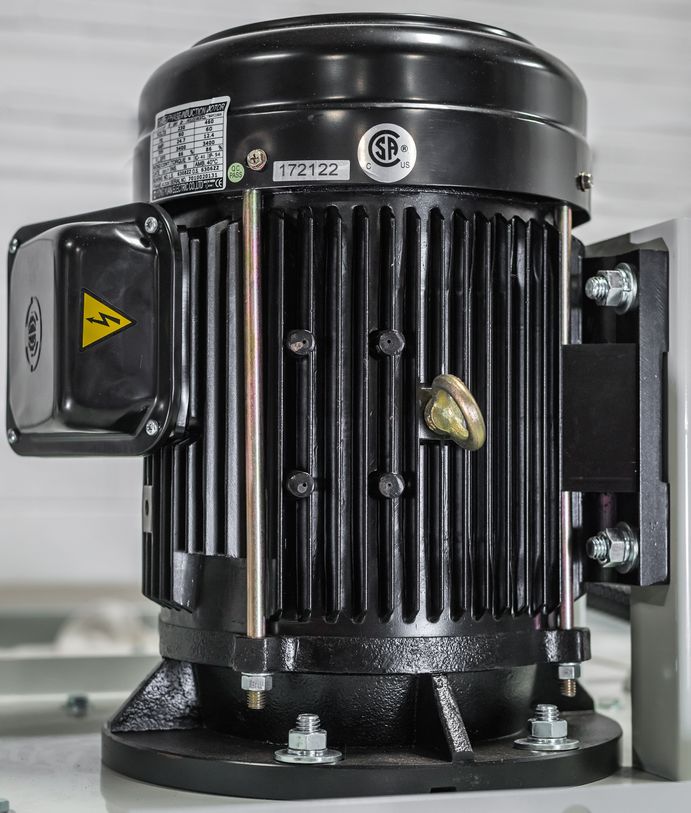

- Main Motor Hp. = 15 hp.
- Voltage/ Freq. = 230/460 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 36/18 Amps
- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 220V Control Voltage
- Assisted Start = Wye-Delta

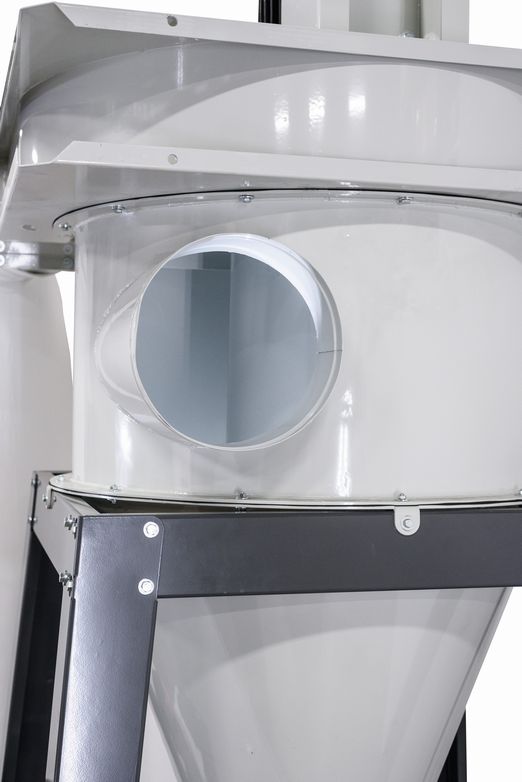

- Dust Port In = 12” Inlet

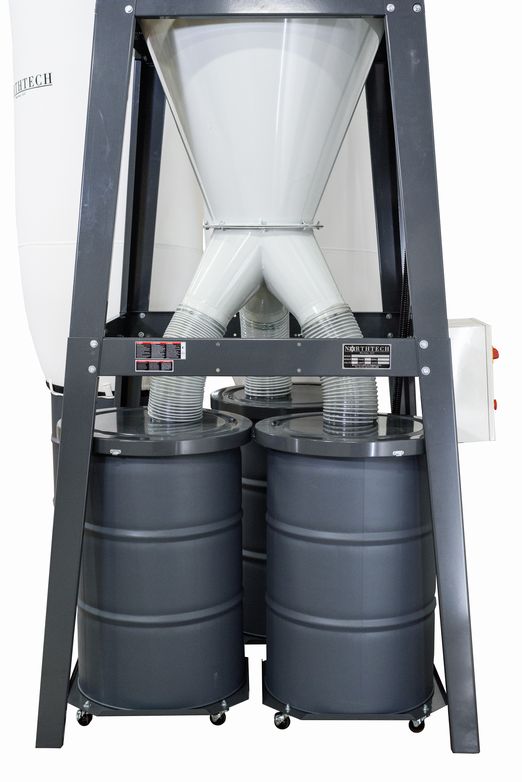

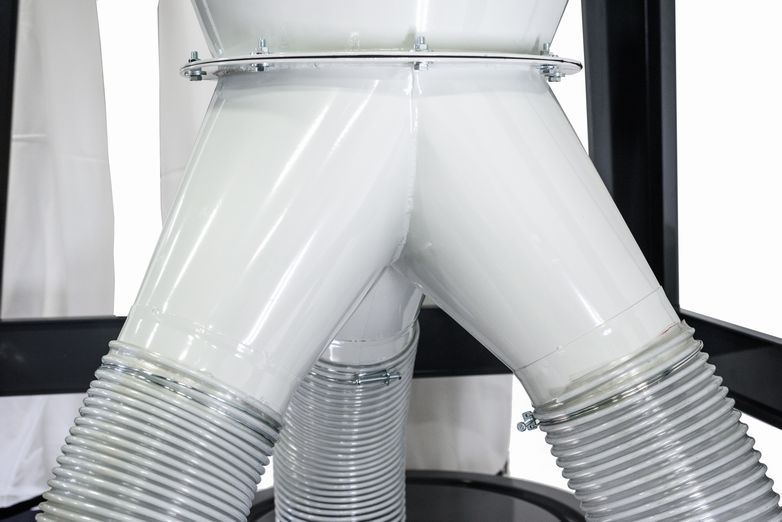

- Dust Port Out = (3) 7” Bottom (2) 10” Top
- Free Air CFM = 6200 CFM

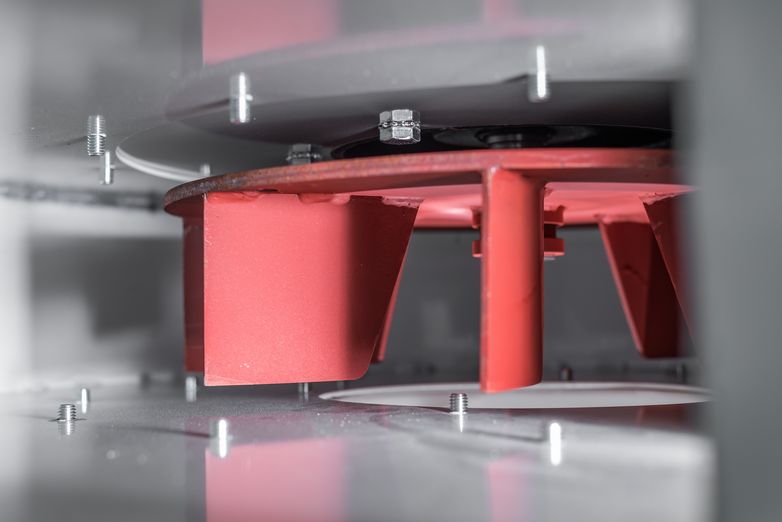

- Impeller = 25” Steel Impeller

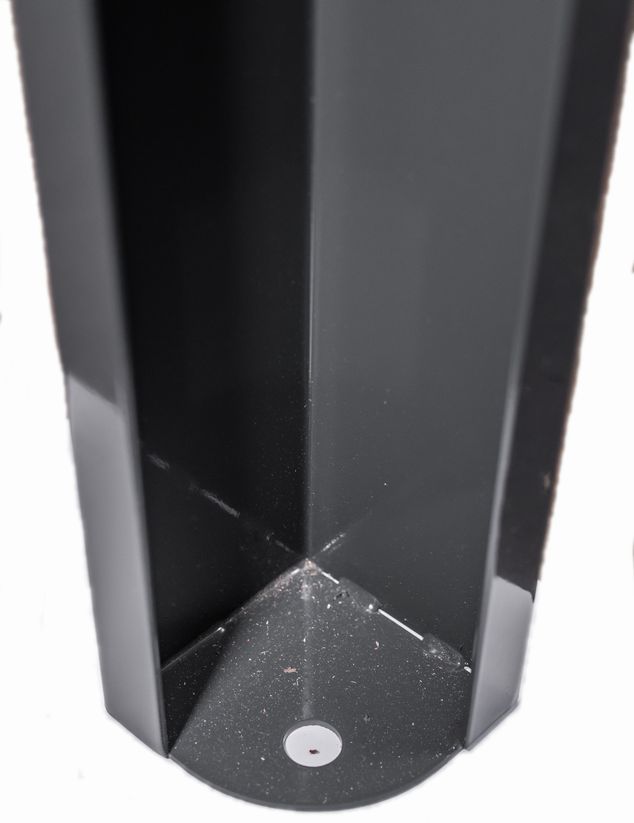

- Frame Const. = 1/8” Steel Construction

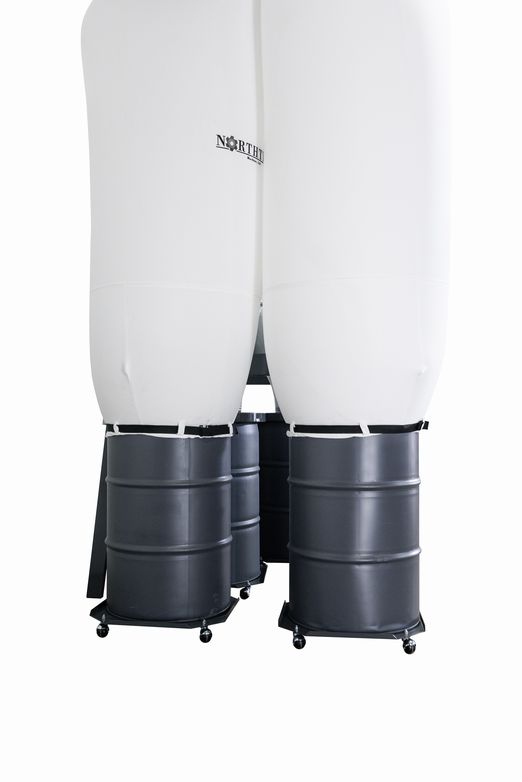

- Upper Bags = 10” X 24” X 90.5”

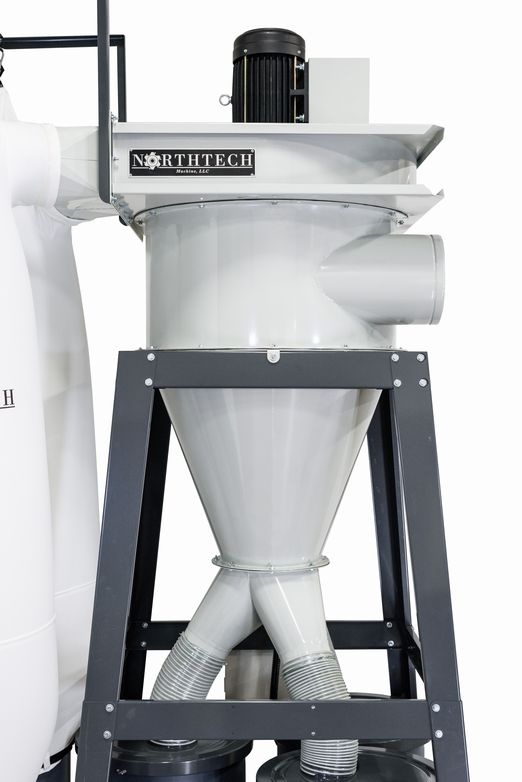

- Cyclone Diam. = 35” I.D.
- No. of Barrels = 5 Barrels (Not Included)
- No. of Dollies = 5 Barrel Dollies
- Decible Rating = 89 dB
- Net Weight = 1000 Lbs.
- Gross Weight = 1165 Lbs.
- Machine Dims. = 80” x 61” x 138”
- Packaging Dims = 51” x 48” x 73”
