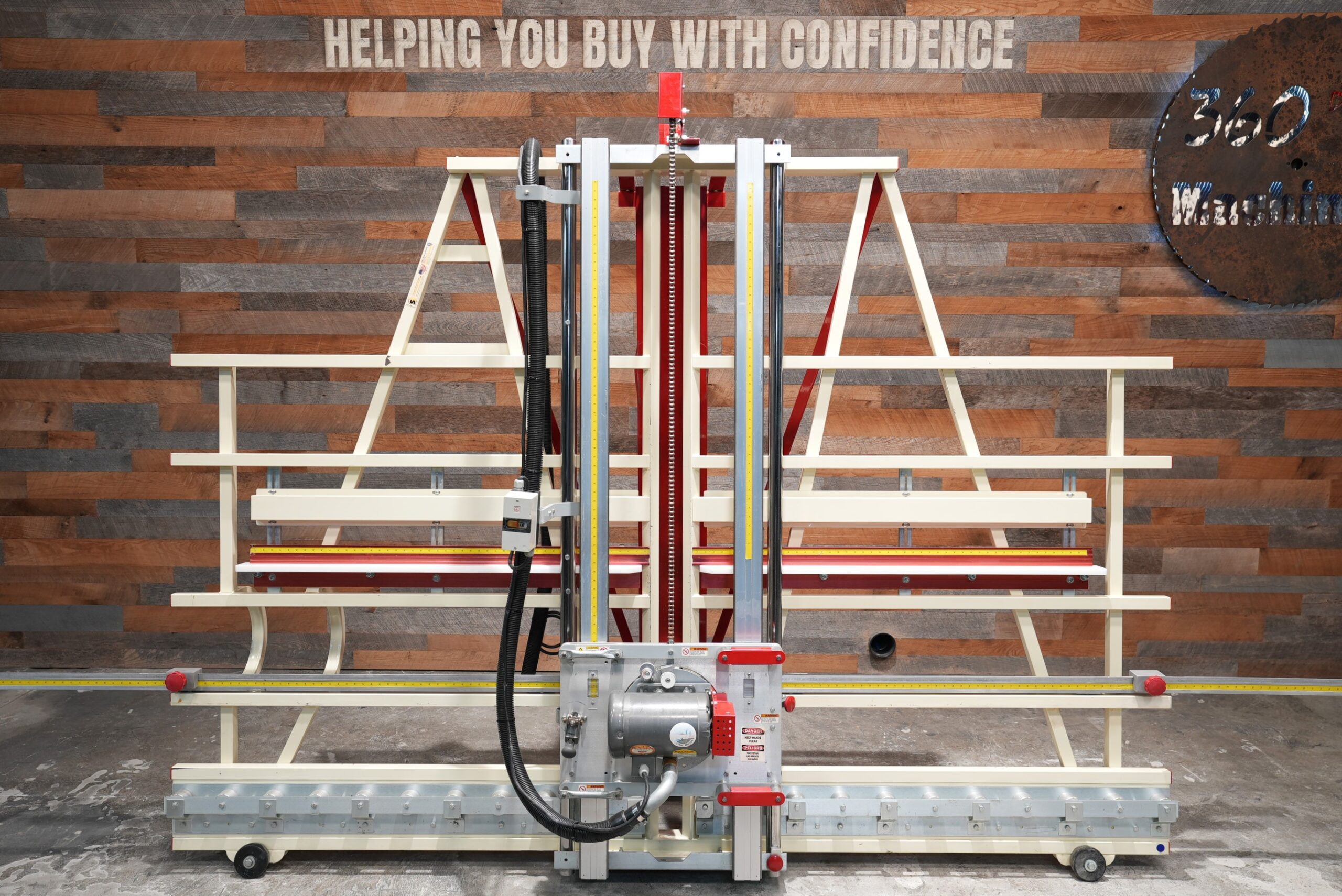

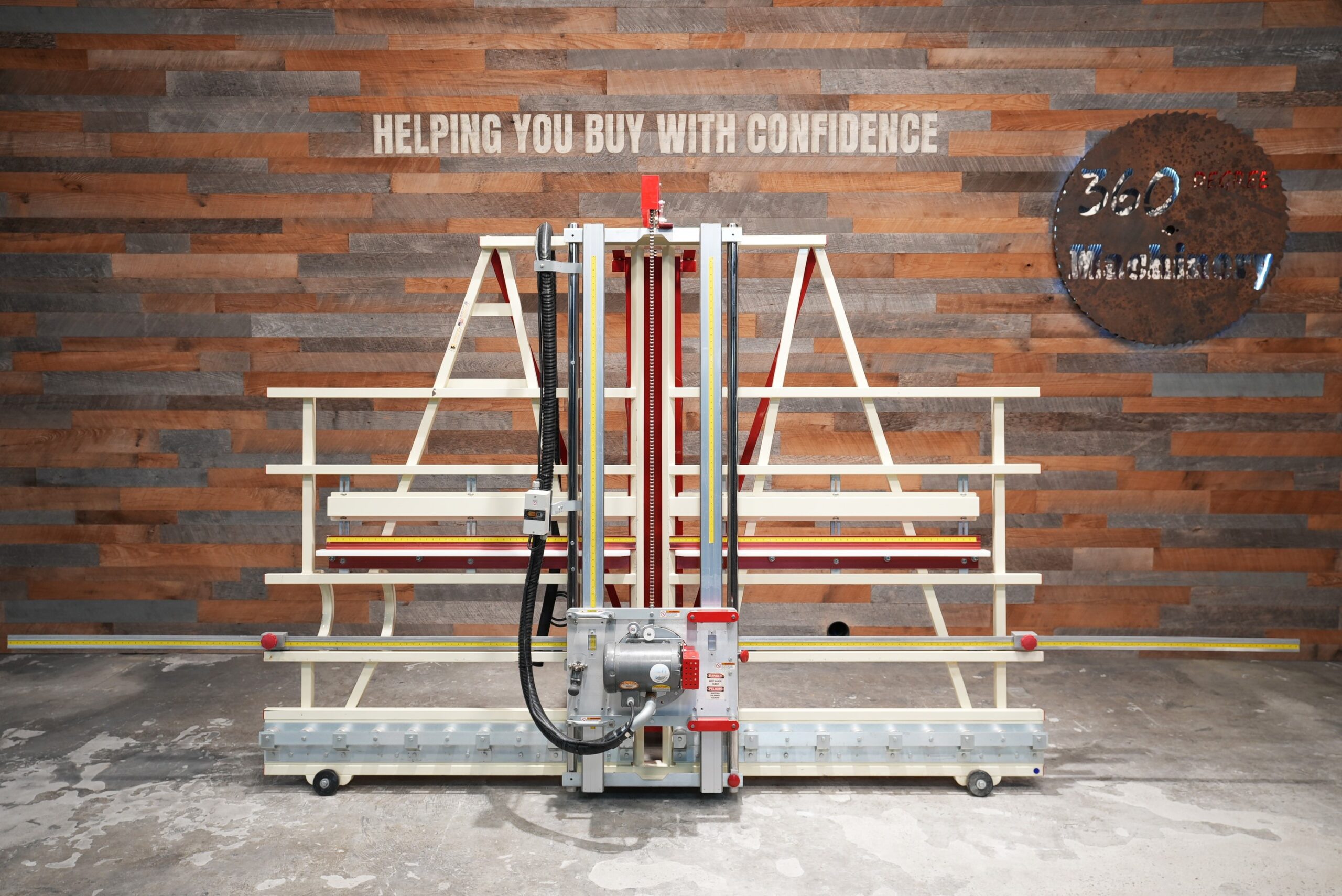

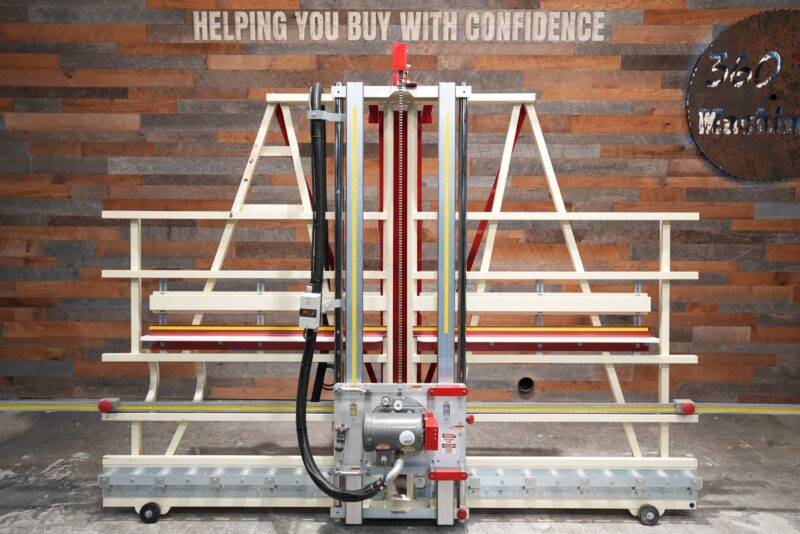

Continuous usage panel processing done the easy way. The 7400M panel saw features a 10′ frame.
| Weight | 950 lbs |
|---|---|
| Dimensions | 124 x 98 x 48in |
| Max. Crosscut | 64″/1625mm |
| Max. Rip Cut | Unlimited |
| Cut Depth | 2 â…›”/55mm |
| Cut Accuracy | .005″/.125mm |
| Frame Length | 120″/3050mm |
| Daily Usage | Continuous (8+ Hours) |
| Rollers | 22 |
| Saw Blade Diameter | 8″/210mm |
| Motor | 5HP, 208-230/460V/3-Phase |
| Saw Blade Revolutions Per Minute | 3450 RPM |
| Power supply options | three phase power |
| Country of Origin | USA |
Standard Equipment

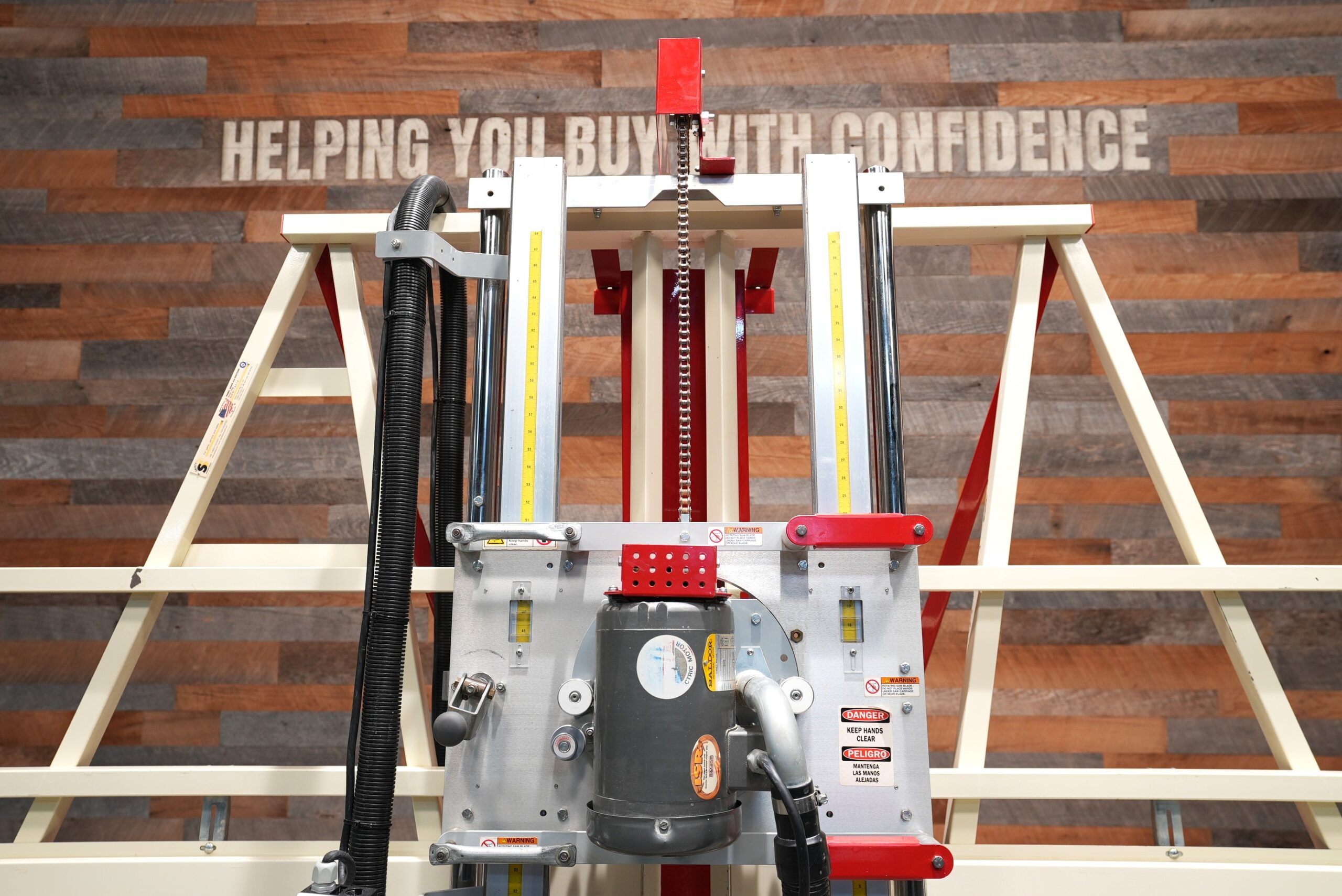

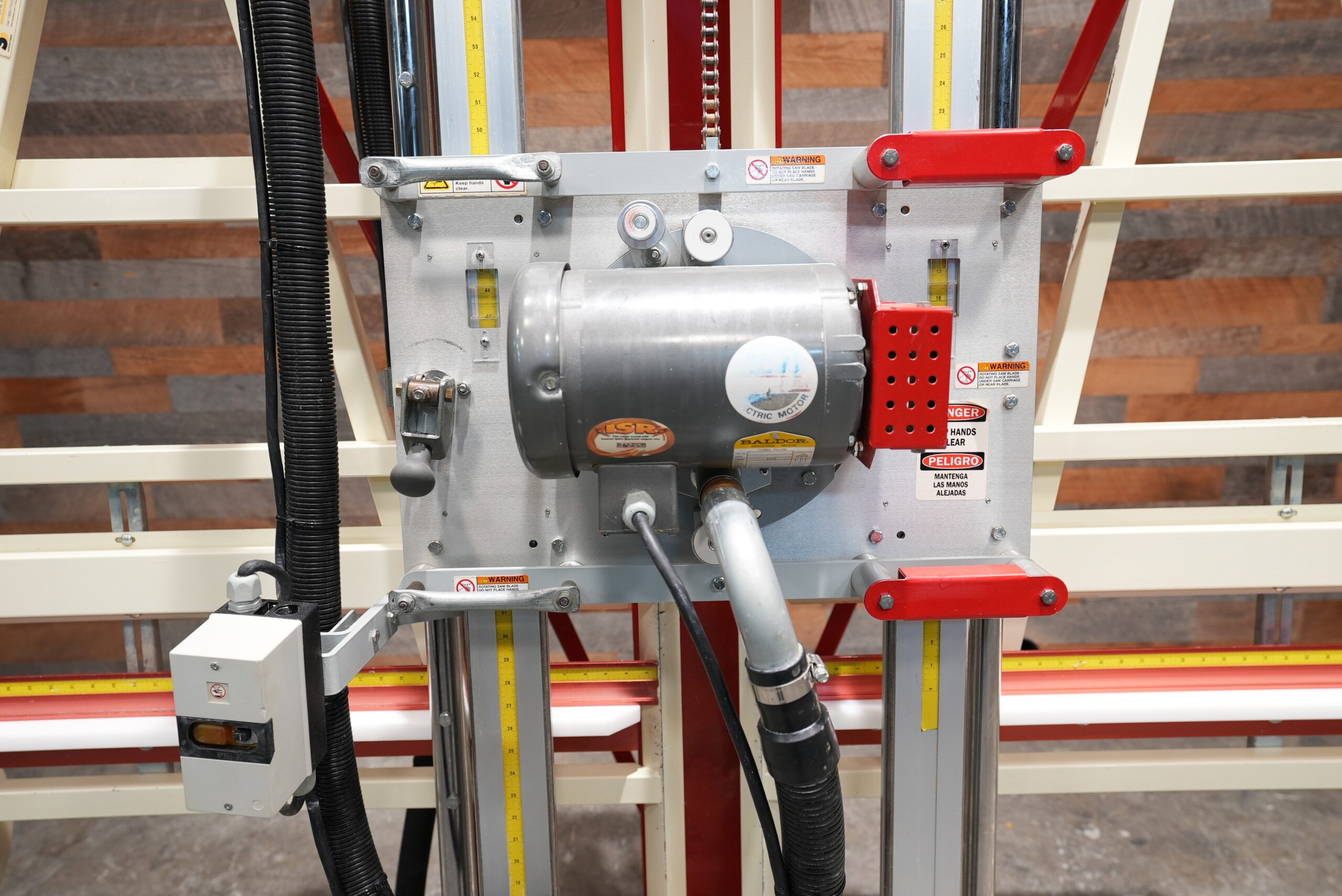

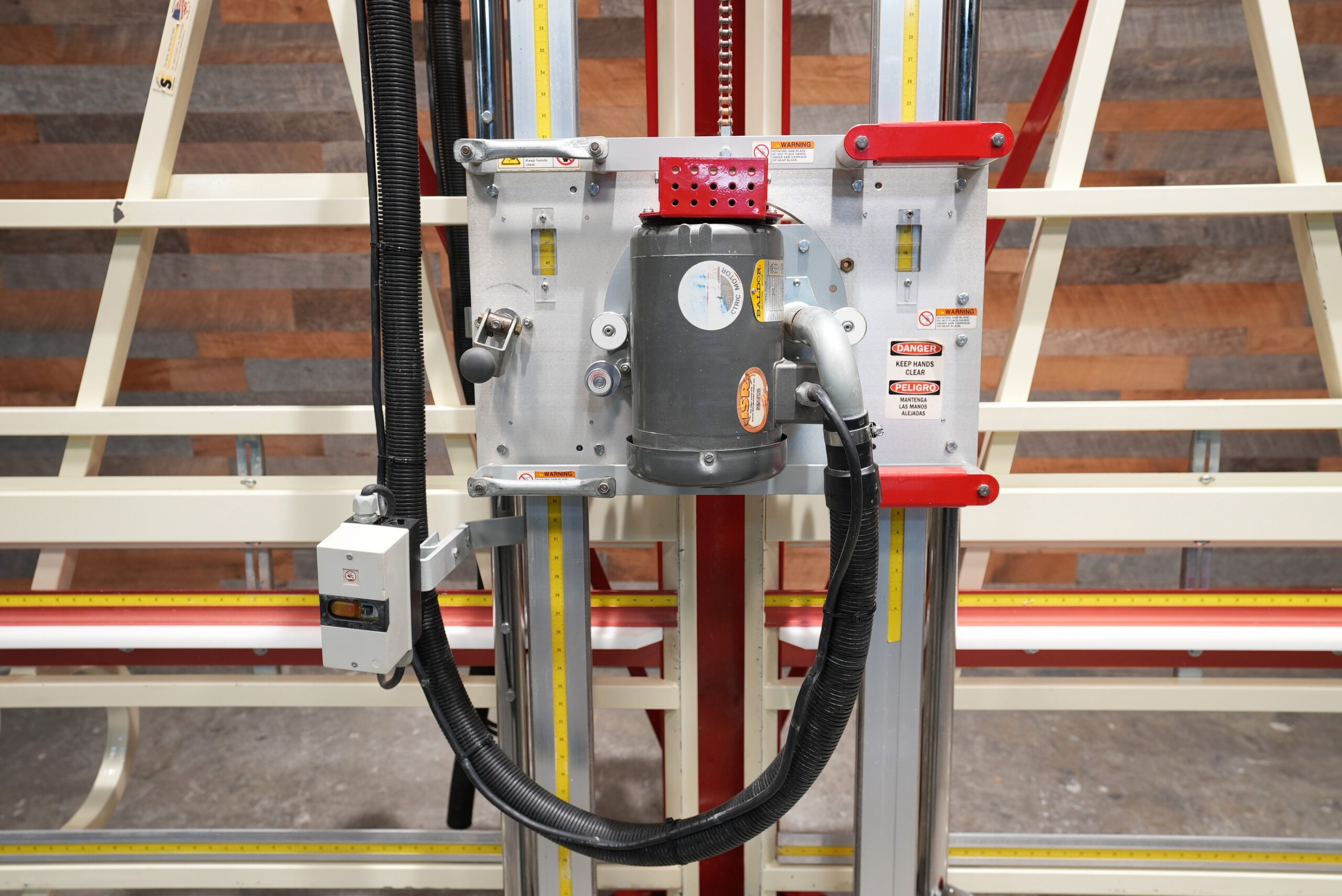

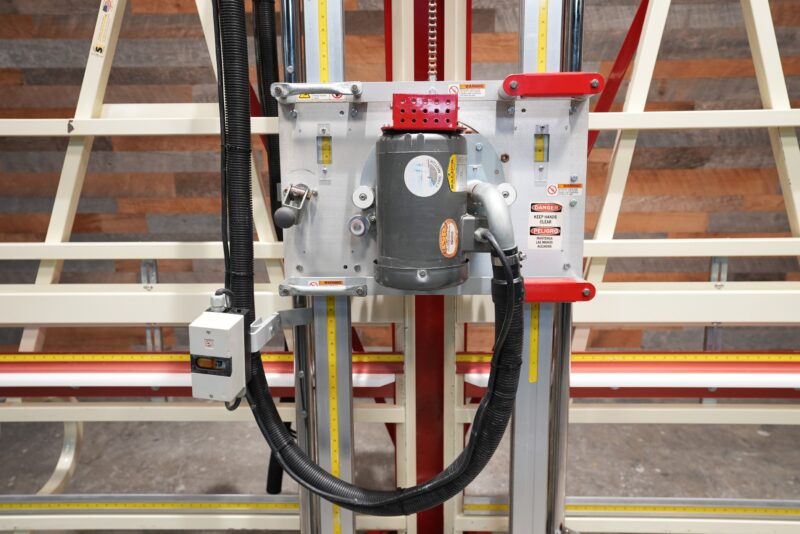

- 5 hp/3-Phase, heavy duty induction saw motor

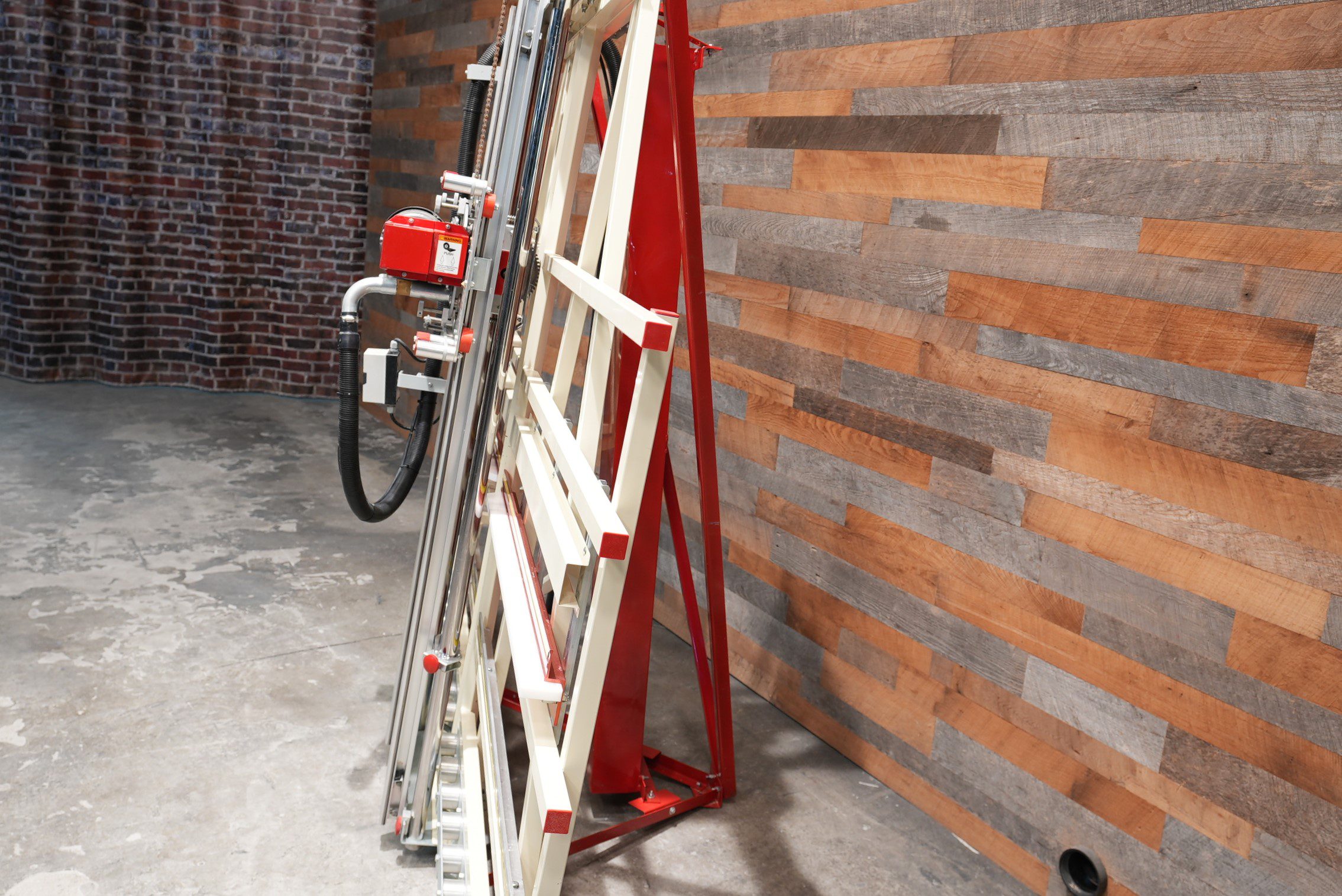

- Welded steel frame and integrated stand system
- Dual V-track precision guide system

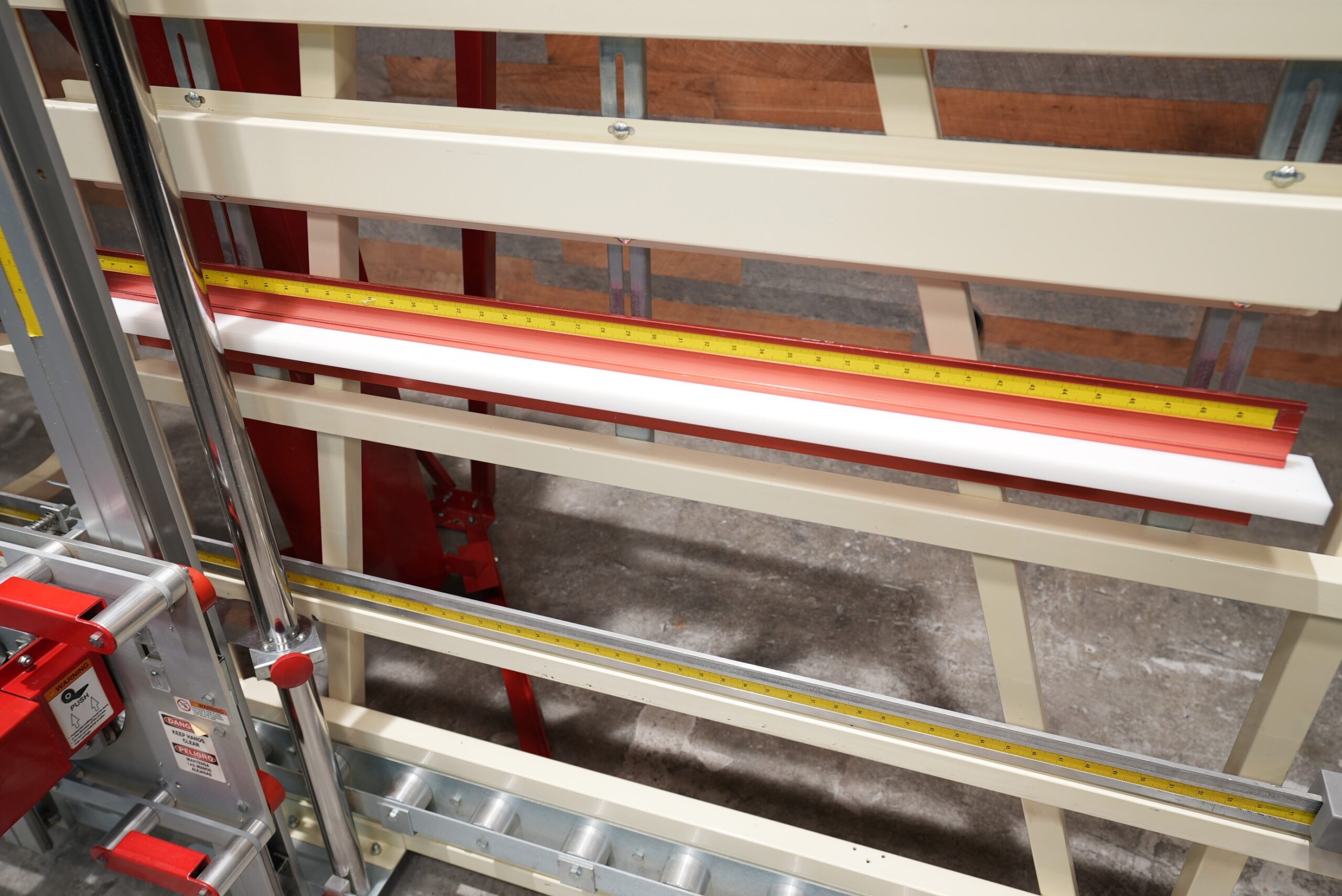

- Adjustable vertical and horizontal rulers

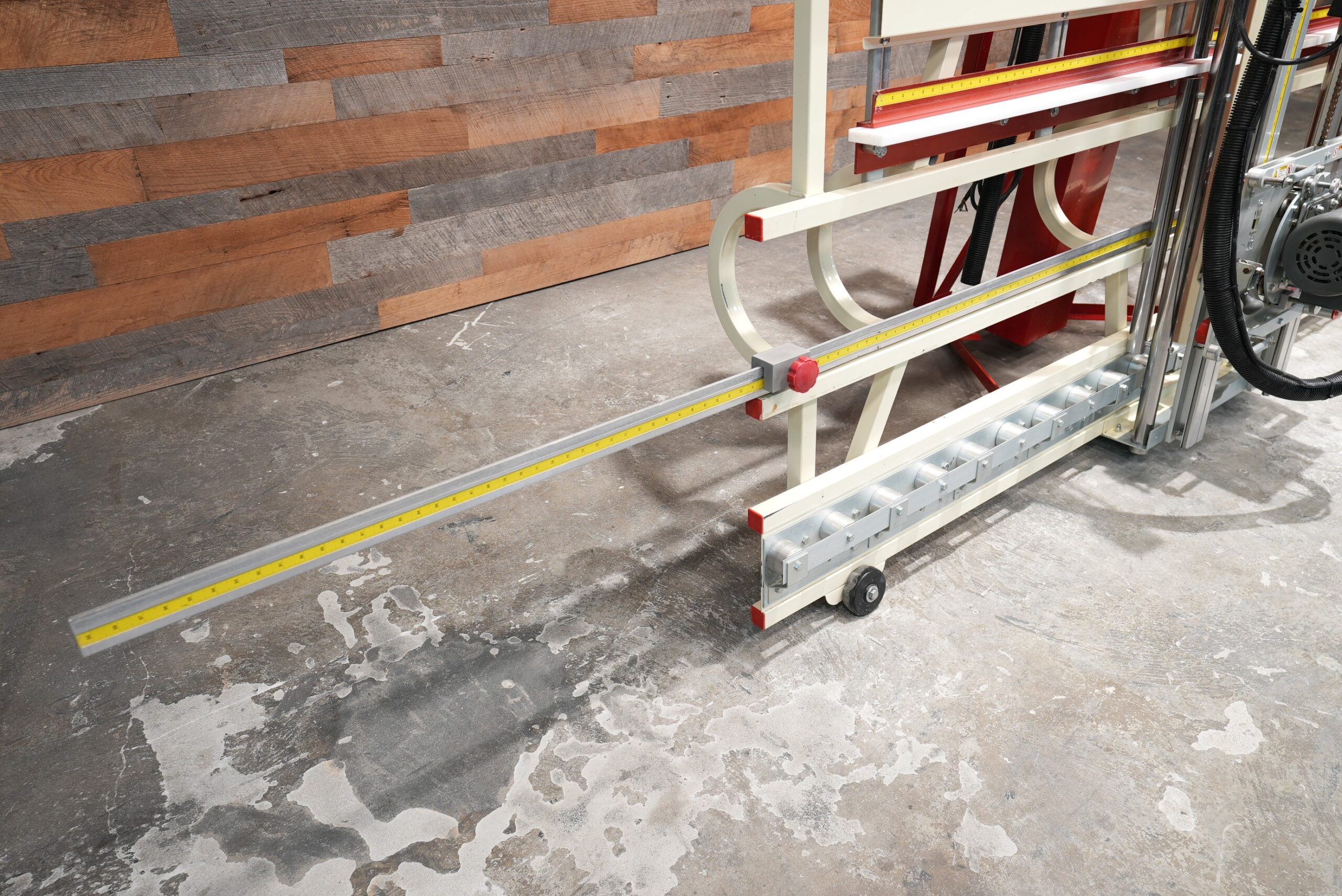

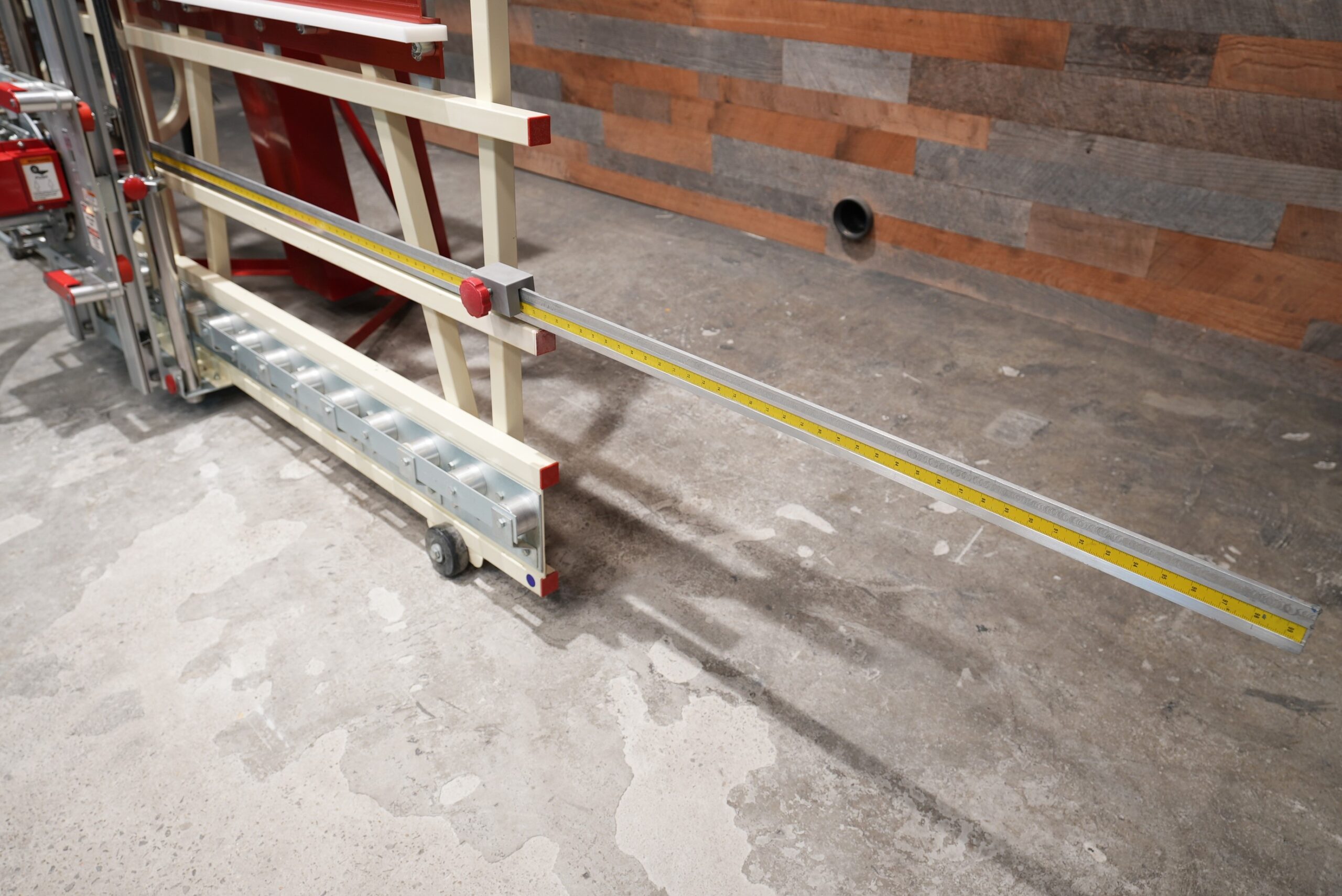

- Quick stop gauges (8′ left, 8′ right)
- Saw blade. Quick change from vertical to horizontal cutting
- Floating pressure saw foot

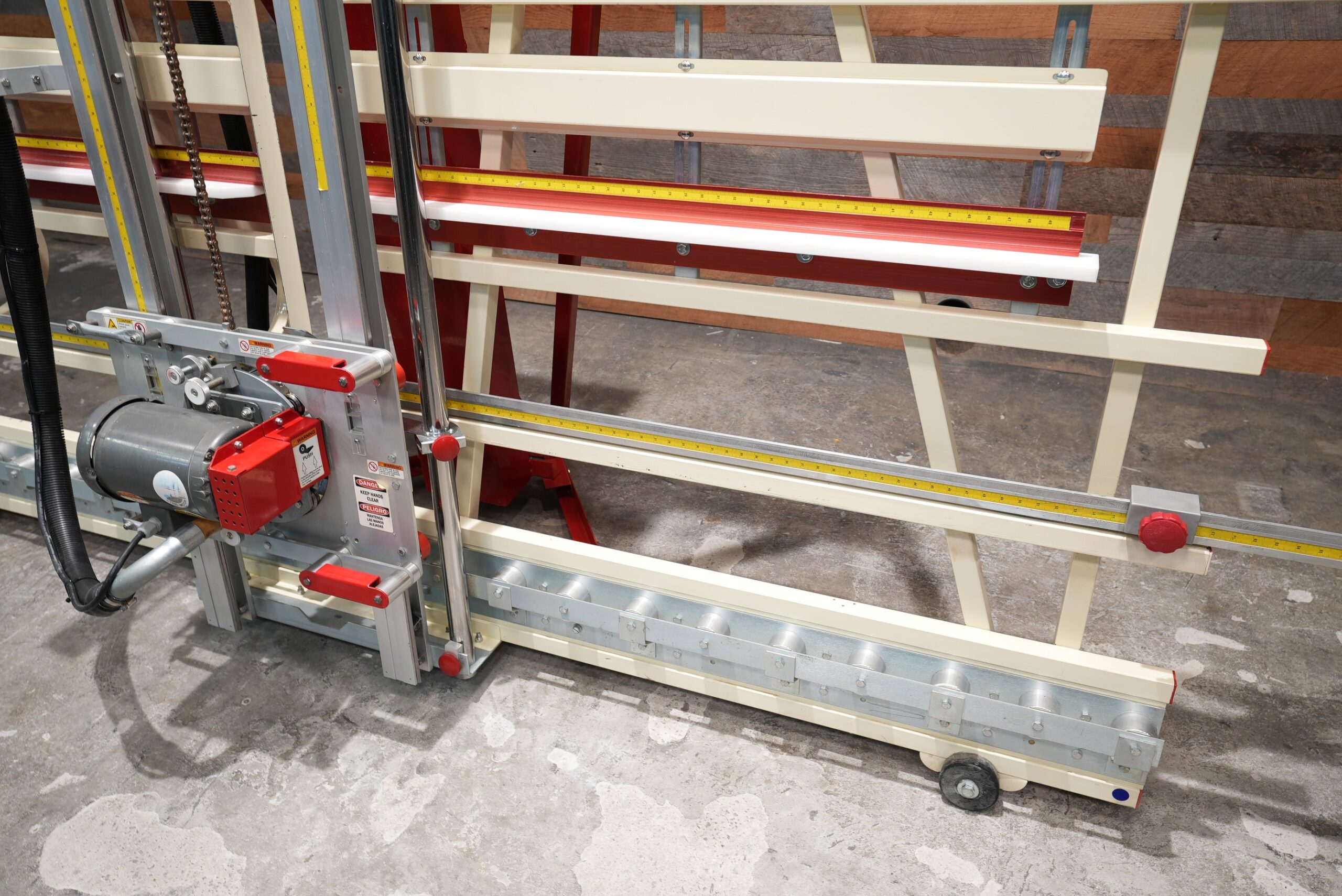

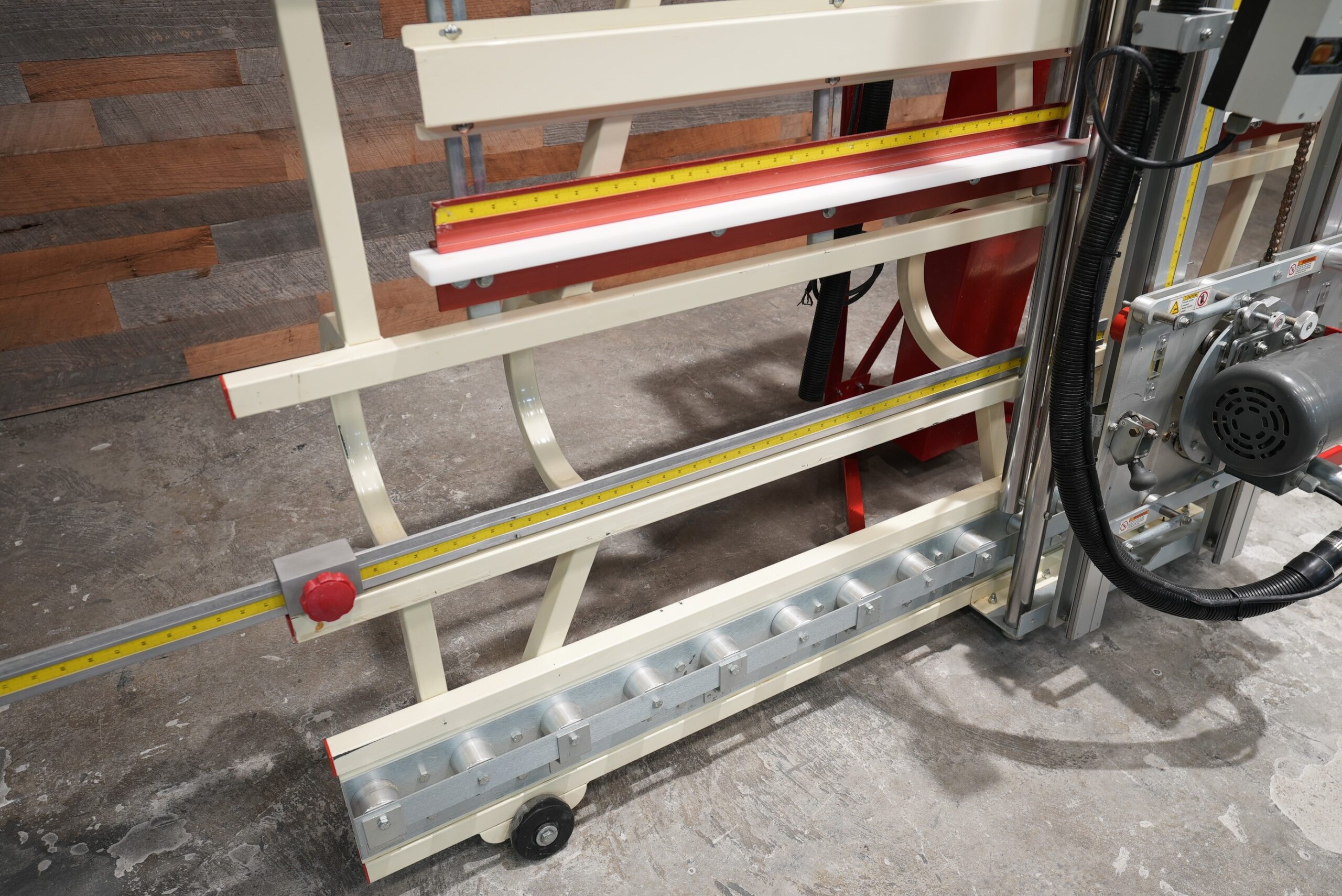

- Solid aluminum material rollers
- Enclosed counterweight system

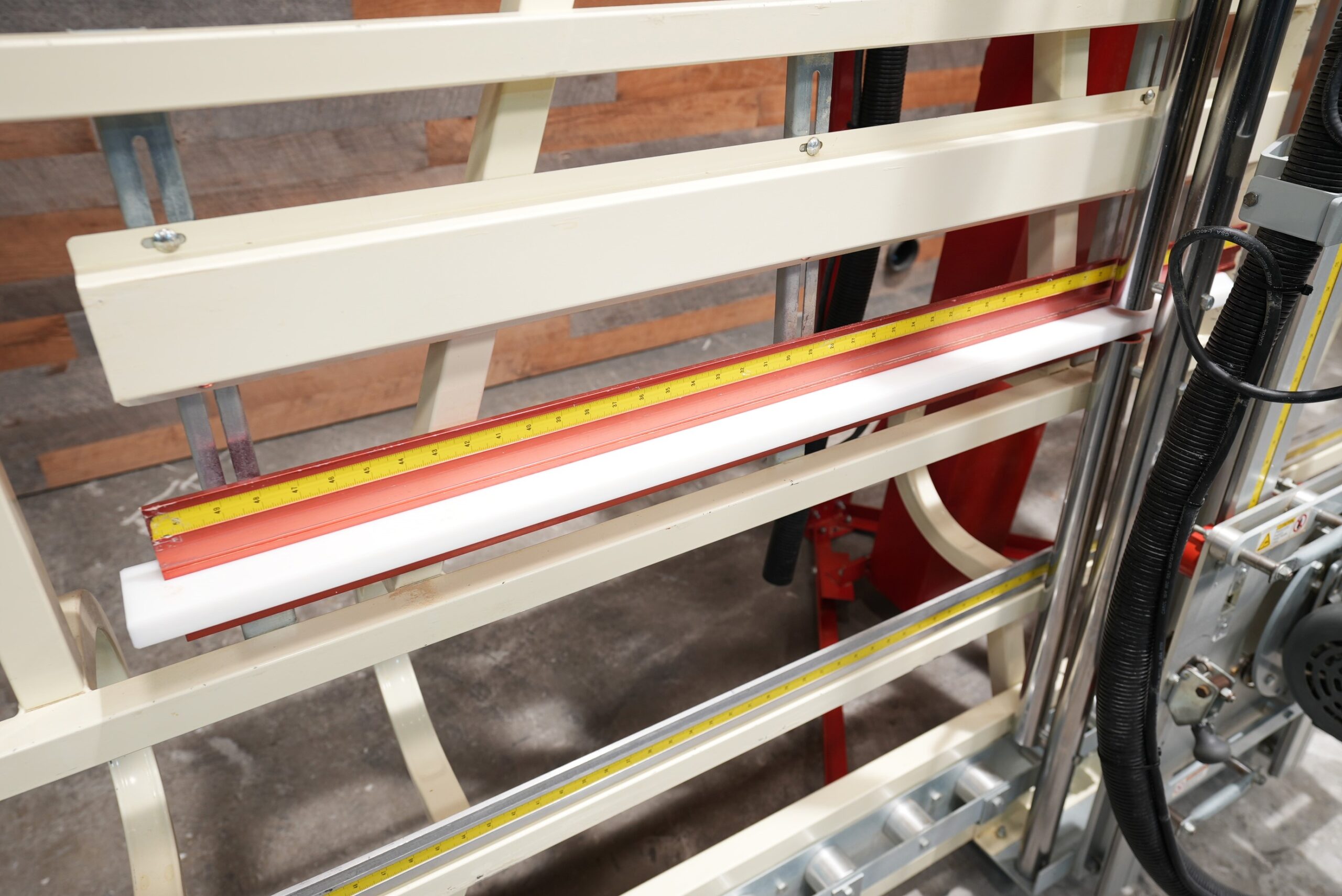

- MID-WAY FENCEâ„¢
- Dust collection ready
- Hold down bar
- Wheels
