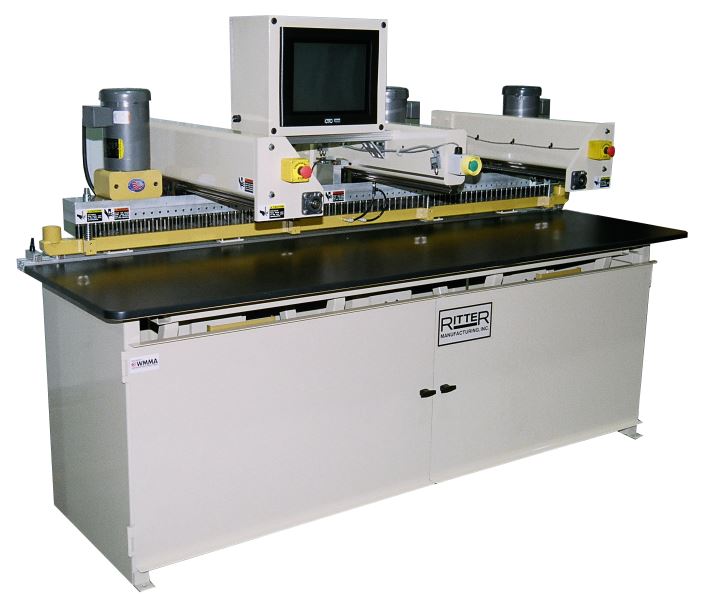

Ritter R76 – 76 Spindle Single Row Line Boring Cnc Drilling System

Ritter R76 – 76 Spindle Single Row Line Boring Cnc Drilling System

$102,290.00

Categories , , , Tags , , Brand:
  • 0″-24″ Programmable Trhoat Capacity
  • Triple Precision Drill Row Guide Rails
  • Magnetic Scale Precision Drill Row Positioning
  • Programmable Through Boring, Servo Driven
  • Twin Ball Screw Boring Stroke Control
  • 30″ x 108″ Table Area
  • Right and Left Hand Work Stations
  • (4) Pneumatic Material Clamps
  • Touch Screen CNC Controller
  • (2) Emergency Stop Buttons
  • 75-Spindle Gear Driven Drill Head
  • 10mm Bored Collets on 32mm Spindle Centers
  • 2,368mm (93.228″) First to Last Spindle
  • Twin Ball Screw Drill Row Positioning
  • Programmable Boring Depth, Servo Driven
  • Triple Precision Table Guide Rails
  • Magnetic Scale Precision Table Stroke Control
  • 1-1/4″ Maximum Material Thickness
  • 108″ Back Fence with (4) Positioning stops
  • (4) Spring Operated Material Clamps
  • Center Beam Mounted Cycle Start Button
  • Tooling Not Included
  • 54″ x 136″ Floor Area
  • 30″ X 108″ Work Table Surface
  • Wired 3-Phase 240/480 Volt, 60 Hz
  • Machine Weight: 4,432 lbs.
