Northtech NT-DC30-312 3 HP Dust Collector 230V Single-Phase

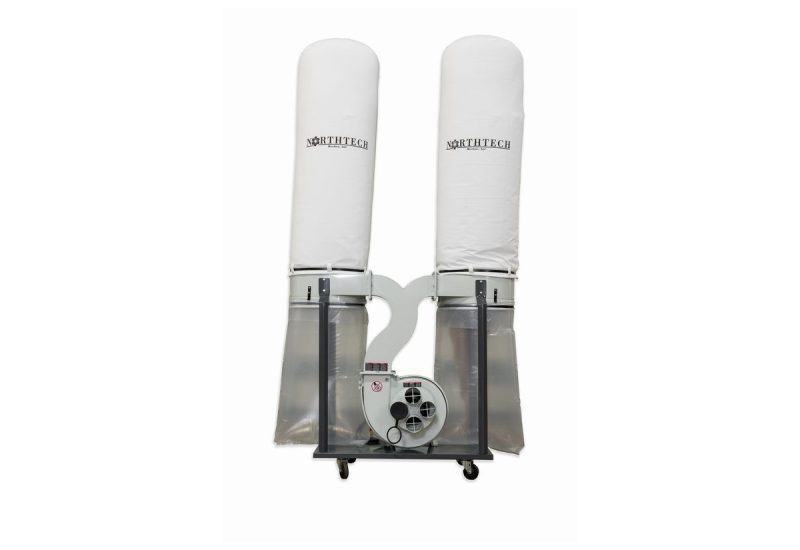

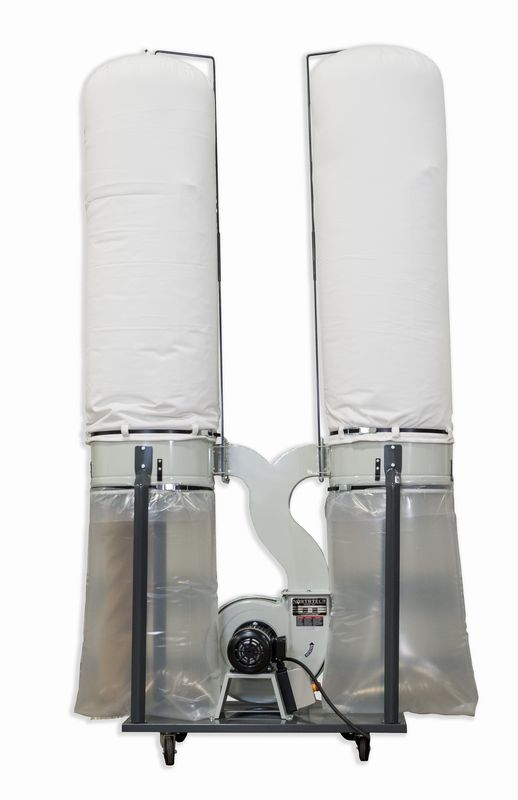

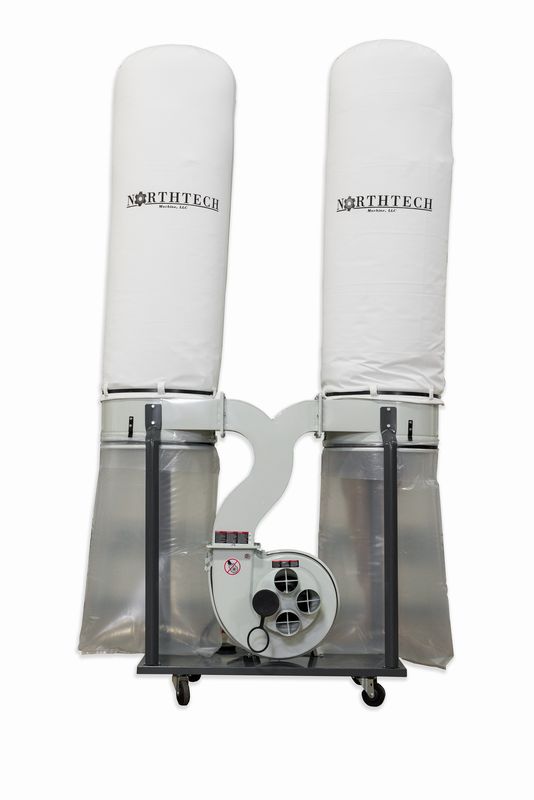

This portable dust collector from Northtech has two (2) large 31” x 59” polyester filter bags up top with two (2) 31” x 40” collection bags below to efficiently separate and contain sawdust and chips. The 8″ inlet and included manifold with four (4) 4″ ports enable easy connection to multiple machines to share the 3100 CFM produced by the 3 HP single-phase motor and 13-1/2″ steel impeller.

Cutting, sanding, and shaping create large amounts of dust, shavings, and other waste that can cause severe health and safety issues if not dealt with properly. Insufficient and ineffective dust-collectors also affect the machines they’re connected to, leading to decreased performance, lower productivity, increased maintenance, and costly repairs. Upgrading your shop with a Northtech dust collector is a simple and affordable step toward protecting your business, your health, and your bottom-line.

Contact us today for help choosing the best dust collector for your shop!

Guaranteed Safe Checkout

Credit

Northtech NT-DC30-312 3 HP Dust Collector 230V Single-Phase
Request a call back
(*Optional)

 Features:

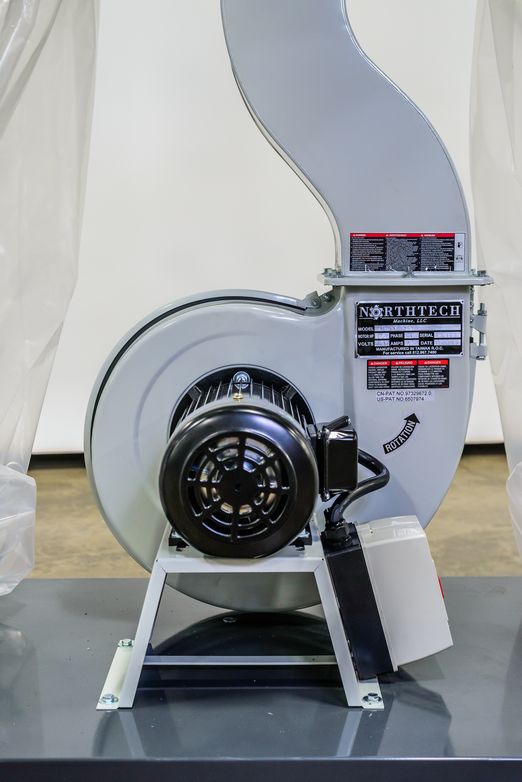

  •  3HP 230V 1PH Motor
  •  Two top filter polyester bags, 5 micron
  •  Two lower collection plastic bag

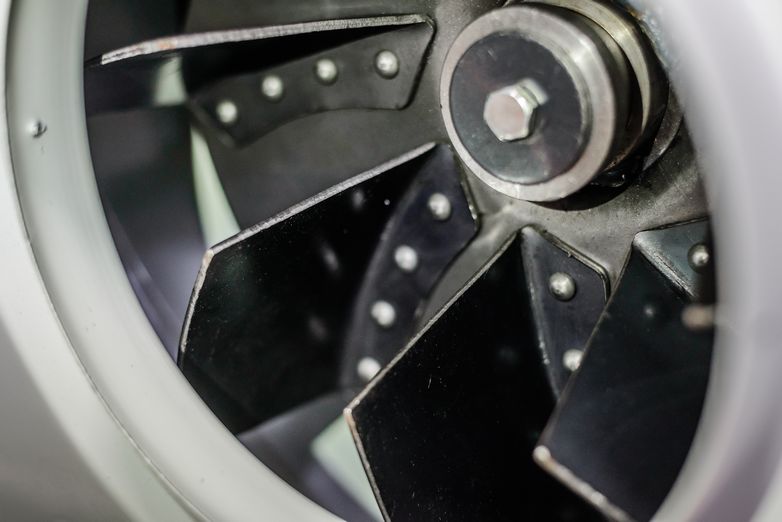

  •  3” x 13-1/2″ impeller
  •  3100 CFM
  •  Dust Exhaust:

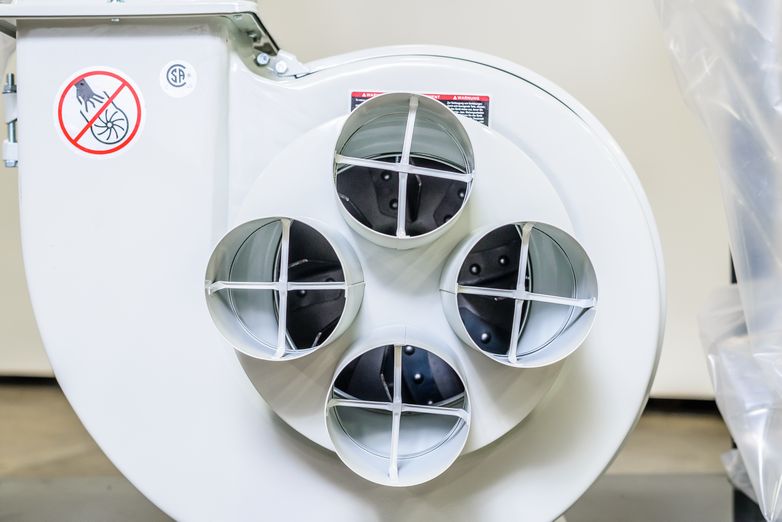

  •  8″ main; (4) 4″ ports
  •  Gross weight: 250lbs

Specifications:

  • Main Motor Hp. = 3 hp.
  • Direct Drive = Direct Drive
  • Machine Hp. = 3 hp.
  • Voltage/ Freq. = 220 Volt 60 Hz.
  • Phase = 1 Phase
  • Electronics = CE Approved Components
  • Dual Voltage = 230/460 Volt
  • Control Voltage = 220V Control Voltage
  • Dust Port In = (1) 8” or (4) 4”
  • Dust Port Out = 7” x 7” Box
  • Free Air CFM = 3100 CFM
  • Impeller = 3” x 13-1/2” Steel Impeller
  • Frame Const. = 1/16” Steel Construction
  • Mobile Unit = (4) Caster Cart
  • Upper Bags = 31” x 59”
  • Lower Bags = 31” x 40”
  • Decible Rating = 93 dB
  • Net Weight = 187 Lbs.
  • Gross Weight = 250 Lbs.
  • Machine Dims. = 60” x 29” x 144”
  • Packaging Dims = 40” x 48” x 29”
