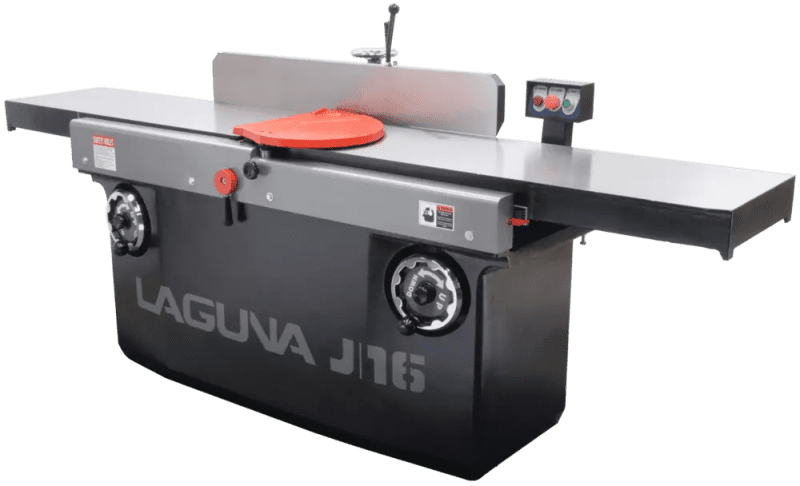

Laguna Tools J|16 Industrial Jointer

$10,499.00

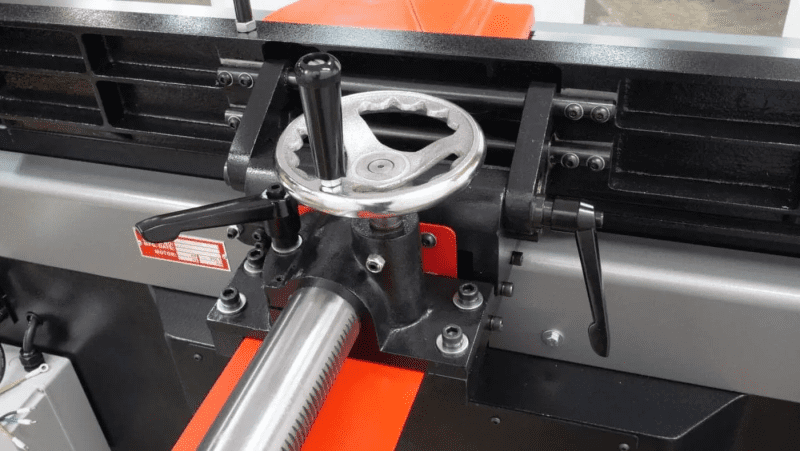

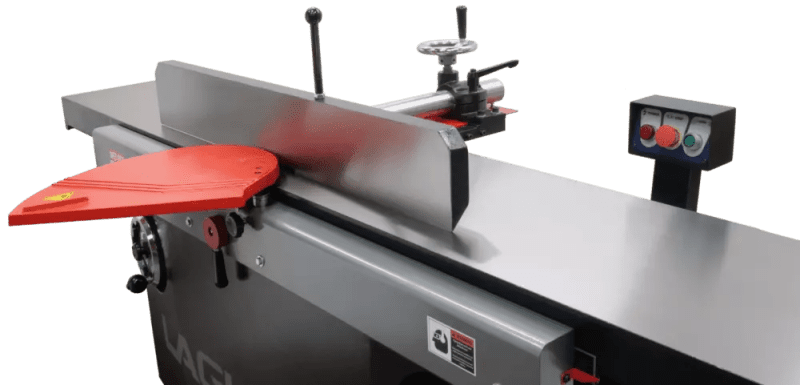

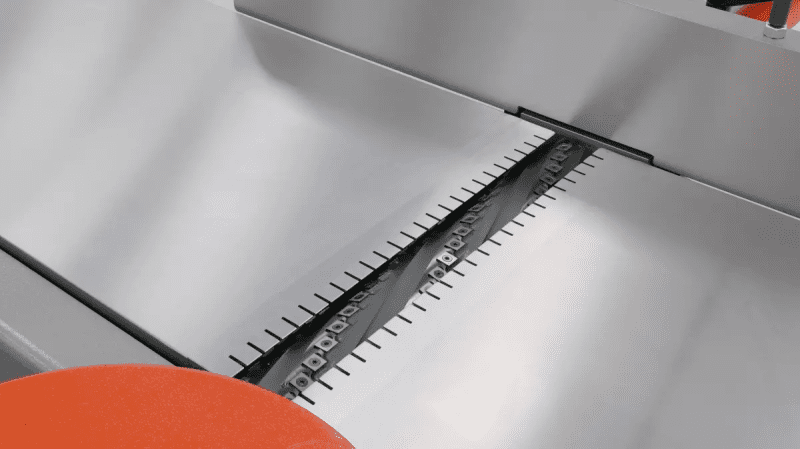

The J|16 Jointer is the true heavyweight of jointers. Our 16″ version features a total length of over 8 feet. The heavy cast-iron tables are supported by parallelogram adjusters and controlled through precision hand-wheel adjusters. The Laguna ShearTec cutterhead is equipped with German carbide insert knives for maximum durability and quick replacement. The fence is a heavy casting supported by a large diameter shaft with rack and pinion movement for smooth, repeatable accuracy. The overhead control panel allows for quick, easy operation. The swing-away guard is easily adjustable and removable for knife replacements.

Features:
  • 98″ Table Length
  • 16″ Jointer Width
  • 31-1/2″ Table Height
Guaranteed Safe Checkout

Credit

Laguna Tools J|16 Industrial Jointer
Laguna Tools J|16 Industrial Jointer
$10,499.00
Request a call back
(*Optional)

Table Area (L x W): 112″ x 20″

Max Jointing Width: 20″

Table Height: 31-½”

Fence Angle: 0-45°

Cutterhead: 6 Row

Knives: 144 qty

Cutterhead Speed: 5000 RPM

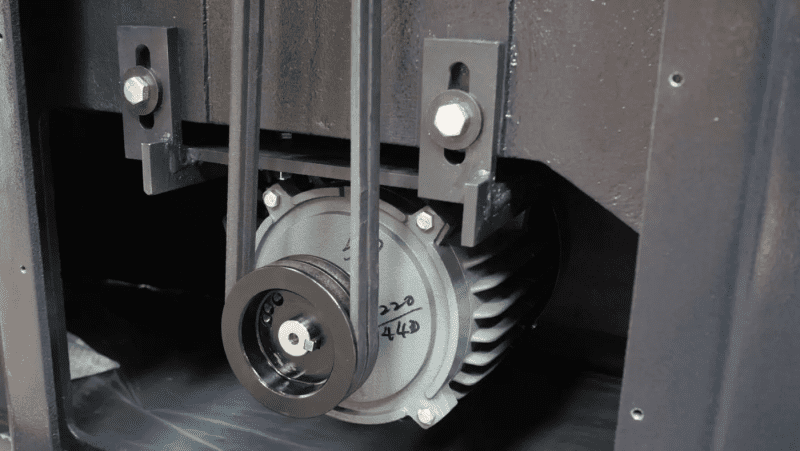

Motor: 5HP 3PH

Net Weight: 1606 lbs.

Shipping Weight: 1760 lbs.

Additional information

Motor: No selection

5HP 1 Phase, 5HP 3 Phase
