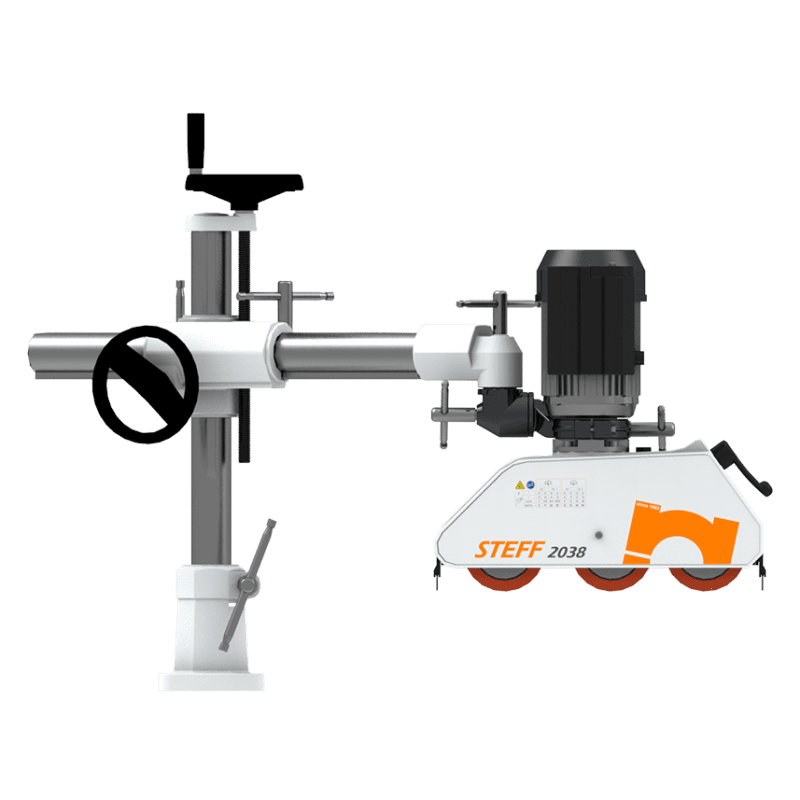

Steff 2038 3-Roll 8-Speed Feeder With Stand

$1,250.00$1,350.00

Steff 2038 Automatic Power Feeder

Maggi automatic stock feeders, known under the STEFF brand, have made history. They are vital accident prevention devices on traditional machines on which it is necessary to carry out precise, reliable, and fast machining, all the while ensuring maximum safety for the operator. Steff Power Feeders also offer an excellent value to cost ratio!

[block id=”steff-flat-rate-129″]

Guaranteed Safe Checkout

Credit

Steff 2038 3-Roll 8-Speed Feeder With Stand
Steff 2038 3-Roll 8-Speed Feeder With Stand
$1,250.00$1,350.00
Request a call back
(*Optional)

Features:

  • Roller/Belt Vertical Range of Motion is 1 inch.
  • Electrostatic paint finish.
  • Sintered case hardened gears.
  • Bronze alloy main drive gear.
  • Natural rubber, 50 shore hardness rollers/belts. (Polyurethane rollers are also available).
  • Calibrated spring support to maintain consistent roller contact.

Specifications:

Feed Rollers:

Number of Rollers:

3

Roller Dimensions:

Roller Hardness:

50 shore

Roller Springing Travel:

20 mm

Feed Speeds:

2 / 4 / 5,5 / 6,5 / 11 / 13 / 16,5 / 33 m/min

Motor Power:

Single-Phase Motor:

0,52 kW

Three-Phase Motor:

0,75 kW

Feeder Dimensions:

490x474x220 mm

Shipping Dimensions:

670x570x330 mm

Net Weight:

31 kg

Gross (Shipping) Weight:

33 kg

Standard Support Stand:

(*other stand models/sizes available)

Height:

540 mm

Arm Length:

705 mm

Net Weight:

35 kg

Gross (Shipping) Weight:

37 kg

Shipping Dimensions:

800x330x330 mm

Additional information

Voltage: No selection

230V Single-Phase, 230V Three-Phase, 440V Three-Phase
