Features:
- Forward and reverse drive

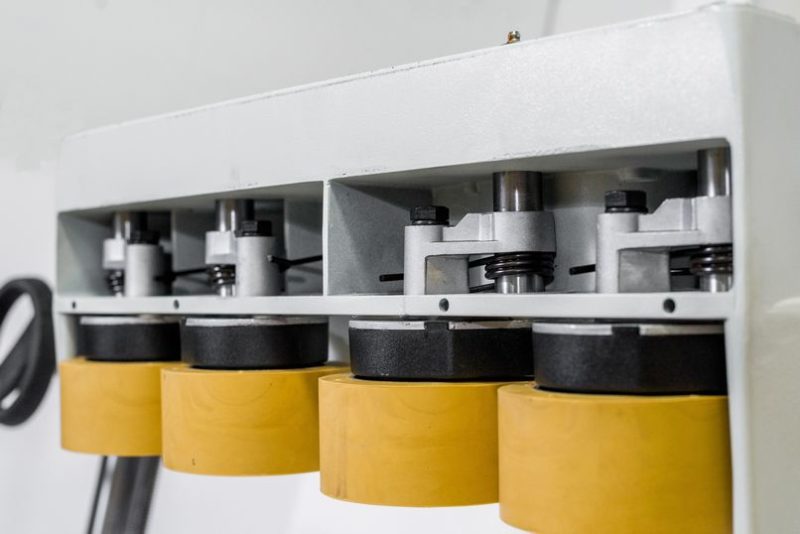

- Four (4) rollers
- Primary speeds: 6.5/13/18/22/36/44/55/100 FPM
- Secondary speeds: 5/9.5/15/23/31/42/69/134 FPM
- Full motion stand included (w/ 7¾” vertical & 17” horizontal travel)
- Warranty is one-year parts
- All machines are tested prior to shipment, ensuring trouble-free start-up.
Specifications:
| Motor: | 1 HP |
| Voltage: | 230V 3ϕ |
| Amperage: | 3.2 Amps |
| Feed System: | Four (4) Powered Rollers |
| Distance Between Rollers: | 5¼” – 6” – 5” |
| Feed Speed: | 6.5 to 105 FPM |
| Variable Speed: | High/Low Switch |
| Horizontal Travel: | 17” |
| Vertical Travel: | 7¾” |
| Frame Construction: | 3/16” Cast |
| Net Weight: | 150 lbs |
| Gross Weight: | 156 lbs |
