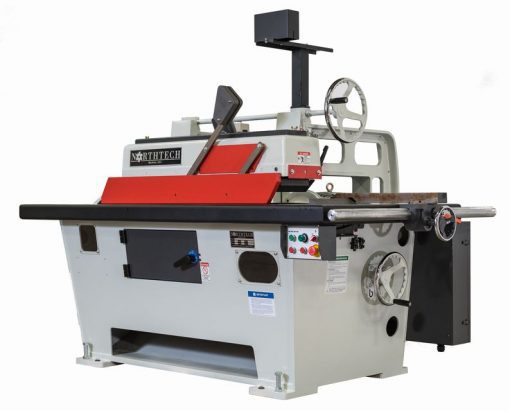

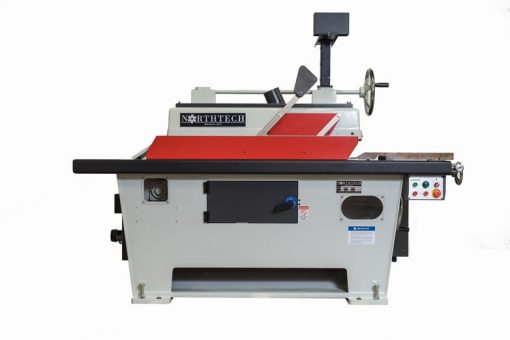

NT-SLR-18SC Precision Straight Line Rip Saw
FEED SYSTEM
• Saw motor: 20HP, 3PH 230460V
• Feed: 1.5HP variable from 50′ – 190′ / minute
PRODUCT DIMENSIONS
• Min. thickness: 3/16″
• Max depth of cut: 5″ with 18” Blade
• Max depth of cut: 4″ with 16” Blade
• Max depth of cut: 3″ with 14” Blade
• Max. width of stock: (Blade to column arms) 26-1/4″
FEATURES
• “True Track” Chain and Race
• Table size 83” x 40”
• Machine frame is constructed of a 1″ thick base plate
• Solid steel frame with 1″ thick column arms.
• Safety door switch with pneumatic motor brake.
• 2″ arbor and large support bearings.
• Glue line guarantee on 4/4 stock is 14′ – 16′ at 50 FPM.
• All motors and electricals are UL-rated.
• Industrial fence with cam lock quick release on rack and pinion glide.
• Two rows of heavy-duty kickback fingers.
• (8) large pressure rollers for optimum glue line ripping.
• An automatic mechanical oiling system with low oil level feed shutoff.

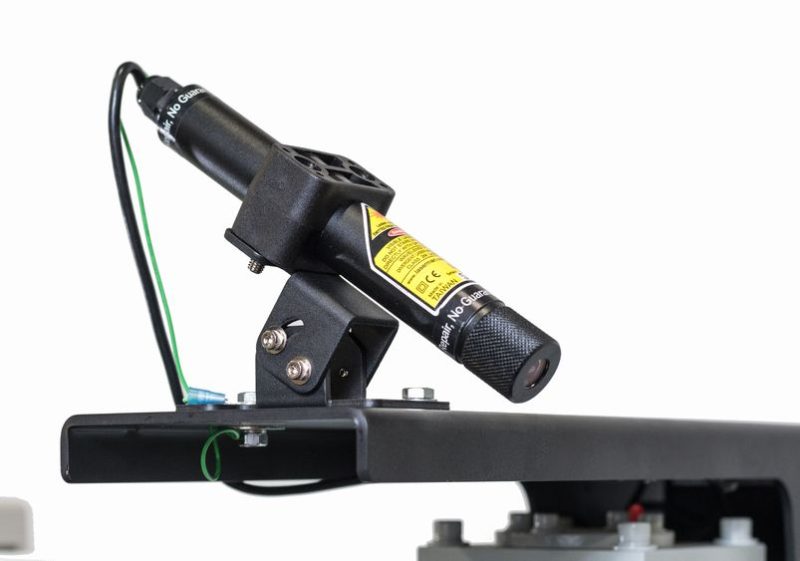

• A 100mw laser light and mounting bracket are included.
• (1) Toolbox
• Amperage requirements: 20HP + 1.5HP 230V / 460V: 54.3A / 27A.
• Dust requirements: (1) 4″ dust port requiring 450 CFM (1) 6″ dust port requiring 1,000 CFM
• Weight: 3455 lbs.
• Machine dimensions: (L) 90″ x (W) 67″ x (H) 68″
• Warranty is one-year parts
• All machines are tested stateside prior to shipment providing trouble-free start-up. F.O.B. Borden, IN
- Main Motor Hp. = 20 hp.
- Voltage/ Freq. = 230/460 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 55/28 Amps
- Feed Hp. = 3 Hp.
- Feed System = 4” Split Chain with True Trac
- Drive System = Belt
- Feed Speed = 50 – 190 FPM
- Variable Speed = Mechanical
- Elevation Style = Manual Wheel Adjustment
- Elevation Sys. = Jack Screw / Linear Guides
- Total Hp. = 23 Hp.
- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 110 Volt
- Pass-Line = 32-3/4”
- Throat Capacity = 26-1/4”
- Min. Length = 16″ Kickback to First Roller
- Min. Width = 1″
- Min. Thickness = 3/16″
- Max. Thickness = 5”
- Glue Line Rip = 14′ – 16′ 4/4 stock @ 50 FPM
- Arbor Rpm = 3550 Rpm
- Blade Size = 14” Tungsten Carbide Tipped
- No. of Teeth = 70 Tooth
- Tooth Spacing = 5/8 In.
- Blade Kerf = .197 In.
- Tracking Style = “True Track” System
- Dust Collection = 1417 Total CFM
- Dust Port Out = 4” Top 6” Bottom
- Chain Adj. = True Track Adjustable Chain
- Hold Down Style = 8 Spring Loaded Hold Downs
- Kickback Finger = (85) Bottom (40) Top
- Emergency Stop = Push Button
- Rear E Stop = Push Button
- Safety Feature = Door Switch / Motor Brake
- Guarding = High Visibility Guarding
- Oiler = Automatic Mechanical Oiler
- Low Oil Warning = Low Oil Shut-off
- Fence Type = Industrial Cam Lock Quick Rel
- Fence Dims. = 1-3/4” x 27-3/4”
- Brake System = Air Brake on Motor
- Frame Const. = 1″ Base 1/2″ Cabinet 3/4″ Arms
- Worktable Dims. = 83″ x 40″ x 3.5″ Table
- Table Const. = Steel
- Laser = 100mw Laser Light & Mount Bracket
- Decible Rating = 84 dB
- Net Weight = 3455 Lbs.
- Gross Weight = 3675 Lbs.
- Machine Dims. = 90″ x 67″ x 68″
- Packaging Dims = 91” x 72” x 78”
