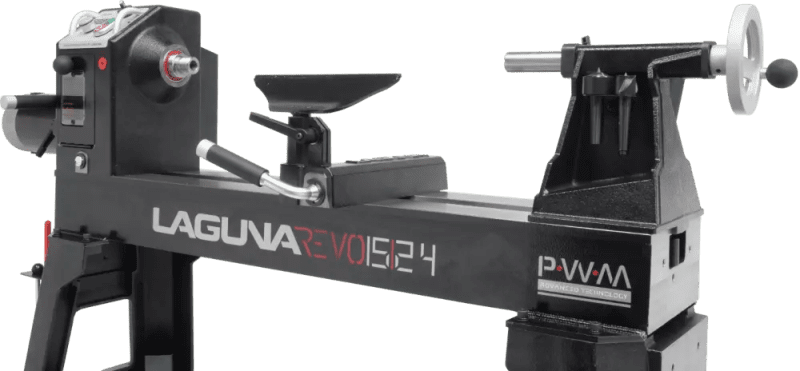

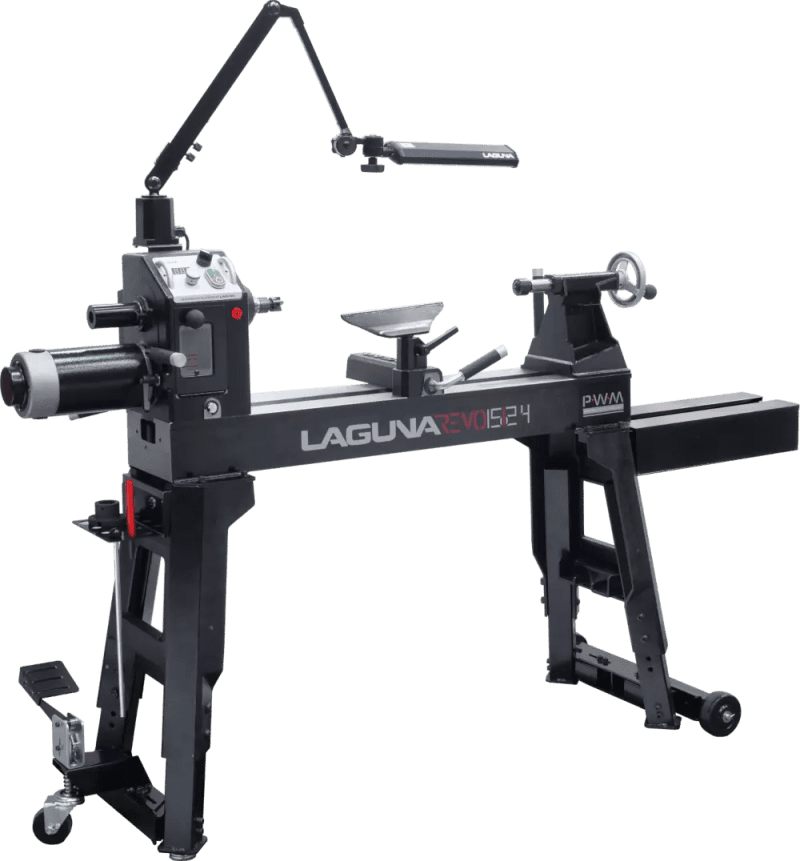

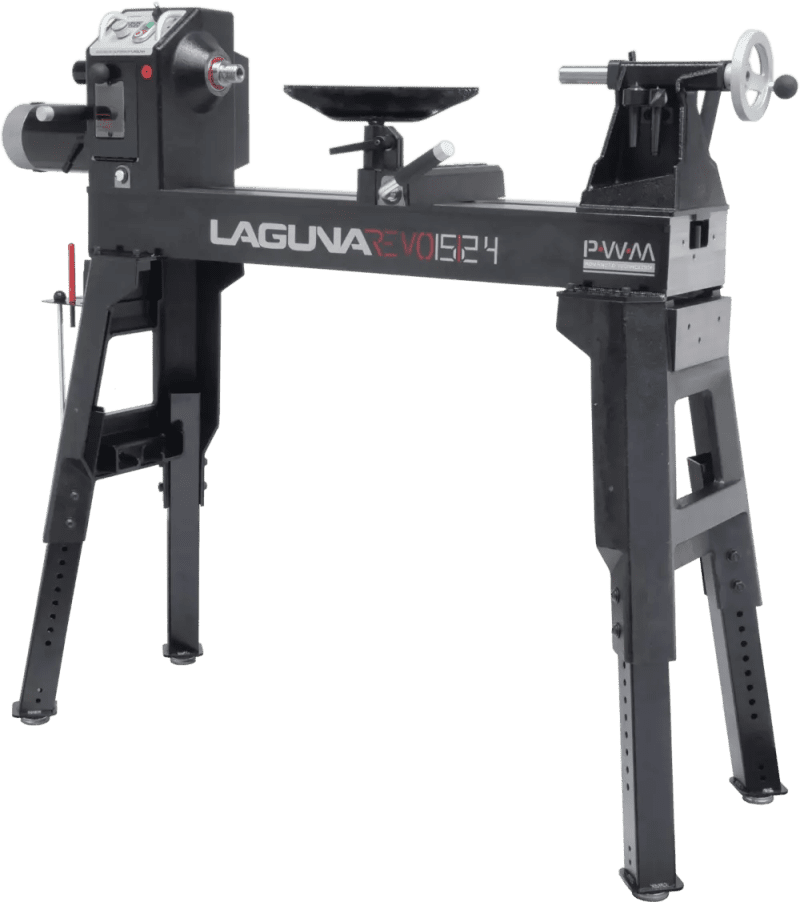

Laguna Revo 15|24 (Lathes)

$2,299.00

With the launch of the Revo 15|24 Laguna is filling the gap between the Revo 12|16 & the legendary Revo 18|36, providing space constrained users with more power and capacity.

Features:
  • World-class fit and finish Laguna is known for
  • Sliding headstock for ergonomic outboard bowl turning
  • Infinite electronic variable speed from 50 – 4200 RPM with a 3 step pulley
  • Extraordinary torque even at low speeds, powered by Laguna Pulse Width Modulation
  • Adjustable-height legs allow a more ergonomic working position tailored to individuals needs
  • Steel bed provides strength, stability and a surface that the banjo will glide across smoothly
  • A brand new feature is the patent-pending Precise Point that allows you to dial in the tailstock quill to meet with the headstock center
Add to quote
Financing & Leasing Options for Your Convenience!

360 Degree Machinery offers financing solutions with competitive rates, flexible terms, and a simple application. Take the hassle out of machinery purchases. Click Here to learn more now!

Laguna Revo 15|24 (Lathes)
Laguna Revo 15|24 (Lathes)
$2,299.00
Request a call back
(*Optional)

Electrical: 1.5HP, 110 Volt, 8 Amp, 60Hz.

Motor: Permanent Magnet DC, 2150 RPM

PWM: Pulse Width Module Speed Control

Recommended Breaker: 15 Amp

Spring Loaded Spindle Lock

Swing Over Bed: 15-½″

Swing Over Banjo: 11-3/32″

Max. Outboard Swing with optional accessory: 25″

Tool-Rest Post Size: 1″

Tool-Rest Length: 12″

Bed Gap: 50mm

Spindle Taper: MT#2

RPM High: 650-4200

RPM Mid: 325-2100

RPM Low: 50-650

Accepts Vacuum Chuck: No

Tailstock Quill: #2 MT

Floor To Spindle Center Low: 36-13/32″

Floor To Spindle Center High: 51-13/32″

Floor To Bed Min.: 25-19/32″

Floor To Bed Max.: 43-19/32″

Front Bearing: TPI Taiwan 6206LLU

Rear Bearing: TPI Taiwan 6205LLU

Spindle Index #: 24 w/ Lock

Distance Between Centers: 24″

Headstock/Tailstock Through-Bore: ⅜″

Headstock Travel: Full Length

Tailstock Storage Of Centers

Spindle Size: 1-¼″ x 8TPI RH

Floor Space (W x D x H): 60″ x 22″ x 22″

CSA C/US: 256540

Box Dimensions (L x W x H): 52″ x 22″ x 22″

Weight (Net/Ship): 288/302 lbs

Lathe Comparison Chart 111523
