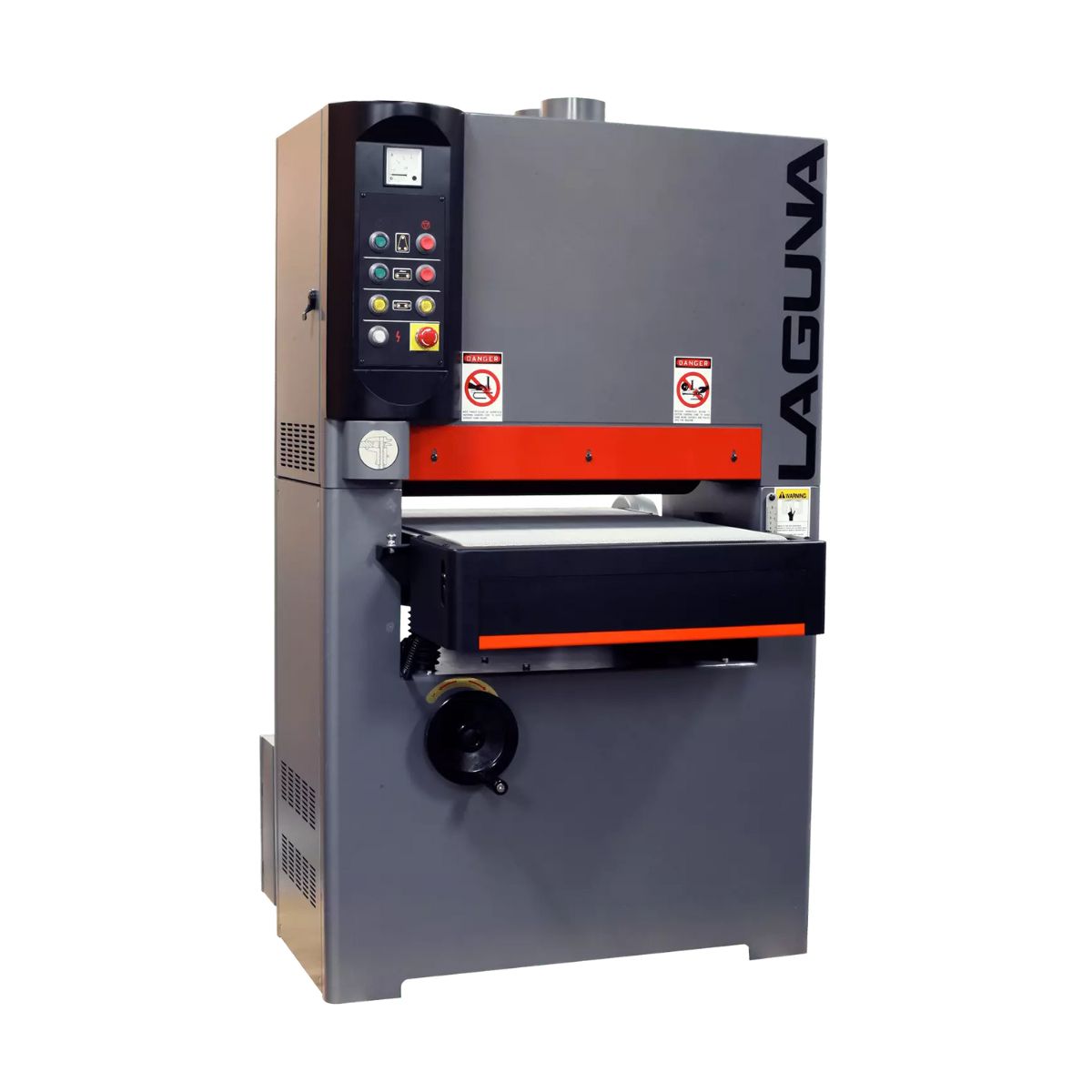

Laguna Wood Compact 25″ 1K Wide Belt Sander

Laguna Wood Compact 25″ 1K Wide Belt Sander

$51,999.00

Laguna’s all new Compact Widebelt Sander is perfect for the shop looking for an industrial quality sander at an affordable price. The Compact is impressive in its offerings: 60″ belt length with Automatic Pneumatic Oscillation, 2 feed speeds, industrial cast iron bed sitting on 4 Acme threaded screws with center alignment designed for precision results even when handling heavy material. The bed is adjustable with electronic motor and manual handle for micro movement. Industrial quality carpet offers the perfect balance between grip & rigid support. The platen is fully adjustable enabling you to run in combination with the 4″ rubber drum for optimum results. Raise it and use the drum alone to dimension wood. Lower it to sand sensitive material such as veneer without the risk of going through the material. Don’t let the price fool you, this is a serious piece of machinery!

Features:
  • Single Head
  • Volt: 220, 1 phase, 60 Hz.
  • HP: 7.5 Main Motor
  • Bed Adjustment: Electric, 0.33 HP Motor
  • Micro Adjust: Manual Handle
  • Conveyor: 22 & 49 FPM. Gear Change, 1 HP
Add to Quote Request

Bed Height: 32″(Min) – 38″ (Max)

Max Capacity: 5.9″ (150mm)

Max Width Capacity: 24-⅜″

Belt Size: 25″ x 60″

Drum: 4 x 26″ Rubber Roller

Configuration: Combo Head, Roller + Platen

Platen: Felt & Graphite, Fully Adjustable With Scale

RPM: 1750 Drum

Safety Bar: Front off Bed, Stops Belt

Oscillation: Pneumatic, Adjustable

Air Pressure: 75 psi

Brake: Main Motor, Air Disc

Dust Port: 5″ x 3

Foot Print: 20″ x 40″

Total Size (W x D): 40″ x 50″

Height Included Dust Ports: 66-¼″

CSA: Fully Certified

Weight (Net/Gross): 1650/1920 lbs
