Northtech NT DC20 2 HP Dust Collector

Northtech NT DC20 2 HP Dust Collector

Categories , , , , Tag Brand:

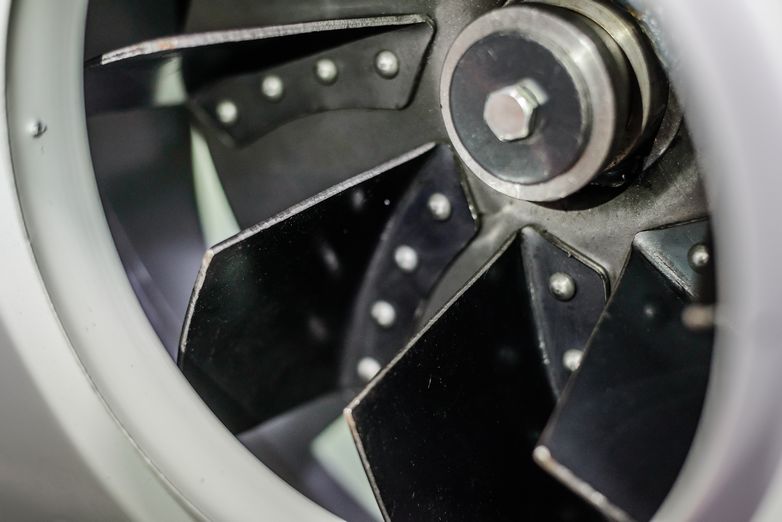

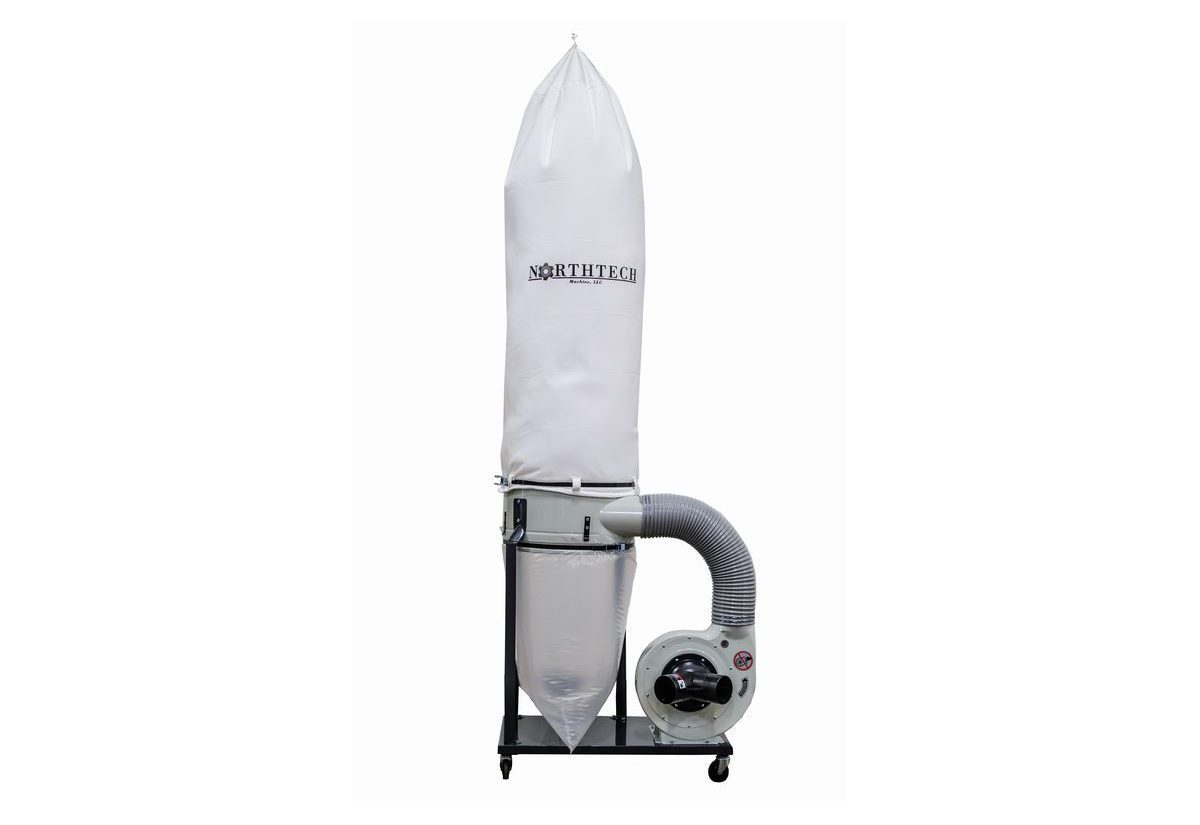

This space-saving portable dust collector from Northtech has a large 31” x 59” polyester filter bag up top and a 31” x 34” collection bag below to efficiently separate and contain sawdust and chips. The 6″ inlet and included manifold with two (2) 4″ ports enable easy connection to multiple machines to share the 1300 CFM produced by the 2 HP three-phase motor and 11-1/2″ steel impeller.

Cutting, sanding, and shaping create large amounts of dust, shavings, and other waste that can cause severe health and safety issues if not dealt with properly. Insufficient and ineffective dust-collectors also affect the machines they’re connected to, leading to decreased performance, lower productivity, increased maintenance, and costly repairs. Upgrading your shop with a Northtech dust collector is a simple and affordable step toward protecting your business, your health, and your bottom-line.

Contact us today for help choosing the best dust collector for your shop!

Add to Quote Request

Features:

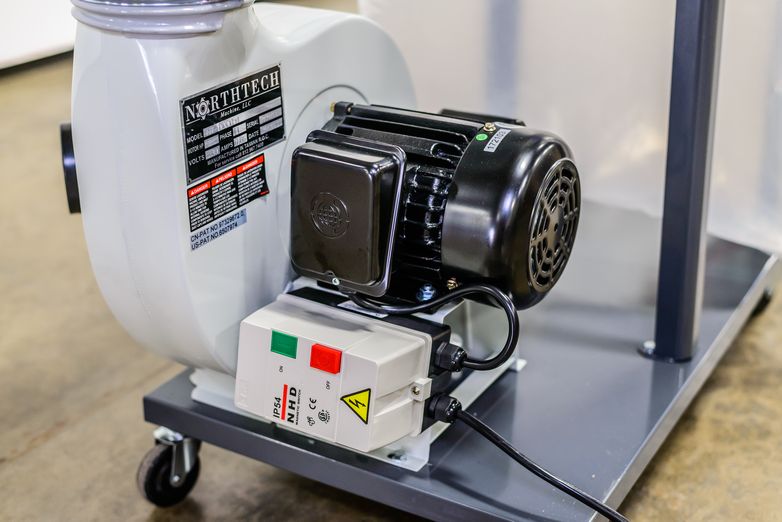

  •  2HP 230/460V 3PH Motor
  •  Impeller Diameter: 3” x 11-1/2″ (steel)
  •  Free Air CFM: 1,300
  •  Air Velocity: 7,200 FPM
  •  Dust Inlet: (2) 4″
  •  Filter bags: (1) 31″ x 59″
  •  Collector bag: (1) 31” x 34”
  •  Net weight: 102 lbs.
  •  Gross weight: 110 lbs.
  •  Machine dimensions: (L) 37″ x (W) 26″ x (H) 104″
  •  Packing dimensions: (L) 34″ x (W) 24″ x (H) 22″
  •  Warranty is one-year parts
  •  All machines are tested stateside before shipment providing trouble-free startup.

 Specifications:

  • Main Motor Hp. = 2 hp.
  • Direct Drive = Direct Drive
  • Machine Hp. = 2 hp.
  • Voltage/ Freq. = 230/460 Volt 60Hz
  • Phase = 3 Phase
  • Electronics = CE Approved Components

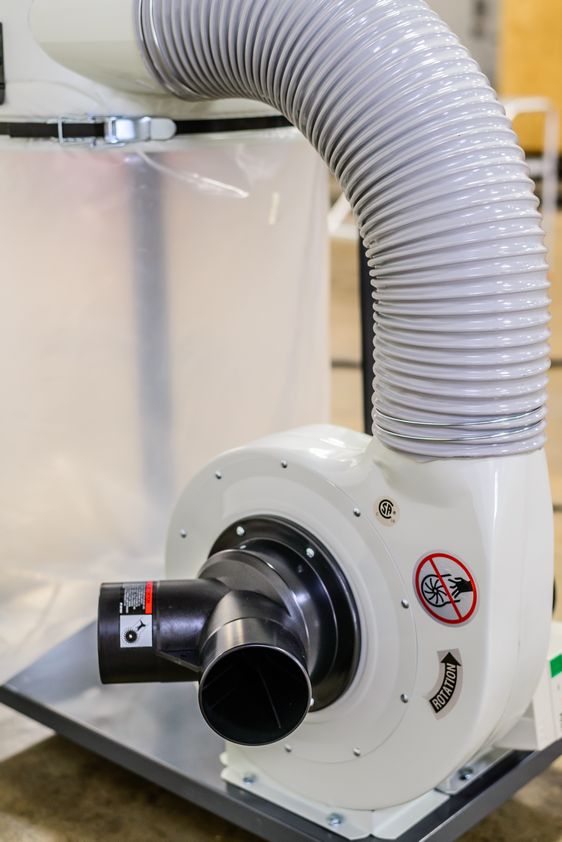

  • Dust Port In = (1) 6” or (2) 4”
  • Dust Port Out = (1) 6”
  • Free Air CFM = 1300 CFM
  • Impeller = 3” x 11-1/2” Steel Impeller
  • Frame Const. = 1/16” Steel Construction
  • Upper Bags = 31” x 59”
  • Lower Bags = 31” x 34”
  • Decible Rating = 86 dB
  • Net Weight = 102 Lbs.
  • Gross Weight = 110 Lbs.
  • Machine Dims. = 37” x 26” x 104”
  • Packaging Dims = 34” x 24” x 22”

Please Contact us for a shipping quote for Pre-Owned Machinery and or New machinery below $6,000.

***Some restrictions apply for free freight on NEW machinery over $5,999. FREE freight is to a commercial address with a dock and or forklift. EXTRA FEES may apply to accessorials like restricted access, residential drops, liftgates, and excessive lengths.

Applies to lower 40 of the contiguous states only. AZ, CA, ID, MT, NV, OR, UT, & WA do not qualify for free shipping. We can split ship to these states from $5,999 and up. Free shipping does not apply to RazorGage Machines nor JLT Machinery or other machines listed as not free shipping.

Financing & Leasing Options for Your Convenience!

360 Degree Machinery offers financing solutions with competitive rates, flexible terms, and a simple application. Take the hassle out of machinery purchases. Click Here to learn more now!

Features:

  •  2HP 230/460V 3PH Motor
  •  Impeller Diameter: 3” x 11-1/2″ (steel)
  •  Free Air CFM: 1,300
  •  Air Velocity: 7,200 FPM
  •  Dust Inlet: (2) 4″
  •  Filter bags: (1) 31″ x 59″
  •  Collector bag: (1) 31” x 34”
  •  Net weight: 102 lbs.
  •  Gross weight: 110 lbs.
  •  Machine dimensions: (L) 37″ x (W) 26″ x (H) 104″
  •  Packing dimensions: (L) 34″ x (W) 24″ x (H) 22″
  •  Warranty is one-year parts
  •  All machines are tested stateside before shipment providing trouble-free startup.

 Specifications:

  • Main Motor Hp. = 2 hp.
  • Direct Drive = Direct Drive
  • Machine Hp. = 2 hp.
  • Voltage/ Freq. = 230/460 Volt 60Hz
  • Phase = 3 Phase
  • Electronics = CE Approved Components
  • Dust Port In = (1) 6” or (2) 4”
  • Dust Port Out = (1) 6”
  • Free Air CFM = 1300 CFM
  • Impeller = 3” x 11-1/2” Steel Impeller
  • Frame Const. = 1/16” Steel Construction
  • Upper Bags = 31” x 59”
  • Lower Bags = 31” x 34”
  • Decible Rating = 86 dB
  • Net Weight = 102 Lbs.
  • Gross Weight = 110 Lbs.
  • Machine Dims. = 37” x 26” x 104”
  • Packaging Dims = 34” x 24” x 22”
