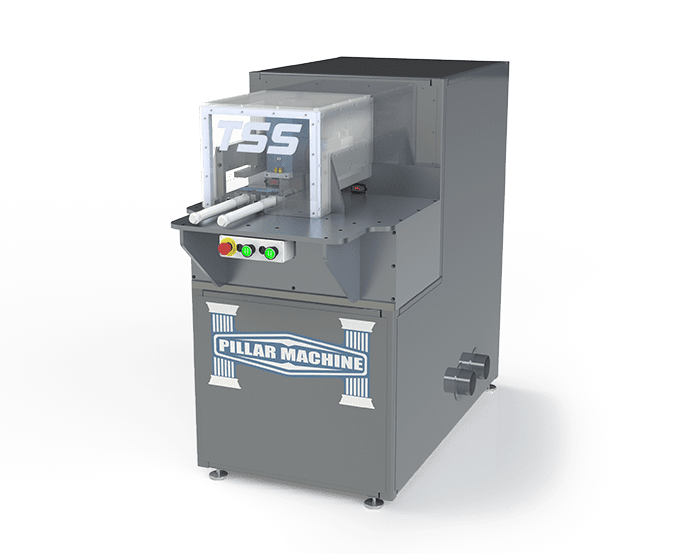

Pillar TSS: Trim Score Saw for Tear-Free Woodworking
Revolutionize your cutting process with the Pillar TSS, a trim score saw engineered for woodworking professionals seeking flawless, tear-out-free cuts on delicate materials like veneered plywood, melamine, and MDF. Featuring dual counter-rotating blades, this machine pre-scores parts to prevent chipping, delivering pristine edges in a single pass. With a robust 1,400 lb. frame, optional TigerStop integration for CNC positioning, and safety-focused pneumatic clamps, the TSS is perfect for cabinet shops and furniture makers aiming for precision and efficiency. Its ability to pack-cut multiple parts at once makes it a shop essential for high-volume production.
Standout Features and Advantages

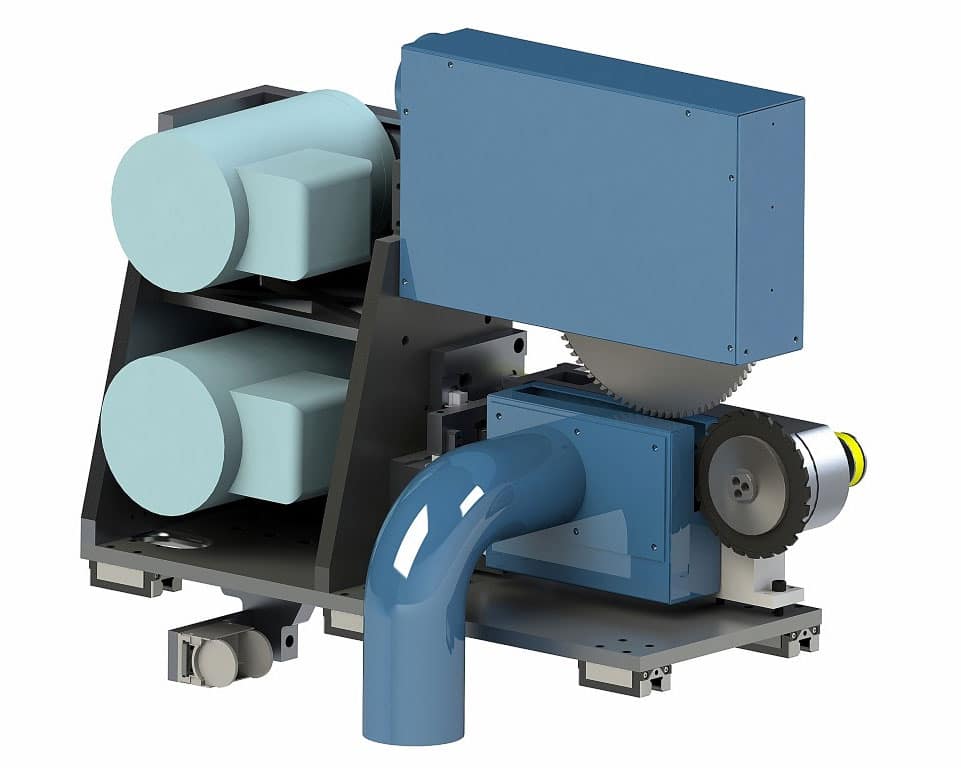

- Tear-Free Cutting: Dual counter-rotating blades (300 mm top, 150 mm bottom) pre-score and cut, ensuring chip-free edges on sensitive materials.

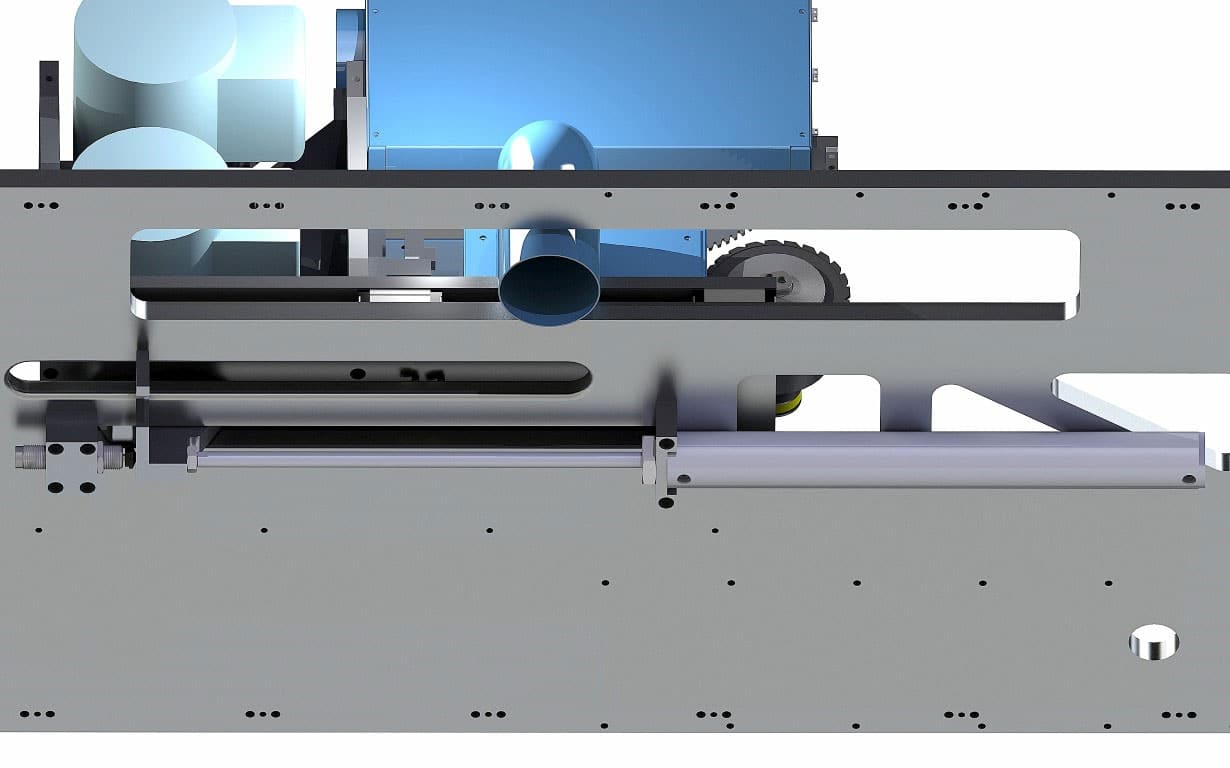

- High-Speed Efficiency: Horizontal blade movement with linear bearings and adjustable flow controls delivers fast, precise cuts in seconds.

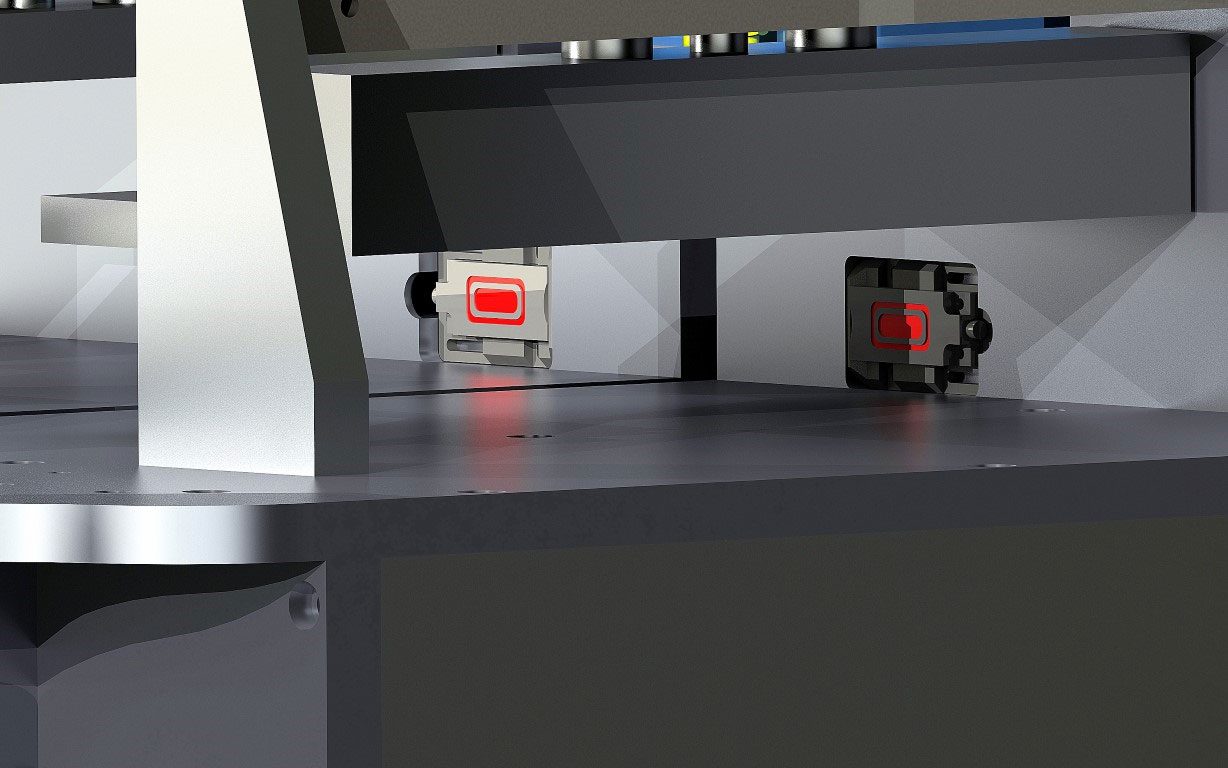

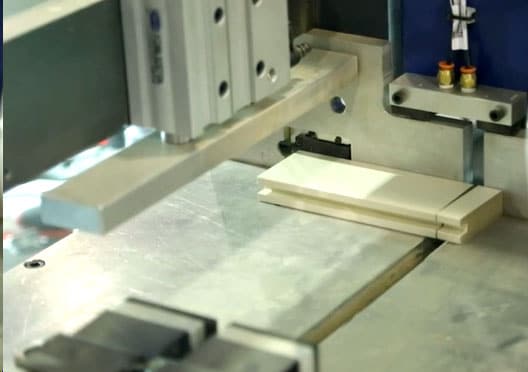

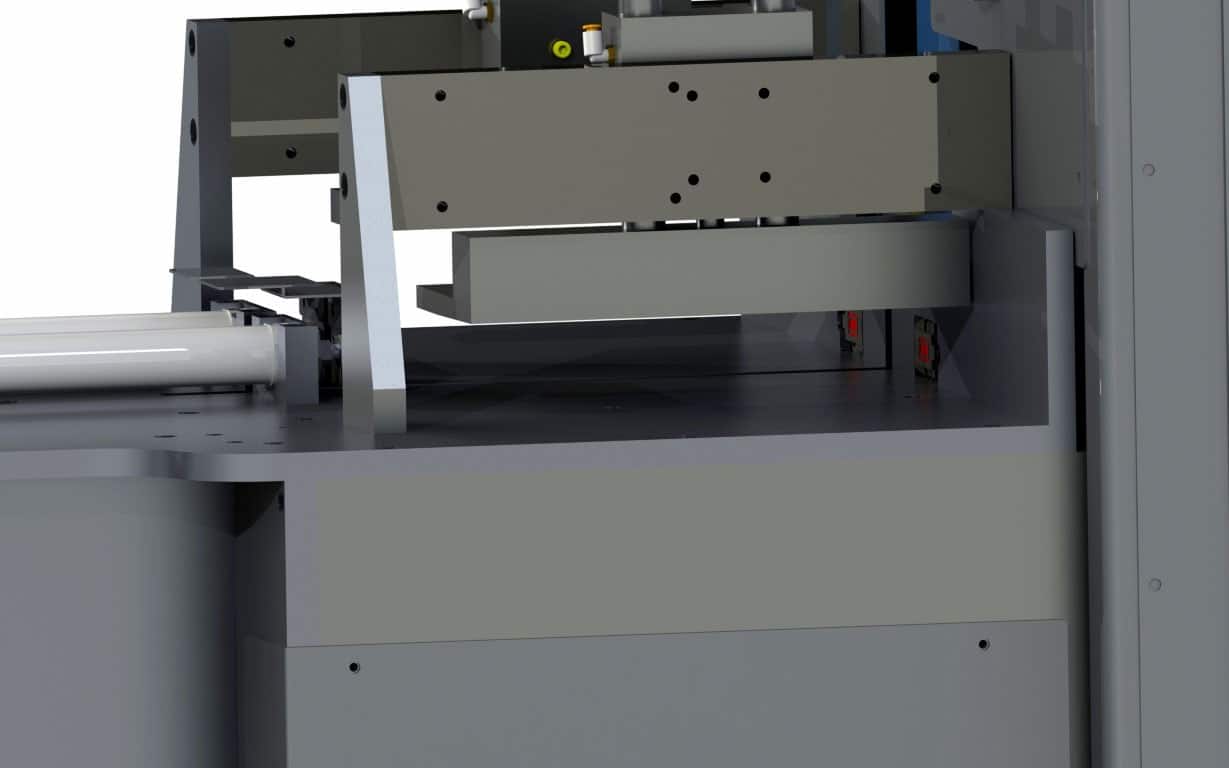

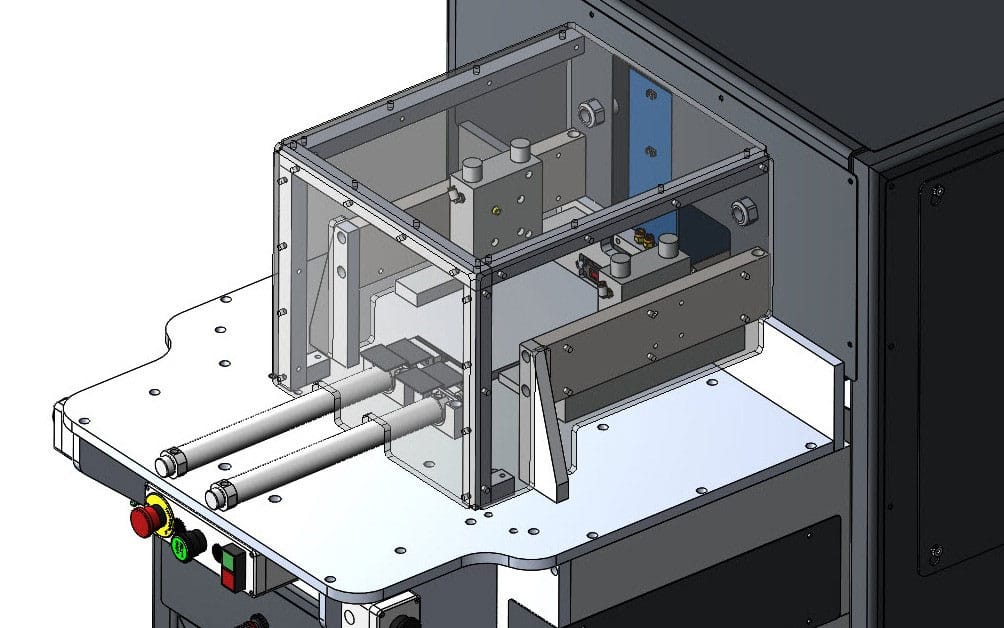

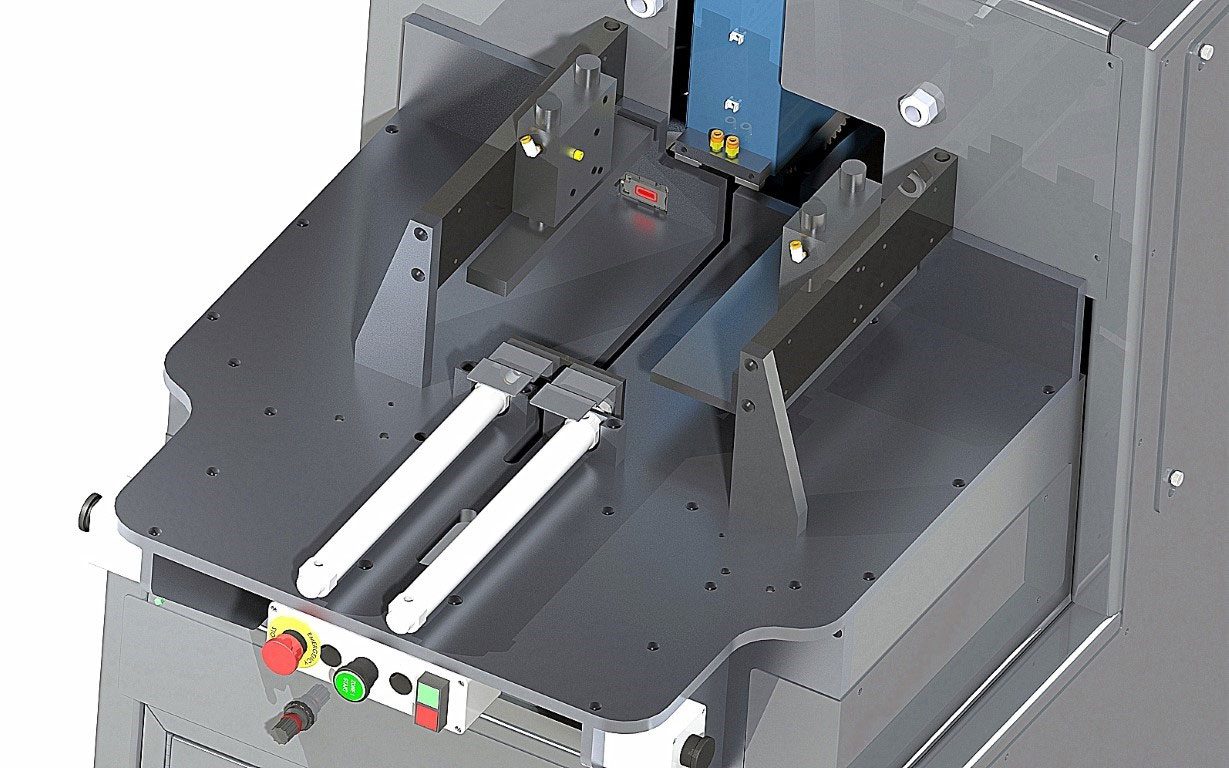

- Enhanced Safety: Pneumatic clamps with proximity switches release only after blade retraction, prioritizing operator safety.

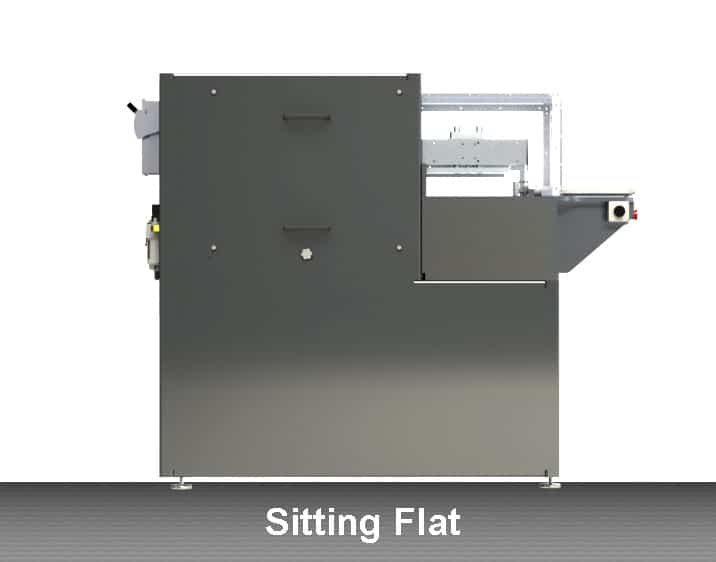

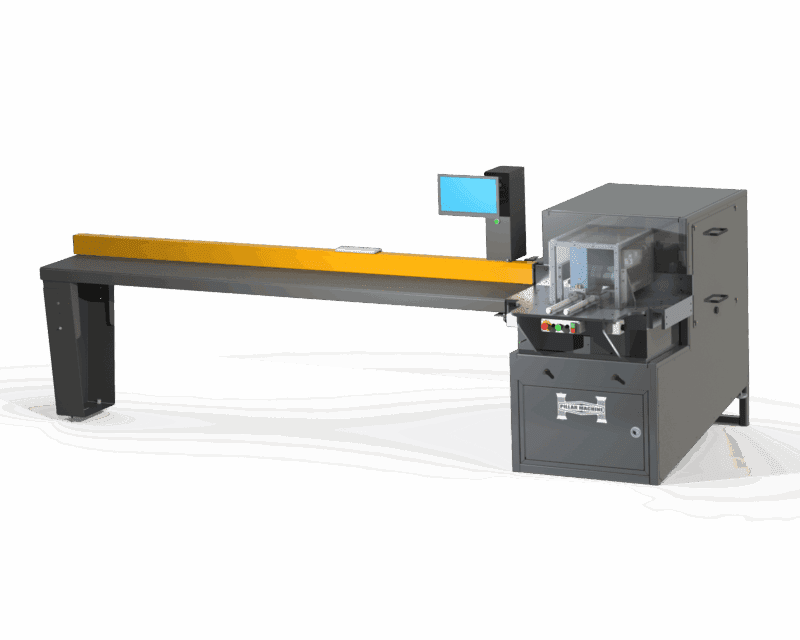

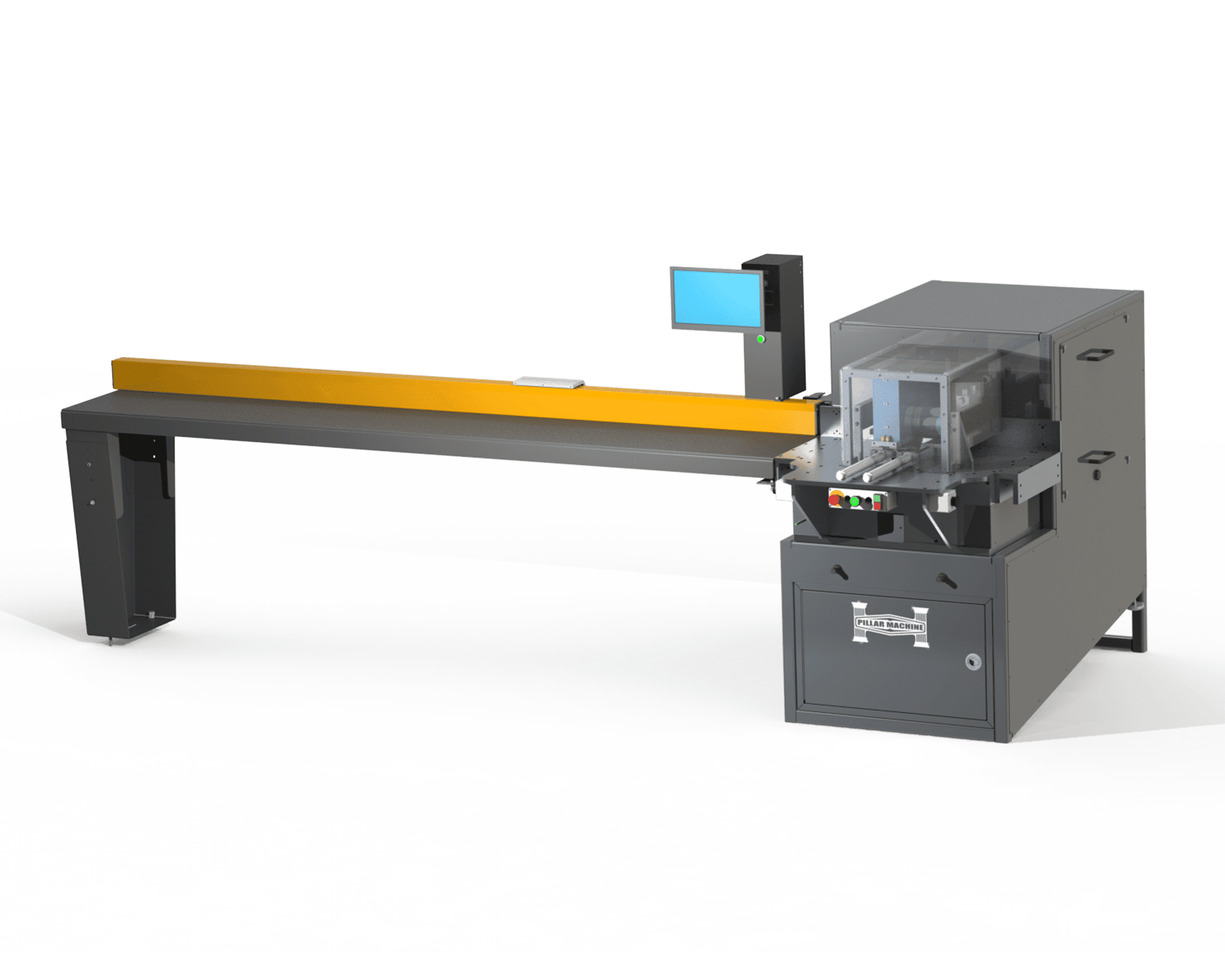

- Versatile Frame Design: Adjustable to sit flat or tilted at 10°, with optional 8′ or 10′ TigerStop for automated positioning.

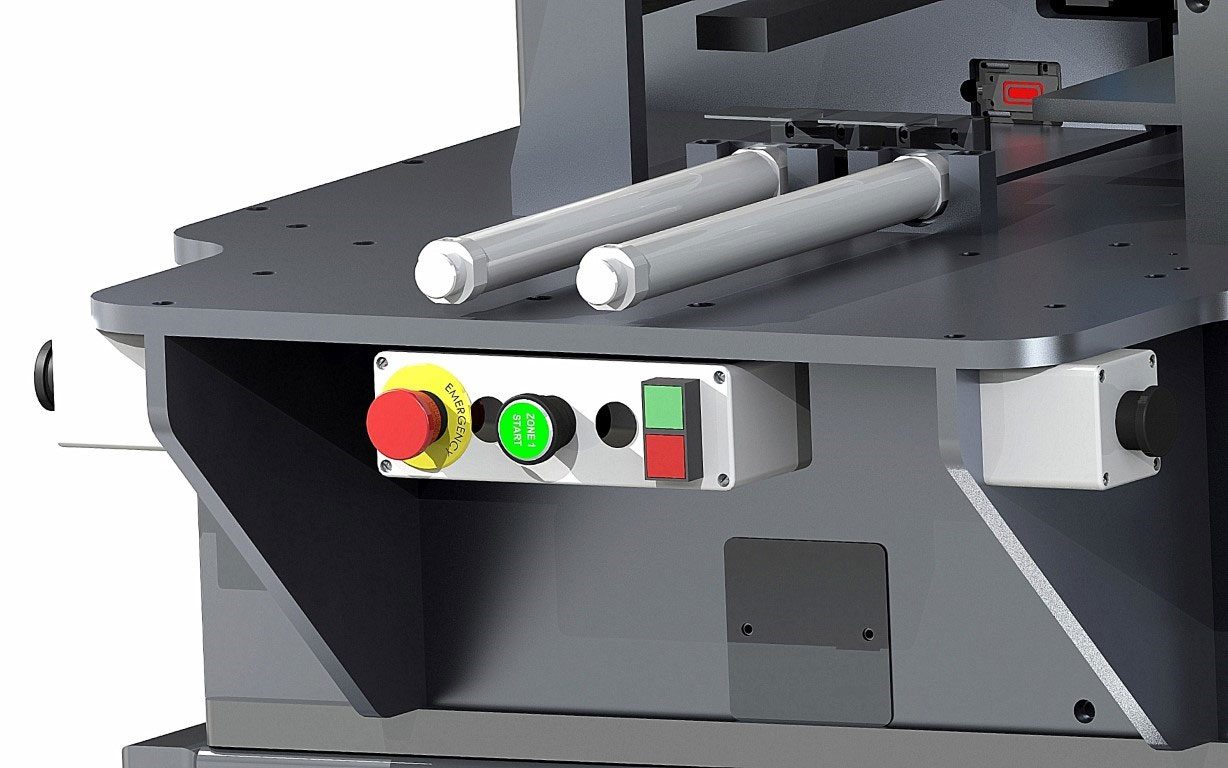

- Operator-Friendly Controls: Dual palm buttons or optional foot pedal start switch simplify operation for all skill levels.
- Durable Build: 1,400 lb. frame with high-precision components ensures reliability in demanding shop environments.
Perfect For
The Pillar TSS is tailored for:
- Cabinet shops needing clean, chip-free cuts on veneered or laminated materials.
- Furniture manufacturers seeking safe, accurate trimming for high-volume runs.
- Workshops aiming to replace manual chop saws with a more precise, automated solution.
Technical Breakdown
| Feature | Specification |
|---|---|
| Machine Type | Trim score saw with dual counter-rotating blades |
| Top Blade | 300 mm diameter, 96 teeth, 1″ bore, ATB, 10° hook, 4700 RPM |
| Bottom Blade | 150 mm conical, 24 teeth, 30 mm bore, ATB, 8° hook, 4700 RPM |
| Top Spindle Motor | 3 HP |
| Bottom Spindle Motor | 1.5 HP |
| Blade Movement | Horizontal, linear bearings, pneumatic cylinder |
| Max Opening | 15″ (with optional upgrade) |
| Controls | Dual palm buttons (optional foot pedal) |
| Electrical | 3-phase, 208-230V, 60 cycles, 20 amps |
| Compressed Air | 90 PSI at 10 CFM |
| Dust Collection | 2 x 4″ ports, 696 CFM total |
| Dimensions | 38″ W x 72″ D x 57″ H |
| Weight | 1,400 lbs. (approx.) |

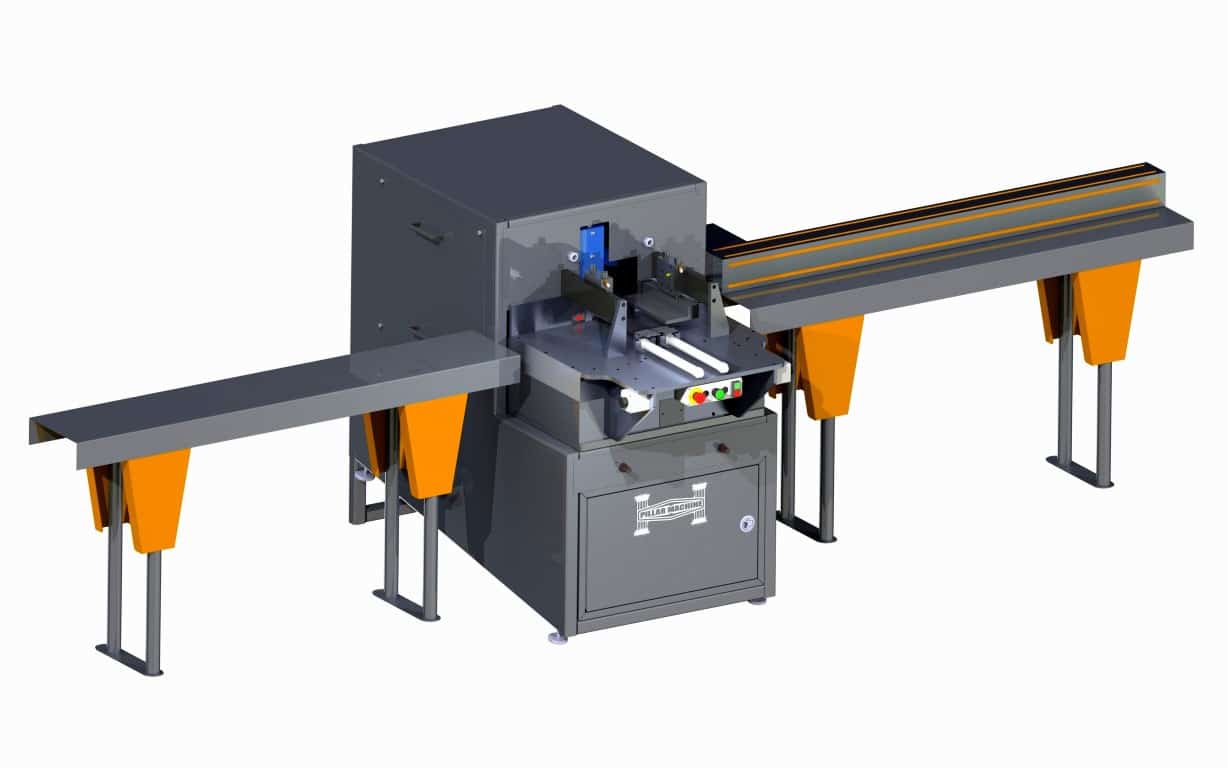

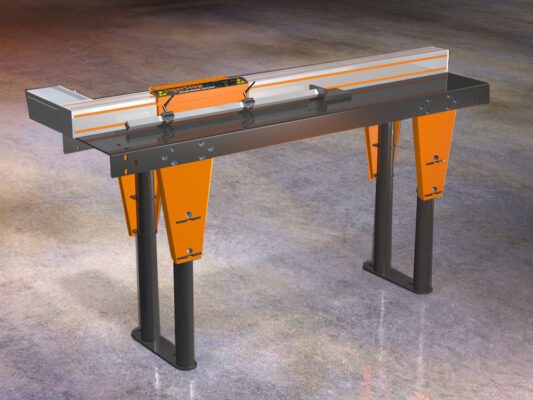

Available TSS TigerStop Options
8‑Foot TigerStop System
Includes an integrated 8′ TigerStop CNC-positioned pusher with an in-feed table and a 6′ out-feed table featuring a back fence. Mounting hardware is provided to attach both tables to the TSS. The TigerStop system is fully integrated into the TSS control panel. Note: the standard servo fence is right-side mounted—specify left-side if preferred; freight cost may increase; warranty provided by
TigerStop, not Pillar Machine.
10‑Foot TigerStop System
Features a 10′ version of the TigerStop CNC stop/pusher, complete with an in-feed table and a 6′ out-feed table with back fence. Comes with necessary mounting hardware for integration into the TSS controls. Note: standard fence position is right-side—left-side available on request; additional freight charges apply; TigerStop handles warranty.
Why Pillar Excels
Handcrafted in Salt Lake City, Utah, every Pillar TSS embodies American engineering excellence, backed by a one-year warranty and free online training. Pillar’s innovative designs, praised by customers like Euro Contempo for safety and precision, ensure lasting value, trusted by woodworking professionals nationwide.
Request Your Customized Quote from 360 Degree Machinery
Ready to achieve tear-free cuts? Click the “Add to quote” button above or call 630-229-6705 to request a customized quote for the Pillar TSS today!
