Pillar HPMT: 3-Axis CNC Mortise and Tenon Machine for Precision Joints

Pillar HPMT: 3-Axis CNC Mortise and Tenon Machine

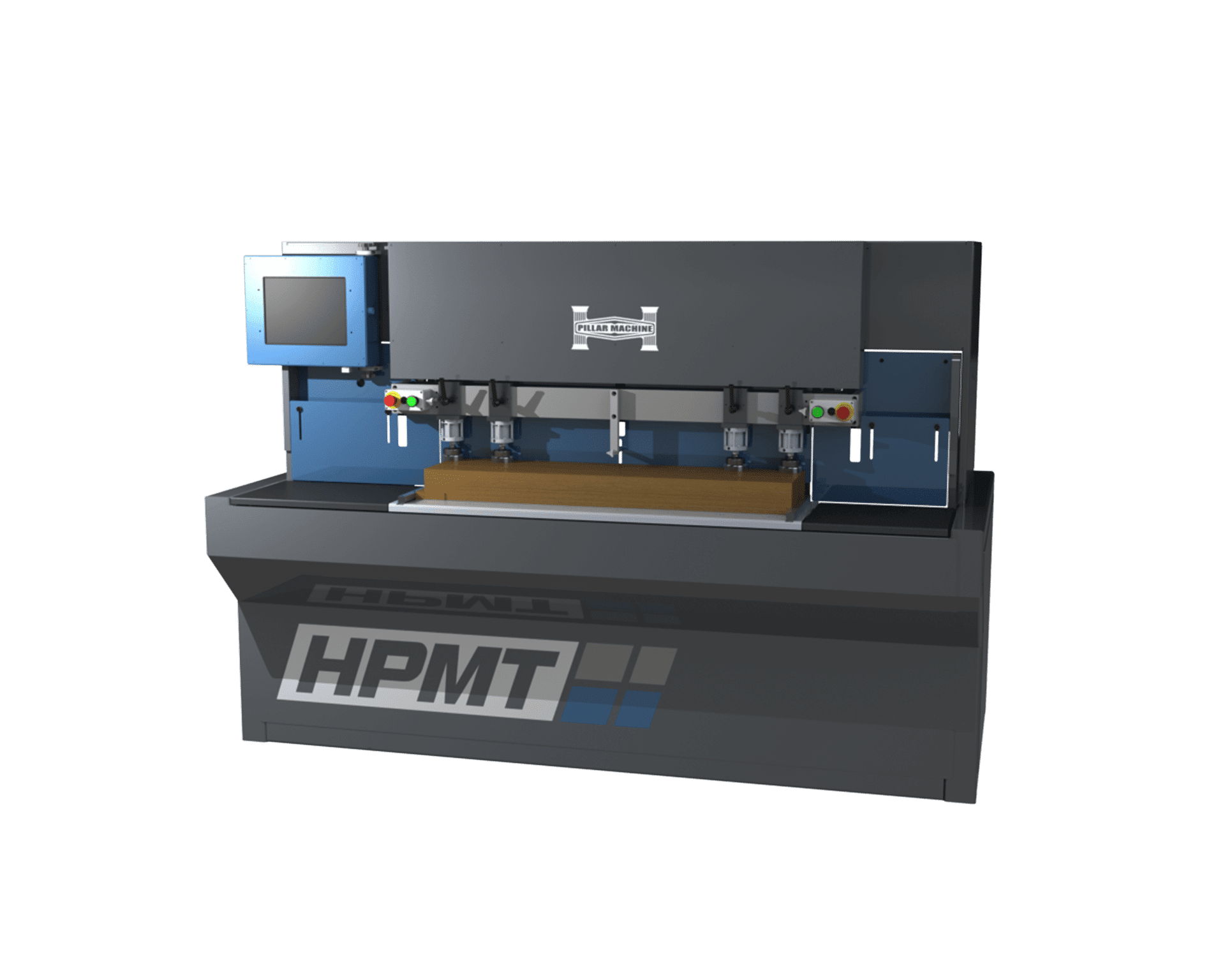

Elevate your woodworking craftsmanship with the Pillar HPMT, a multi-axis CNC horizontal machining center designed to produce high-quality mortise and tenon joints for cabinets, furniture, and shutters. With a 48″ working length and full 3-axis control, this machine uses separate spindles for mortise and tenon work, ensuring precision and efficiency. Its two work zones enable pendulum processing, allowing you to load one part while machining another, boosting output. Capable of cutting louvers, grooves, and dowel holes, the HPMT’s versatility and speed make it a vital asset for shops seeking stronger, self-aligning joints.

Standout Features and Advantages

3-Axis CNC Precision: X, Y, and Z axes with rack-and-pinion and ball screw systems deliver exact mortise and tenon cuts for flawless joints.
Dual Work Zones: Two zones with left and right-hand programs enable pendulum processing, maximizing throughput with minimal downtime.
Versatile Machining: Cuts mortise and tenon joints, louvers, slots, and grooves, supporting cabinet, furniture, and shutter applications.
Flexible Capacity: Handles material up to 48″ wide (unlimited with side fence removal) and 2″ thick, accommodating diverse project needs.
User-Friendly Interface: A 15″ touchscreen with graphical displays and parametric programming simplifies setup and operation.
Heavy-Duty Build: 2,800 lb. frame with high-precision square rail guides ensures durability in demanding shop environments.

Perfect For

The Pillar HPMT is tailored for:

Cabinet shops crafting high-quality mortise and tenon joints for face frames and doors.
Furniture manufacturers needing versatile CNC machining for slots, grooves, and louvers.
Workshops seeking to streamline production with self-aligning, robust joints.

Technical Breakdown

Feature	Specification
Machine Type	3-axis CNC horizontal mortise and tenon machining center
Work Zones	2 (standard)
Max Width Capacity	48″ (unlimited with side fence removal)
Length Capacity	Unlimited
Thickness Capacity	Min: 0.5″; Max: 2″
Spindles	3 HP mortise (24,000 RPM), 6 HP tenon (18,000 RPM)
Axes Control	X: Rack-and-pinion; Y, Z: Servo ball screw
Guides	High-precision square rail guides and bearings
Electrical	3-phase, 208-230V, 60 cycles, 20 amps
Compressed Air	90 PSI at 10 CFM
Dust Collection	1 x 2.5″ port, 1 x 4″ port, 700+ CFM total
Weight	2,800 lbs. (approx.)
Display	15″ industrial touchscreen
Software Tools	Parametric programming, pattern machining, online diagnostics

Smart Software & Interface

The Pillar HPMT’s 15″ touchscreen is a control nexus, enabling program setup in under a minute. Its open-architecture software supports .xml file imports or barcode scanning (optional reader required) for efficient workflow integration. Key features include:

Graphical displays for mortise, tenon, and groove placement.
Parametric programming for custom flexibility.
Password-protected editing and online diagnostics (with internet).

Available HPMT Options

96‑Inch Table Extension
Expands the standard 48″ table to a 96″ working length—ideal for longer rail and stile processing.

120‑Inch Table Extension
Extends the table to 120″, accommodating extra-long components beyond the default 48″ reach.

Automatic Oiler System
Adjustable pneumatic oiler pressurizes and lubricates 12 linear bearings (X‑axis + under mortise and tenon spindles) whenever the spindles run. Note: may affect lead time.

Keyed Electronic Interlock
Integrates a safety switch into rear access doors that acts as an emergency stop. Note: may affect lead time.

Why Pillar Excels

Handcrafted in Salt Lake City, Utah, every Pillar HPMT embodies American engineering excellence, backed by a one-year warranty and free online training. Pillar’s innovative designs, praised by customers like Berlin Gardens for versatility, ensure lasting value, trusted by woodworking professionals for precision and reliability.
