Pillar FNX: Floor Notching Machine for Cabinet Boxes
Maximize your cabinet production with the Pillar FNX, a custom CNC machine designed to notch cabinet floor corners with precision and speed. Engineered for woodworking shops, this machine features two notching stations that cut ¼” x 1” notches on both sides simultaneously, streamlining high-volume production. Its manual width adjustment ensures a perfect fit for each part, while stackable capability handles up to 2.5″ thick material stacks for unmatched efficiency. With a focus on safety and simplicity, the Pillar FNX is the ideal solution for cabinetmakers seeking to enhance output and quality.
Standout Features and Advantages

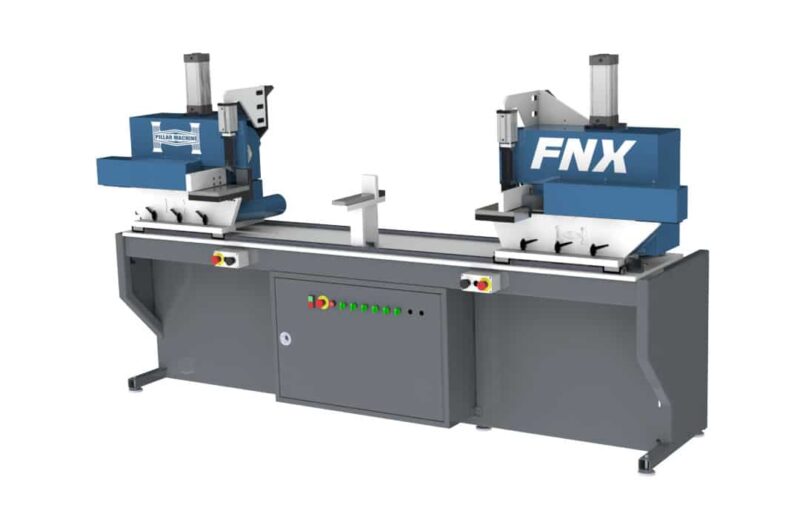

- Dual Notching Stations: Cuts ¼” x 1” notches on both cabinet floor corners at once, boosting throughput and reducing cycle times.

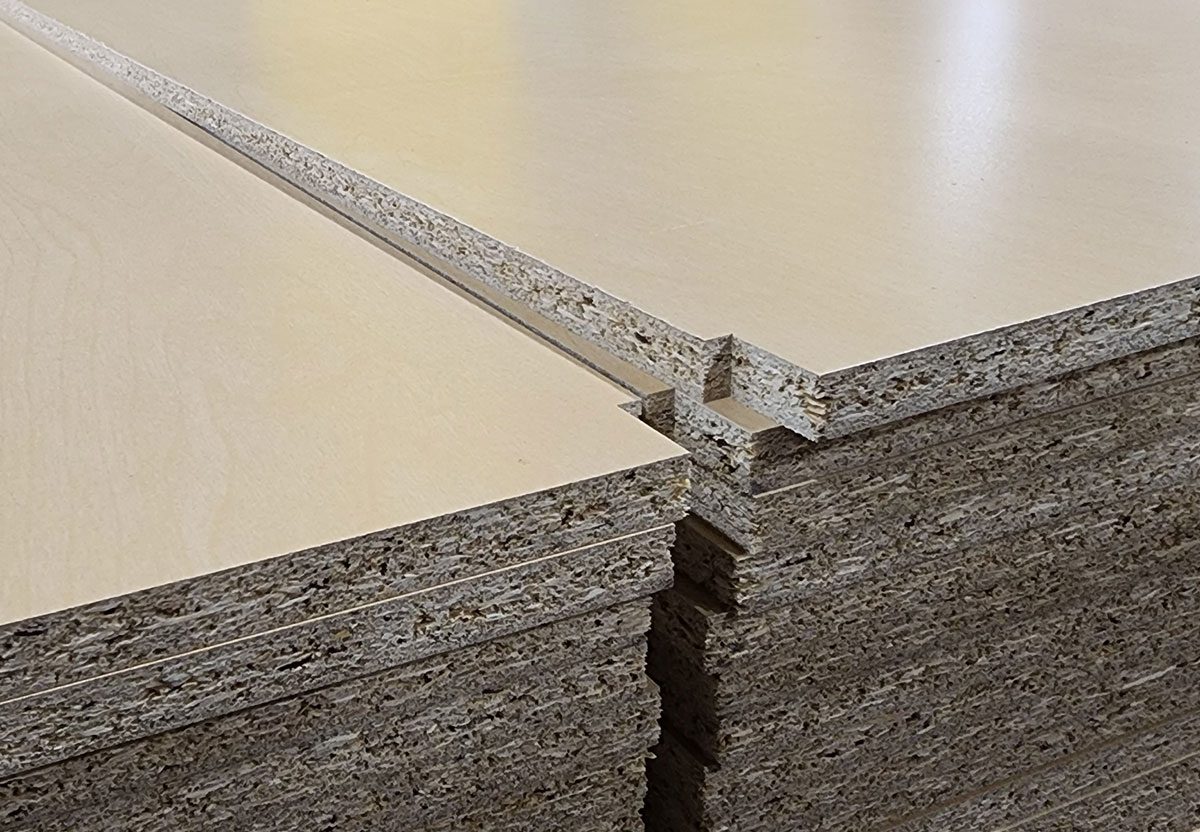

- Stackable Efficiency: Processes stacks up to 2.5″ thick (e.g., five ½” parts), maximizing output without additional labor.
- Safe Operation: Hands-off design with PLC controls and manual start/stop ensures operator safety during high-speed notching.

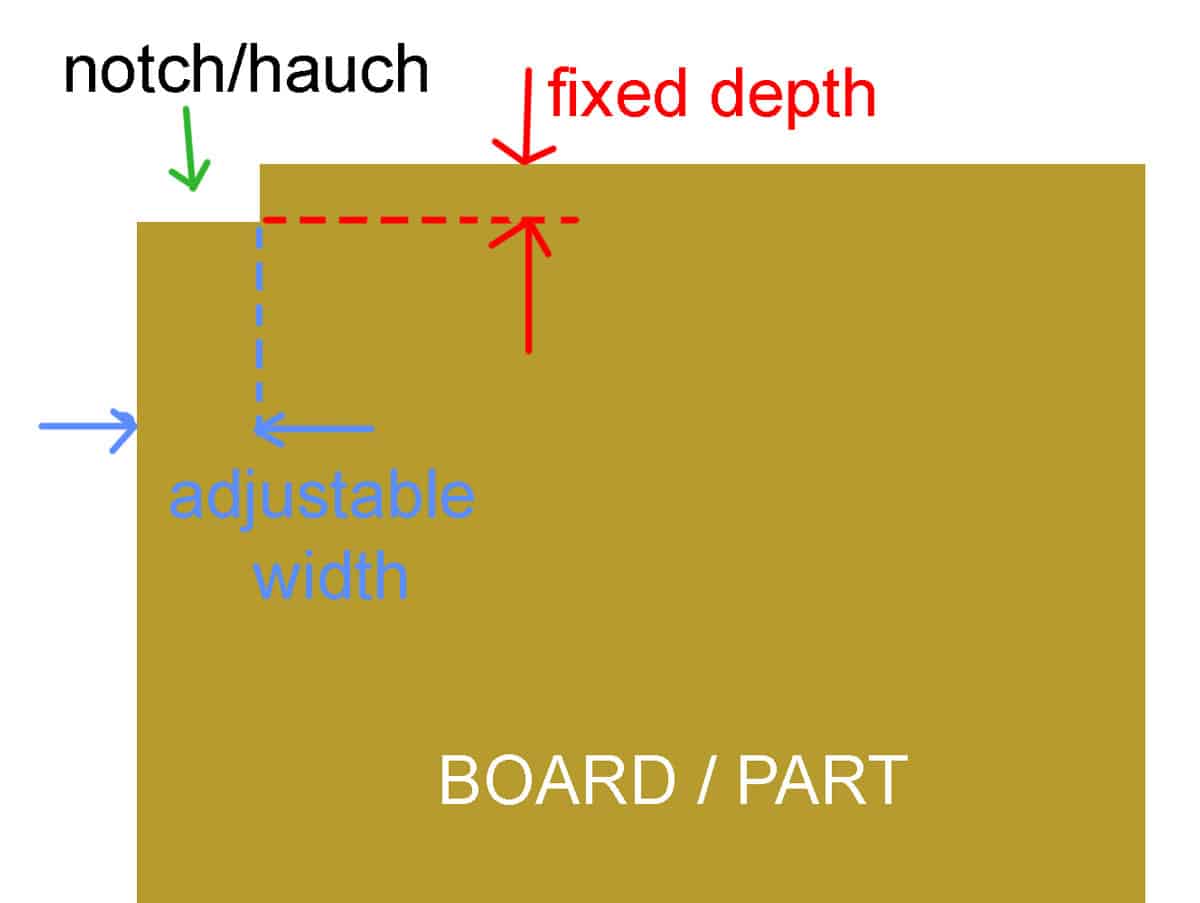

- Flexible Adjustments: Manual width setting locks notching heads to match unnotched parts, accommodating depths from 6” to unlimited.

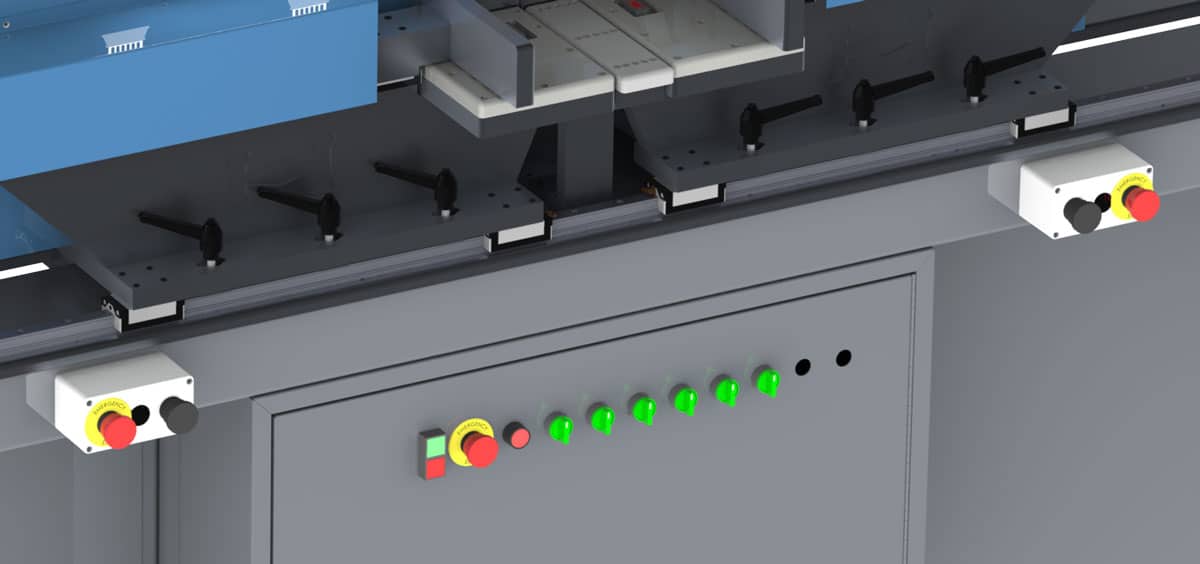

- Simple PLC Controls: Programmable Logic Controller offers intuitive operation, minimizing training time for all skill levels.
- Rugged Build: Custom-engineered with a welded frame for durability in demanding shop environments.
Perfect For
The Pillar FNX is tailored for:
- Cabinet shops needing fast, precise notching for floor corners in high-volume production.
- Woodworkers seeking safe, efficient solutions for stackable panel processing.
- Manufacturers aiming to streamline cabinet box assembly with custom CNC technology.
Technical Breakdown
| Feature | Specification |
|---|---|
| Machine Type | Custom CNC floor notching machine |
| Notching Stations | 2 (simultaneous corner notching) |
| Notch Size | ¼” x 1” per side |
| Material Depth | Min: 6”; Max: Unlimited |
| Material Width | Min: 13”; Max: 60” |
| Material Thickness | Min: ½”; Max: 2.5” (stackable) |
| Controls | PLC with manual start/stop and pressure controls |
| Electrical | 3-phase, 208-230V, 60 cycles, 20 amps |
| Compressed Air | 90 PSI at 10 CFM |
| Dust Collection | 2 x 4″ ports, 696 CFM total |
Why Pillar Excels
Handcrafted in Salt Lake City, Utah, every Pillar FNX embodies American engineering excellence, backed by a one-year warranty and free online training. Pillar’s custom CNC solutions and direct factory support ensure lasting value, trusted by woodworking professionals for precision and reliability.
Request Your Customized Quote from 360 Degree Machinery
Ready to streamline your cabinet floor notching? Click the “Add to quote” button above or call 630-229-6705 to request a customized quote for the Pillar FNX today!
