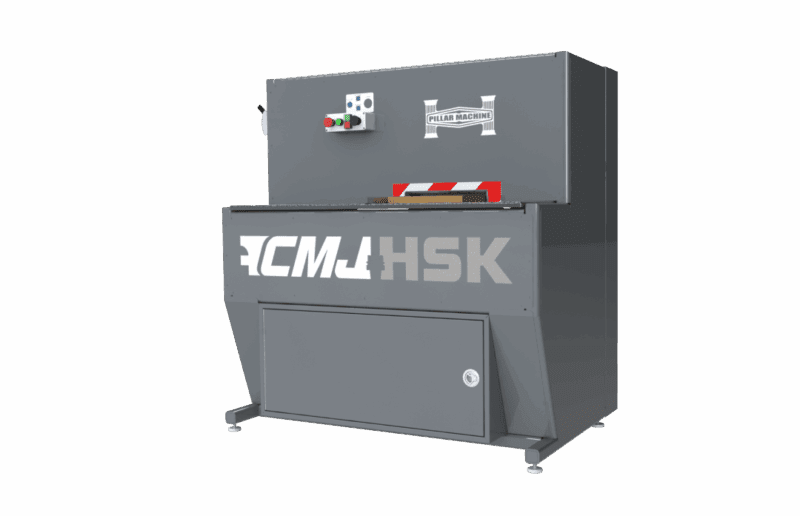

Pillar CMJ-HSK: High-Speed Coping Machine with HSK Spindles
Take your woodworking shop to the next level with the Pillar CMJ-HSK, a high-speed coping machine engineered for chip-free end coping, tenoning, finger jointing, and end matching. Designed for medium to large cabinet shops, this machine features two independent HSK-63F spindles with quick-change tool capability, allowing profile switches in just 30 seconds. Processing square or profiled rails in a swift 6-8 second cycle, the CMJ-HSK eliminates the need for backer blocks or chip breakers, delivering tear-out-free results every time. With its robust 1,350 lb. frame and PLC controls, it’s a precision workhorse for shops running multiple profiles daily.
Standout Features and Advantages

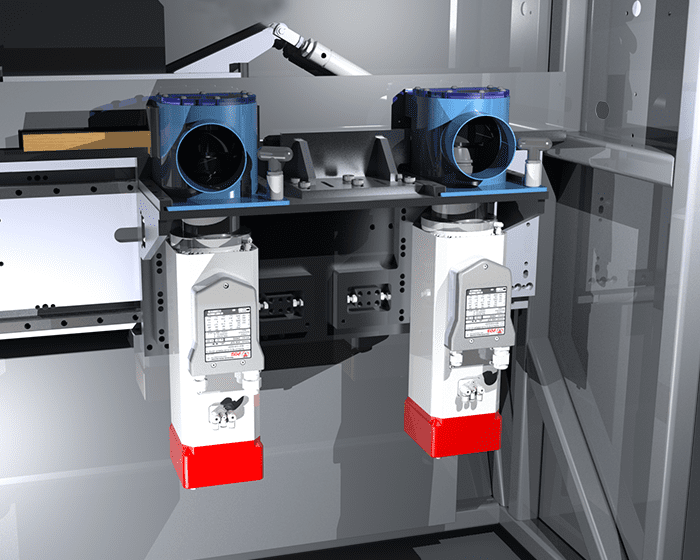

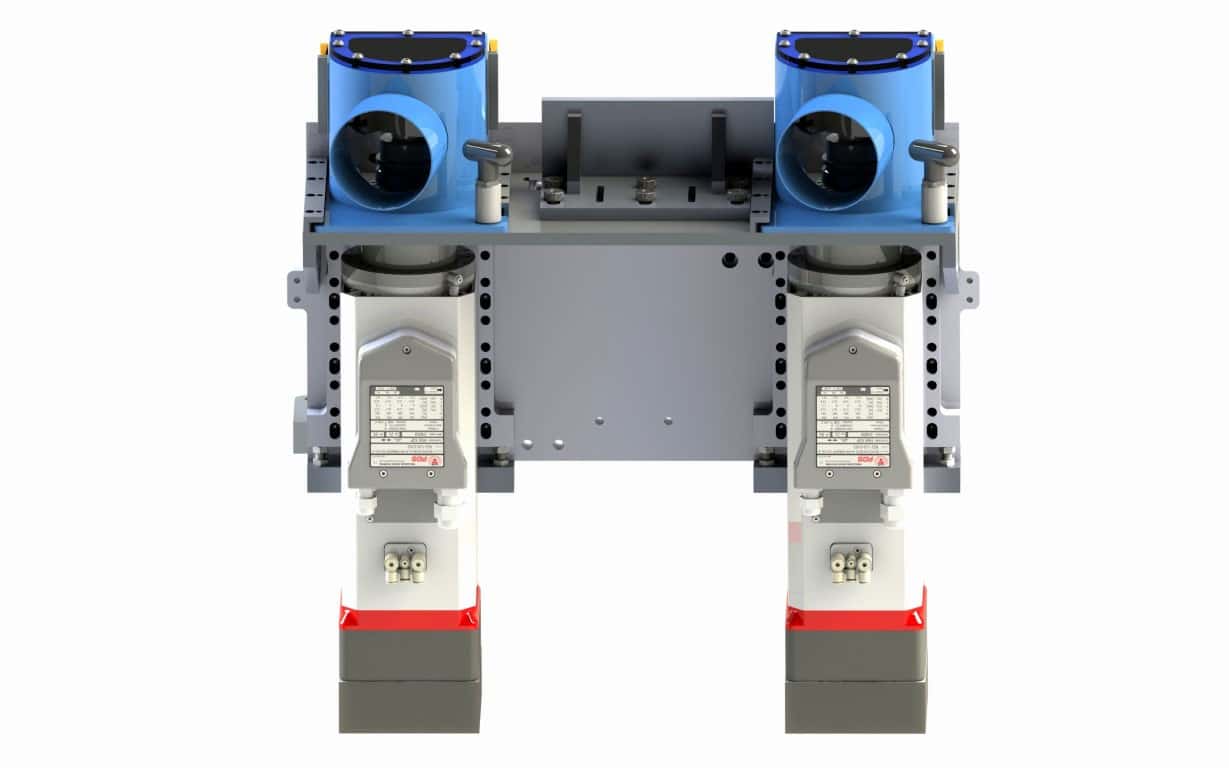

- Quick-Change HSK Spindles: Two 11 HP HSK-63F spindles with push-button tool changes reduce downtime, making them ideal for shops with 10 or more daily profiles.
- Chip-Free Excellence: Dual counter-rotating spindles clear the leading edge and process the full width, ensuring clean, tear-out-free cuts.
- Blazing-Fast Cycles: Completes coping or tenoning in 6-8 seconds, capable of processing up to 4000 rails per shift when cutting two parts at once.

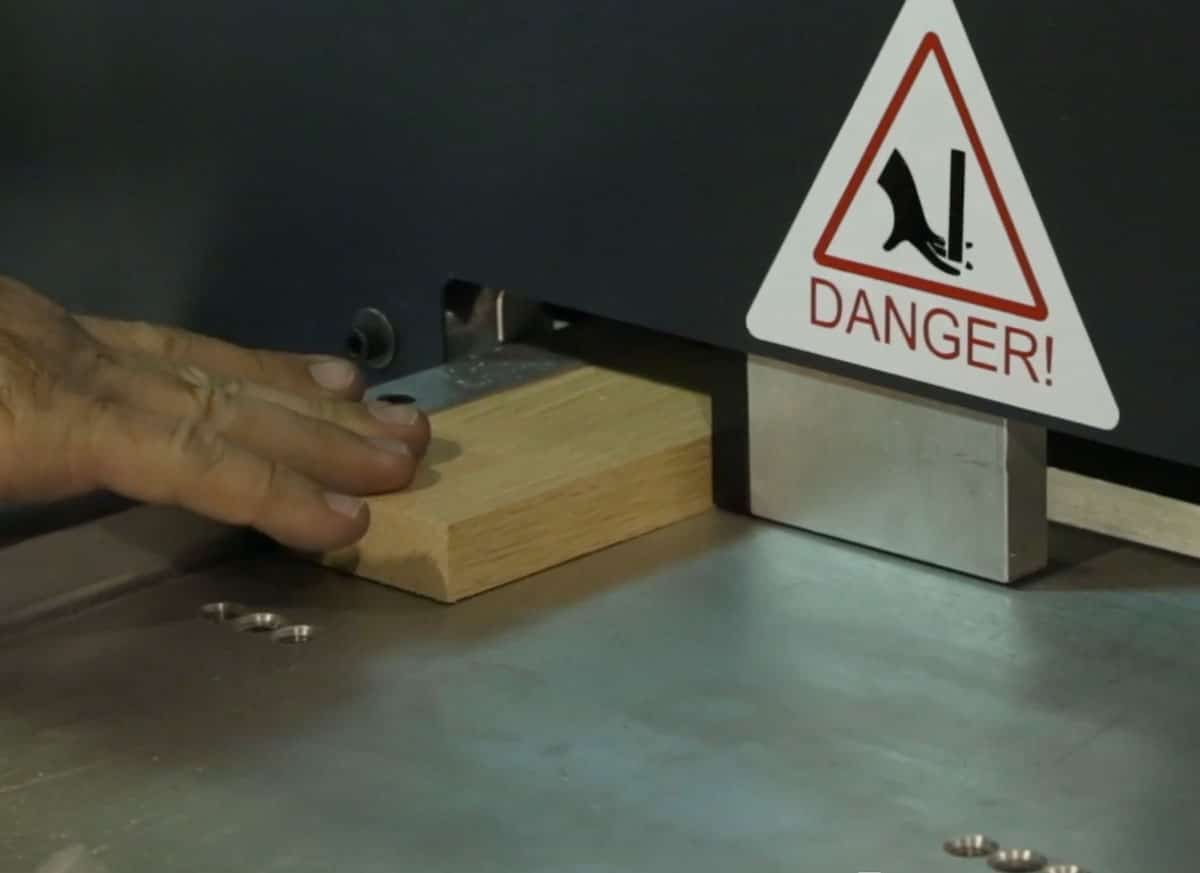

- Accurate Alignment: Scissor lock clamp applies up to 600 lbs. of force, with precise spindle adjustments for perfect tool alignment.

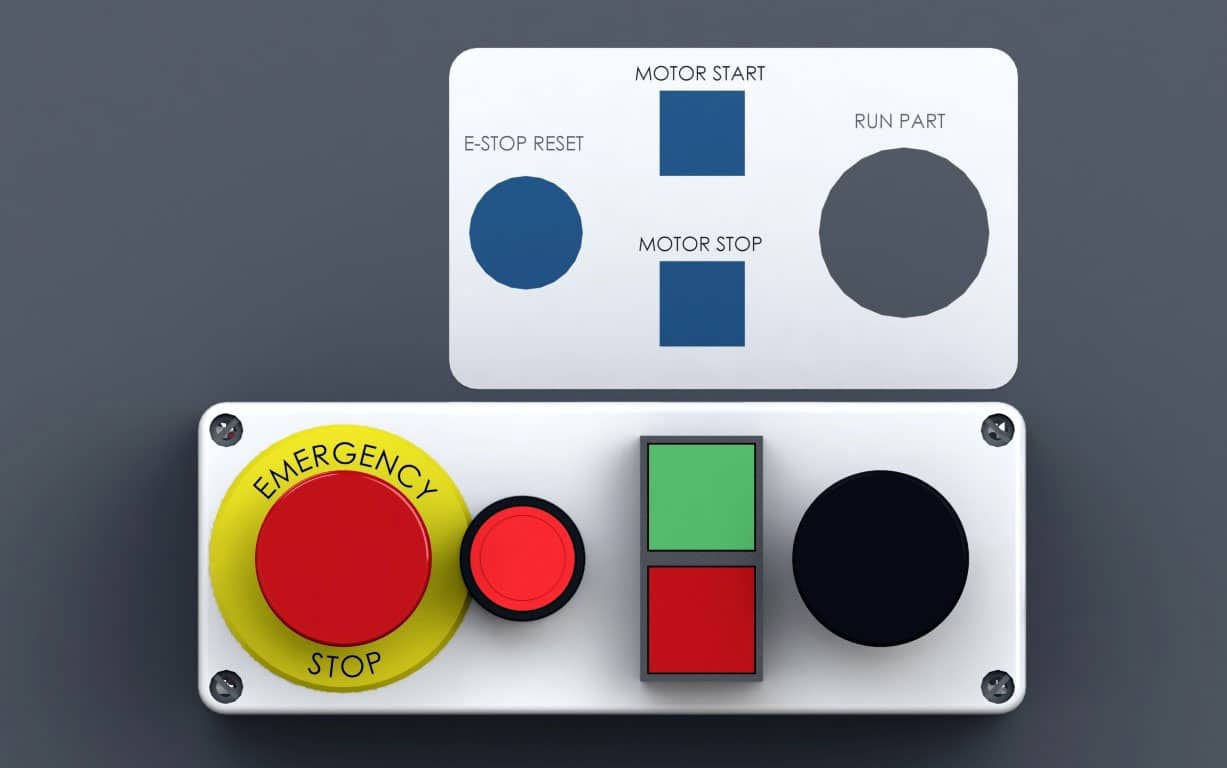

- Operator-Friendly PLC: Programmable Logic Controller (PLC) offers simple controls, making it easy to achieve consistent results with minimal training.
- Heavy-Duty Build: 1,350 lb. frame with high-precision square rail guides ensures durability in high-volume production environments.
Perfect For
The Pillar CMJ-HSK is ideal for:
- Medium to large cabinet shops needing rapid, precise coping for multiple rail profiles.
- Woodworkers processing pre-profiled or square parts without backer blocks.
- Manufacturers seeking a high-output machine to streamline door rail production.
Technical Breakdown
| Feature | Specification |
|---|---|
| Machine Type | Coping, tenoning, finger jointing, and end matching machine |
| Cycle Time | 6-8 seconds per part |
| Production Capacity | Up to 4000 rails per shift (dual parts) |
| Material Length | Min: 3″; Max: Not applicable |
| Material Width | Min: 1.5″; Max: 12″ |
| Material Thickness | Min: 0.5″; Max: 1″ |
| Depth of Cut | Max: 5/8″ |
| Spindles | 2 independent HSK-63F spindles, 11 HP each |
| Clamp Force | Scissor lock clamp, up to 600 lbs. |
| Controls | PLC with programmable settings |
| X-Axis Guides | High-precision square rail guides and bearings |
| Electrical | 3-phase, 208-230V, 60 cycles, 30 amps |
| Compressed Air | 90 PSI at 5 CFM |

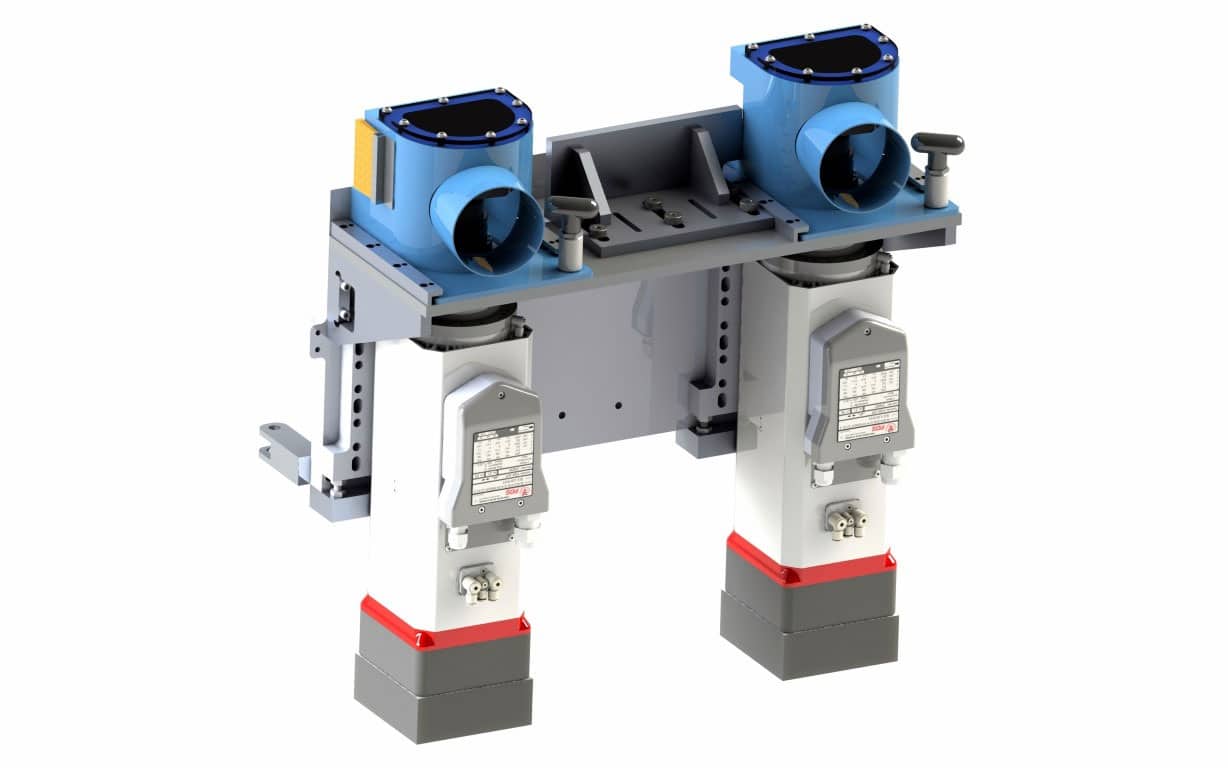

| Dust Collection | 2 x 4″ ports, 696 CFM total |
| Dimensions | 52″ W x 30″ D x 57″ H |
| Weight | 1,350 lbs. (approx.) |
Available CMJ‑HSK Options
Rear Guarding Upgrade
Includes hinged tube‑steel and expanded‑mesh access doors at the back for enhanced safety and visibility. Note: Welded-on, may extend lead time and increase machine depth to 40 inches.
Keyed Electronic Interlock
Integrates into rear guard doors to function as an emergency stop switch. Note: may extend lead time.
Foot Pedal Control
Replaces the palm-button start with a floor pedal, allowing hands-free operation. Note: may extend lead time.

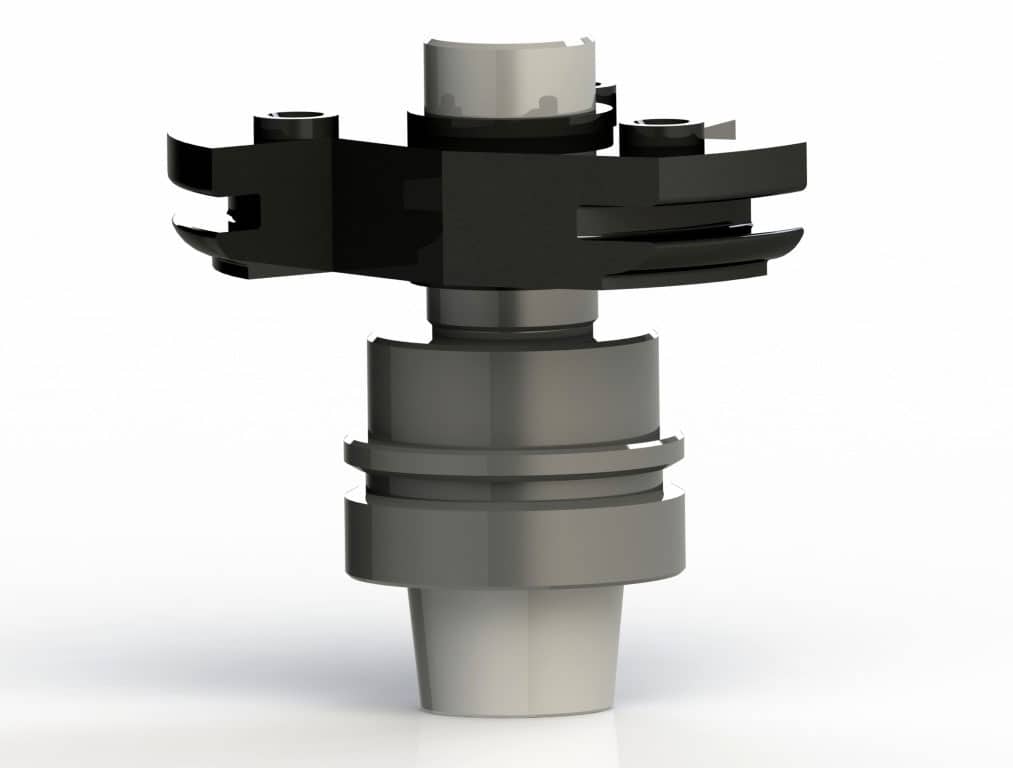

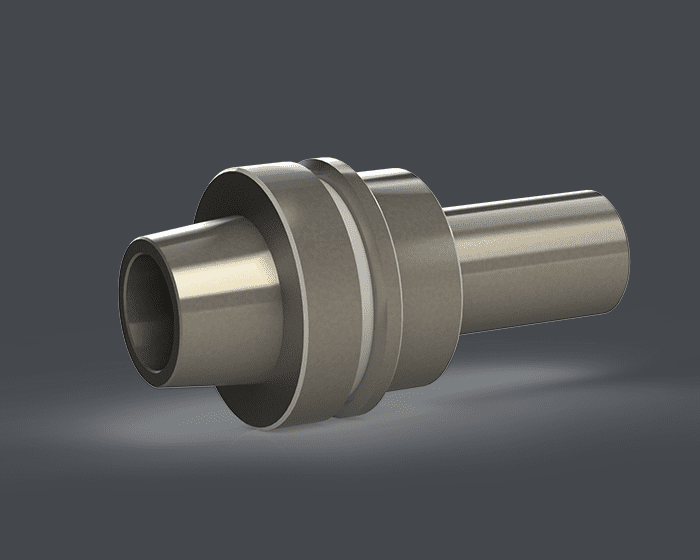

HSK Tool Holder Package
Comes with one pair of HSK-63F tool holders (1¼” × 55 mm) for quick tool changes.
Automatic Oiler System
Delivers adjustable, pressurized lubrication to bearings (8 total: 4 × X‑axis, 4 × under spindles). Operates whenever the spindle runs. Note: may extend lead time.
Pre‑Setup Tooling Service
Pillar will install a customer-provided tooling profile at the factory before shipment—additional setups are available at an extra cost.* Note: This may extend the lead time; tooling and arbors must be supplied.
Why Pillar Excels
Handcrafted in Salt Lake City, Utah, every Pillar CMJ-HSK embodies American engineering excellence, backed by a one-year warranty and free online training. Pillar’s commitment to innovation and direct factory support ensures your machine delivers lasting value, trusted by woodworking professionals for its precision and speed.
Request Your Customized Quote from 360 Degree Machinery
Ready to accelerate your rail end production? Click the “Add to quote” button above or call 630-229-6705 to request a customized quote for the Pillar CMJ-HSK today!
