Oliver 15″ Benchtop HCX Helical Cutterhead Planer – 10055

Name: Oliver 15" Benchtop HCX Helical Cutterhead Planer - 10055
Brand: Oliver Machinery
SKU: 10045.201-1
Availability: InStock

$1,869.99

The Industries only 220V 15″ Benchtop Helical Cutterhead Planer is Now Shipping.

Our 10055 15” Benchtop Planer combines everything we know about building planers, from current and previous generations, and adds to our already industry leading benchtop line-up. We anticipate the new 10055 will be a category leader with the Oliver HCX Helical Cutterhead, increased cutting capacity, and powerful 2.5HP 1Ph 230V motor.

Features

Powerful 2.5HP 1Ph 12Amp 230V motor
Plenty of power for smooth cuts and no blowing 110V breakers

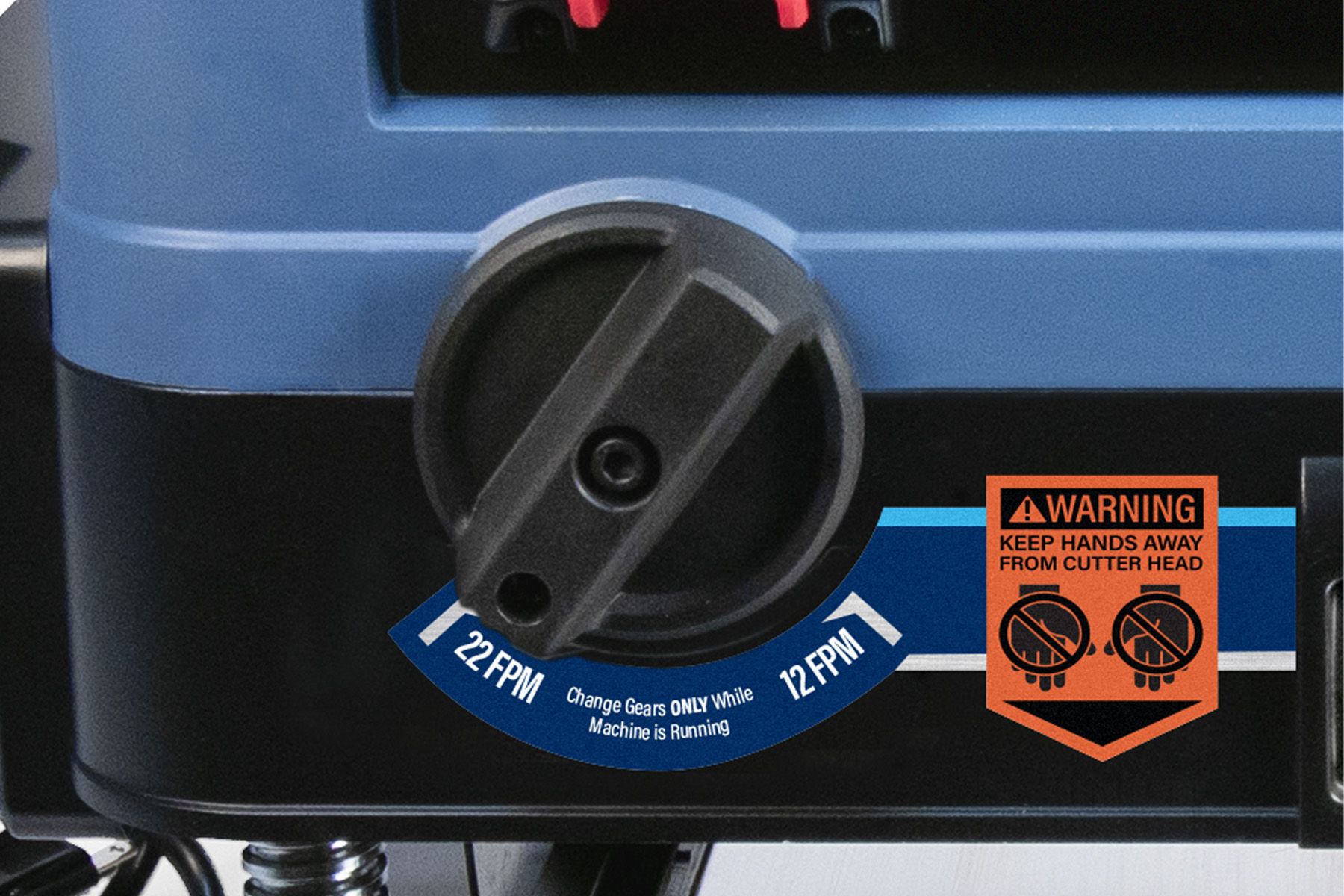

2-Speed gearbox provides 12 or 20 FPM feed rates
4-post design ensures cutter head alignment to table

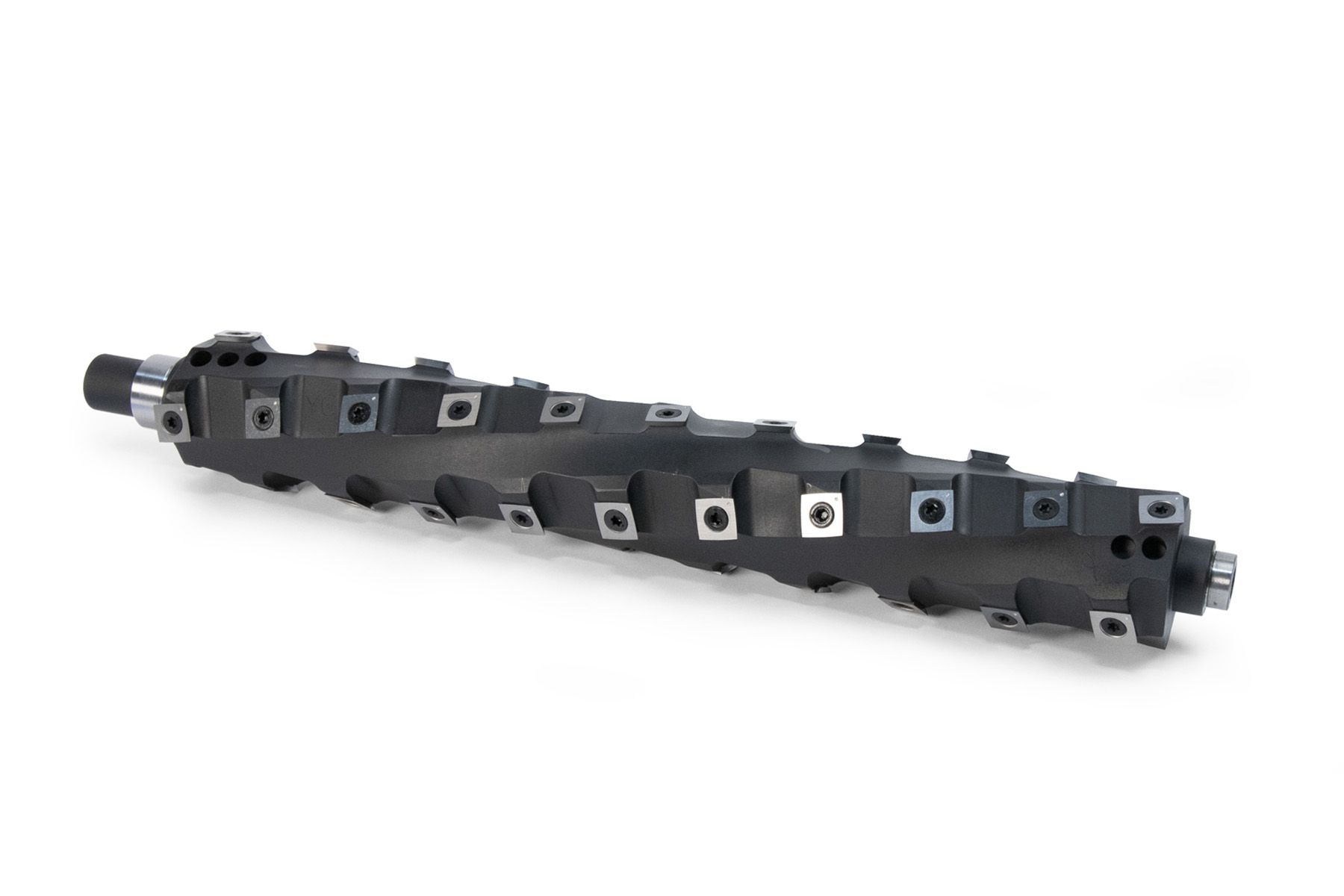

Oliver HCX Helical Cutterhead (not segmented or spiral)
Read more about our HCX Helical Cutterheads here

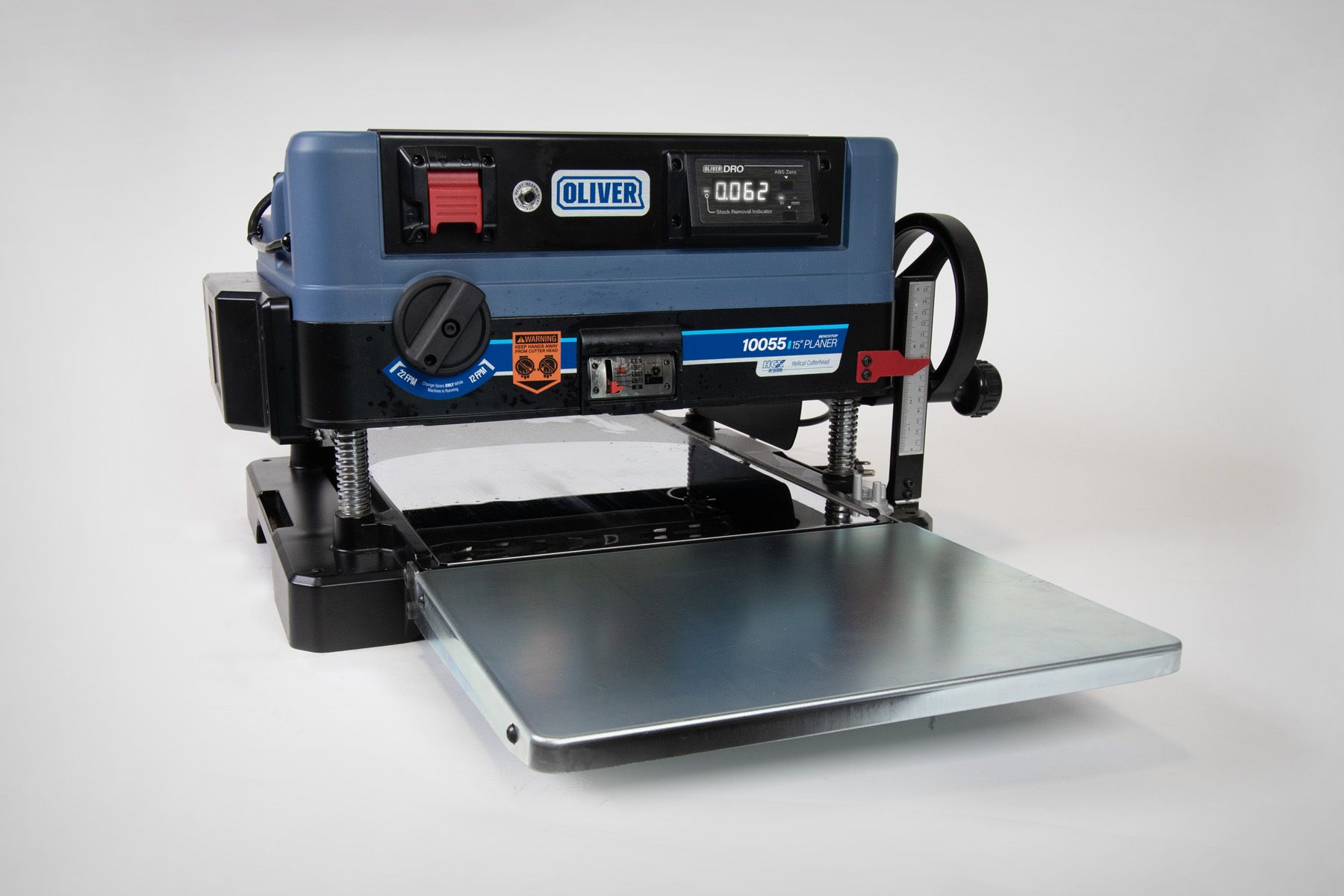

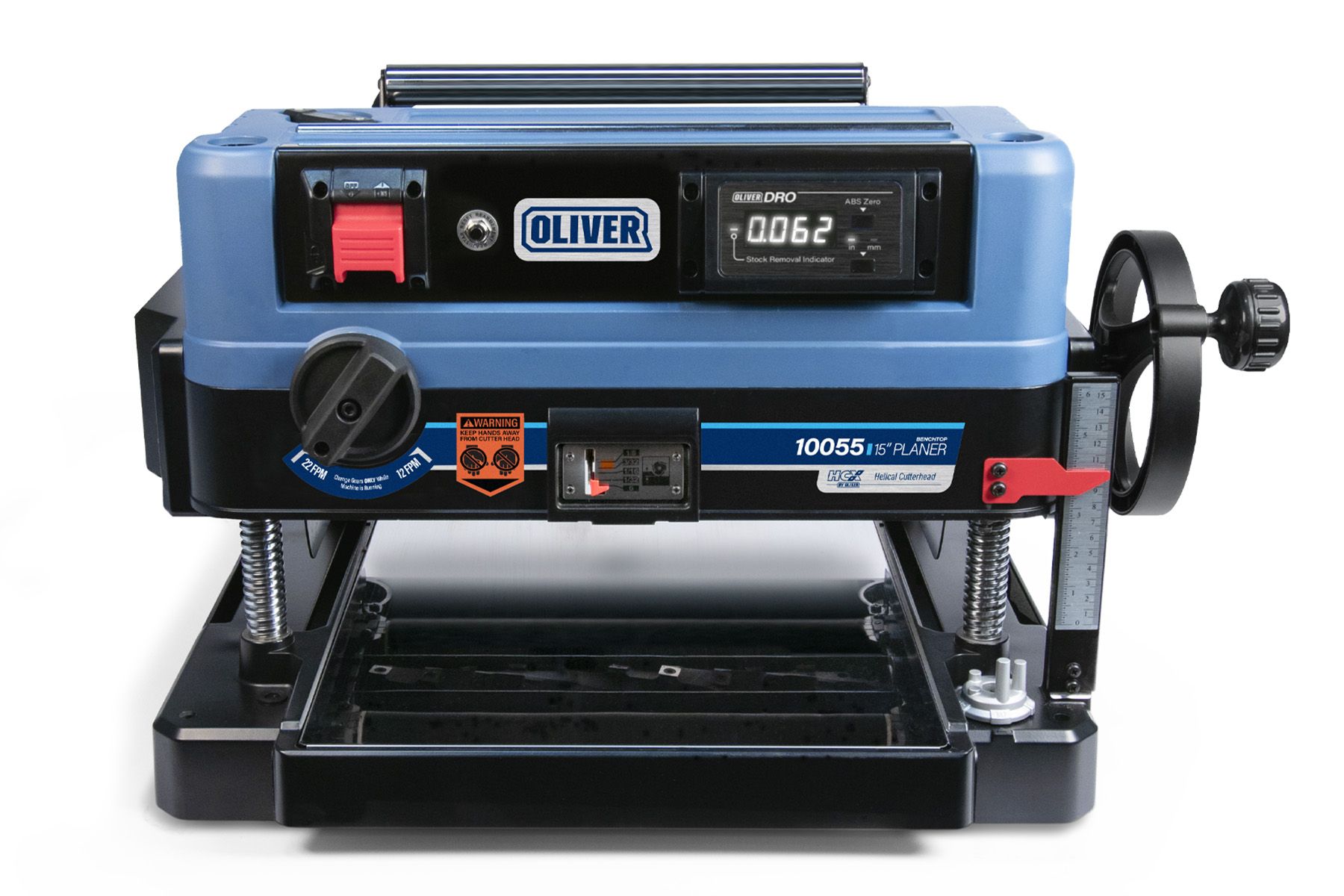

Oliver DRO for precise material removal

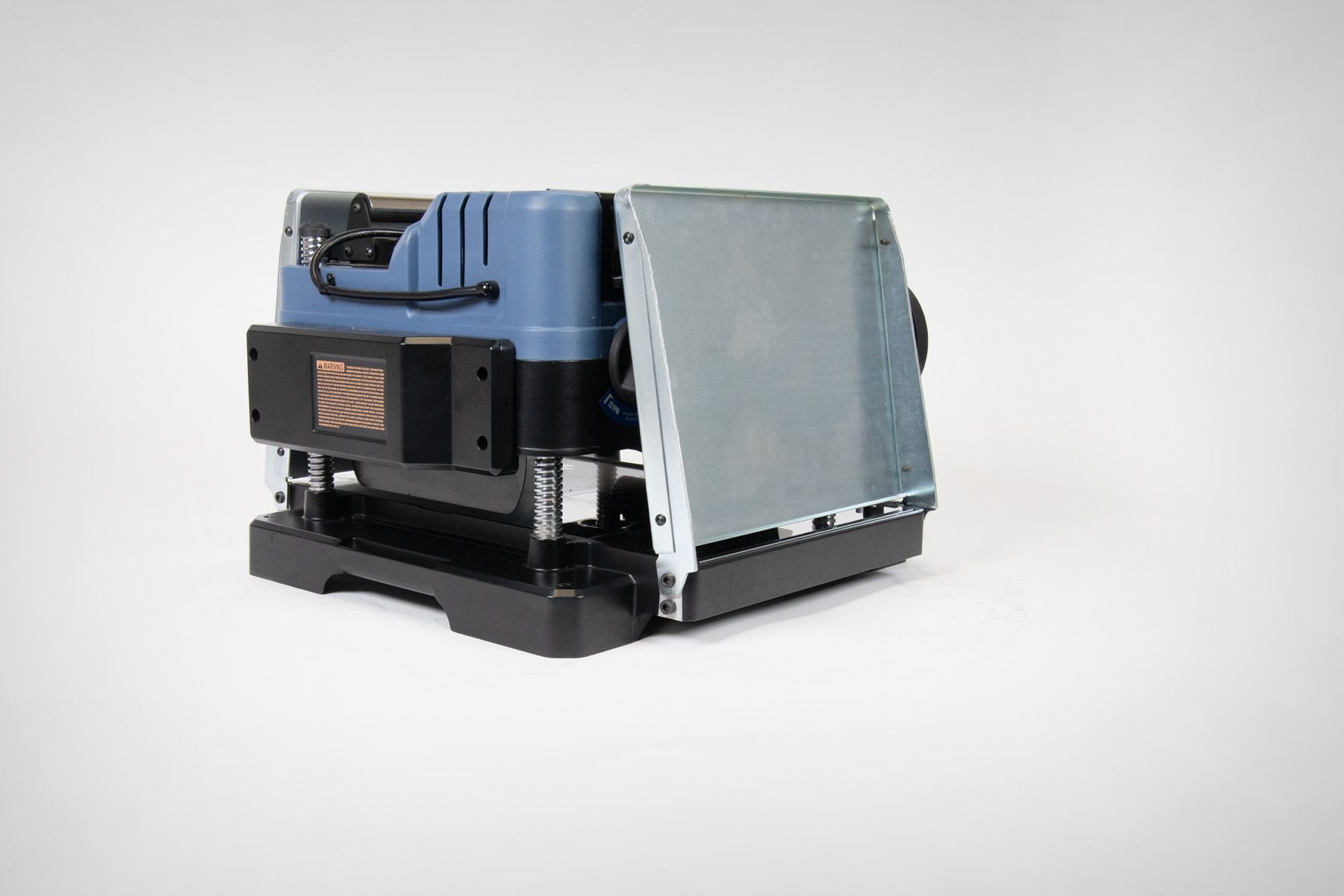

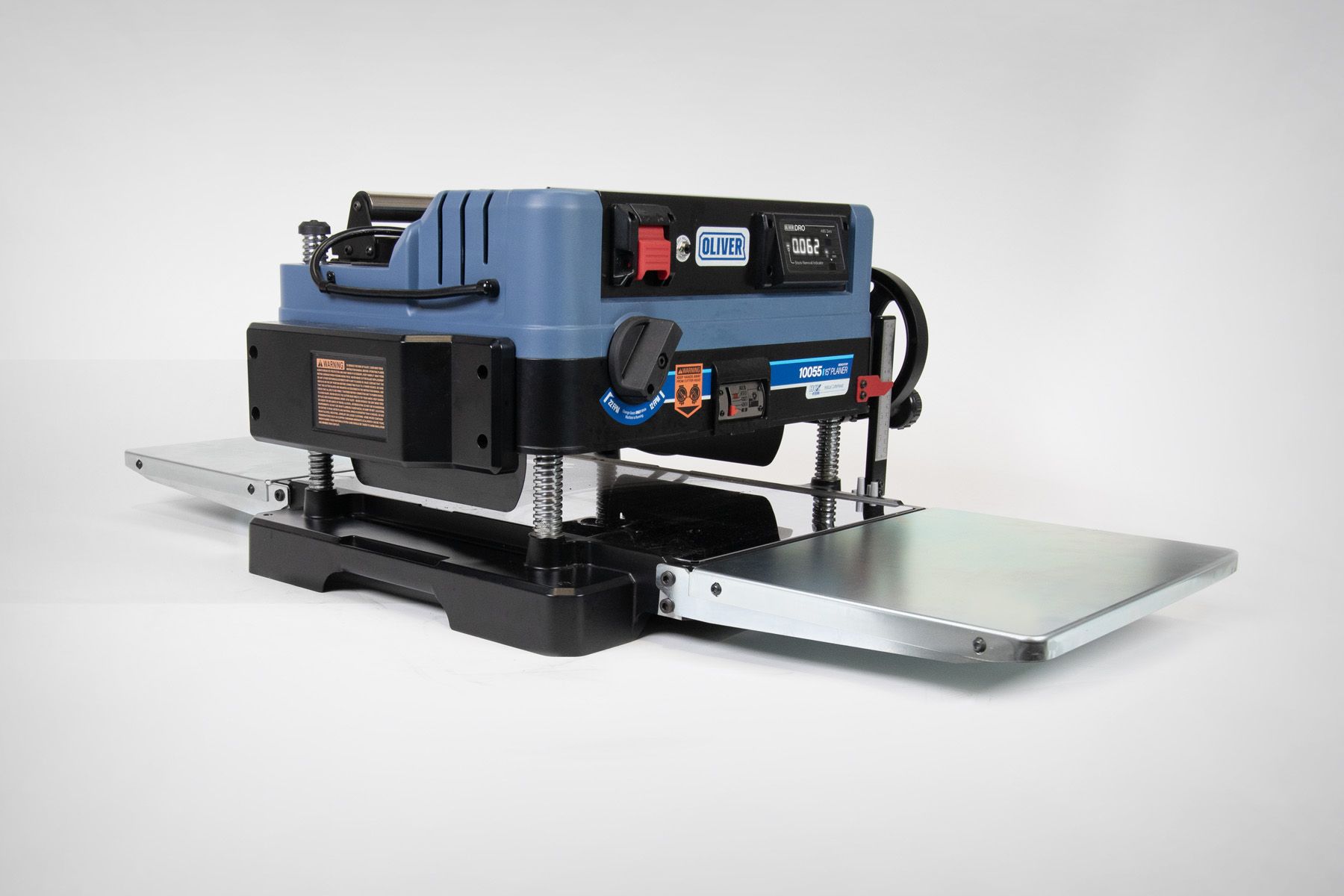

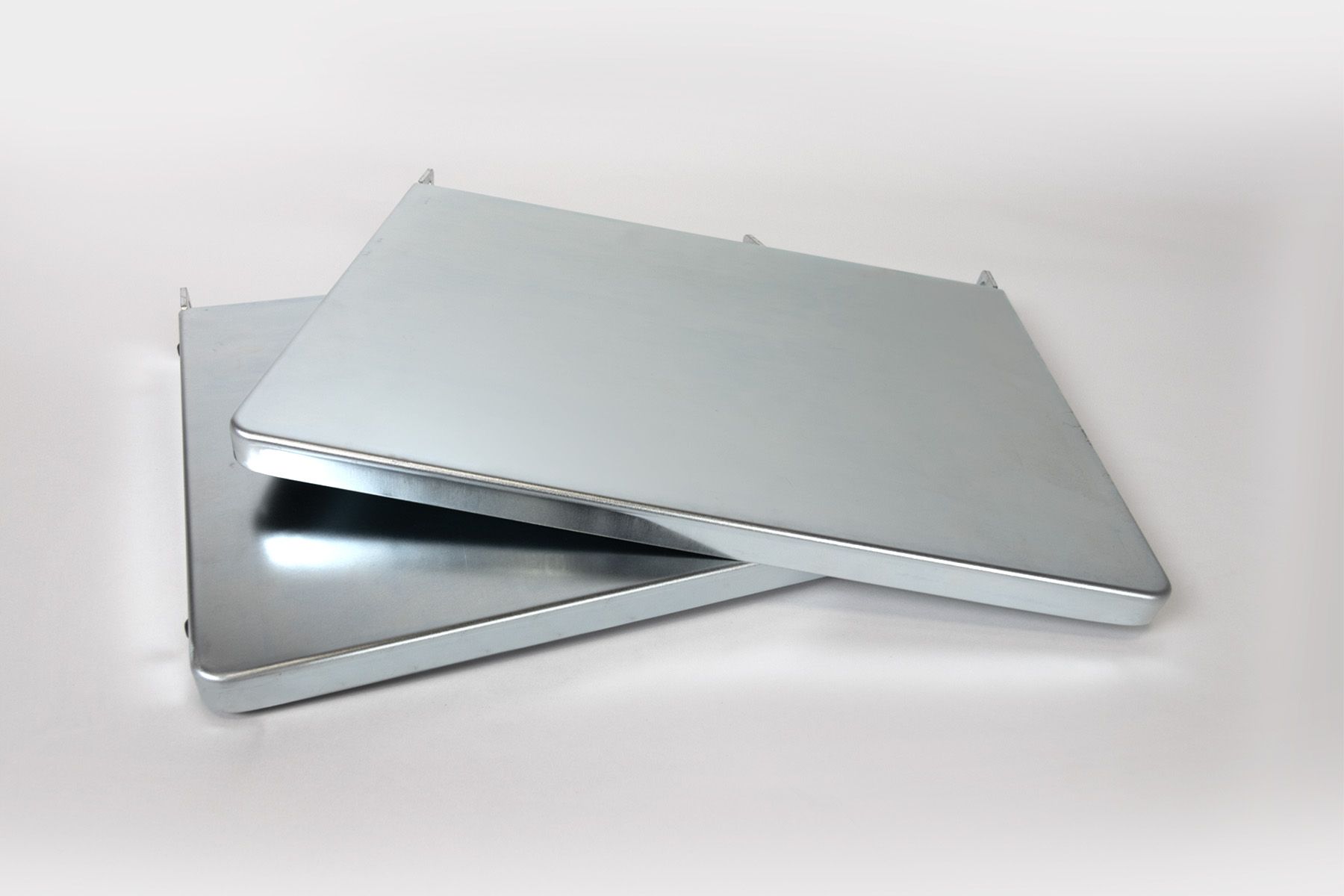

Large 15” x 23” table size (15″x48″ with included extension tables)
4-depth stops allow easy set-up from 1/4” to 1”

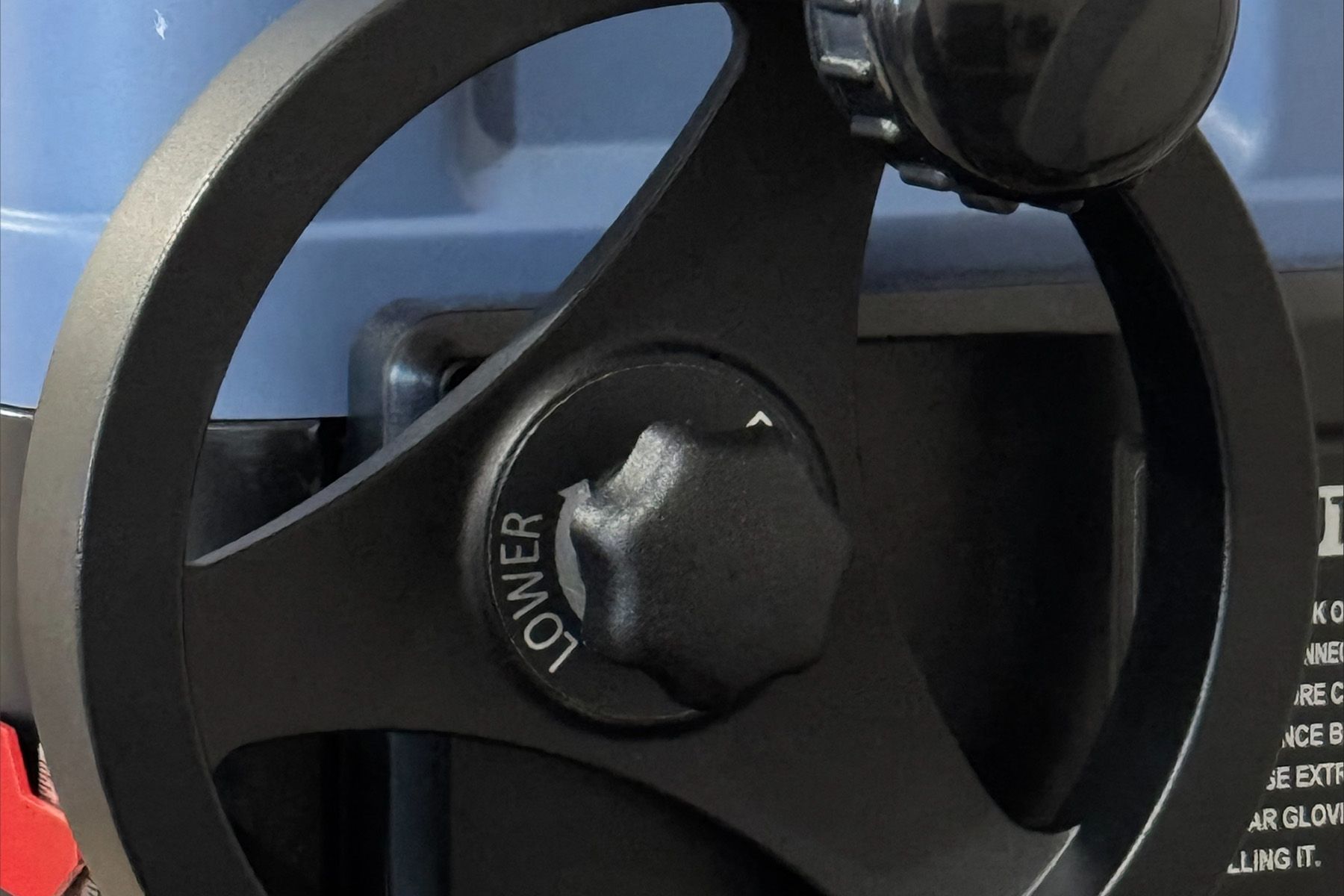

Elevation crank with lock includes an easy-to-read scale
Lock in your thickness without worry of the carriage moving

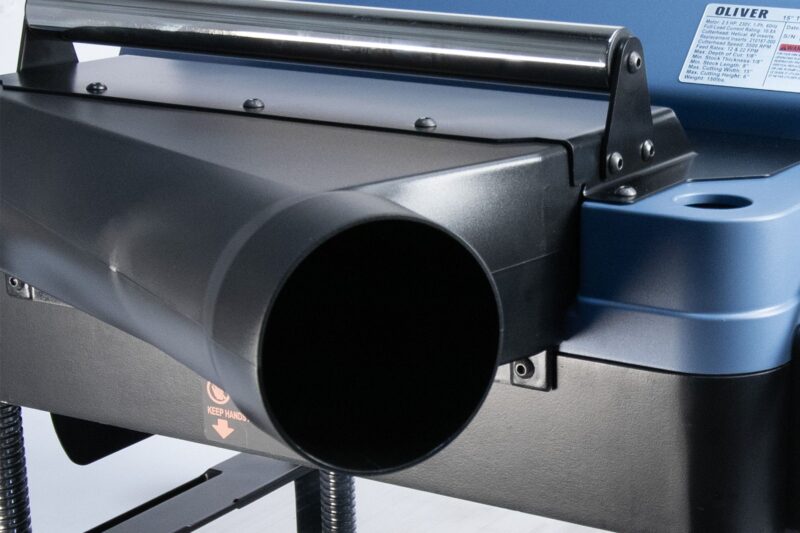

4” Dust port to evacuate shavings
Reversible for left or right exit

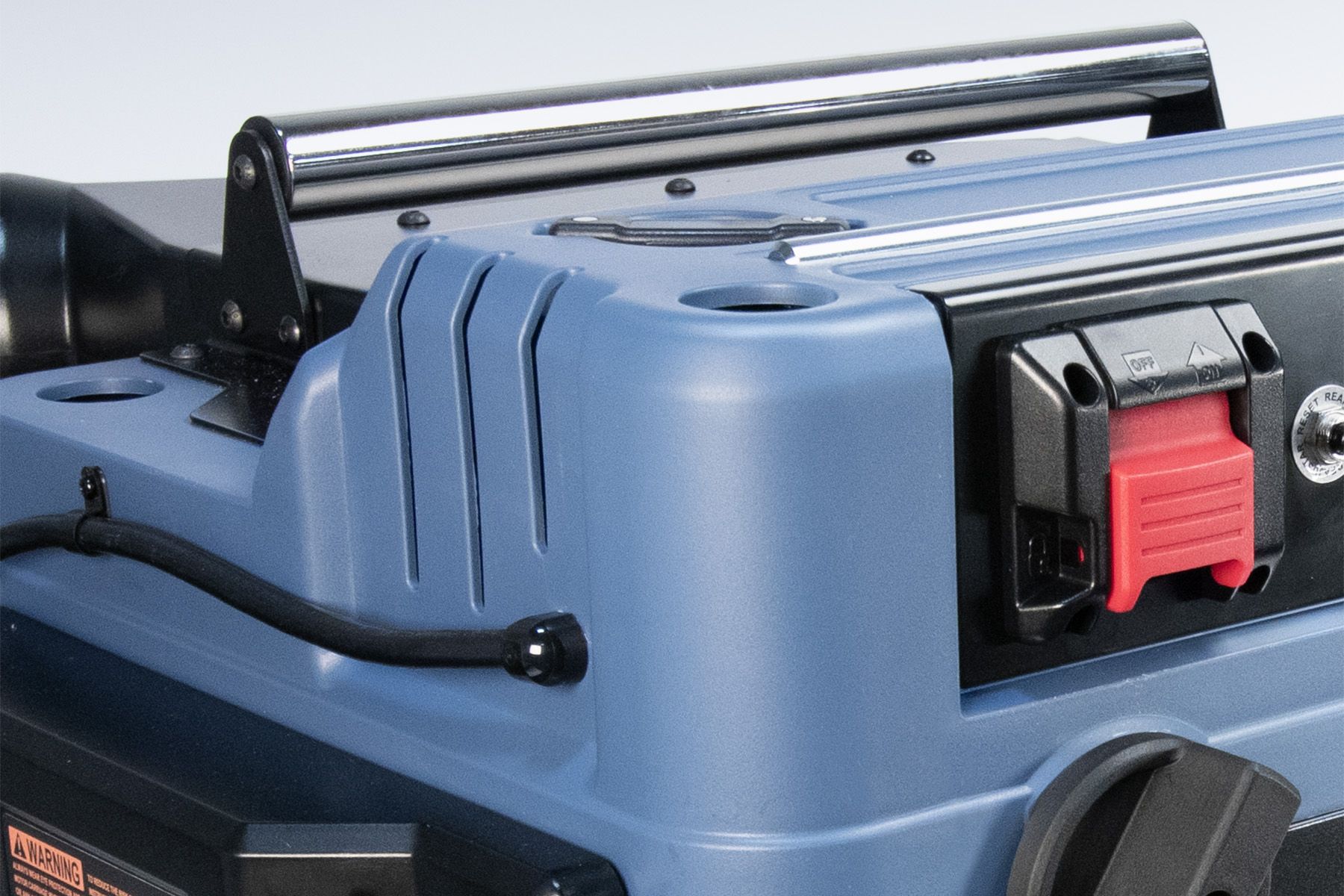

Safety switch features overload protection and lock-out
CSA listed

Add to quote

Description

More Information

More Information
Model Number	10055
CutterHead	Oliver HCX Helical
Ph	1Ph
Stock Number	10055.201
Maximum Stock Width	15″
Maximum Depth of Cut	Material under 6.5” width 1/8″ Material over 6.5” width 3/64″
Maximum Stock Thickness	6″
Minimum Stock Thickness	1/8″
Minimum Stock Length	8″
Dust Port Diameter	4″ (reversible for left or right exit)
Minimum CFM Required	600cfm
Feed Speeds	12 FPM or 20 FPM
Table Size	15″ x 23″
Table Size w/Extension Wings	15″ x 48″
Cutterhead Speed	5,600 rpm
Number of Knives (helical)	40
Footprint	28″ x 23″
Footprint – with Table	28″ x 48″

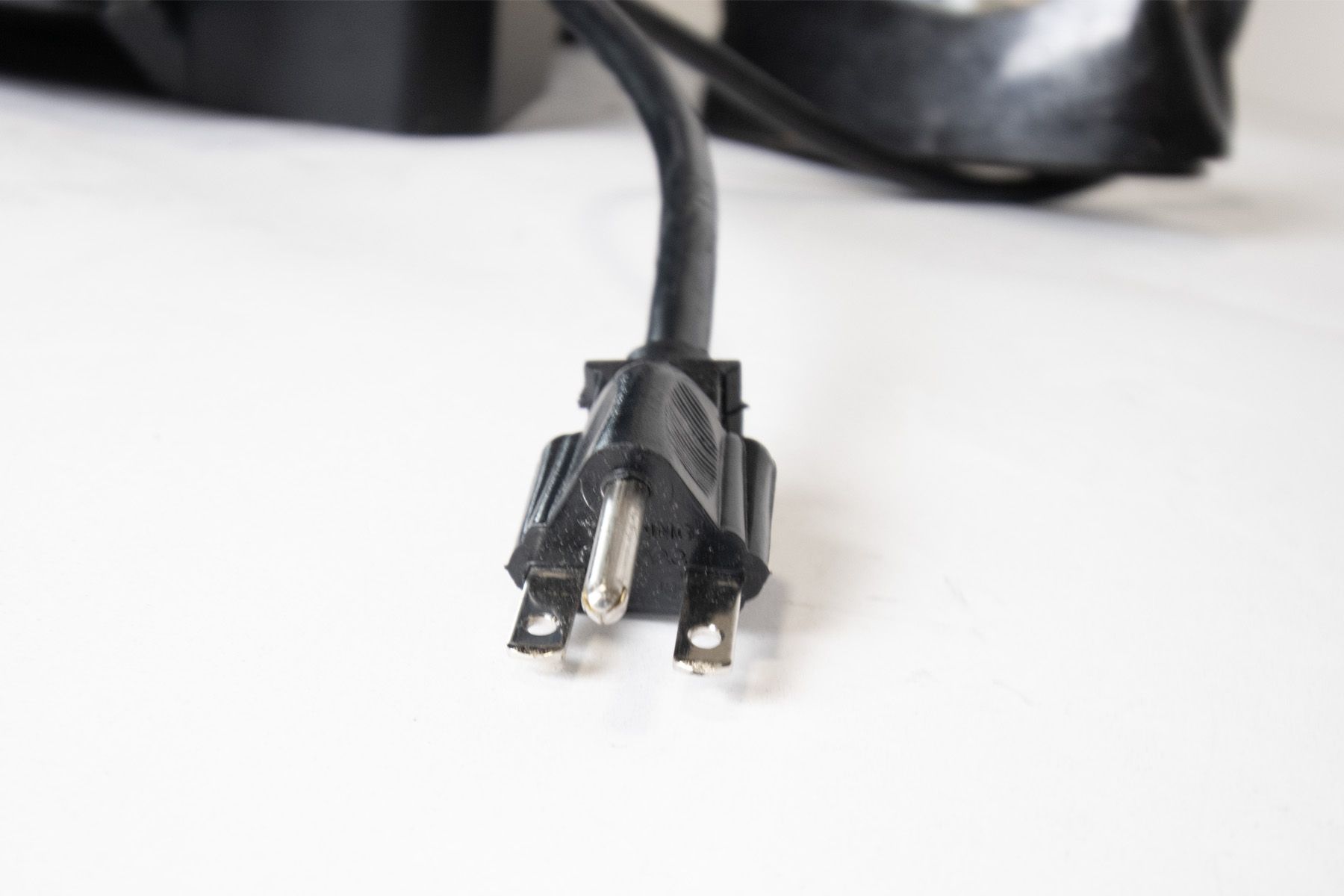

Motor 1Ph	2.5HP – 230V, 1Ph, 12A (NEMA 6-15 plug style, 7ft cord)
Overall Dimensions	28″ W x 23″ D x 16″ H (with extensions folded) 29″ W x 27″ D x 20″ H (shipping crate)
Net Weight	158.7lbs
Gross Weight	172lbs
