Northtech NT 770HSK 10 HP Spindle Shaper

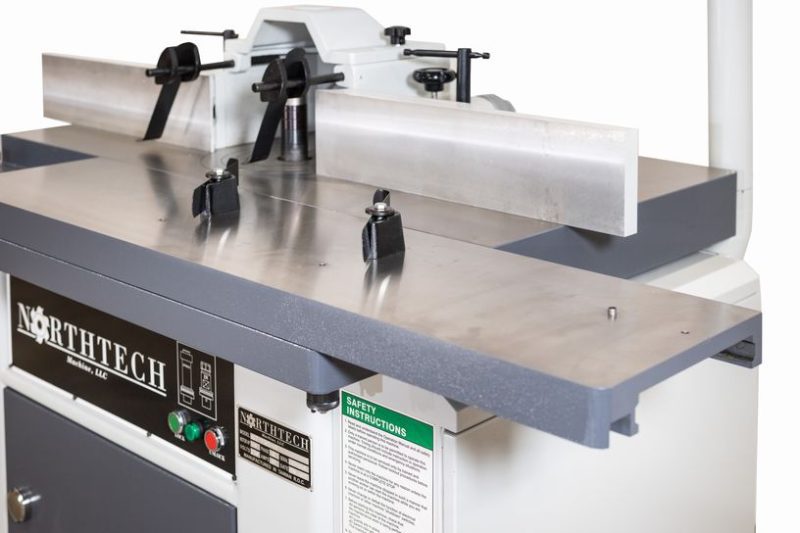

Designed for precise, accurate, and powerful operation, this Northtech shaper is feature-rich. Included is a 1-1/4″ HSK-63F spindle that boasts a tolerance of 0.0001″, a pneumatically-powered spindle hold/release system with an electronic sensor to ensure proper mating, and a pushbutton height adjustment with a digital encoder measurement. The 10 HP motor offers inverter-controlled speeds of 3,000 – 13,350 RPM and fully-electronic braking to quickly and safely bring the spindle to rest. The heavy steel and cast iron construction with precision-milled worktable provides a strong a stable platform for it all.
For current product availability and our most competitive price delivered, please contact us using the “Request A Quote” button below. Due to vendor restrictions, we cannot always advertise our highly competitive pricing online.
Features:
- 3,000 – 13,350RPM, 10HP inverter-controlled spindle
- (1) 1-1/4” x 4’’ HSK-63F spindle included
- HSK-63F spindle release system is developed by Andi CNC Machining Centers
- Spindle tolerance of .0001″ *
- Includes sensor light to ensure proper mating of the chucks, as well as correct full pneumatic pressure for safety
- Moveable overarm control panel
- 35″ Ergonomically designed precision-milled table
- (1) Toolbox
- Warranty is one-year parts
- All machines are tested stateside before shipment to ensure trouble-free start-up.
Specifications:
- Main Motor Hp. = 10 hp.
- Reverse Motor = Reversible
- Machine Hp. = 11 Hp.
- Voltage/ Freq. = 230/460 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 30/15 Amps
- 1st Spindle = 1-1/4” x 4” Spindle
- Spindle Diam. = 1-1/4”
- Spindle RPM = 13350 Rpm Adjustable
- Under Nut Cap. = 4-1/4”
- Elevation Hp. = 1 Hp.
- Elevation Style = Push Button
- Elevation Sys. = Jack Screw / Quill Housing
- Total Hp. = 11 Hp.
- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 110 Volt
- Programmable = Elevation
- Operator Panel = Adjustable Operator Panel
- Pass-Line = 35”
- Vertical Travel = 4-1/8” Spindle Travel
- Dust Collection = (1) 4” (1) 5” @ 1117 CFM
- Dust Port Out = (1) 4” (1) 5”
- Digital Display = Elevation

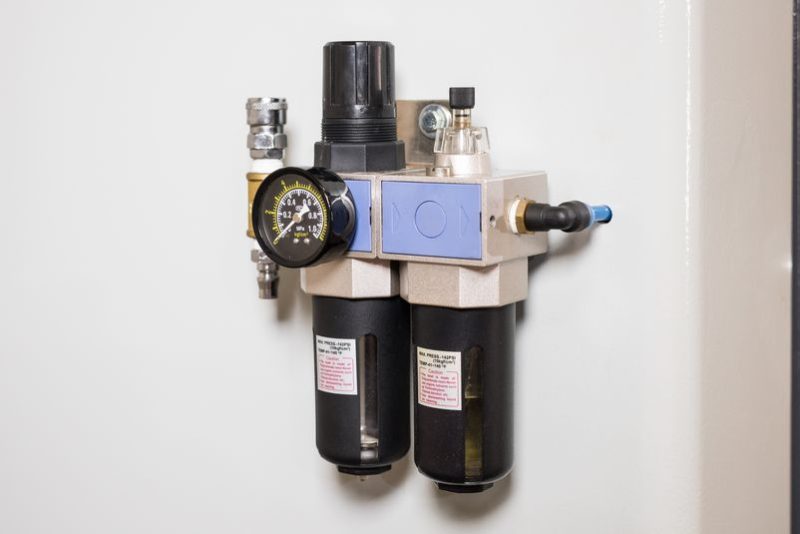

- FLR Included = Filter, Lubricator, Regulator
- Recommended CFM = 1/4” Line @ 90 PSI
- Emergency Stop = Push Button
- Fence Type = Adjustable
- Fence Dims. = (2) 5-1/2” x 24”
- Micro Fence = Micro-Adjustable
- Brake System = Electronic Braking
- Frame Const. = 3/16” Steel Construction
- Worktable Dims. = 38” x 51”
- Table Const. = Cast Iron
- Measure Meth. = Precision Encoder
- Decible Rating = 83 dB
- Net Weight = 1650 Lbs.
- Gross Weight = 1850 Lbs.
- Machine Dims. = 54” x 42” x 66-1/4”
- Packaging Dims = 59” x 45” x 75”
