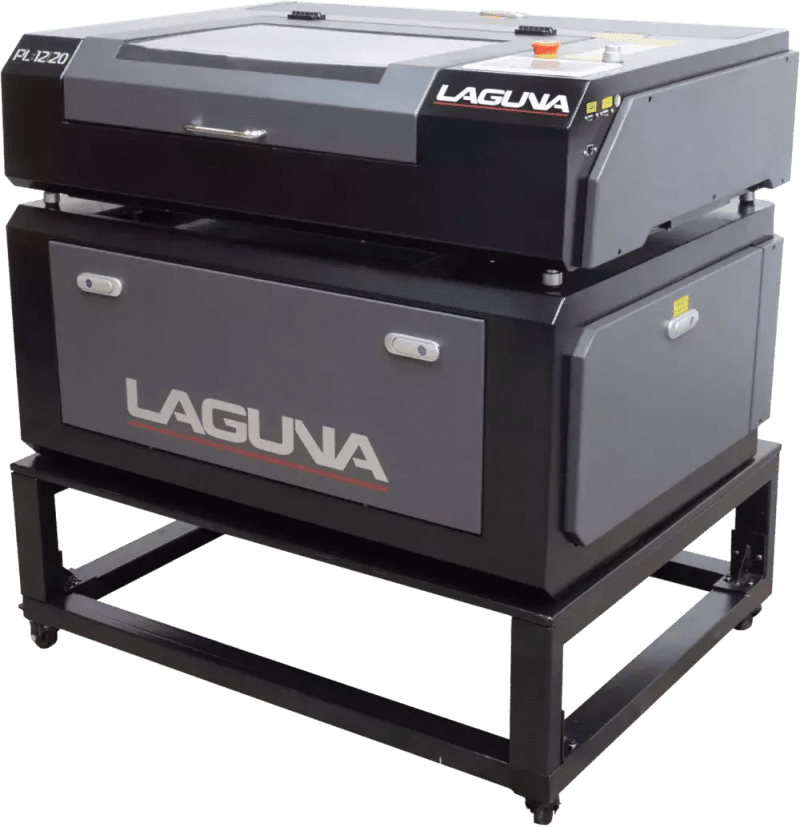

Laguna Tools PL 12|20 CO2 Laser

$5,999.00

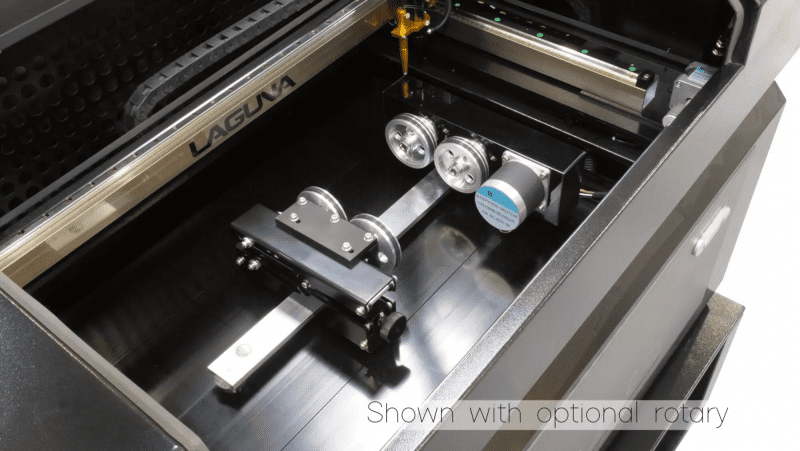

The redesigned PL12|20 laser from Laguna offers a complete ecosystem with optional rotary, fume collector, stand & software. The 40-watt laser makes quick work of complicated inlay techniques, cuts intricate designs out of wood, acrylic, and several other materials, along with perfect engraving lithography in most non-metallic materials. The PL12|20 has a full 12″ by 20″ workspace with a full 12″ Z-axis to fit large materials and a rotary device. The bottomless design allows the user to engrave large projects like tabletops and murals. The PL12|20 keeps raising the bar!

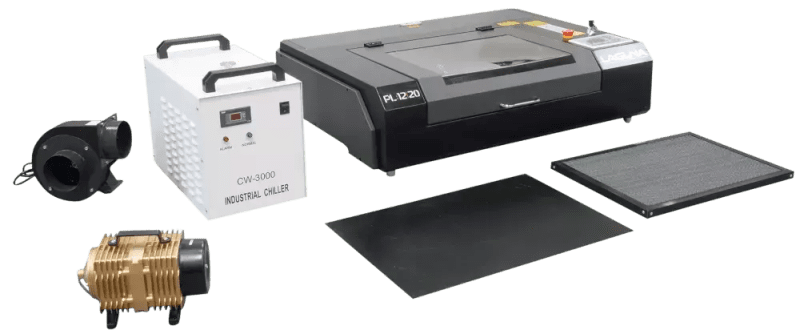

Features:
PL12|20 Laser Machine: 12″ x 20″ work surface
40-Watt CO2 Laser
Z-Axis Base: 12″ Capacity
Industrial Water Chiller
Air Pump
Exhaust Fan
Multiple Work Surfaces: Steel, Honeycomb, Bottomless

Description

Power

Voltage: 115V

Hertz: 60Hz

Phase: 1Ph

Running Amperage: 9.6A (14.4A with all components)

Recommended Breaker: Dedicated 15A on power strip for all components

CO2 Laser

Optics: U.S. II-VI Focusing lens & Beam Combiner

Drive System: Leadshine Motors & 3PH Drivers

Linear Rails: Hiwin HG Resin Capped

Work Envelope: 12″ x 20″

Table Lift: 12″

Control Software: RUIDA RDWorks, Lightburn option

Engraving Speed: 0-500mm/s

Cutting Speed: 0-500mm/s

Laser Output Control: 0-100% Software controlled

Exhaust: 300CFM

Working Environment: 32° – 104°F, Humidity 5-95%

Dimensions

Net Weight: 300 Lbs (all components)

Ship Weight: 325 Lbs

Assembled Height: 10″/27″/40″ (top unit, with base, with base and stand)

Assembled Width: 40″

Assembled Depth: 30

Chiller CW-3000DG

Voltage: 115V

Hertz: 60Hz

Phase: 1Ph

Running Amperage: 0.9A

Net Weight: 21Lbs

Ship Weight: 26Lbs

Tank Capacity: 9L (2.3 Gal)

Flow: 10L/min (2.64 Gal/min)

Air Pump

Voltage: 115V

Hertz: 60Hz

Phase: 1Ph

Running Amperage: 1.3A

Air Flow: 5 CFM

Net Weight: 9.9 Lbs

Ship Weight: 10 Lbs

Exhaust Fan

Voltage: 115V

Hertz: 60Hz

Phase: 1 Ph

Running Amperage: 2.6A

Horse Power: 1/3HP

Air Flow: 300 CFM
