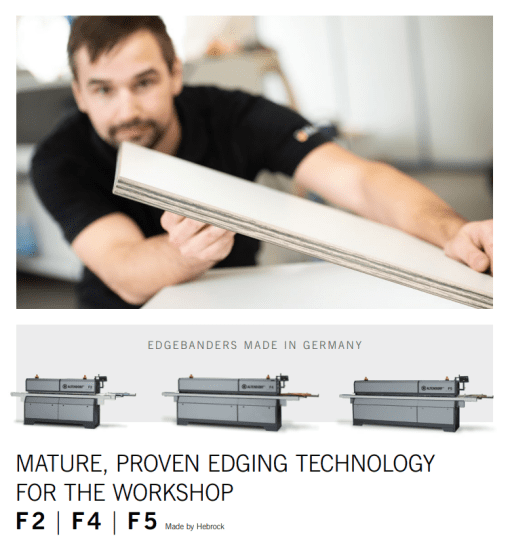

Hebrock F2 Edgebander

The Hebrock F 2

We all know that Altendorf manufactures the best supported sliding table saws in the world. Altendorf’s Hebrock line of edgebanders follows that tradition.

Exceptional VALUE, Robust, Simple Operation

The 3.3 m long F 2 will save you both space and money. And it also has the specifications you require to process perfect edges right from the start – diamond-tipped cutters guarantee superbly prepared workpieces for edging. The specifications include pre-milling aggregate (up to 2 mm cutting depth), *the top-side fast-heating glue pot, trim saw, surface scraper, and combi-cutter. (*EVA/PUR fast-heating glue pot with interchange mount. Including adhesive interchanger for PUR processing.)

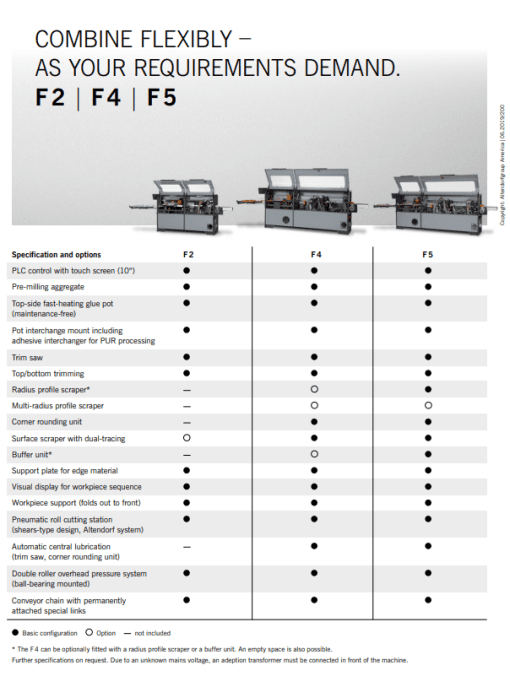

• PLC Control system with 10” touch screen, for quick and simple
changeovers
• Glue station with pressure rollers
• Quick changeover glue pot, teflon coated, with rapid heating
• Pre-milling station for panel thickness up to 40mm, with diamond
cutterheads
• Max material removal at pre-mill station 2mm
• End trim station
• Top/bottom milling station, with Combi milling cutters (flat, radius,
chamfer)
• Pneumatic 3-point adjustment of milling cutters, adjustable from the
control
• Nesting tracers for pre-drilled panels
• Surface scraper, with pneumatic disengagement

• Max. edge thickness: 3 mm
• Max. workpiece thickness: 50 mm
• Ready to operate about 3,5 min
