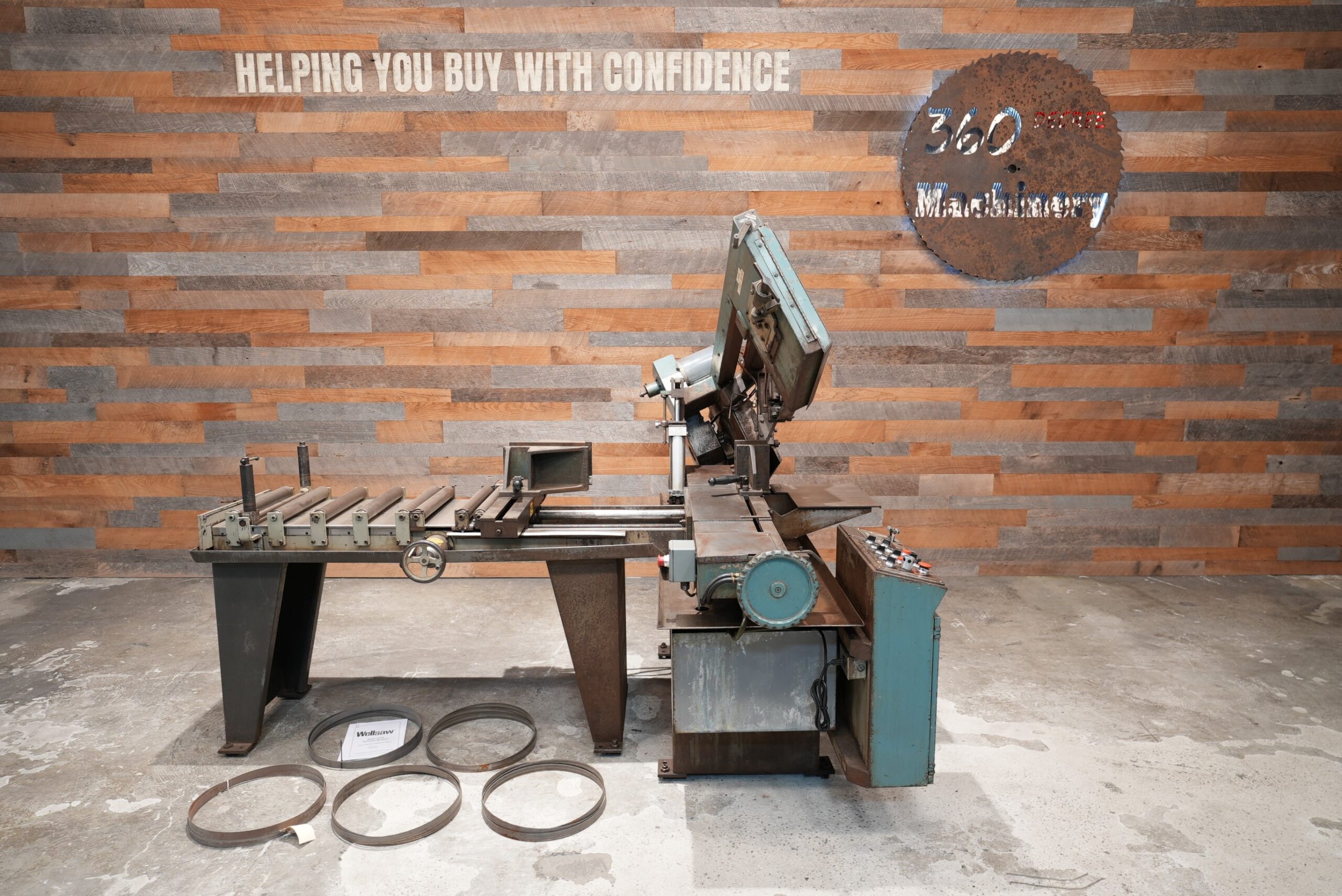

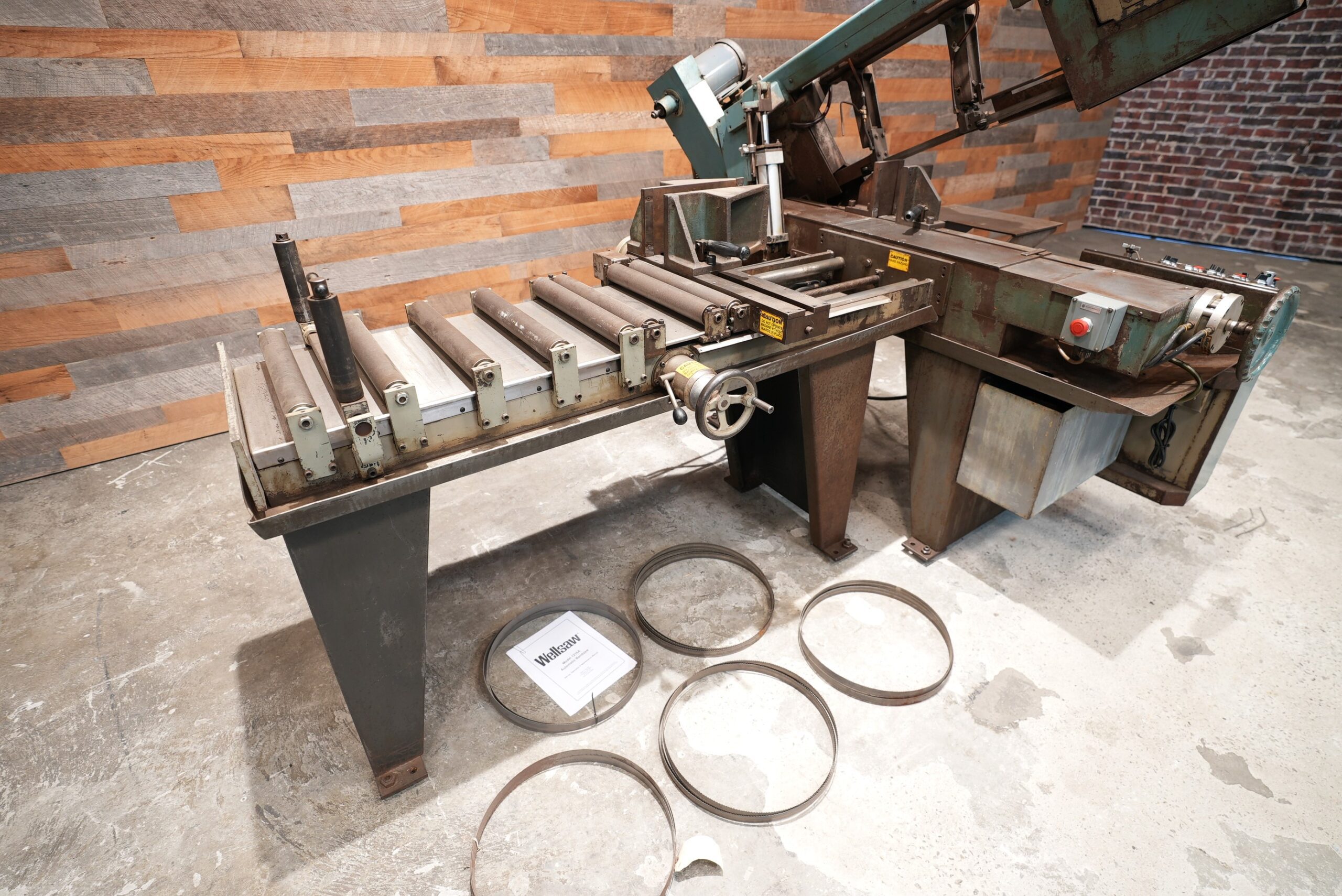

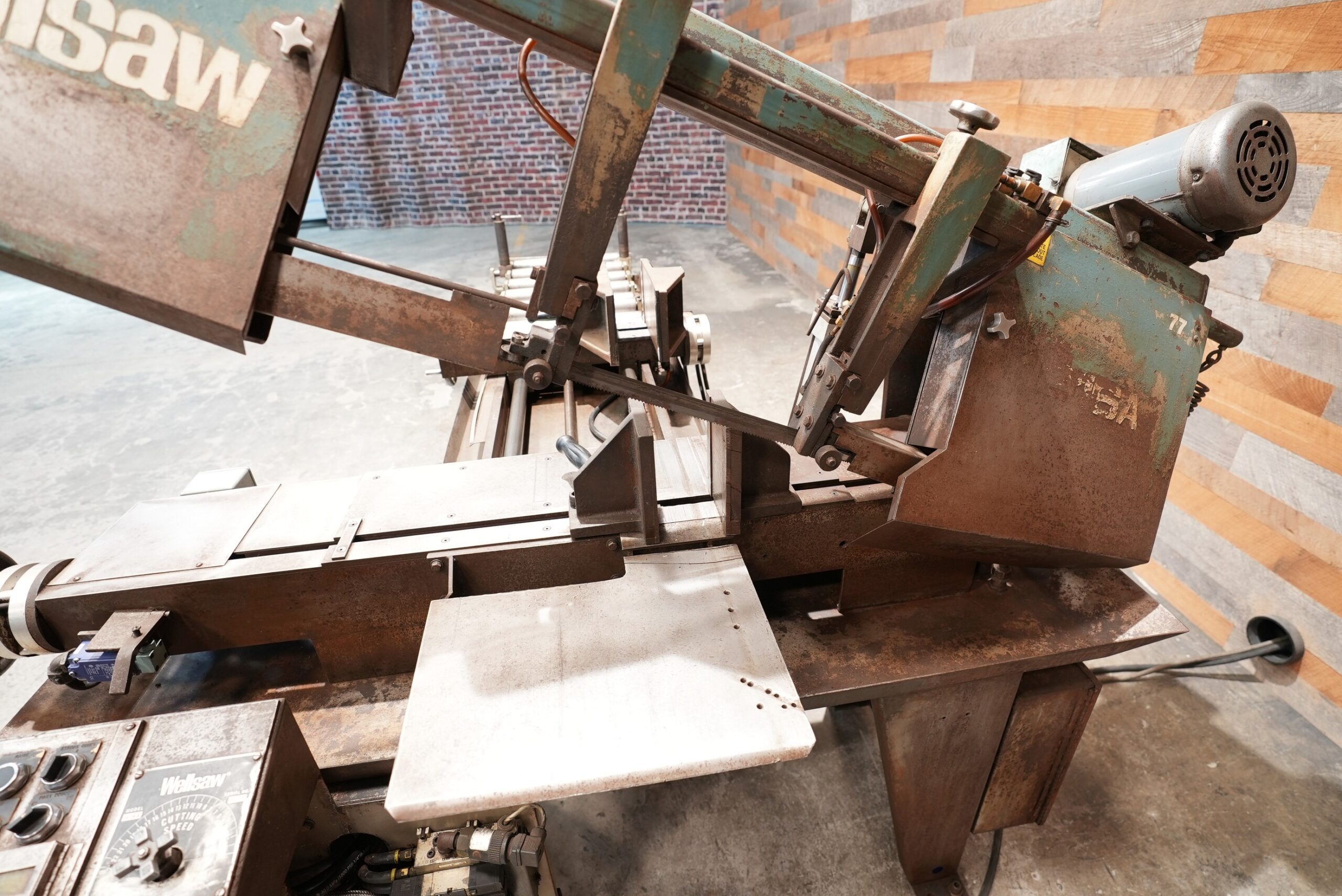

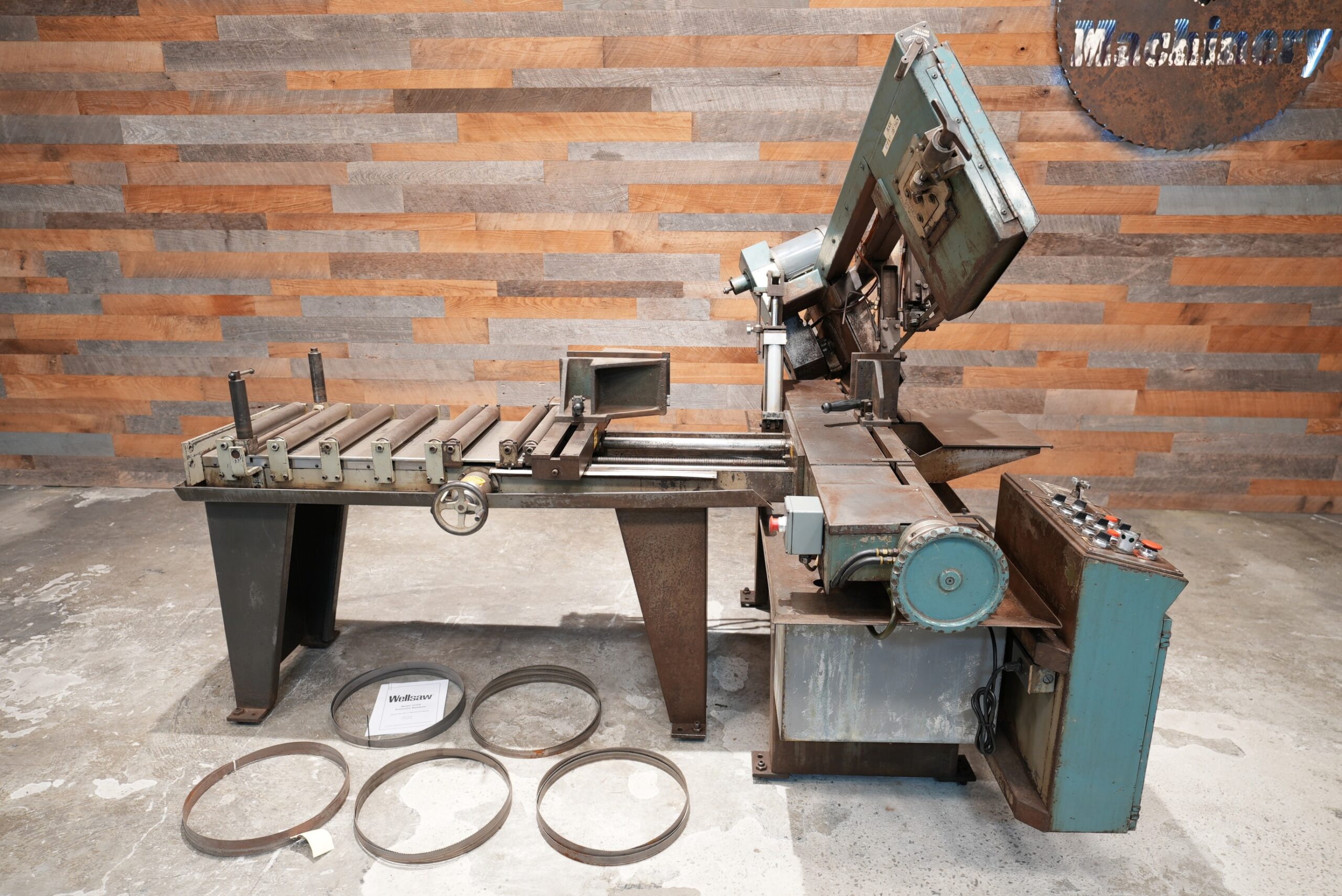

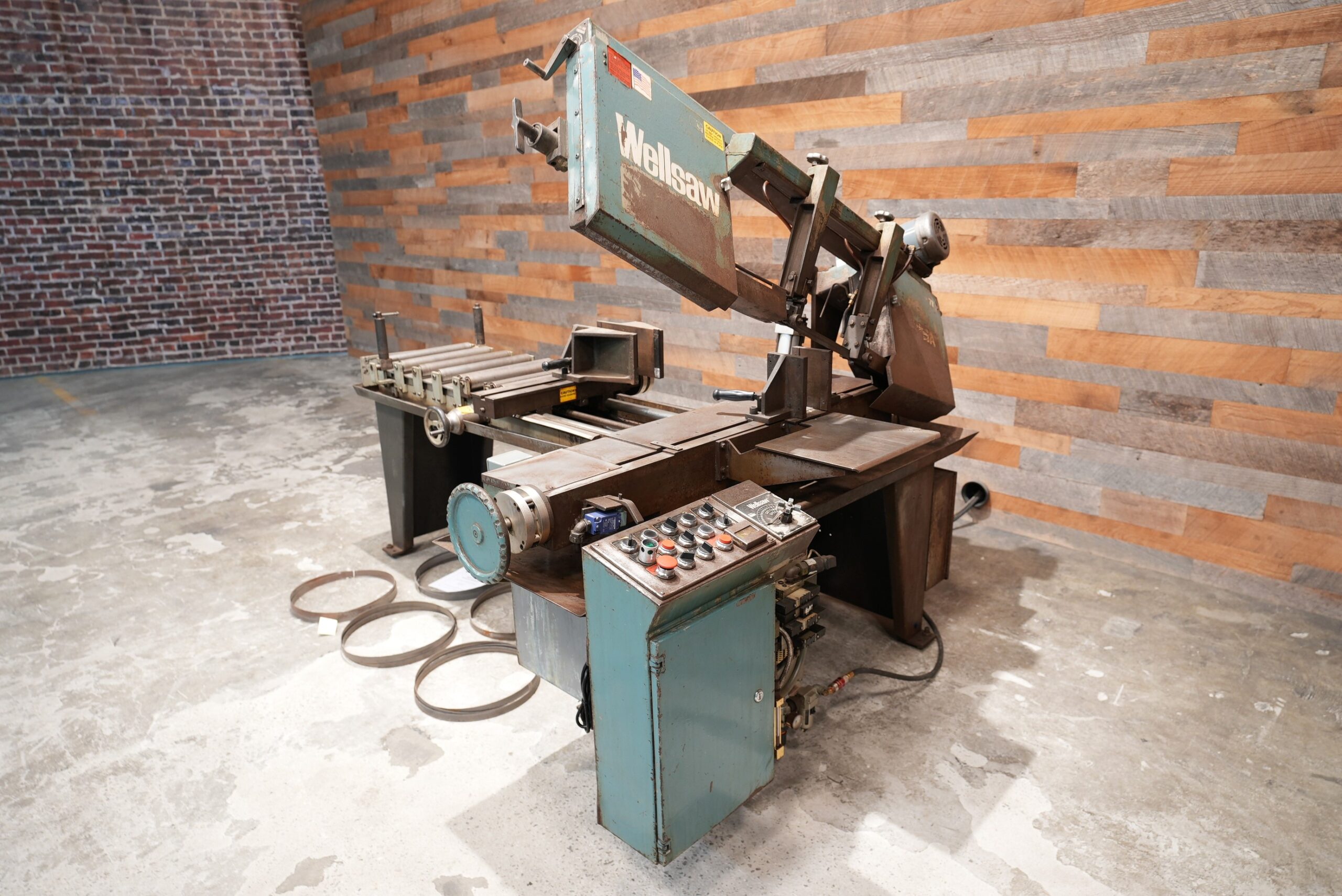

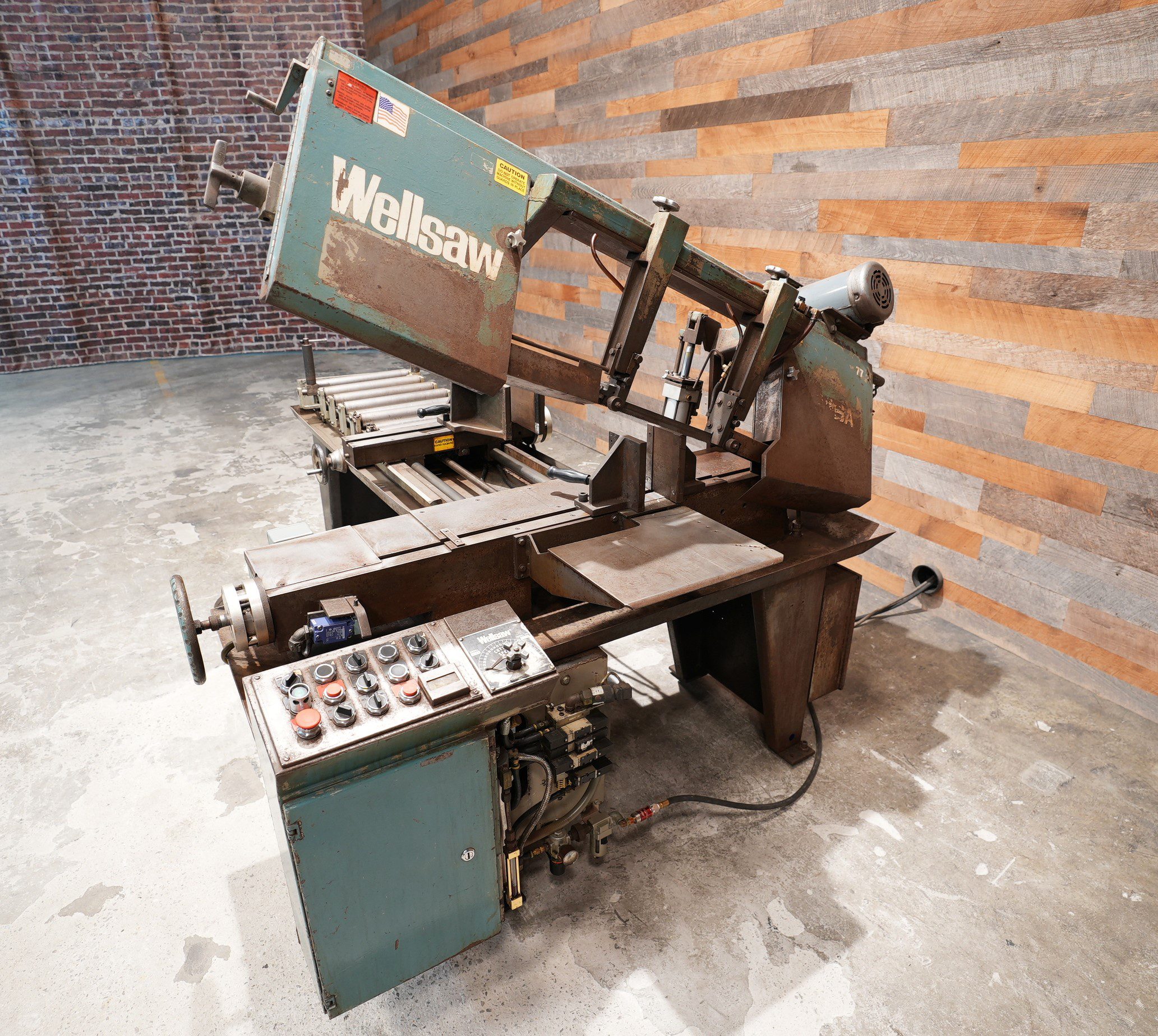

Wellsaw Model 1216A Automatic Bandsaw

Capacity
Round ………………………………………………………….. 12-3/4″
Flat ………. : …………………………………………………………. 16″
Rectangular ……………………………………………….. 12″ x 16″
Blade Size·············································· 1″ x 12’6″ x .035

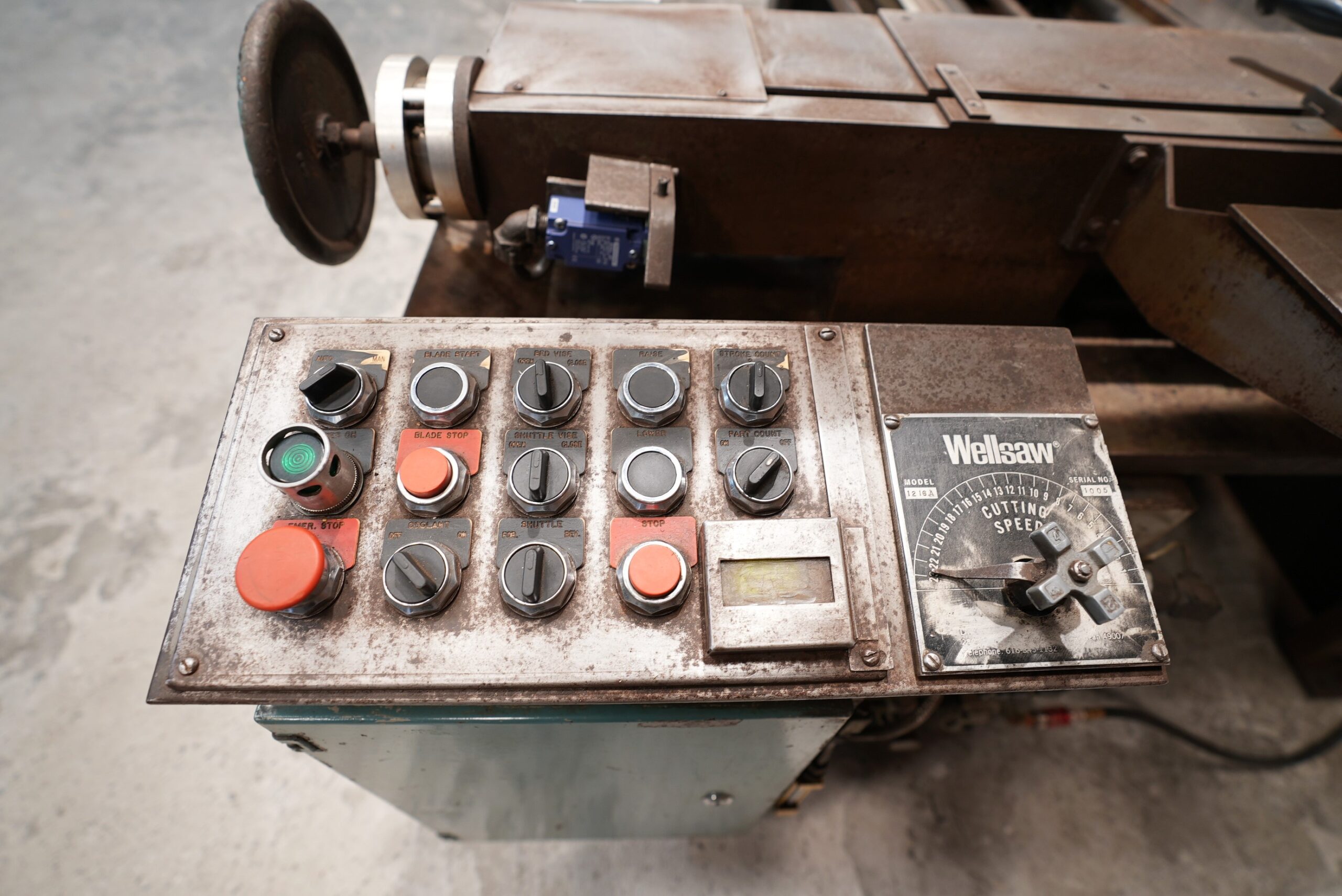

Variable Blade Speed …………………………….. 70-375 FPM
Blade Guides ………………….. Carbide with back-up rollers
Blade Tension ………………………… Manual Rite-Tension™
Motor ……………………………………………………… 3HP TEFC
Blade Drive (Specify) ……………………………. 208-230-460/60/3-Phase (Currently wired 230V/3-Phase)
Coolant System
Tarik capacity …………………………………………….. 8 gallons
Submersible pump ……………………………………… 1 i5V AC
Air requirements ……………………………… 5 CFM@ 80 PSI
Frame feed control …………………………………….. Hydraulic
Band Wheels …………. ……………………………. 15″ Diameter

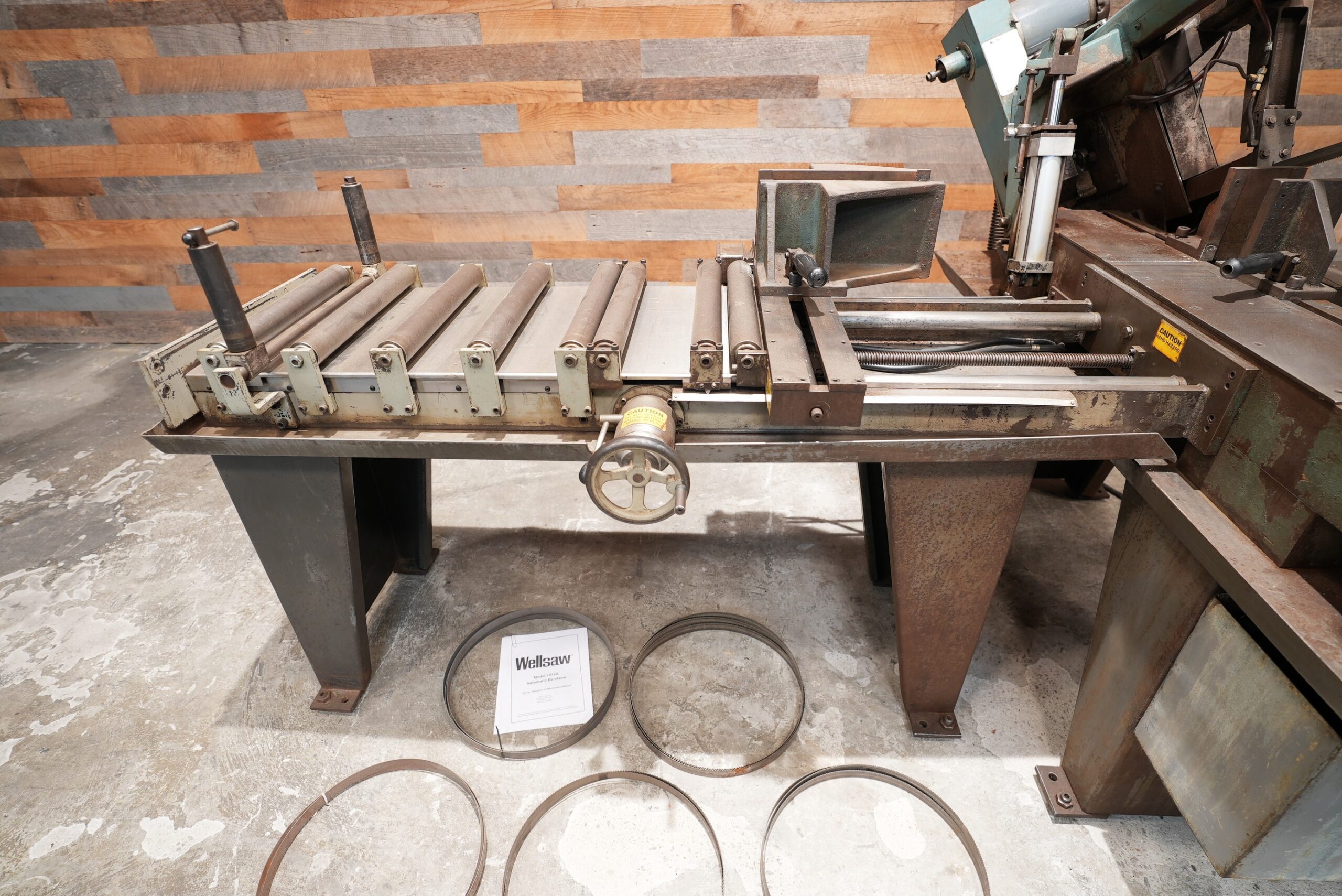

Shuttle travel ……………………………………………………… 24″
Multi-stroke indexing ……………………………………… 3 times
Vise inserts ……………………………………………………… Steel
Minimum stock remnant ………………………………………… 6″
Weight capacity …………………………………………… 2000 lbs
Work height …………… ……………………………….. : ……….. 35″
Discharge table ………………………………………….. 17″ x 17″
Floor area …………………………………………… 82″W x 105″L
Shipping weight (approx) ……………………………… 1500 lbs
