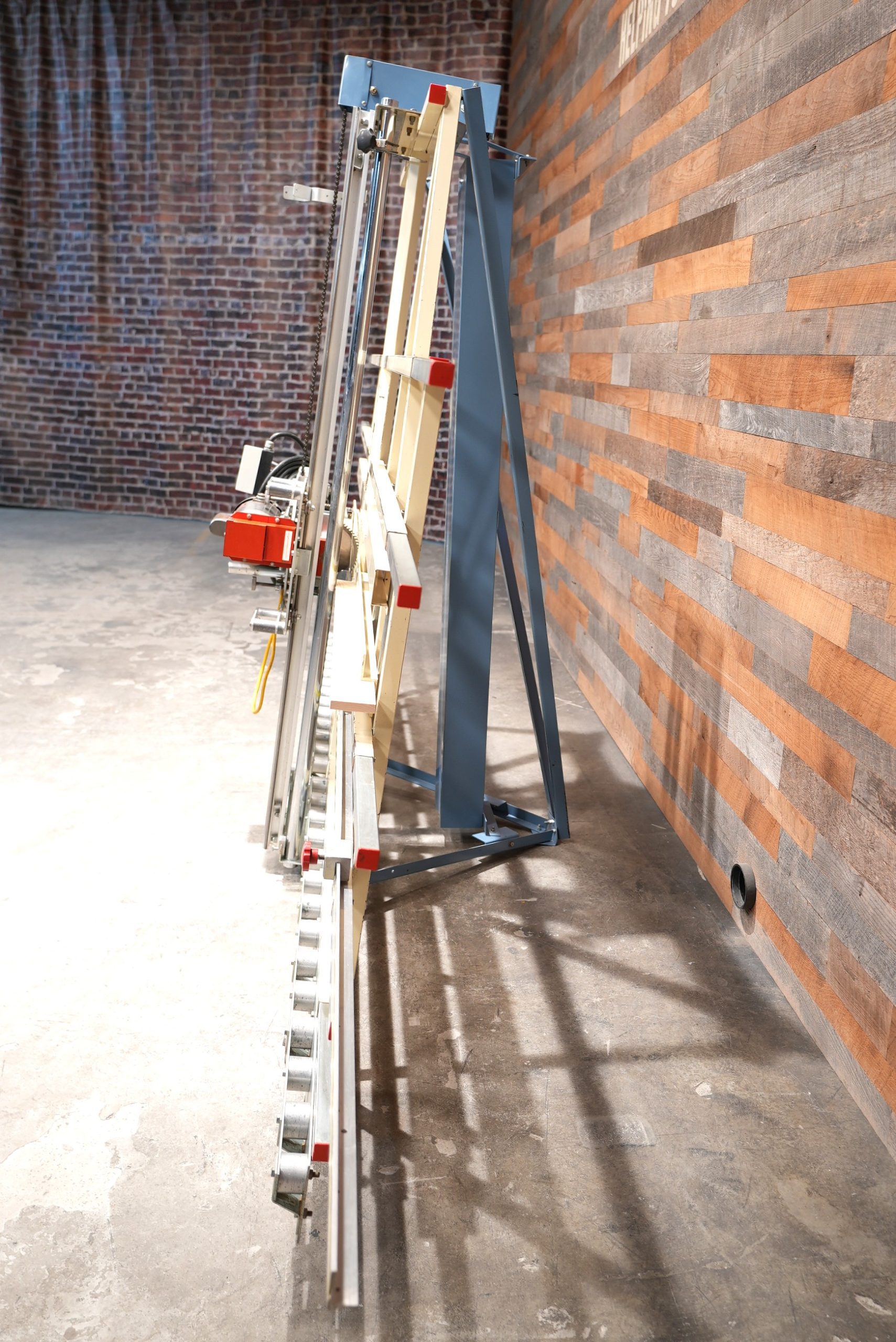

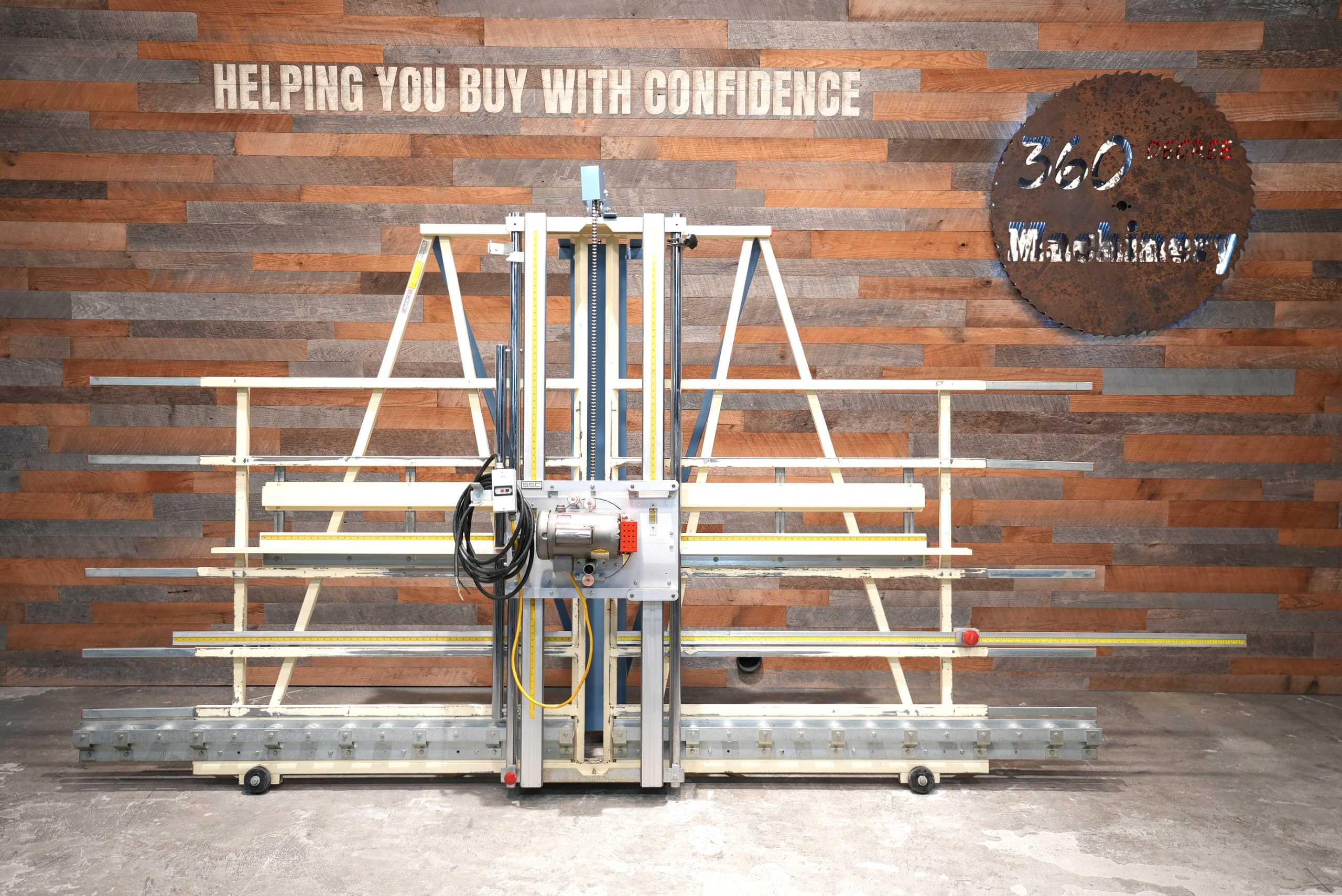

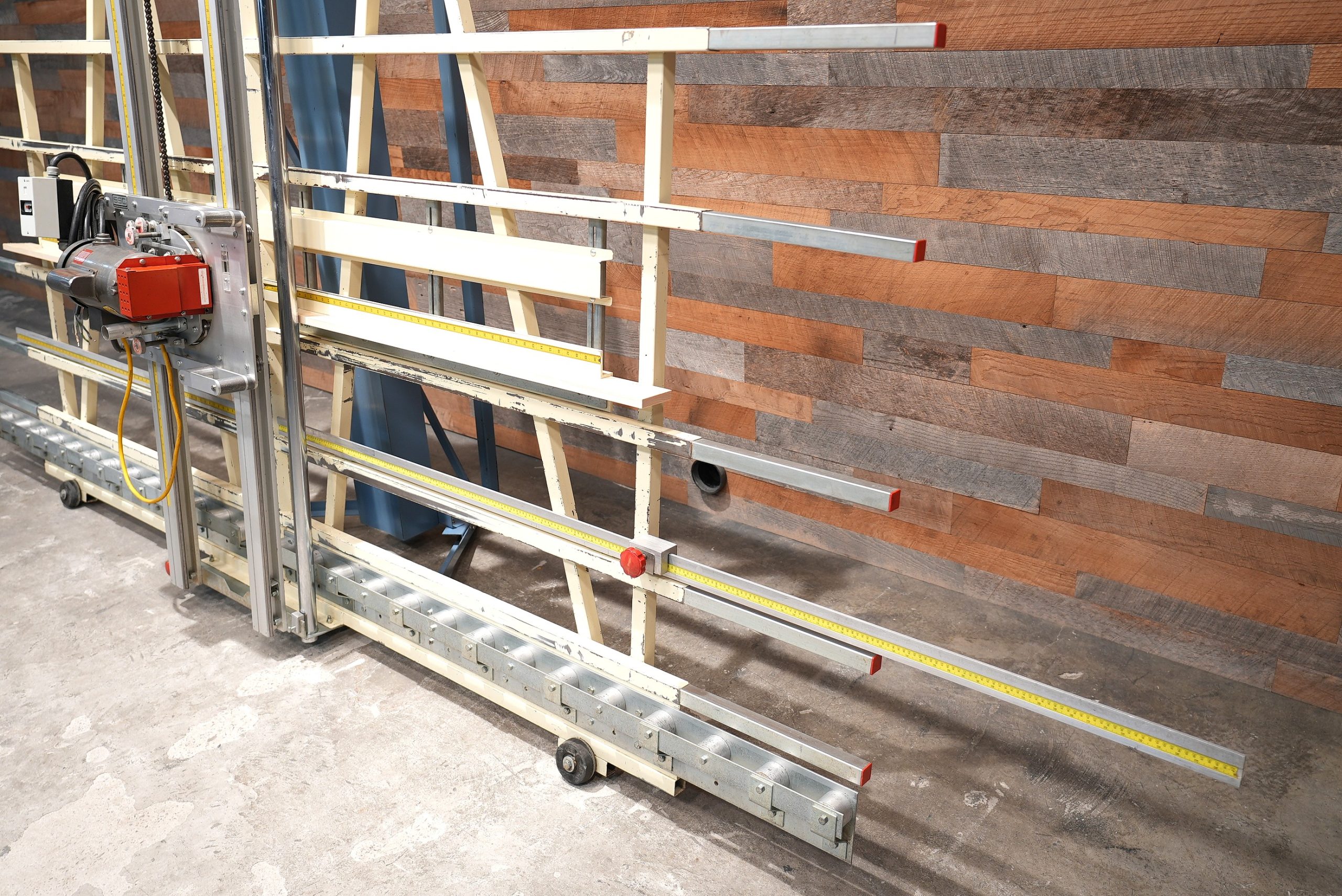

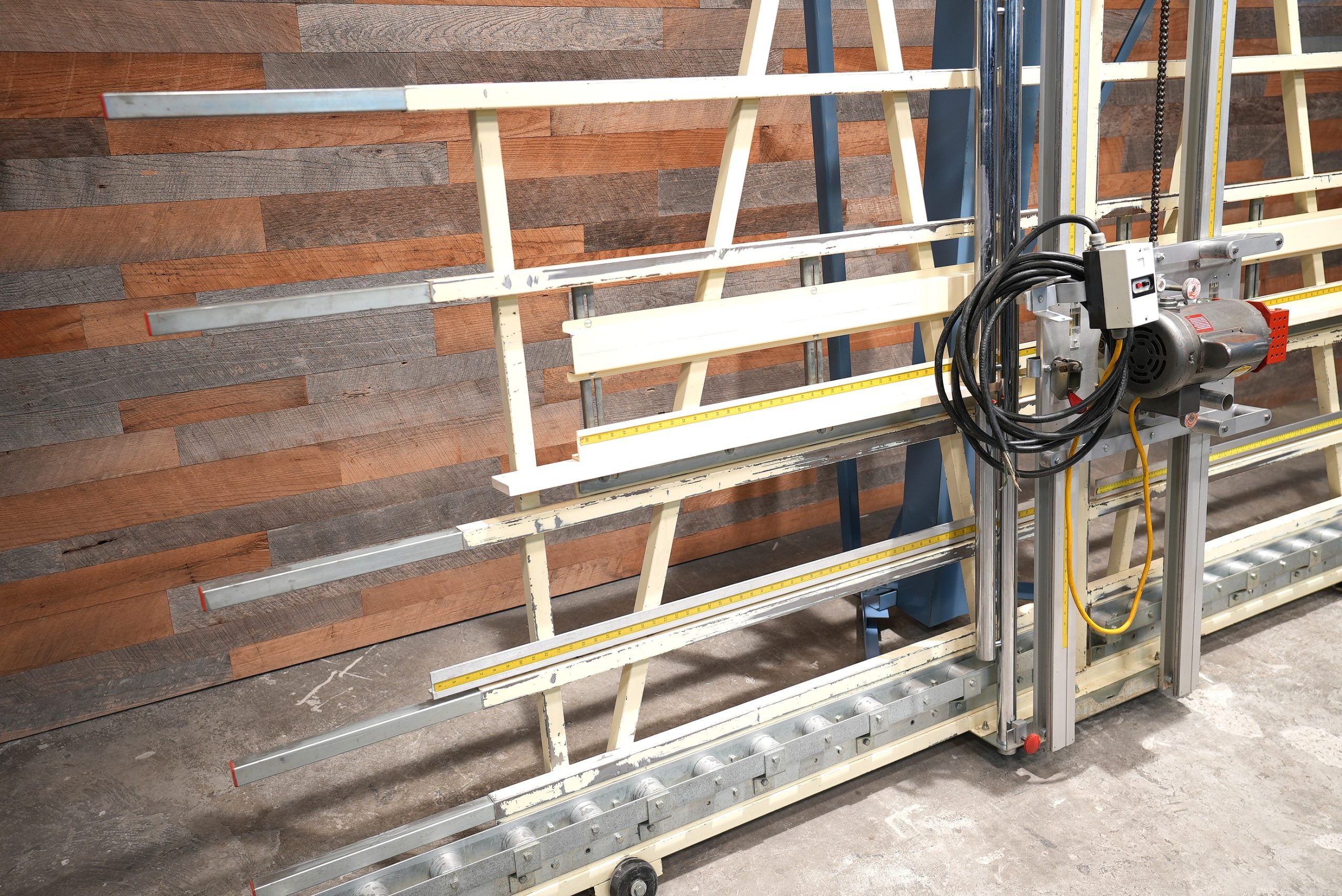

Continuous usage panel processing done the easy way. The 7400 panel saw features a 10′ frame. This one also has the frame extensions extending the rear frame to 12’9″.
| Weight | 950 lbs |
|---|---|
| Dimensions | 124 x 98 x 48in |
| Max. Crosscut | 64″/1625mm |
| Max. Rip Cut | Unlimited |
| Cut Depth | 2 â…›”/55mm |
| Cut Accuracy | .005″/.125mm |
| Frame Length | 120″/3050mm |
| Daily Usage | Continuous (8+ Hours) |
| Rollers | 22 |
| Saw Blade Diameter | 8″/210mm |
| Motor | 2HP, 115V/230V |
| Saw Blade Revolutions Per Minute | 3450 RPM |
| Power supply options | One phase power |
| Country of Origin | USA |
Standard Equipment

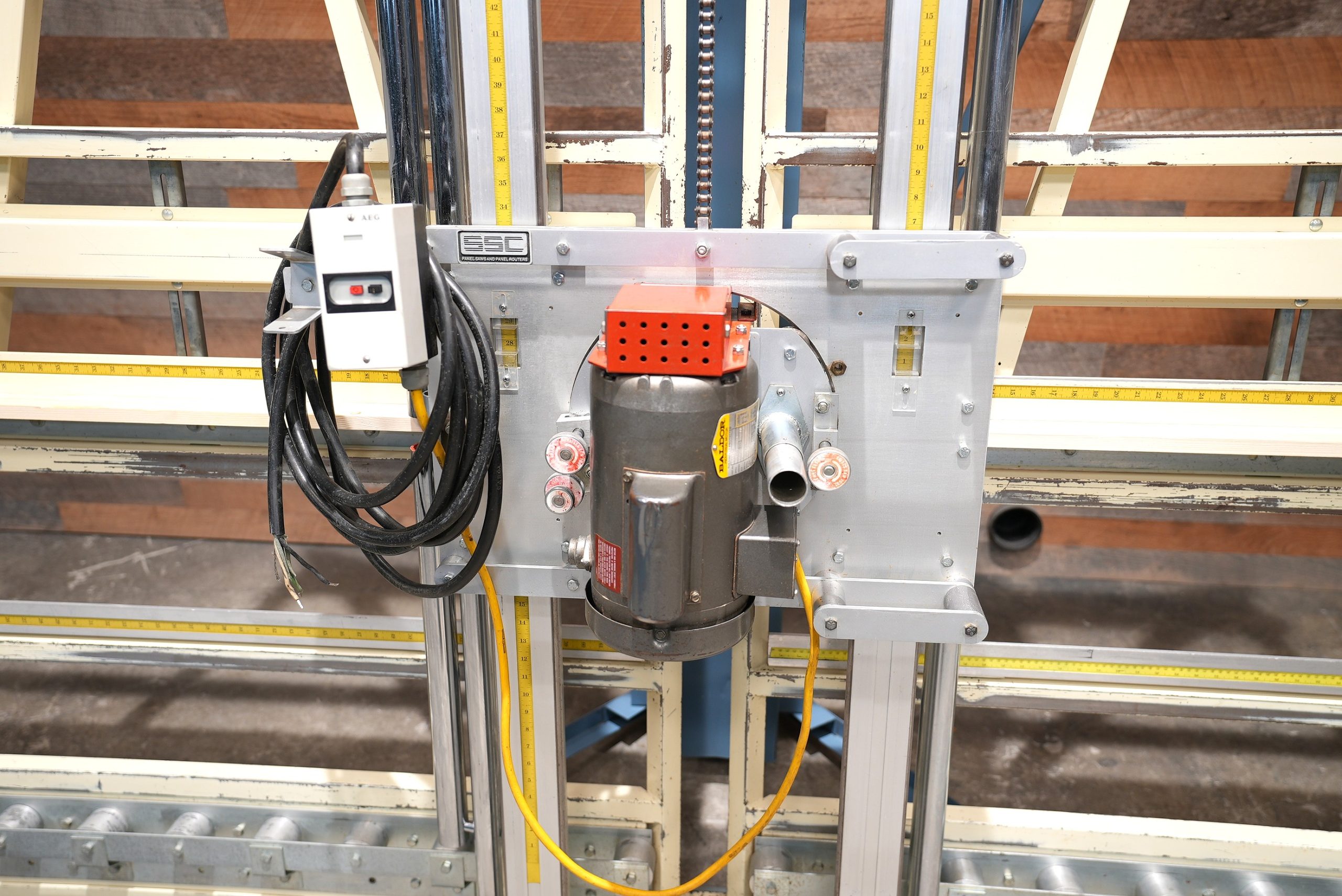

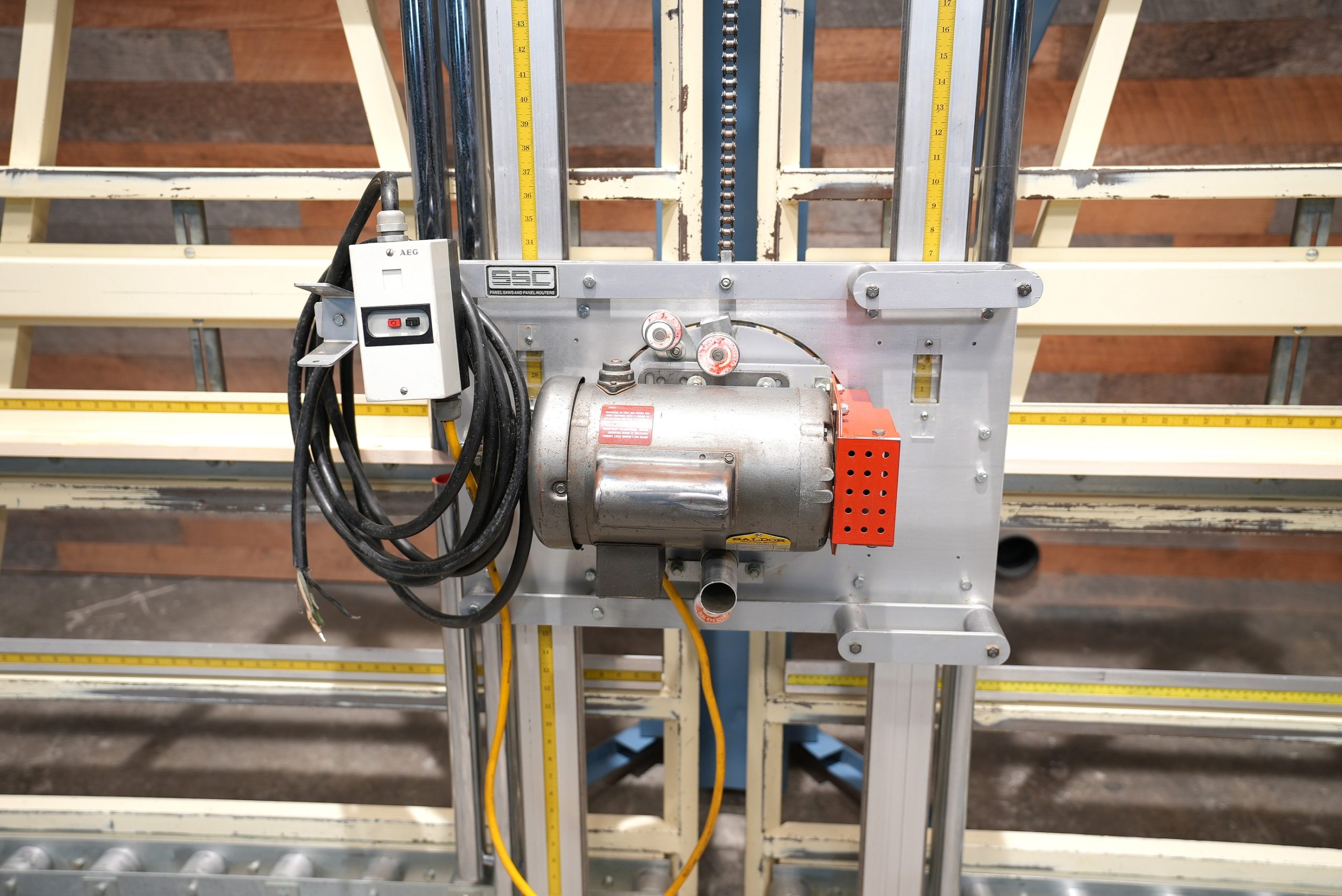

- 2 hp/1-Phase, Baldor motor
- Welded steel frame and integrated stand system
- Dual V-track precision guide system
- Adjustable vertical and horizontal rulers
- Quick stop gauges
- Saw blade. Quick change from vertical to horizontal cutting
- Floating pressure saw foot
- Solid aluminum material rollers
- Enclosed counterweight system
- MID-WAY FENCEâ„¢
- Dust collection ready
- Hold down bar
- Wheels
