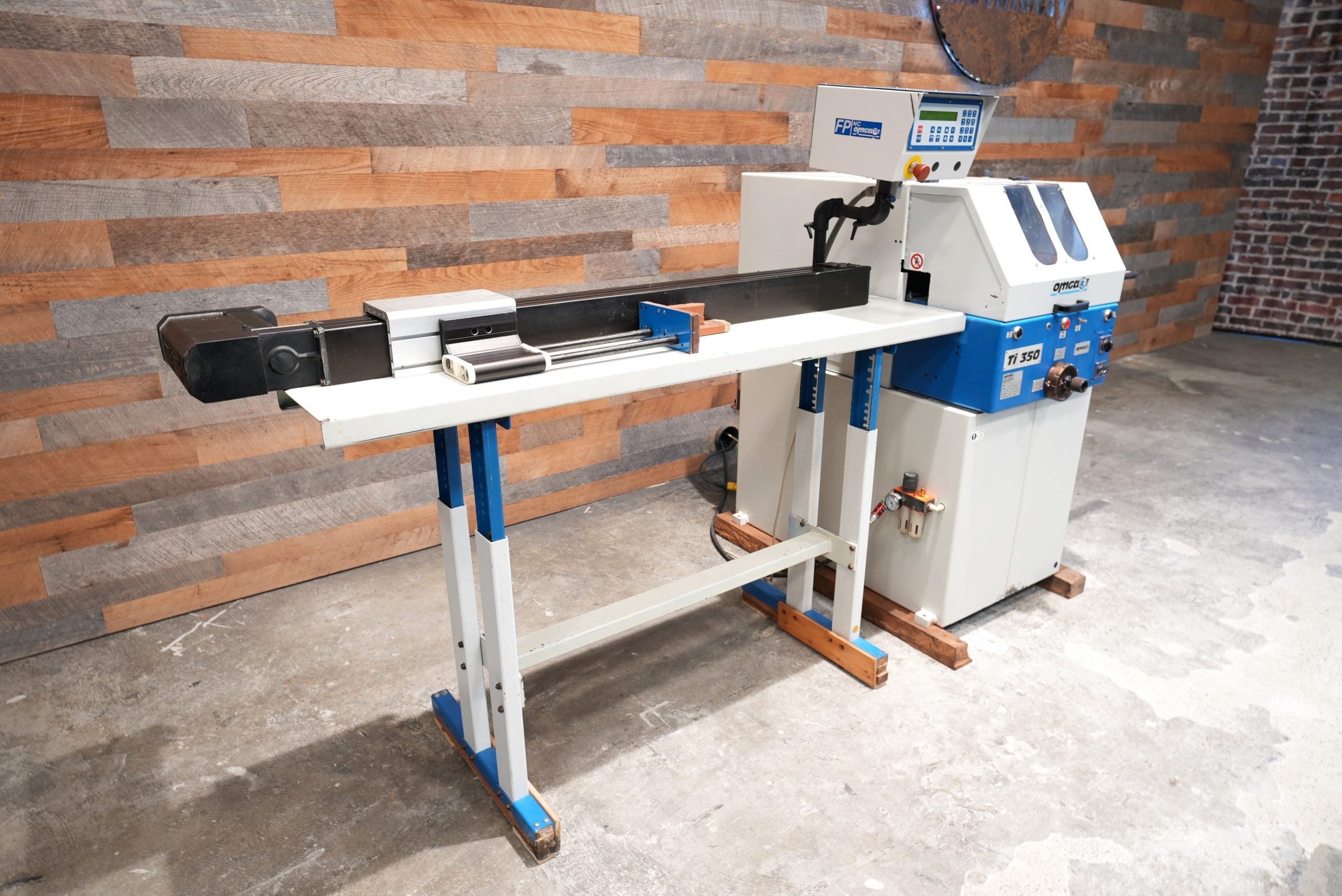

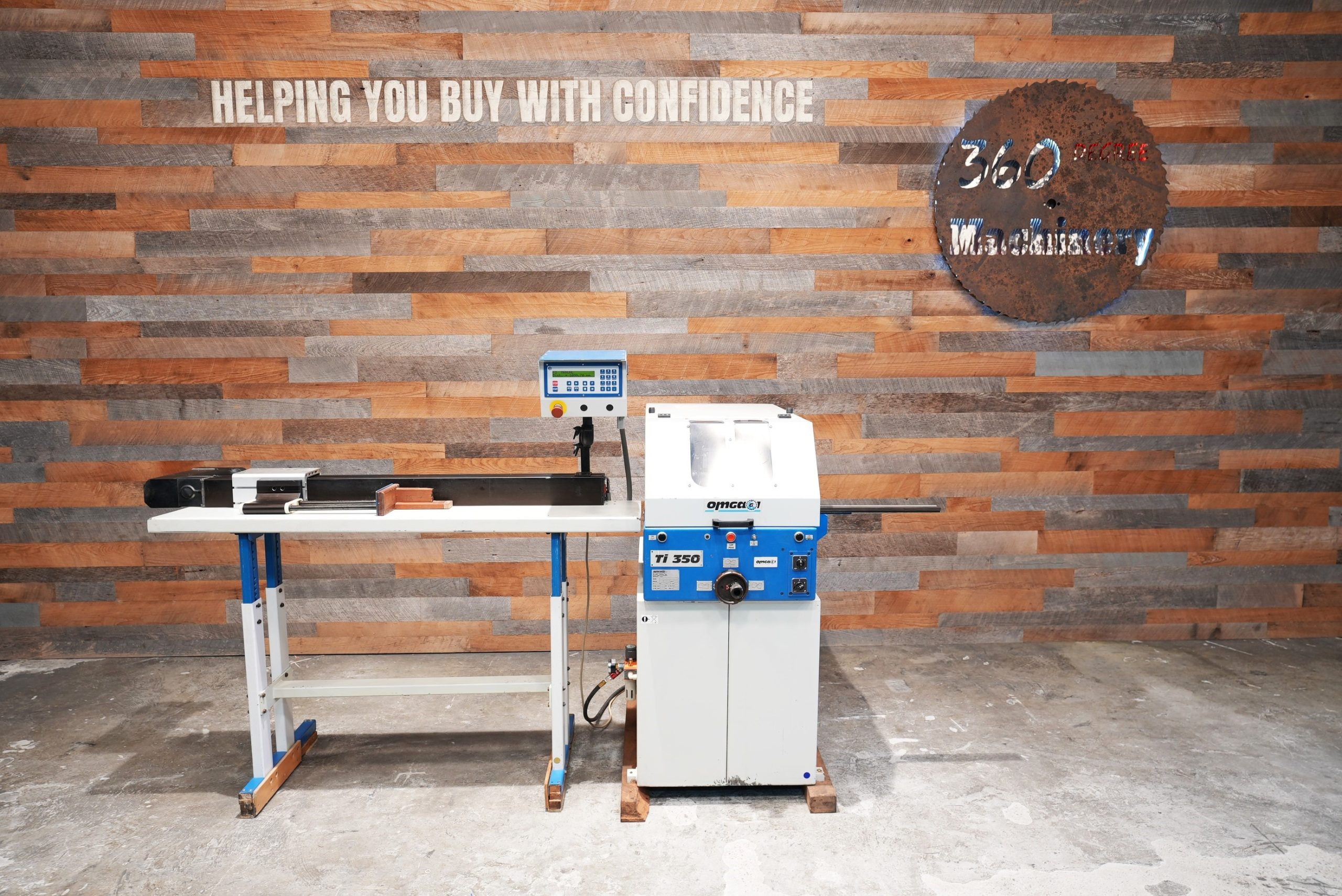

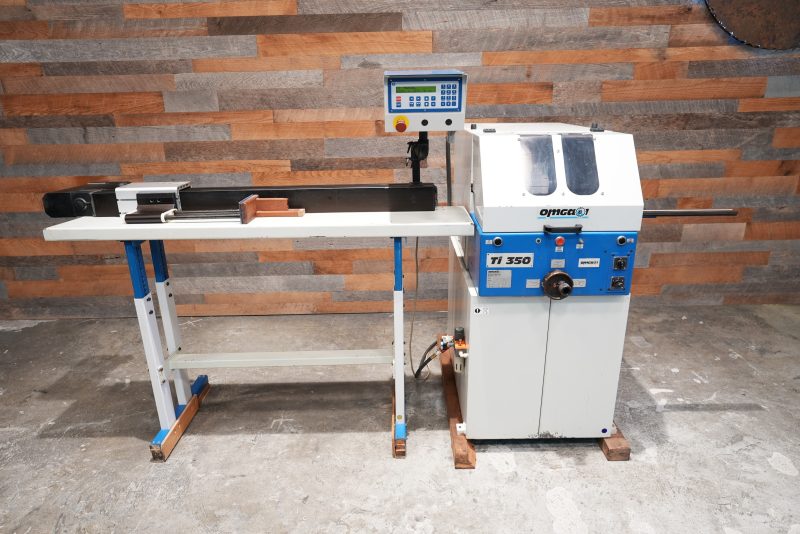

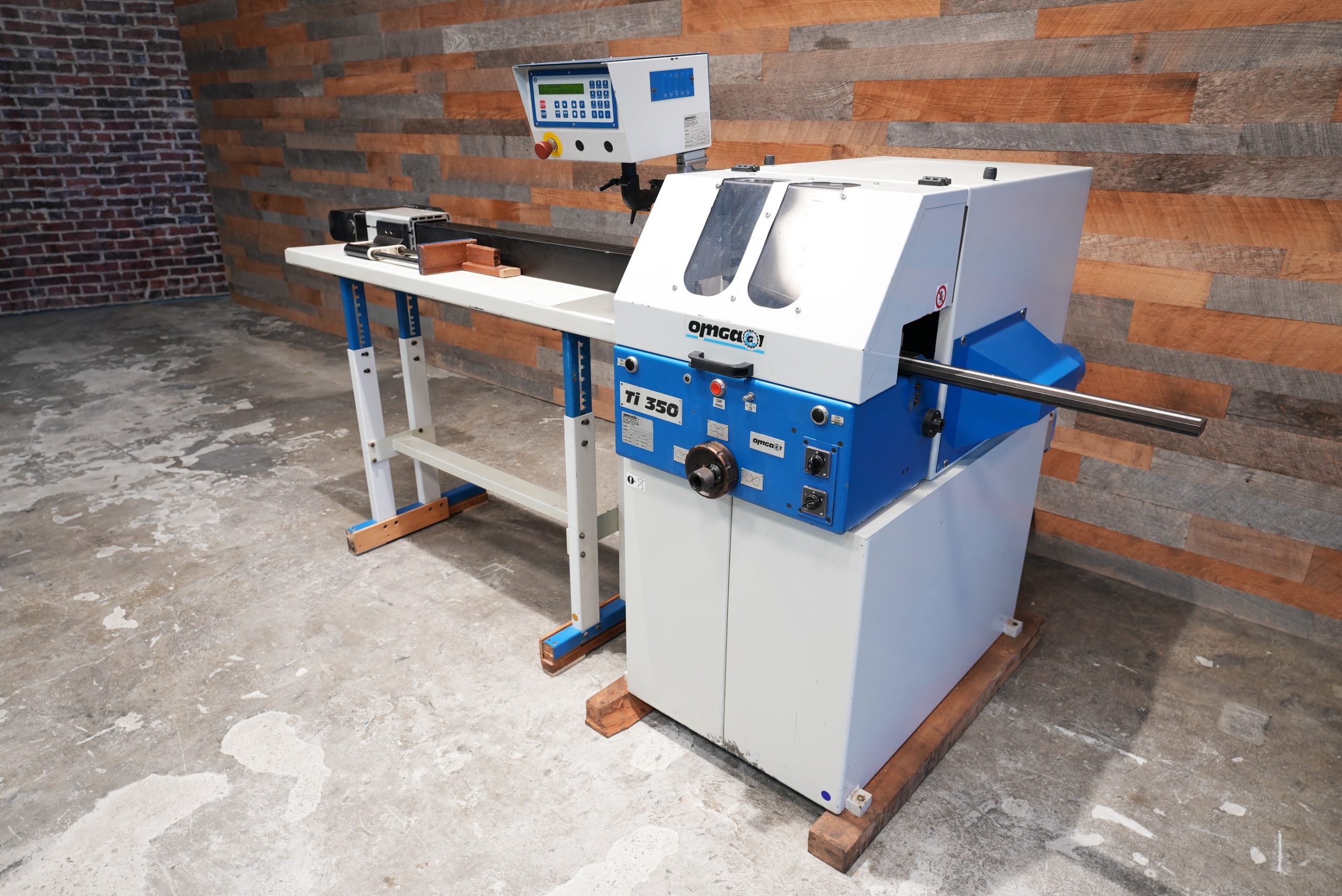

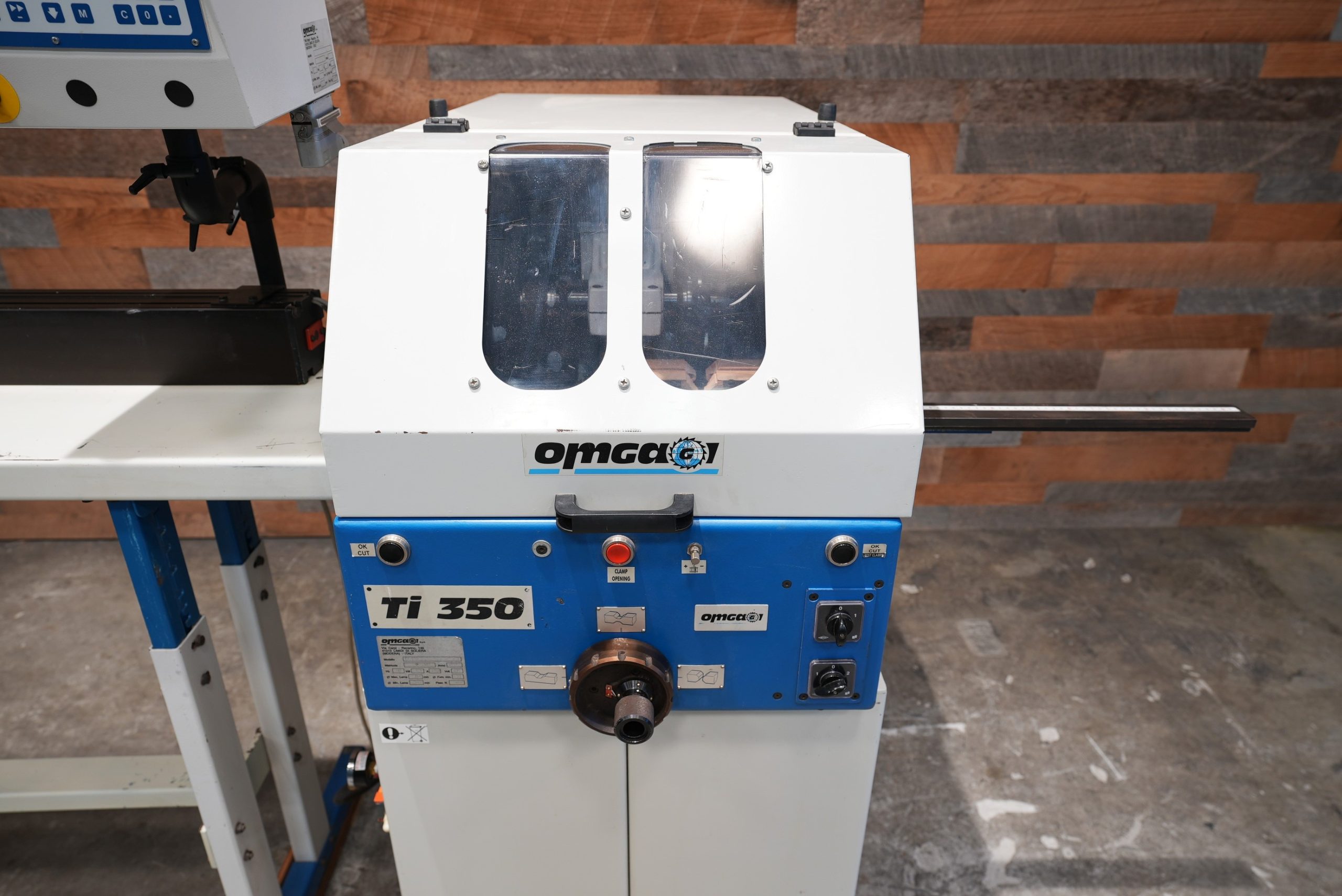

2007 Omga TI 350 Closed Halving Joint Cutter Notcher W/ OmgaStop

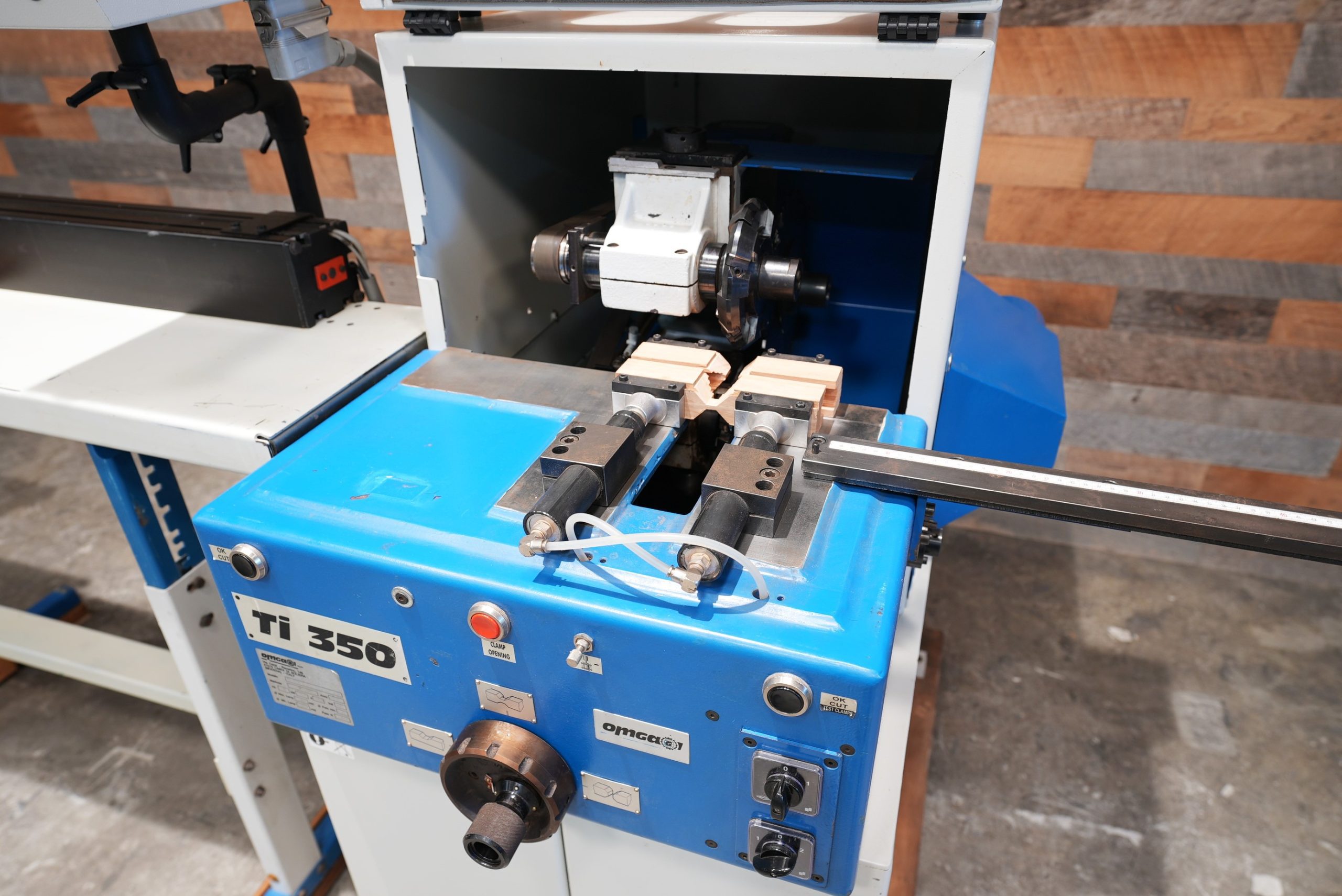

This pre-owned lap notcher manufactured by Omga is designed for the manufacturing of any kind of grille for colonial windows, doors, furniture, frames, decorative panels, and ceilings. Additionally the machine is suited for working with three cutters to notch the three sides at the same time.  The Ti 350 can also process the outside frame cut to length. It has 3 modes, top cutter only, top and bottom cutter with end notch, and top and bottom and cut to length.

Technical Specifications:

• Movable stop in the shape of a roller enables a fast set up and a precise notch distance.
• Average rate of 8 cycles per minute.
• A set of counter profiles prevent any chipping of the finished part.
• Maximum moulding section 1 11/16” x 1 ¾” (43mm x 45mm)
• Cutters 2 x 6 5/16” Diameter – 1 x 10” Diameter
• Bore 1”
• Arbor Speed 7800 – 6000 RPM
• Motor HP 3HP

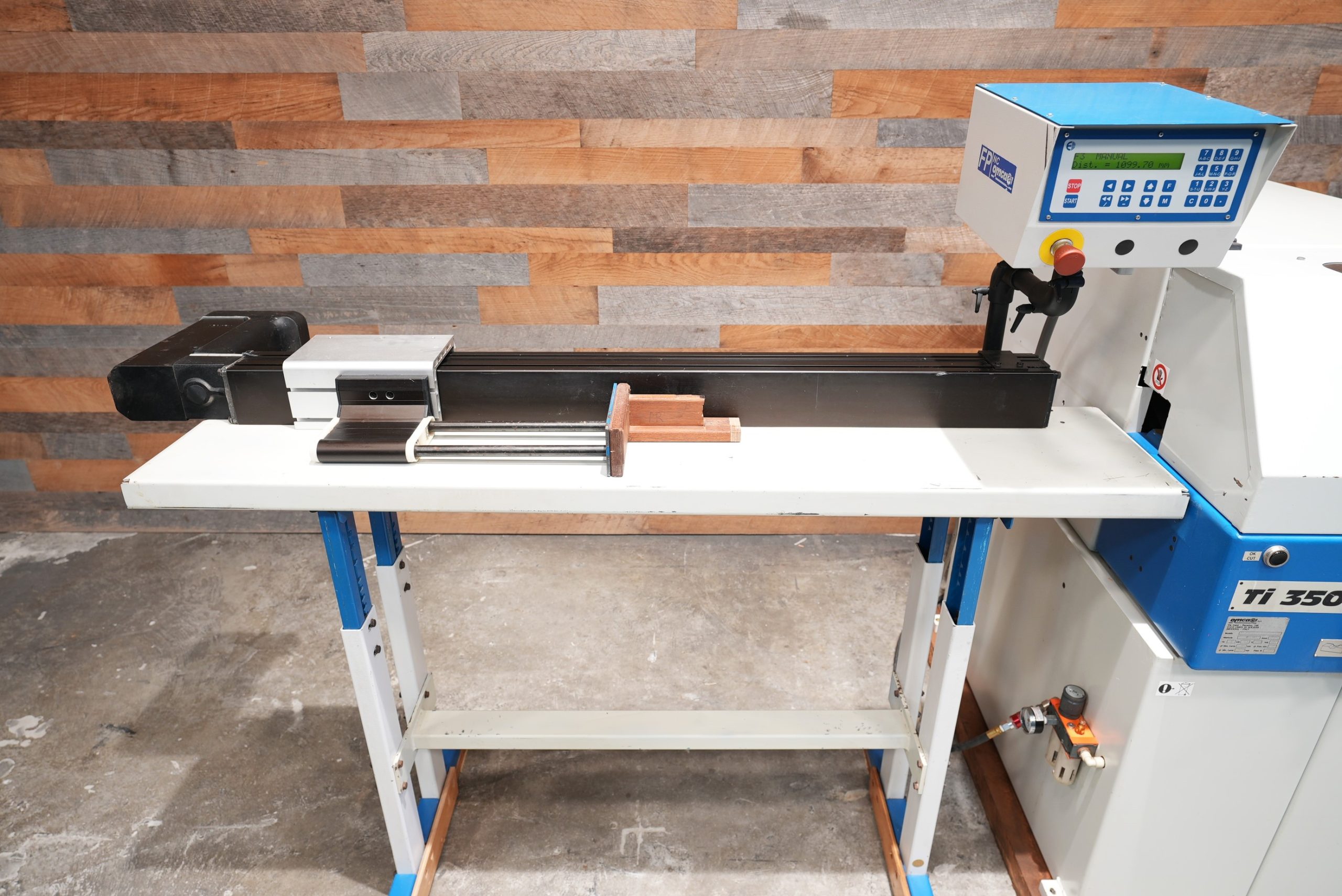

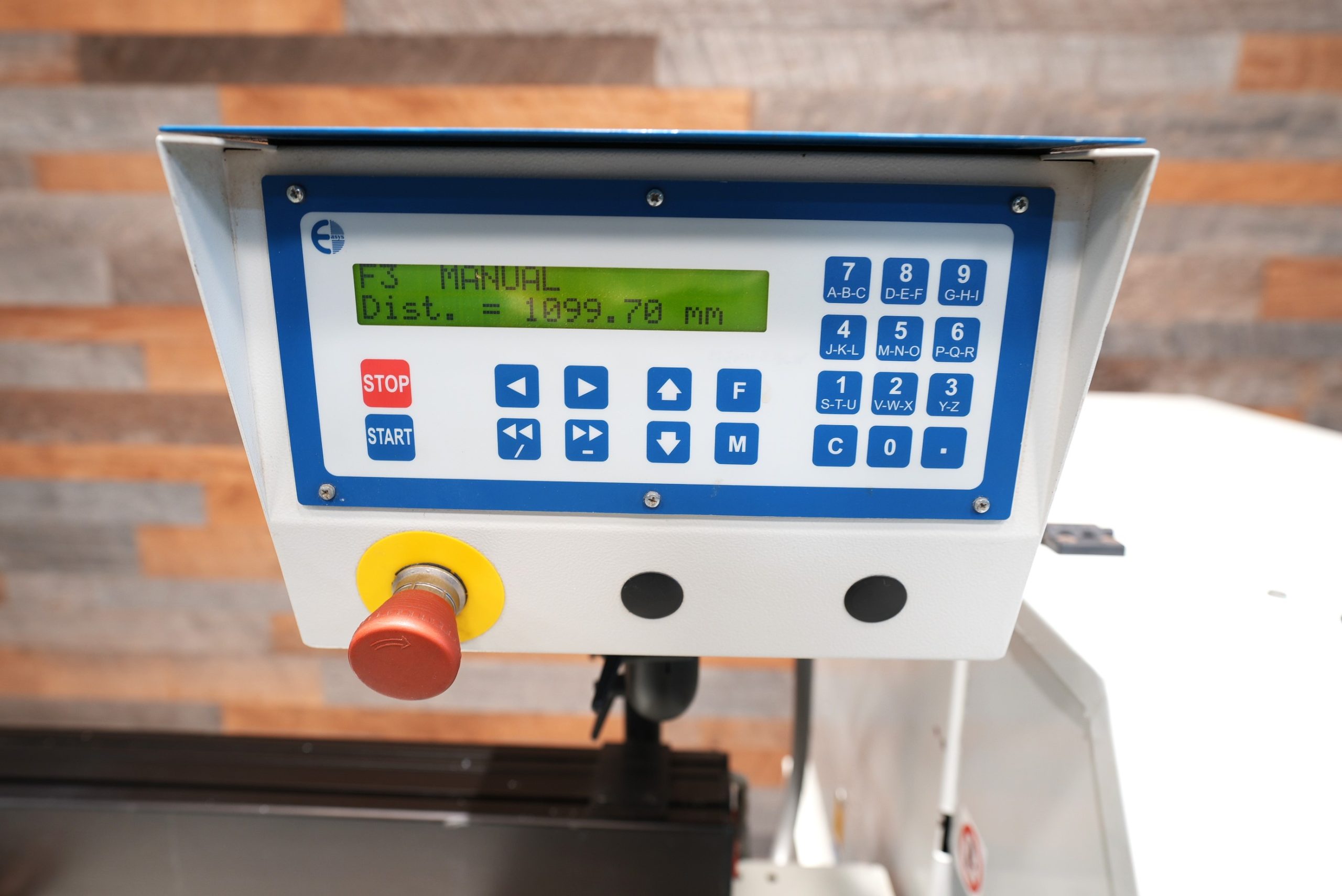

• 43.25″/1099mm (travel) Omga FP Stop
• Dust chute 4 ¾” (120mm)
• Overall dimension 44” x 52” x 51”
• Approximate weight 880 lbs

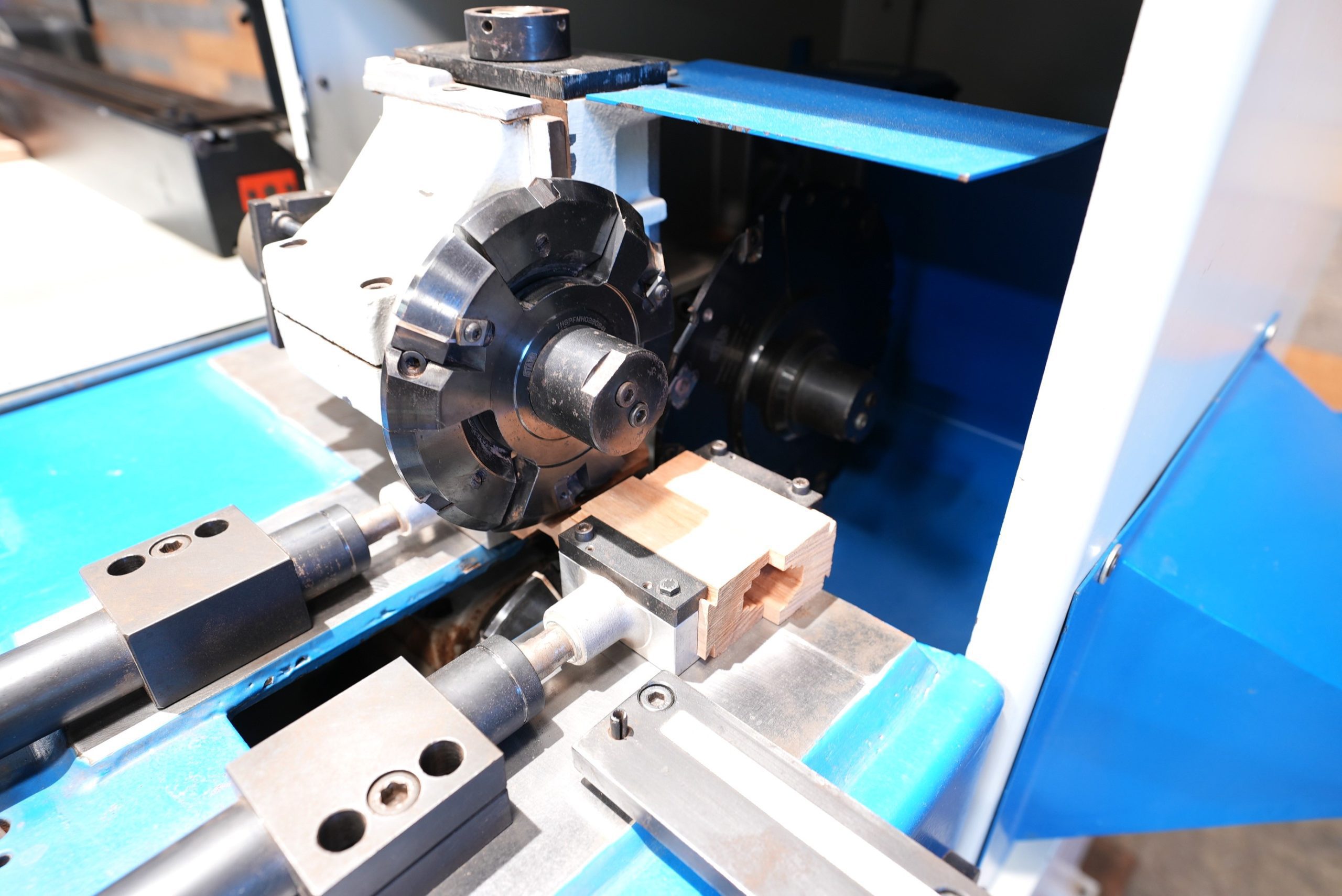

• Three cutters (insert)

This fully functional machine has been fully cleaned, checked, and is ready to work from the time you receive it. This is our guarantee to both you and your company. It is owned by 360 Degree Machinery and located in our inventory in Kingston, TN.
