• 10HP spindle motor
• 1 1⁄4” spindle 4 speed 3000RPM, 4,500RPM, 7,500RPM, 10,000RPM
• (2) 5-1/4″ x 24″ micro adjustable fences
• Foot operated spindle lock
• Foot operated spindle brake
• 36″ x 48″ worktable
• 5-1/2” under nut spindle
• 7-1/4″ vertical spindle travel
• 35-1/4″ table height
• (1) 5″ dust port requiring 681cfm at point of extraction
• 70db decibel sound rating
• 3PH 230V/460V 60HZ, 25A/12.5A
NOS Northtech NT-735TR Tilting Shaper W/Tenoning Table/4 Roll Powerfeed

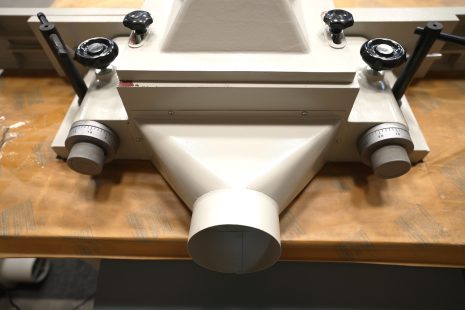

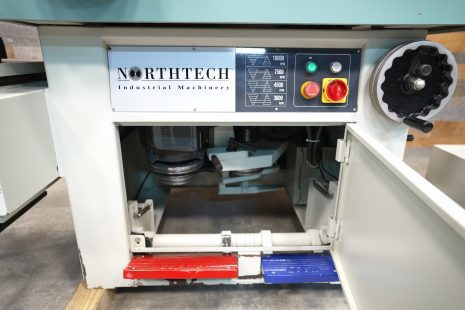

This is a NOS (New Old Stock) Northtech NT-735TR Shaper. Complete with side tenoning table on linear rails including tenoning hood. This machine also has a tilting spindle with digital read out for the angle. The 1-1⁄4” spindle has 4 speed 3000RPM, 4,500RPM, 6,000RPM, 10,000RPM and is powered by a 10 HP motor. Also included is a NOS 1 HP 4-Roll Northtech NT-480 power feed. Both are unused. We did test both and they functions as they should. The shapers raises and tilts with ease. The shapers top is still covered and most of the metal parts still have their protective coating on them. This machine does have a lot of scratches, paint chips, and the side plastic cover to the power feed is cracked at the rear. However un-used and only cosmetic. New replacement cost is just over $17,000 (special order). Original tools box and accessories shown included. Feed and shaper wired for 230V/3-Phase operation.
This fully functional machine has been fully cleaned, checked, and is ready to work from the time you receive it. This is our guarantee to both you and your company. It is owned by 360 Degree Machinery and located in our inventory in Kingston, TN.
