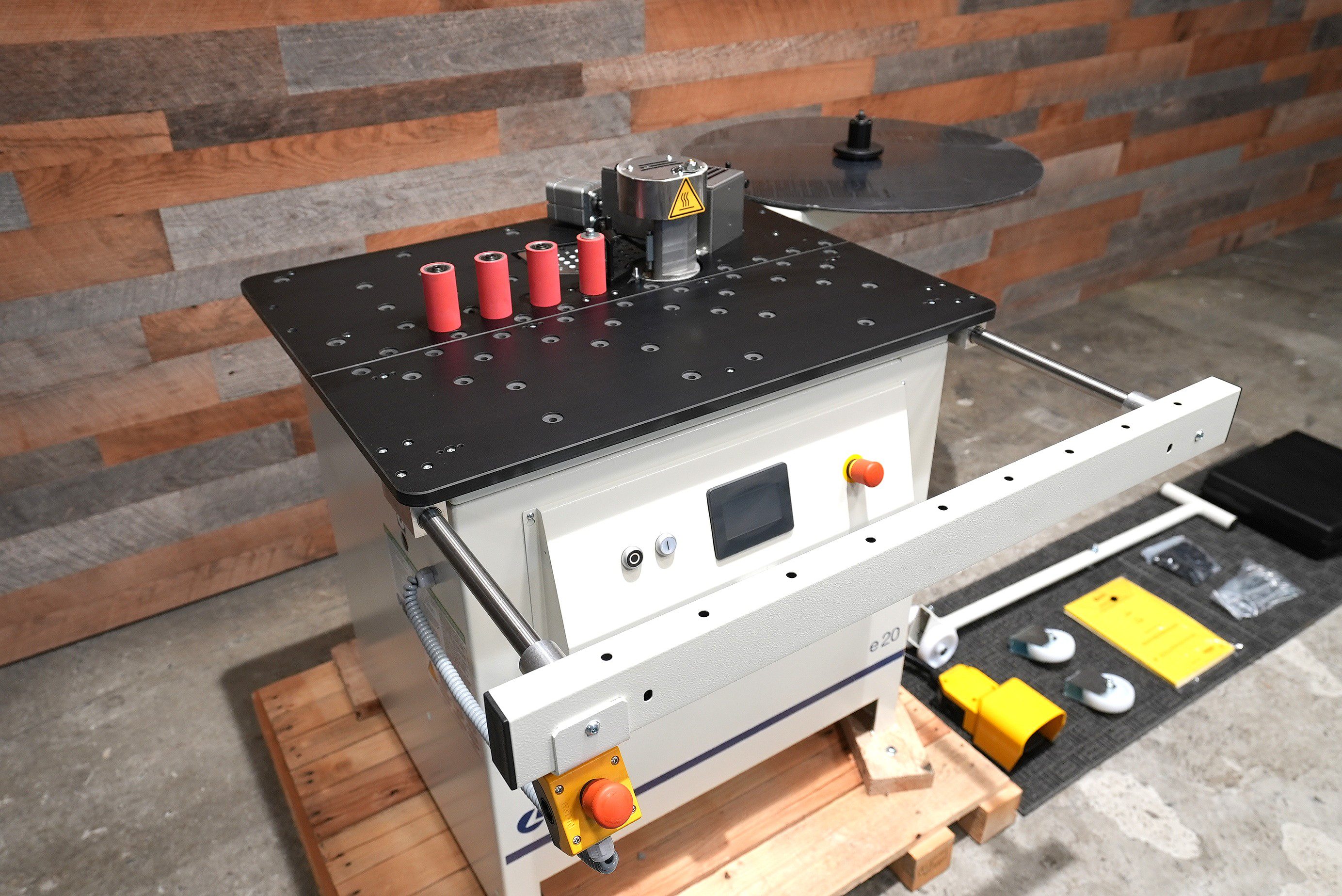

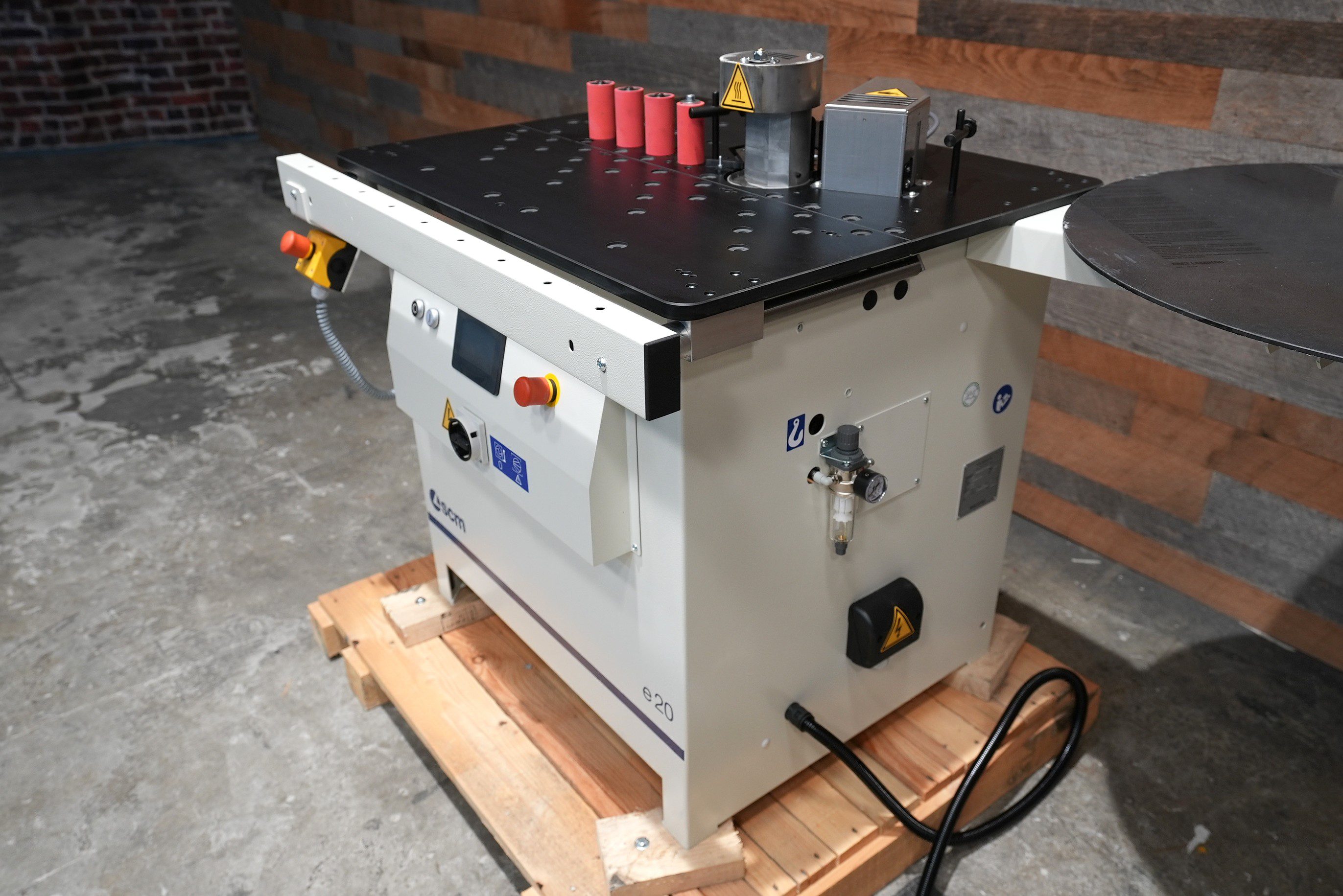

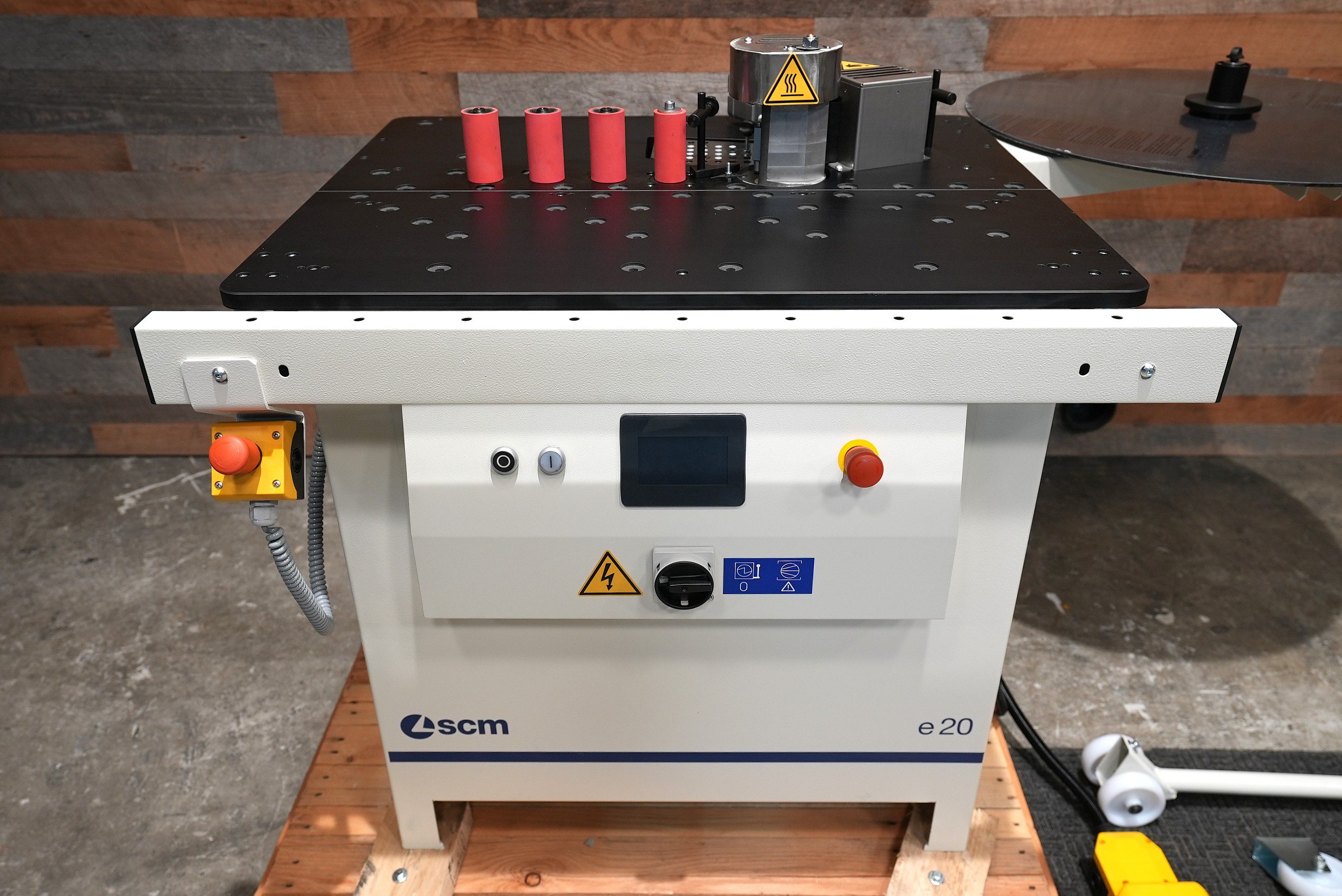

NEW 2025 SCM e 20 Contour Edgebander – END OF YEAR SPECIAL (Last One) – FREE SHIPPING

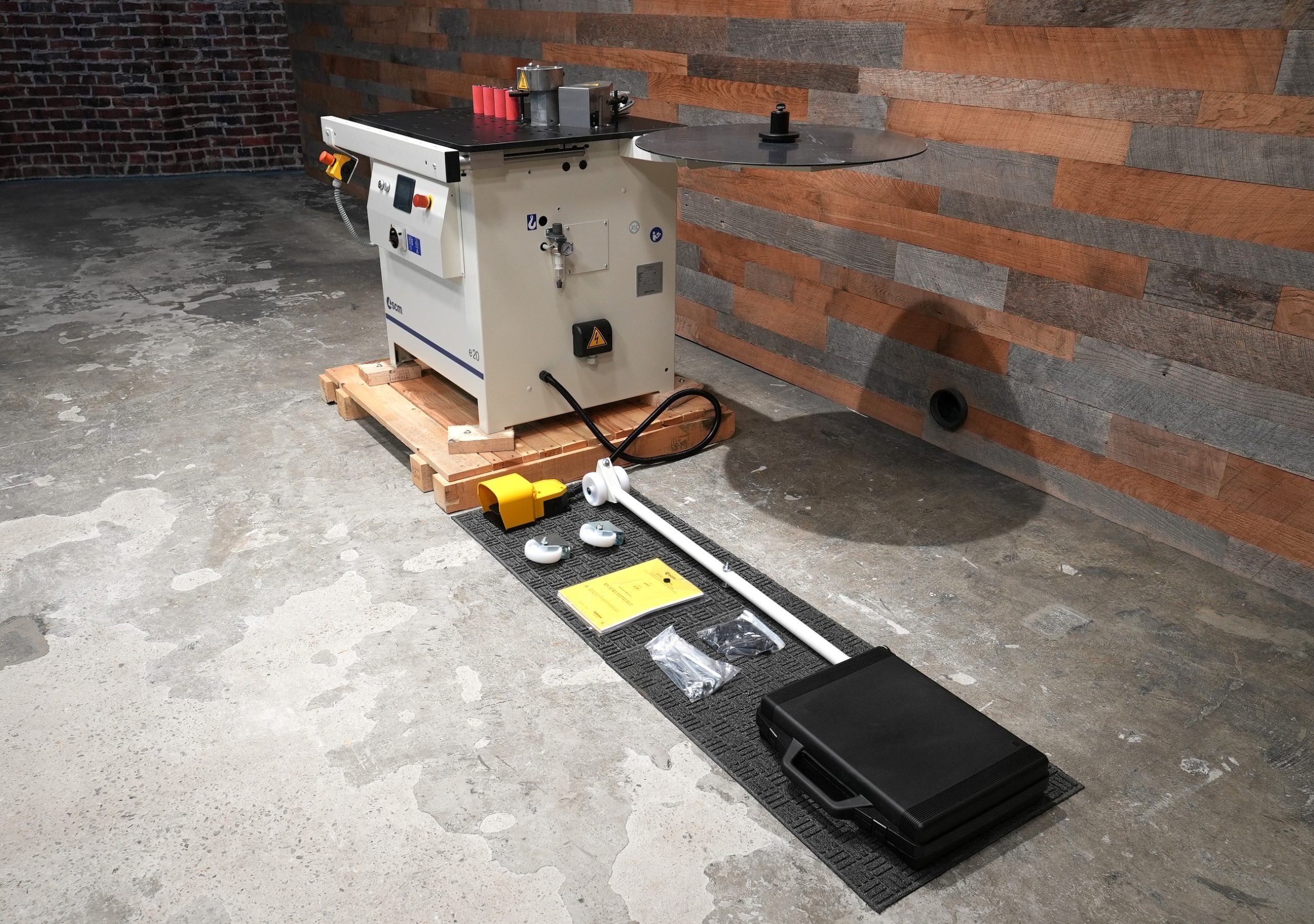

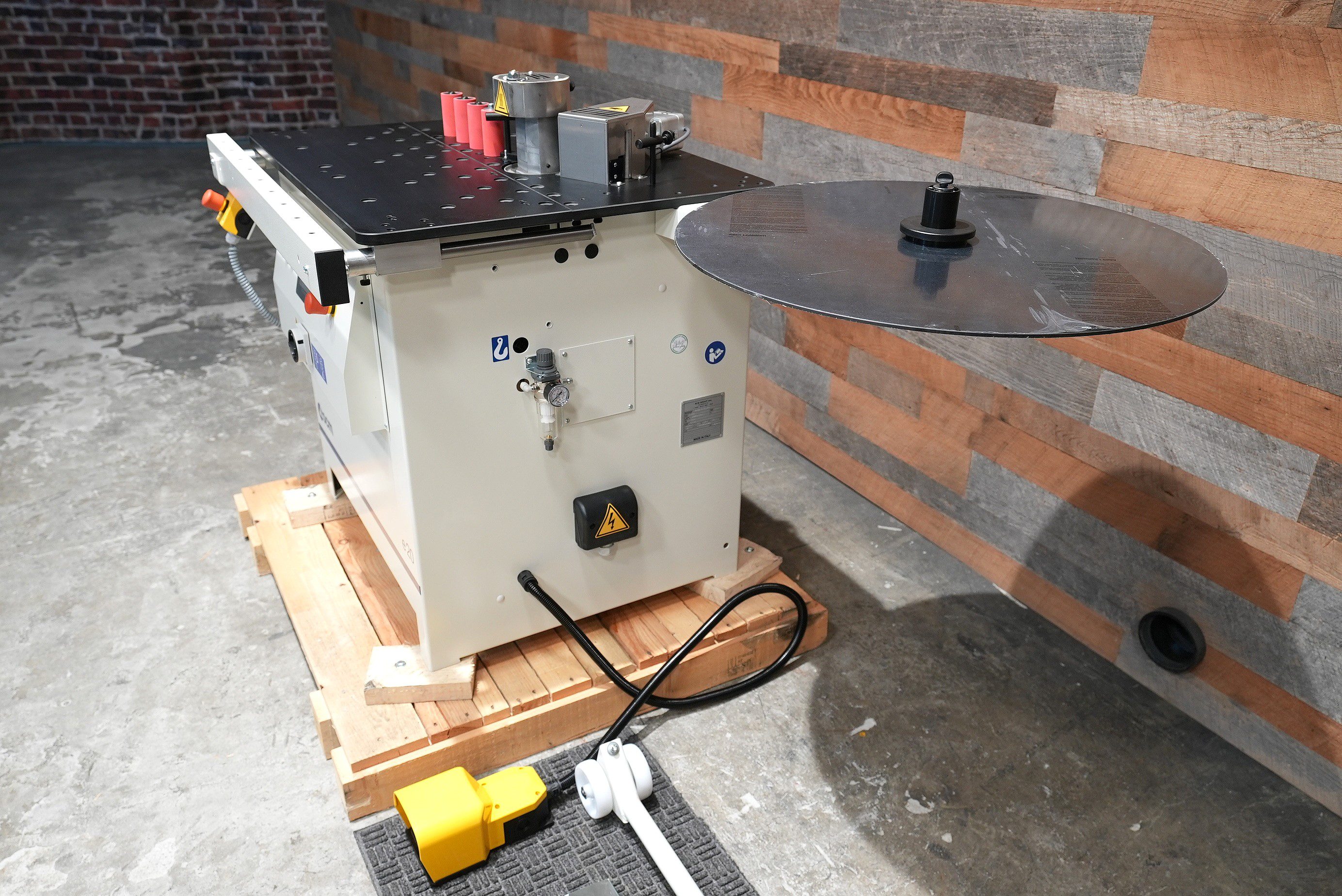

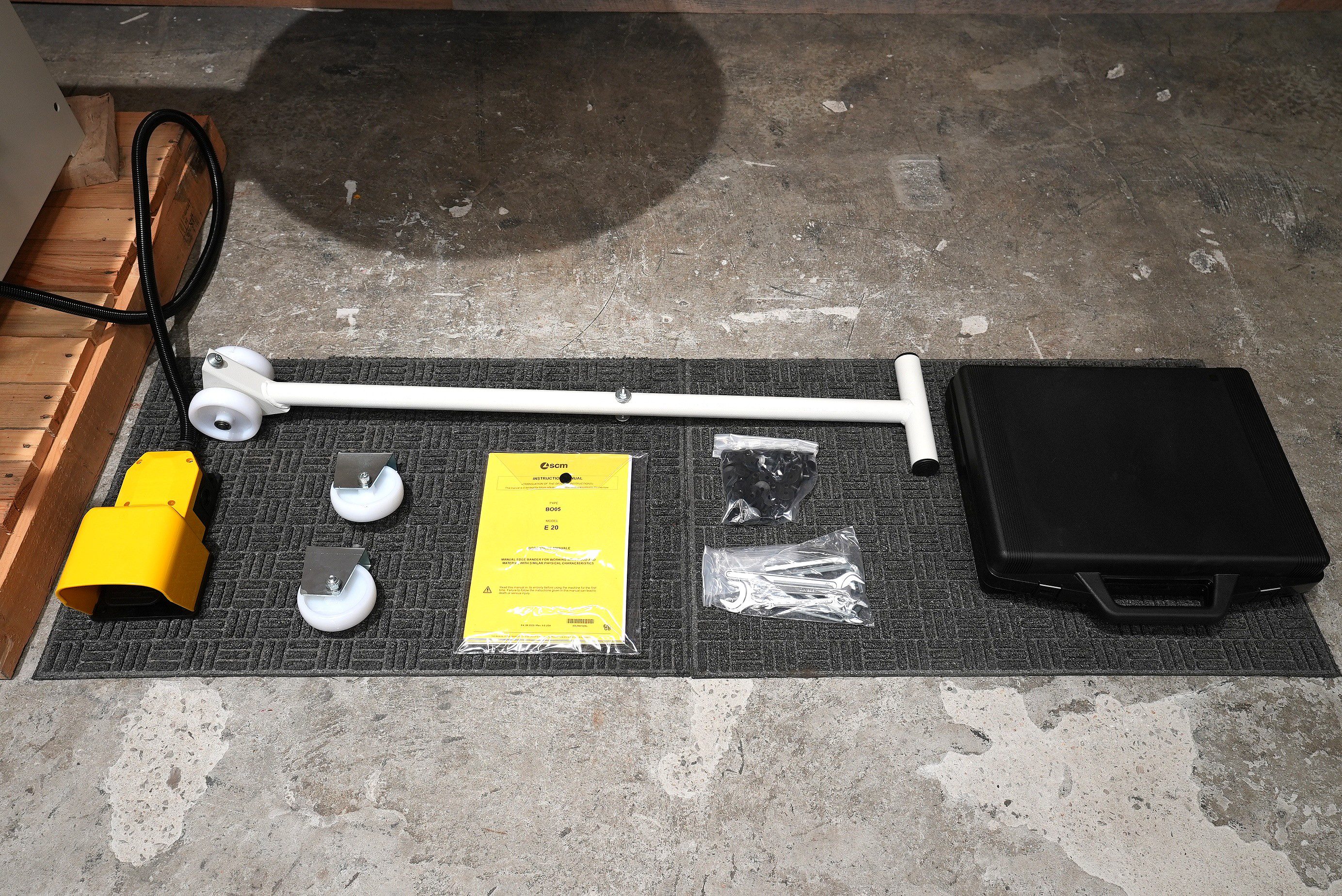

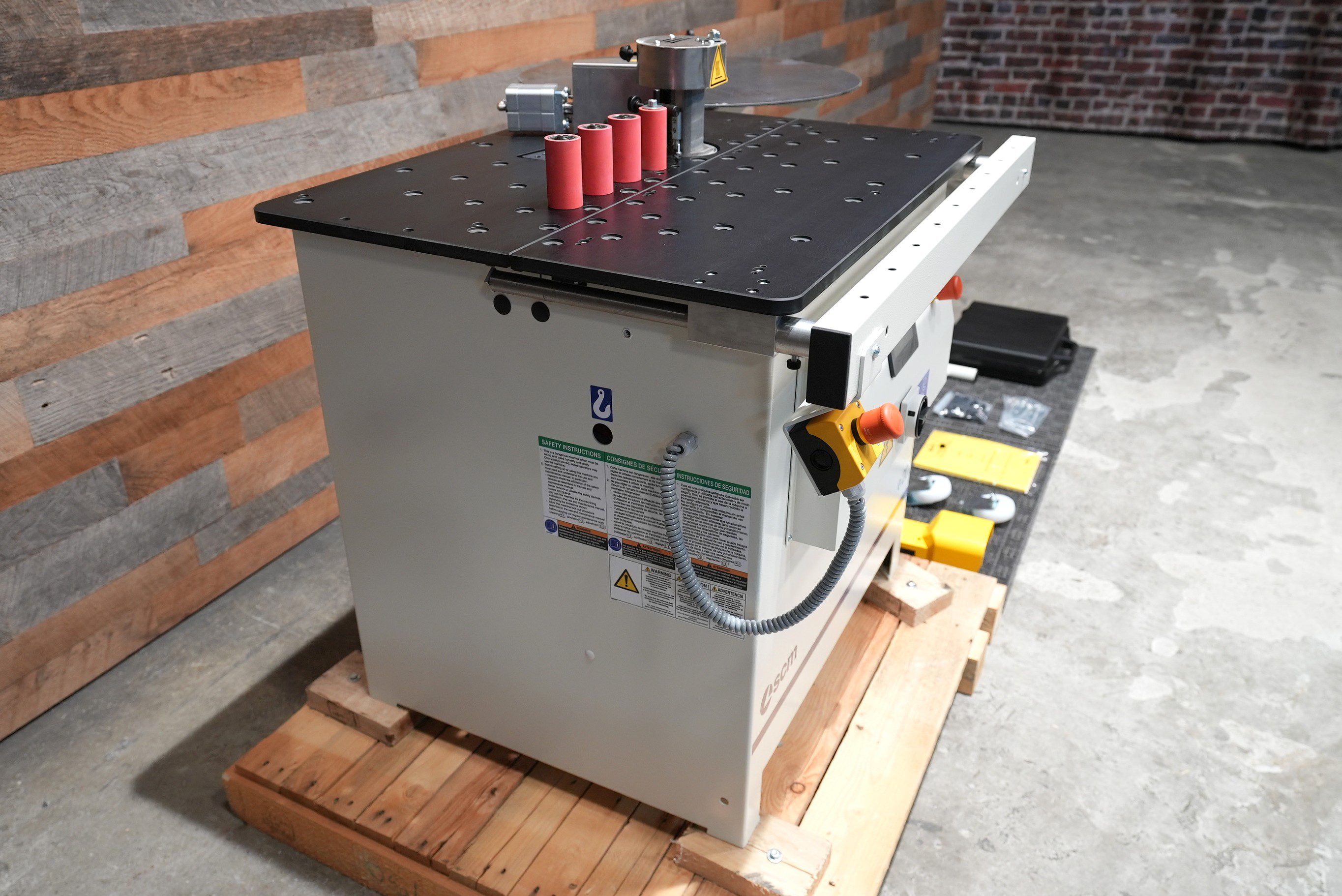

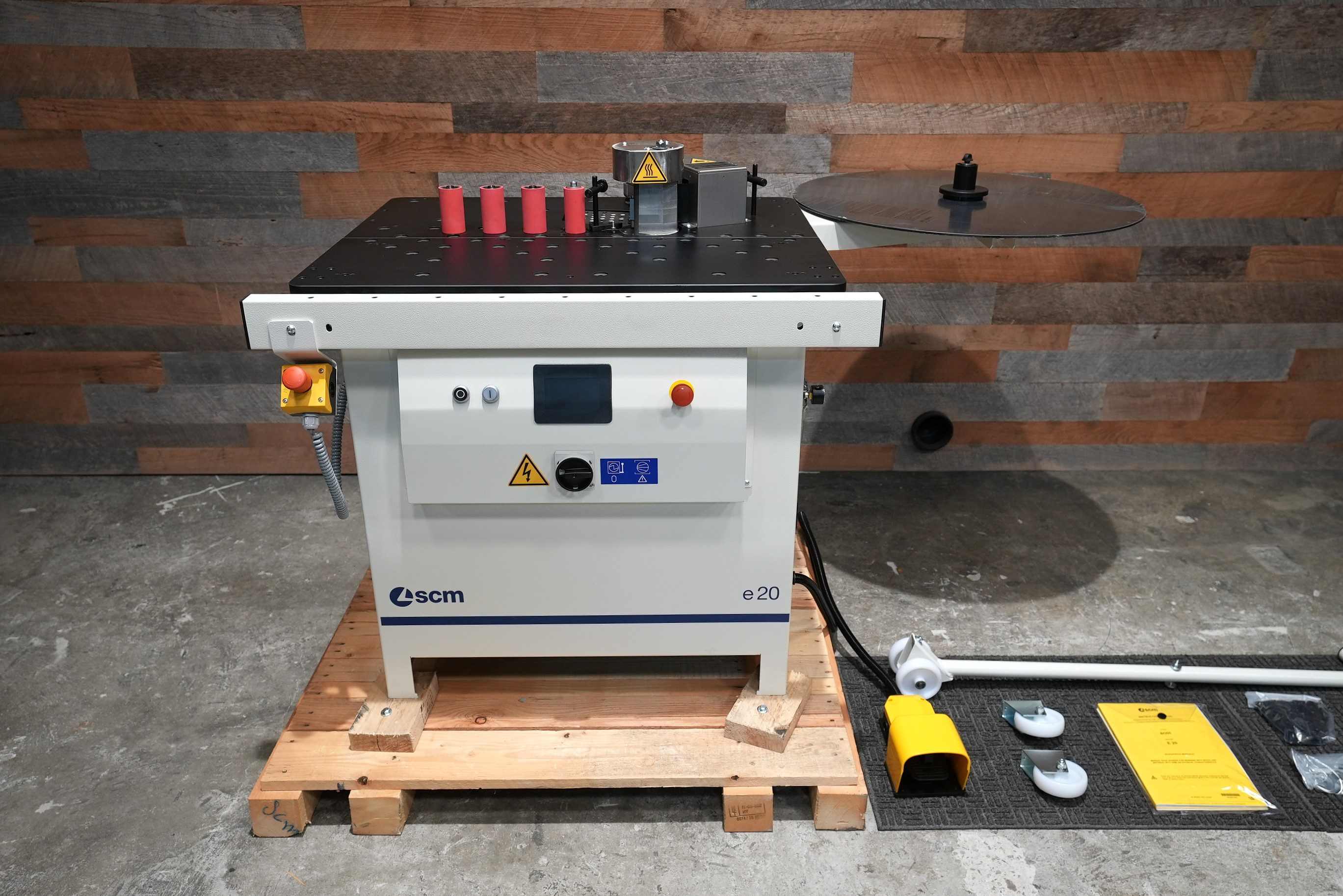

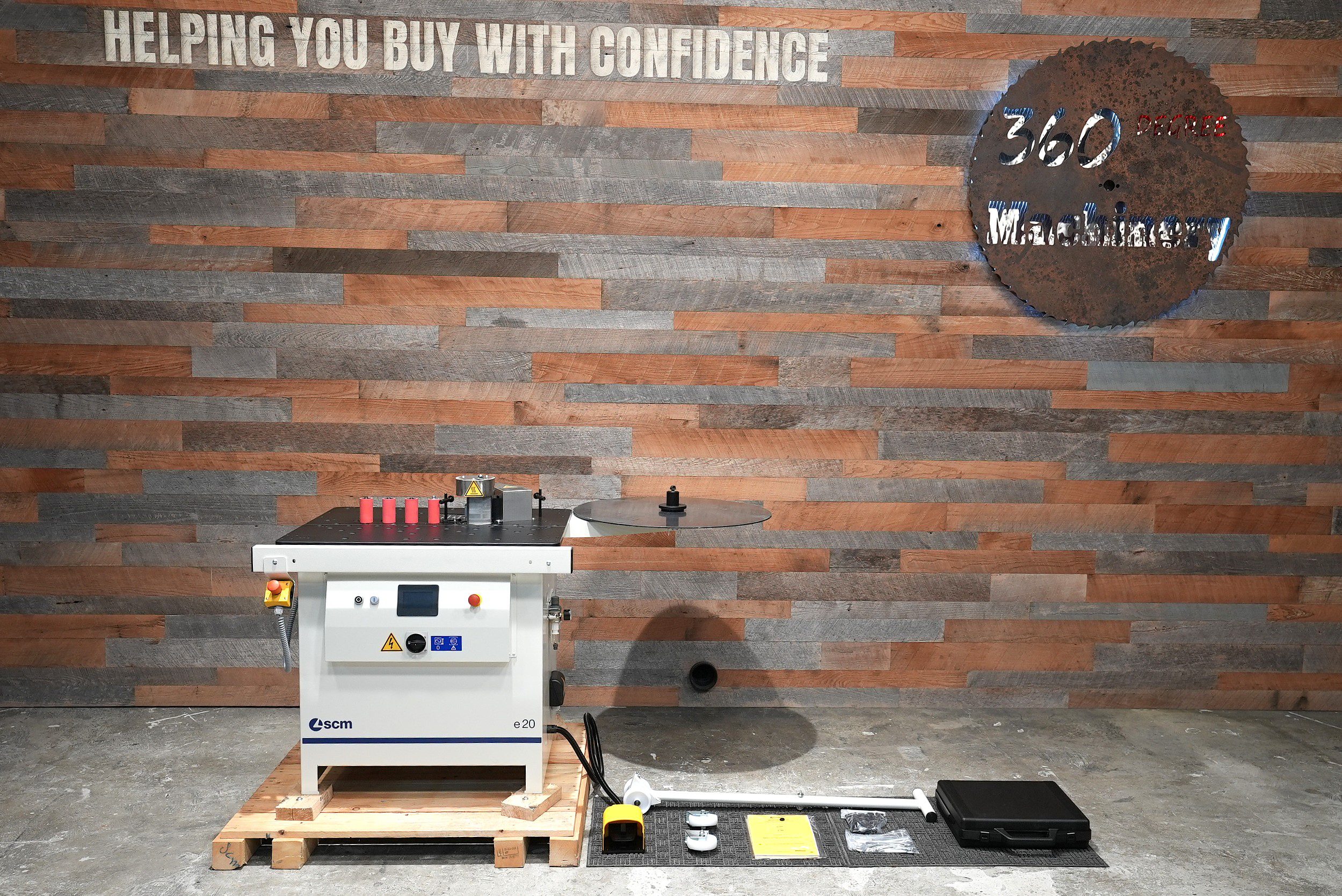

NEW 2025 SCM e 20 Contour Edgebander. Still has it’s protective coating on it! Full factory warranty! All factory accessories & manuals present. Only (1) unit at this price.

Specs:

Thickness of pre-cut edges in strips: 0.4 – 3 mm

Thickness of edges with shear device:
(80 mm height): 0.4 – 1.5 mm
(50 mm height): 0.4 – 2.5 mm
(45 mm height): 0.4 – 3 mm

Edges height: 10 – 84 mm (13/32” – 3.3”)
Panels thickness: 8 – 80 mm (5/16” – 3 19/32”)
Min. panel width: 50 mm (2”)
Min. panel length to be applied: 290 mm (11 7/16”)
Min. internal radius with 0.4 mm edge thickness (concave profile): 25 mm (1”)
Min. external radius with 0.4 mm edge thickness (convex profile): 5 mm (13/64”)
Feed speeds: 3-4-5-6-7-8 m/min
Operating temperature: 140 -220 °C (284 -428 °F)
Installed motor power: 6.9 kW
Overall dimensions: 1,010 x 810 x 1,100 mm (39 3/4”x 31-7/8” x 43-5/16”)

• • High rigidity and stability steel monoblock base

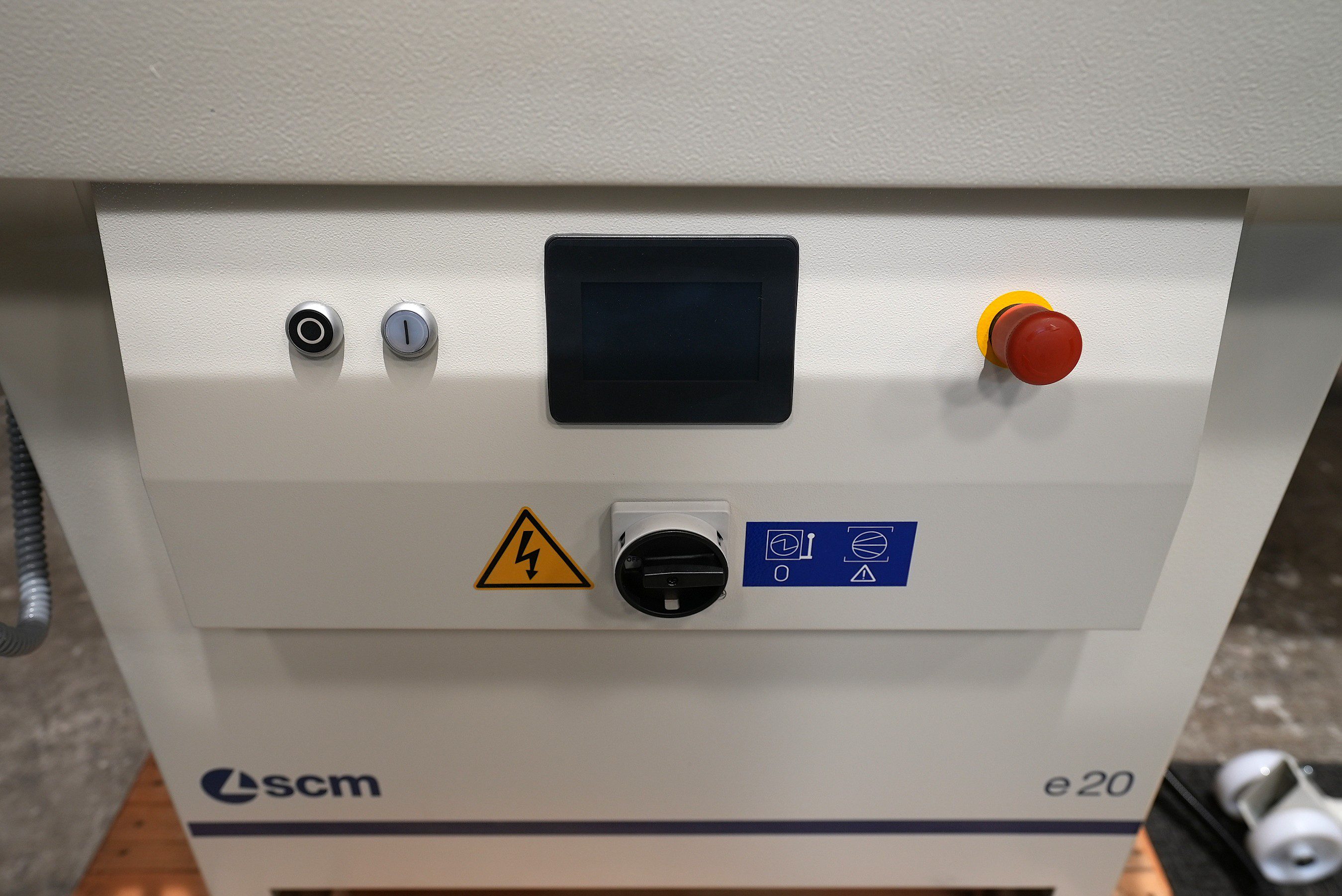

  • 4,3” touch screen with advanced functions. Complete with:
    • Adjustment of the edge feed speed from 3 to 8 m/min
    • Management of manual work modes, programmed cutting and measure of the panel perimeter
    • Automatic calculation of the required edge length with reference to the most common geometries
  • Anti-scratch phenolic multilayer work table with modular holes complete with supports (no. 80 standard supports)
  • Shear device for rolled edges complete with roll-holder plate

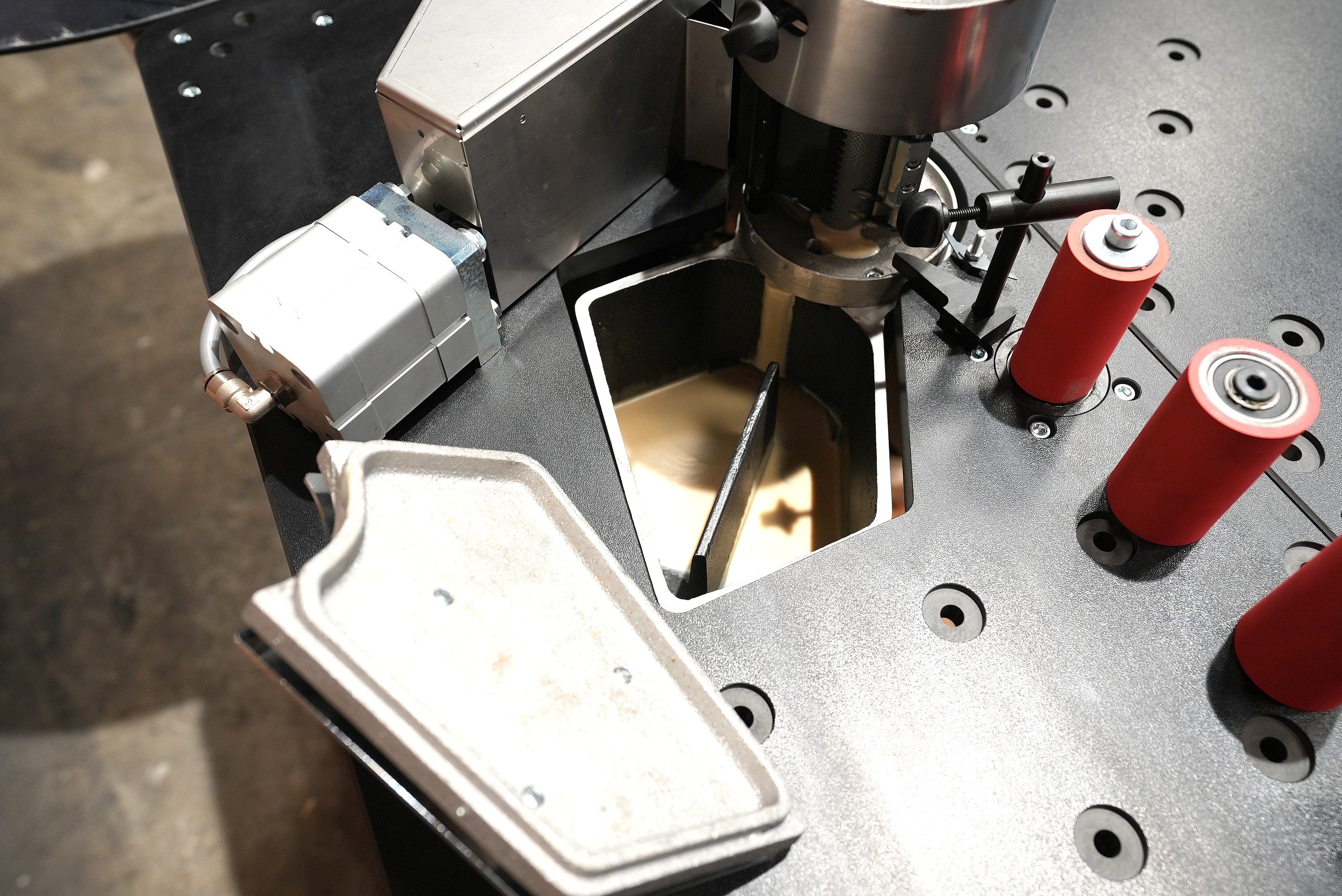

  • Teflon-coated hot melt glue pot installed underneath the worktable to ensure a continuous glue recirculation and avoid its overheating
  • Powerful heating system for an immediate use with timed stand-by

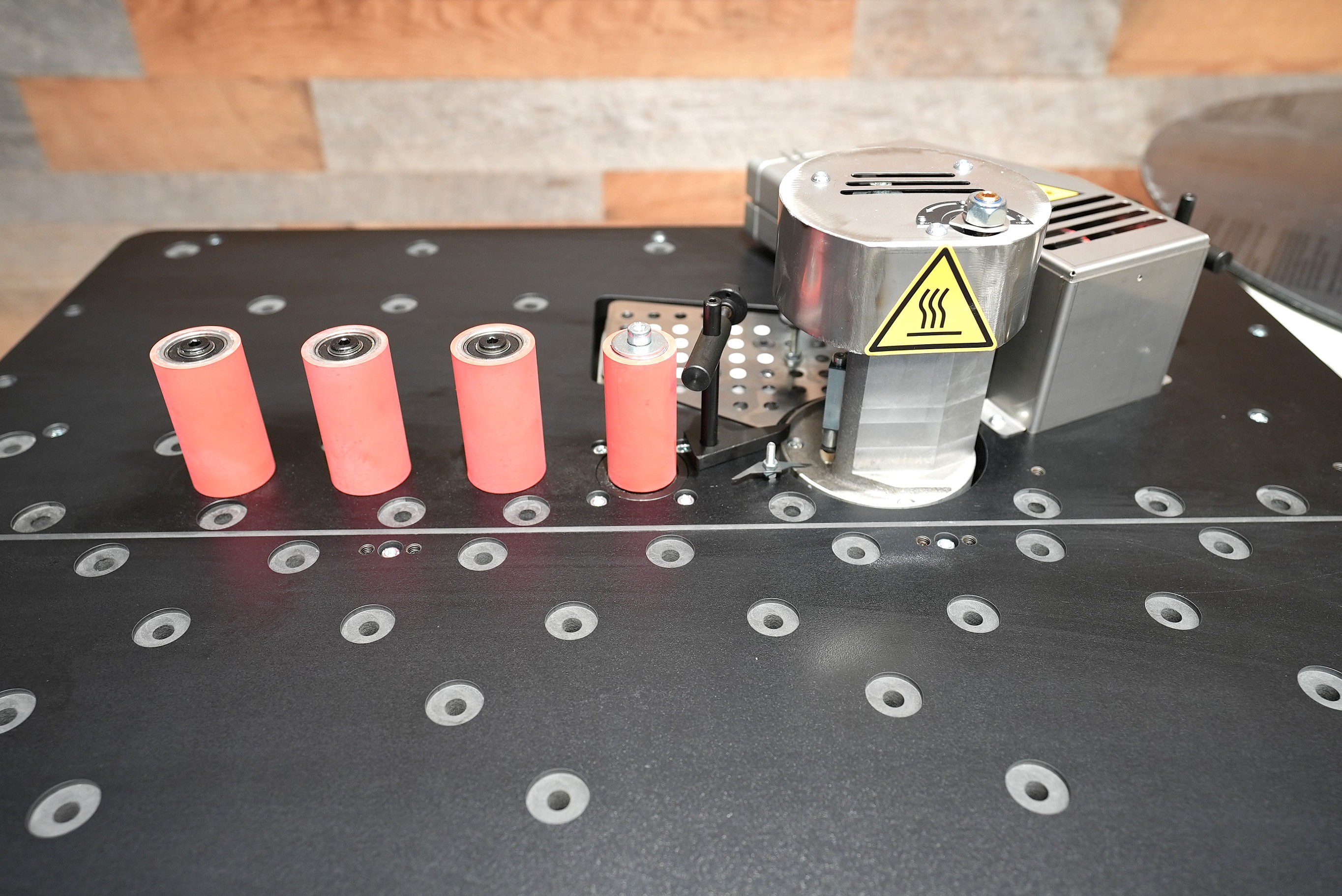

  • Glue application of edging material by means of a powered glue spreading roller

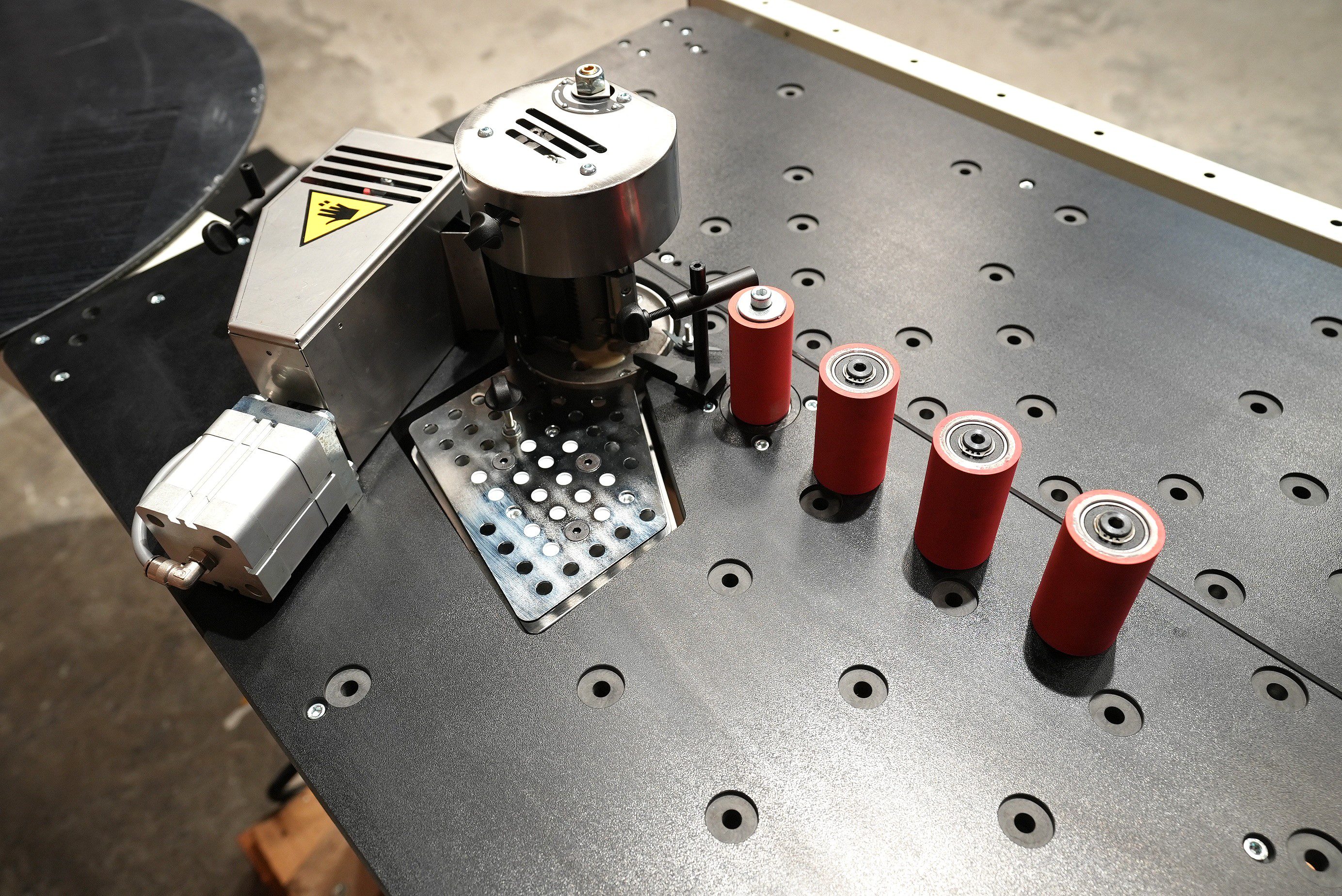

  • no. 1 powered pressure roller
  • Can apply edges on square, shaped and round panels;
  • Start/stop cycle pedal
  • Emergency push button located on front of machine
  • Pad lockable main switch
  • Stabilized power supply for auxiliary circuit 24V in direct current

Free Shipping to a commercial address with a dock or forklift! **Restrictions: Applies to lower 40 of the contiguous US states only. AZ, CA, ID, MT, NV, OR, UT, & WA do not qualify for free shipping rather 50% off shipping. Additional cost for non-commercial or limited access add $75. Add $75 for a liftgate.
