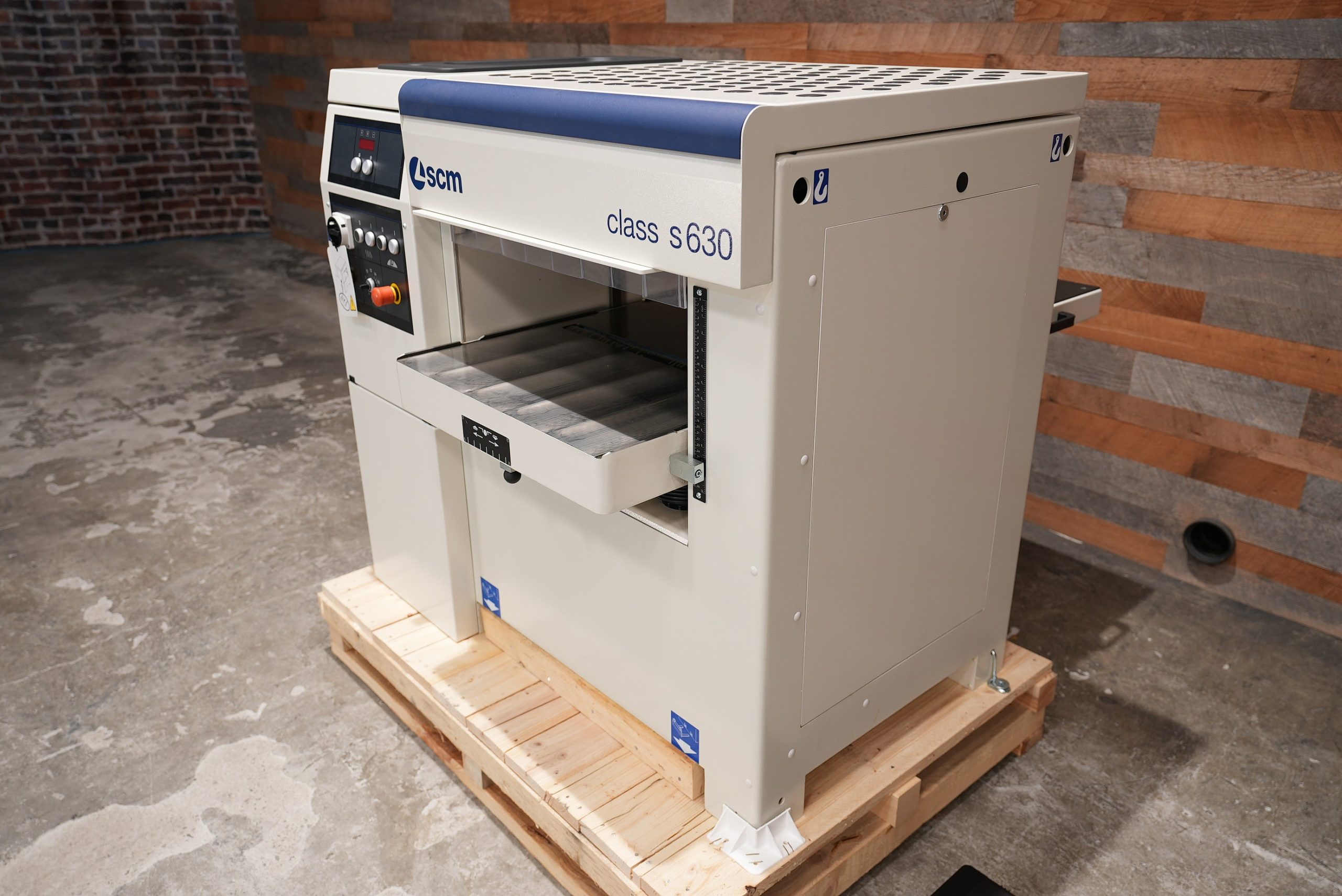

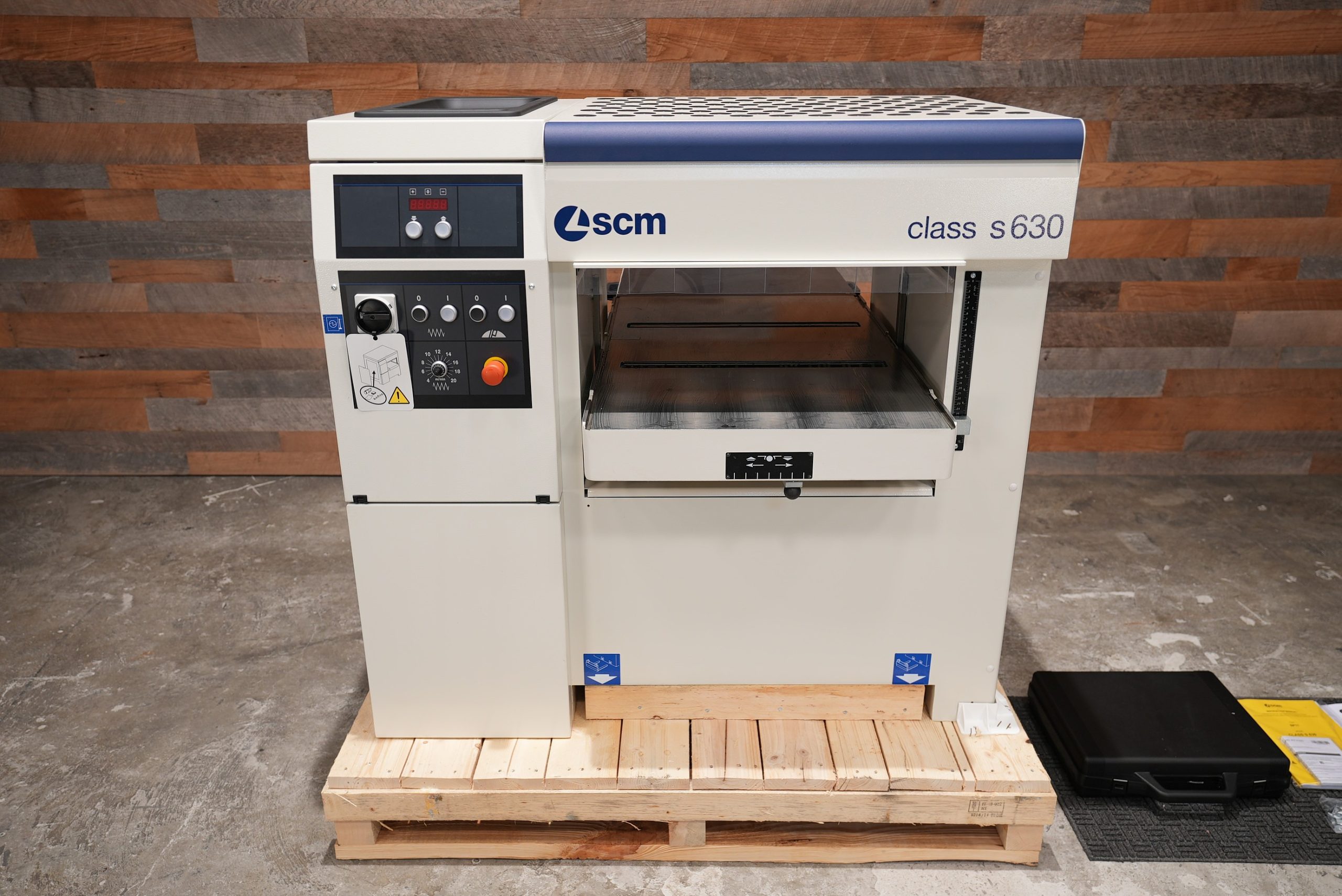

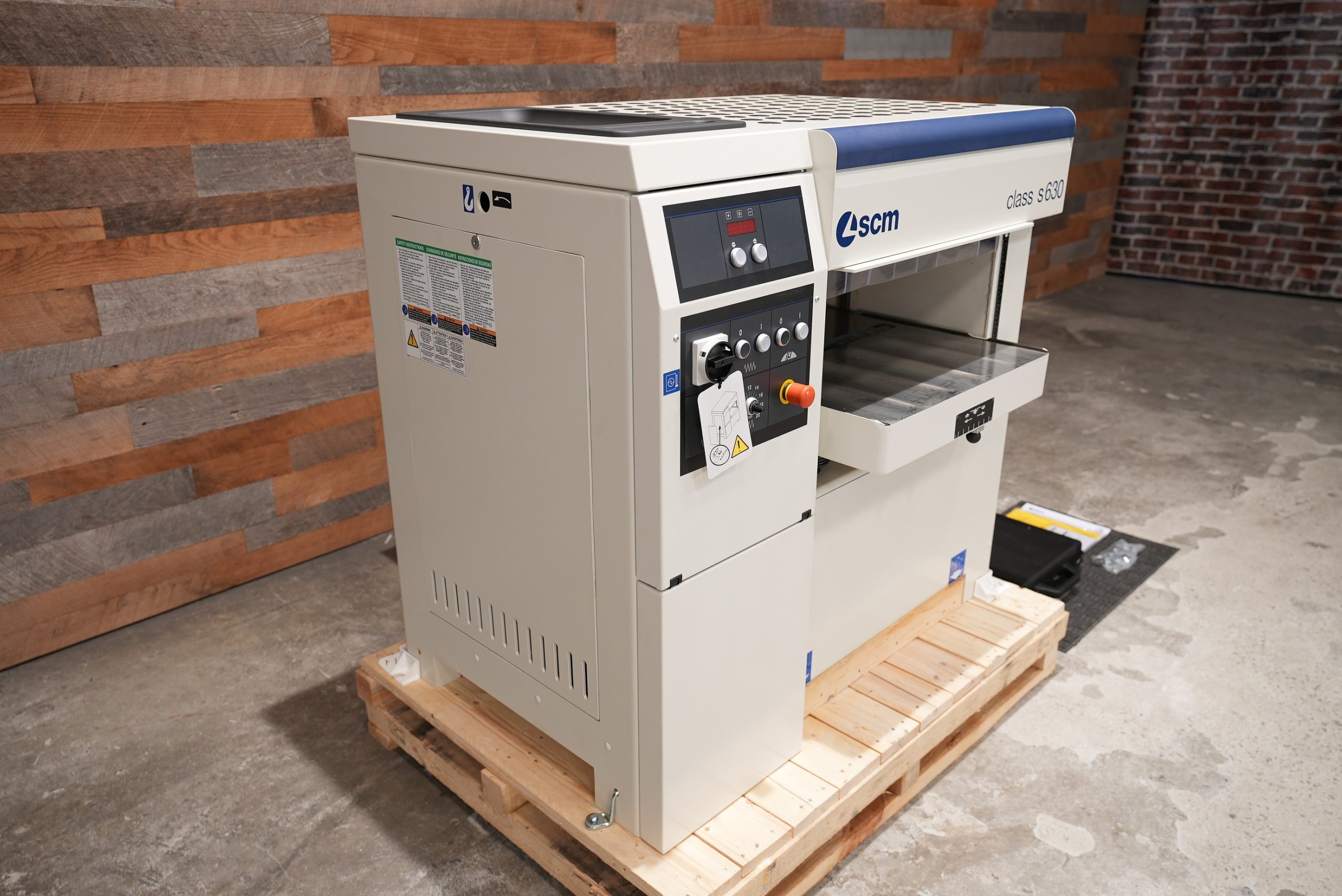

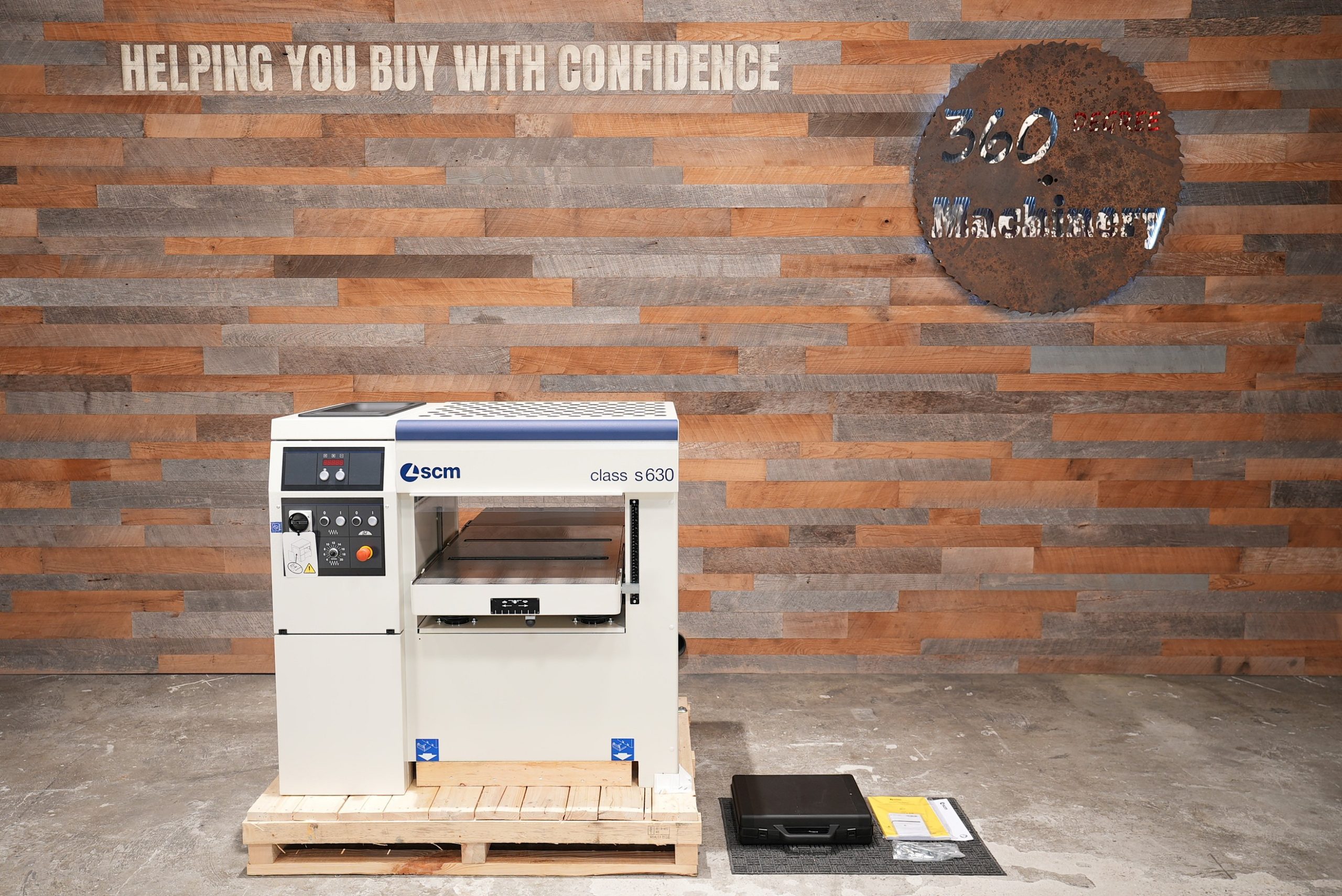

NEW 2025 SCM class s 630 Thicknessing planer +Tersa head + Outfeed Table Extension – END OF YEAR SPECIAL (Last One)
$24,645.00Original price was: $24,645.00.$20,948.25Current price is: $20,948.25.
-15%

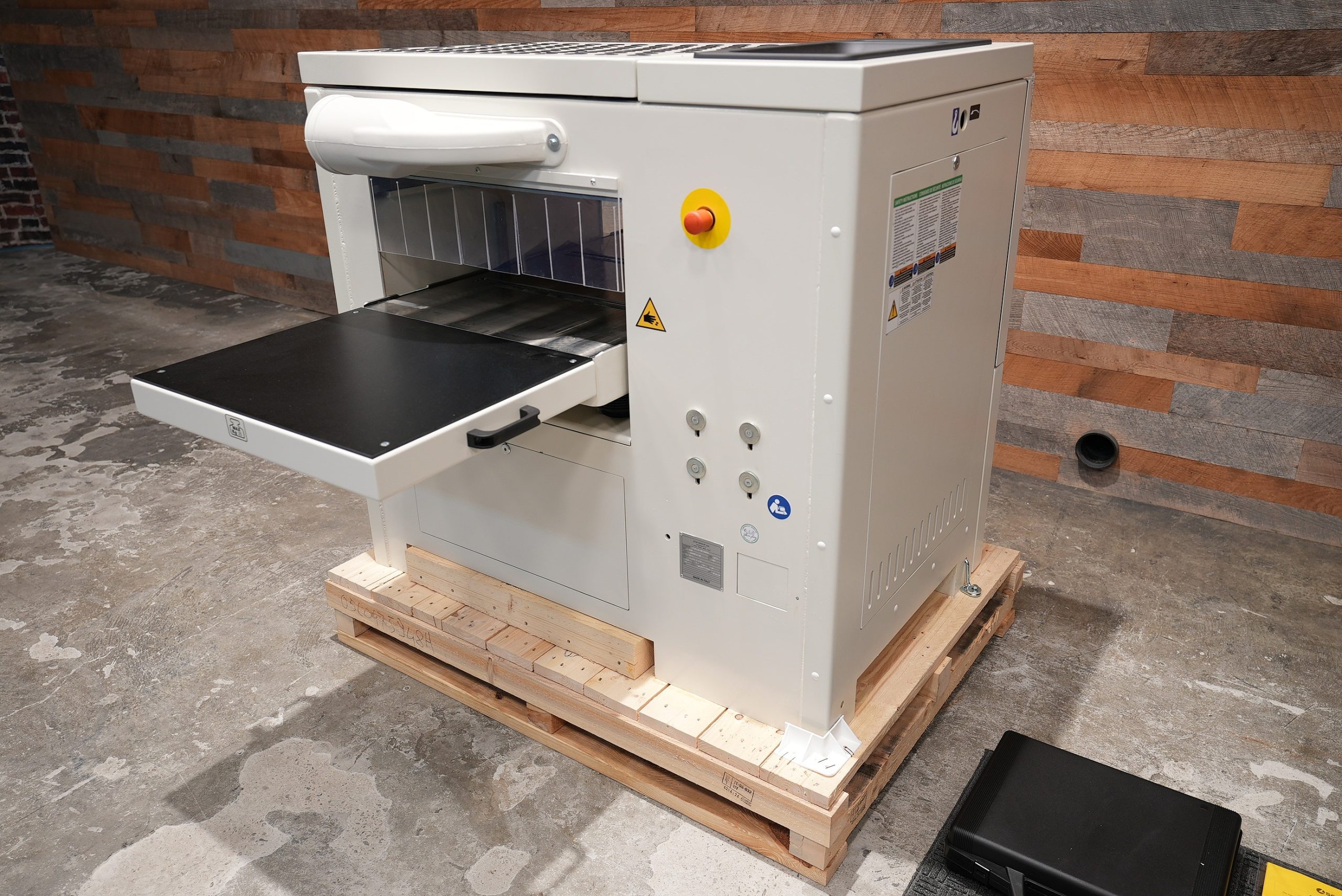

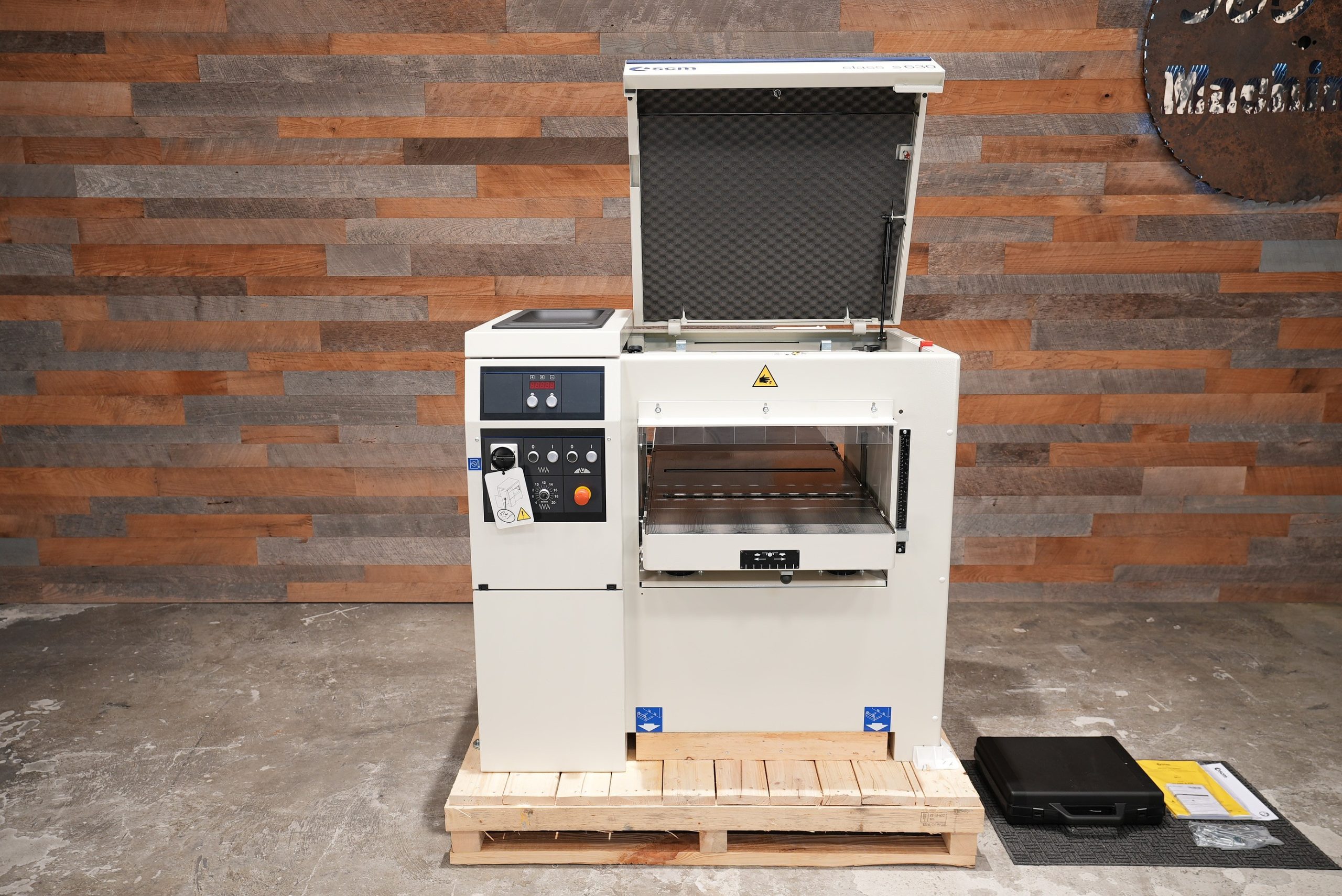

NEW 2025 SCM class s 630 Thicknessing planer with a Tersa head + 77404 Thicknessing outfeed table extension. Still has it’s protective coating on it! Full factory warranty! All factory accessories & manuals present. Only (1) unit at this price!
STANDARD EQUIPMENT
Monoblock Base and Cast iron table The solid, welded base undergoes a treatment call normalization which stabilizes the metal and assures exact tolerances. All machine mechanisms are mounted, aligned, and referenced to the base. This design is vastly superior to frames that are bolted together and have no true reference point. The cast iron tables are machine polished. These castings are ribbed to ensure maximum strength and to avoid problems with the tables warping or breaking during use.
Powered planer table lifting; 2 speeds with micrometric adjustment
Numerical readout of working height with decimal control
Planer table movements by means of 4 steel screws, with 2 side linear guides
Variable feed speeds, electronically controlled by means of inverter from 4 to 20 m/min

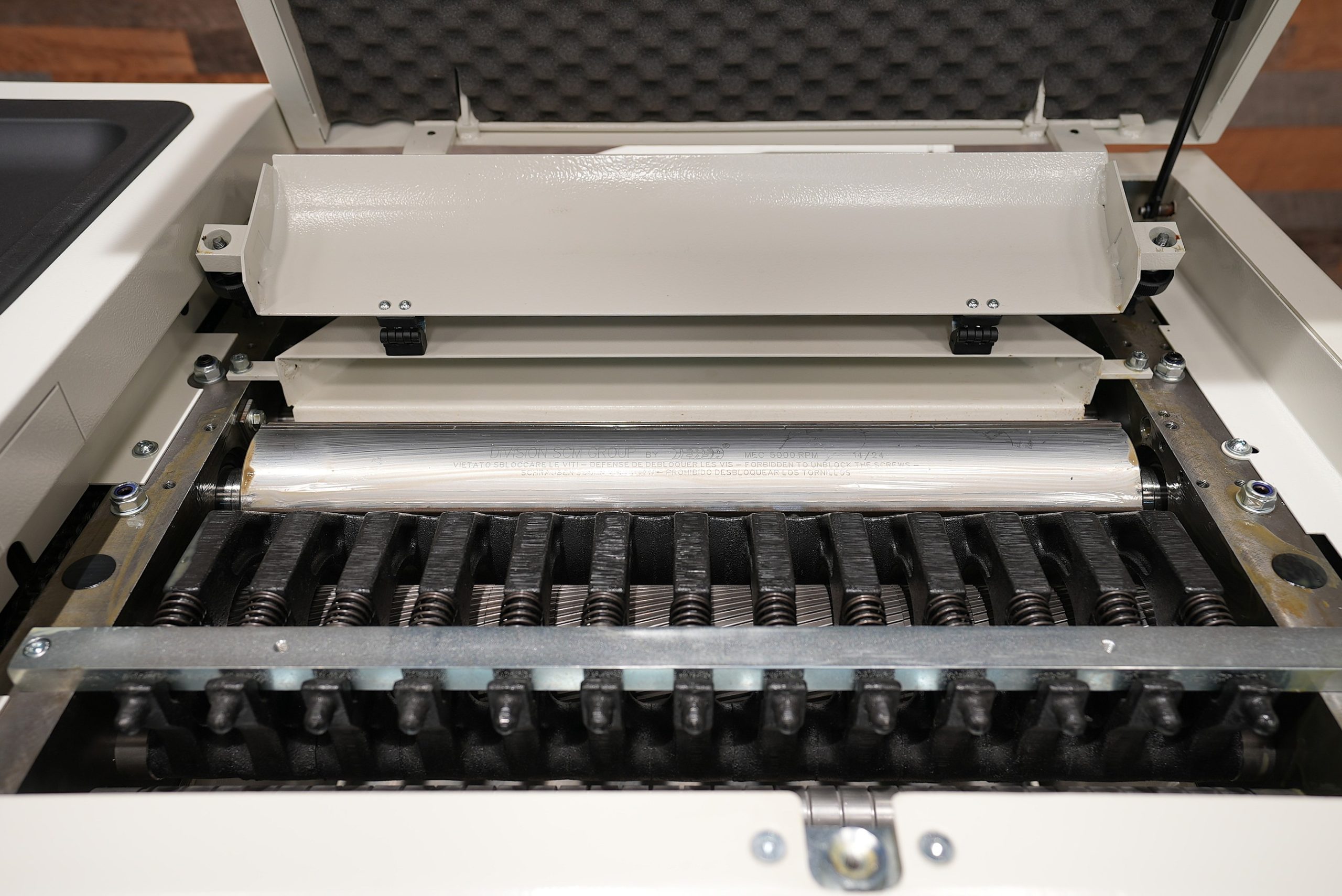

Sectioned steel infeed roller
2 rubber-coated steel outfeed rollers
Interchangeable outfeed rollers
TOOLING INCLUDED
4 Cr TERSA knives, dimensions: 35x3x640 mm (1.37 x 0.06 x 25.19”)
Push stick and push handle

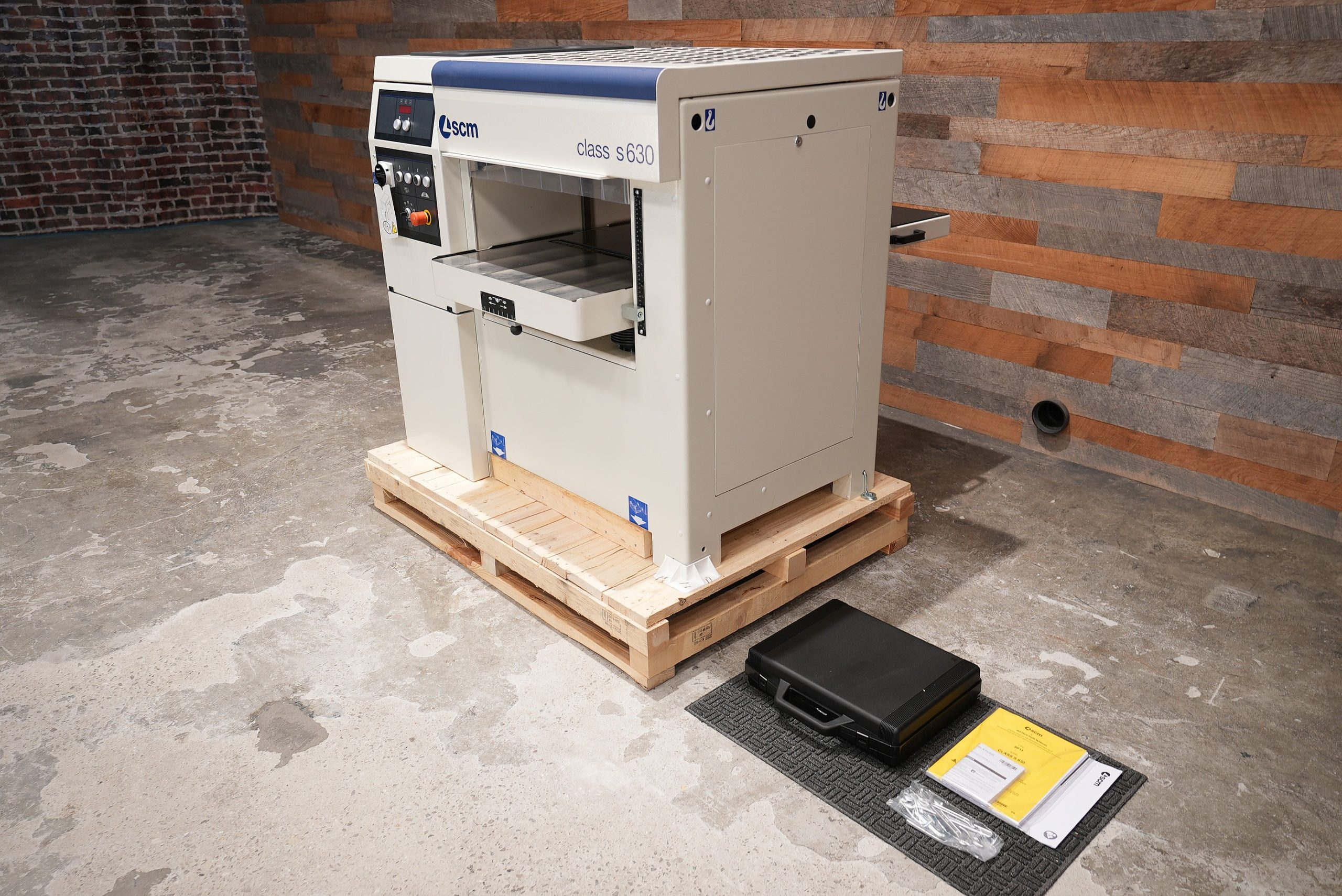

Toolbox: Wrenches, allen wrenches, user manual, spare parts catalog
SAFETY/PROTECTIONS
Soundproof infeed and outfeed barriers
Overload switch protection
Auxiliary low voltage circuit (110 volt)
Emergency pushbutton
Main power switch can be locked in the off position with a padlock
MACHINE CONFIGURATION
10.03.39 USA version
R1.07.57 Class s 630
93.07.34 Volt 220
93.15.01 Frequency 60 hz
97.04.68 Motor 14 HP – 11 kW Automatic star delta start
34.02.13 “TERSA” cutterblock with 4 rapid-locking knive slots Knife dimensions: 35x3x640 mm (1.37 x 0.06 x 25.19”)
32.01.51 1st infeed sectioned steel roller Note: not interchangeable
32.03.06 Worktable with 2 idle rollers
08.06.36 Seaworthy packing
10.99.91 Machine language: ENGLISH
*Does not include power cable
TECHNICAL SPECIFICATIONS
Motor power
14 HP – 11 kW
Working width
630 mm (24.8”)
Worktable length
1000 mm (39.37”)
Maximum depth of cut
8 mm (0.31”)
Cutterblock diameter
120 mm (4.75”)
Cutterhead speed
4500 rpm
No. of knives
No. 4 // 35x3x640 mm (1.37×0.06×25.19”)
Min/max. working thickness
3.5 / 300 mm (0.12” / 11.75”)
Minimum working length / width
260 / 10 mm (10.24” / 0.37”)
Feed speed
4÷20 m/min (13÷66 ft/min)
Exhaust outlets diameter
150 mm (5.87”)
Installation requirements
Nominal extraction air consumption
1300 m3/h (754 CFM)
Air exhaust speed
20 m/s (66 ft/s)
Electrical requirements
220 V – 60 Hz – 3 phase – 49A
Free Shipping to a commercial address with a dock or forklift! **Restrictions: Applies to lower 40 of the contiguous US states only. AZ, CA, ID, MT, NV, OR, UT, & WA do not qualify for free shipping rather 50% off shipping. Additional cost for non-commercial or limited access add $75. Add $75 for a liftgate. Can not ship to protected SCM sales areas.

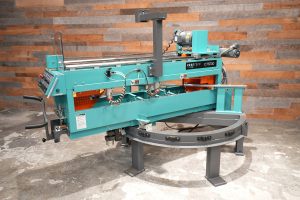

Edgetech CTS730 Countertop Saw W/Variable Miter Original price was: $52,000.00.$13,000.00Current price is: $13,000.00.
