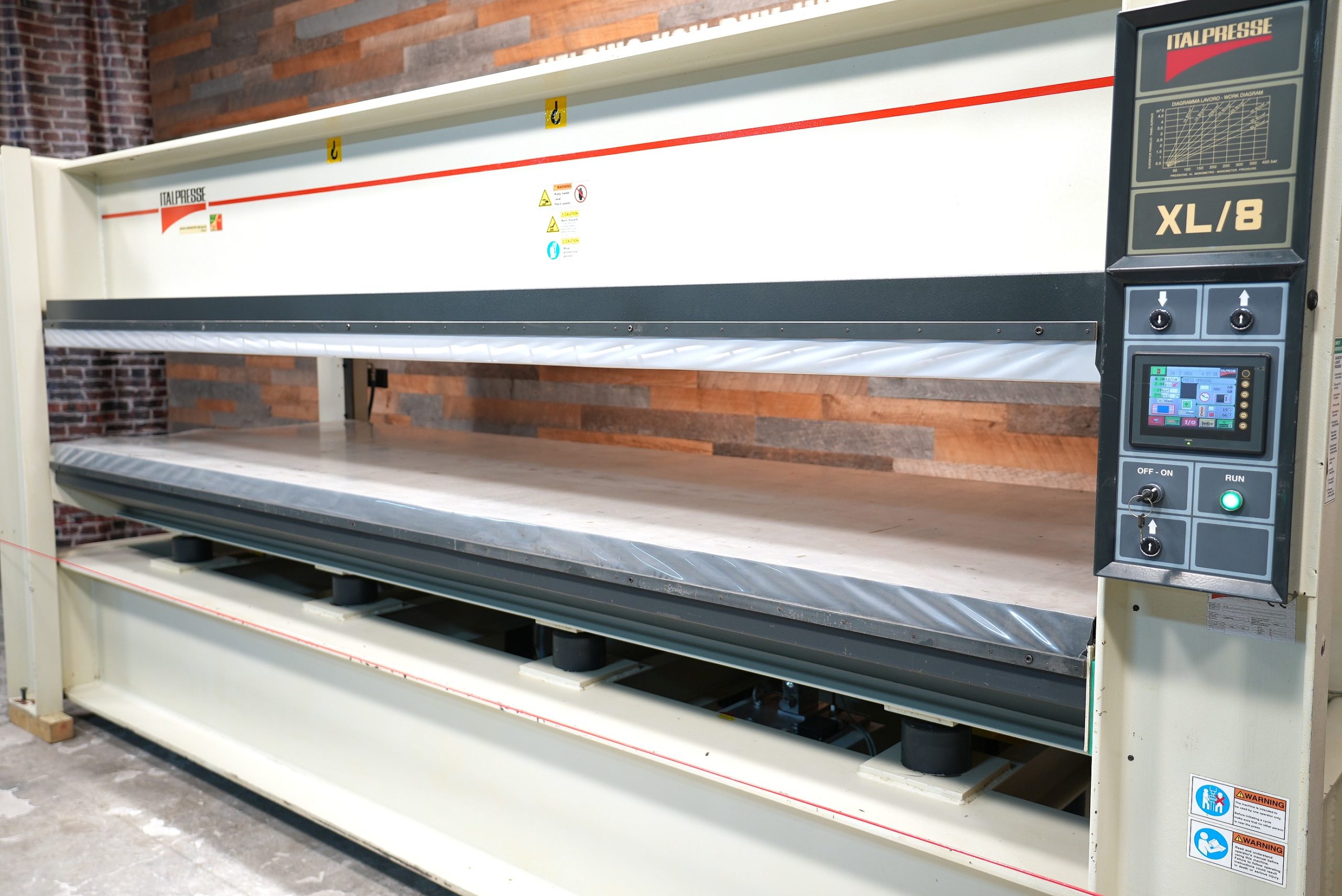

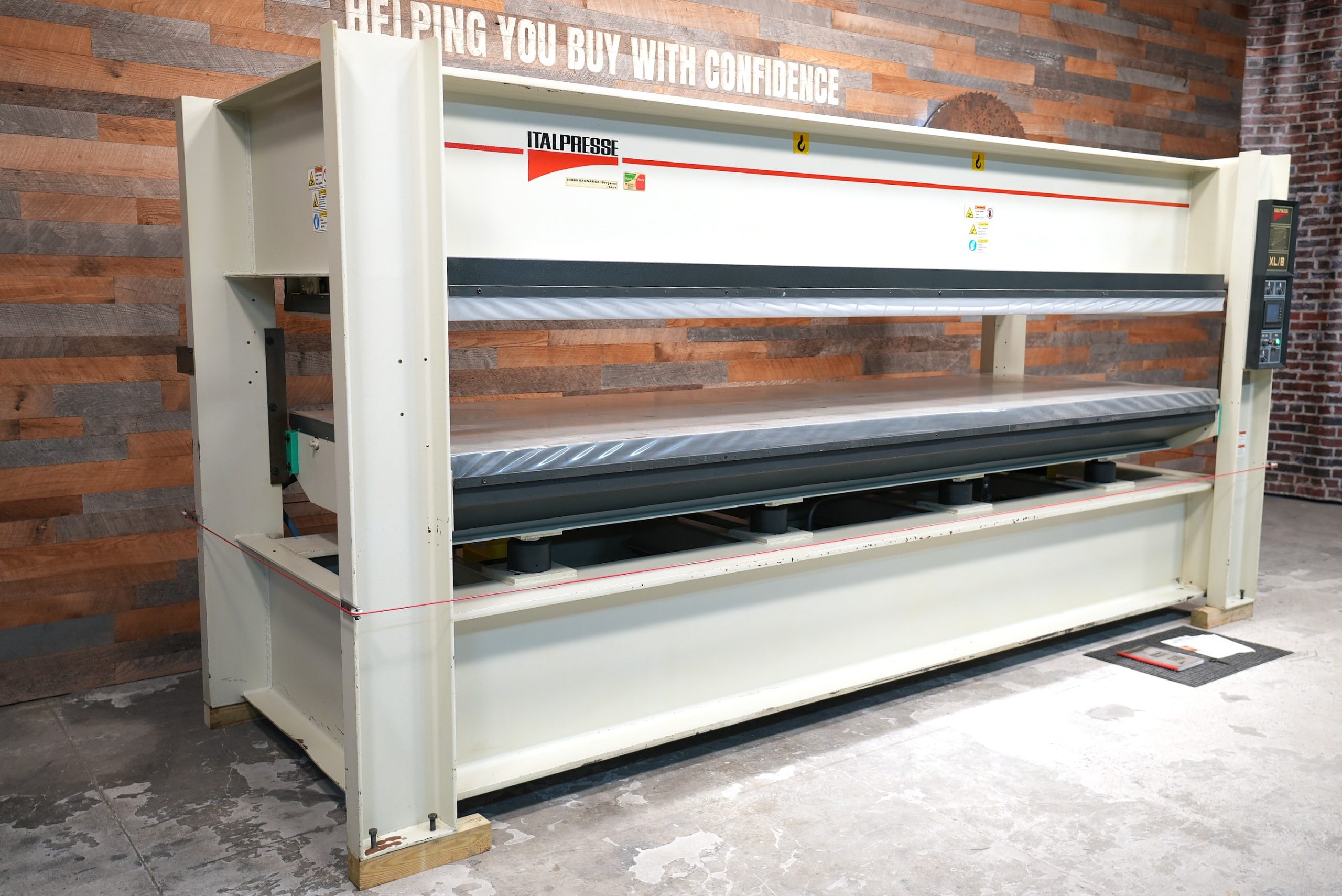

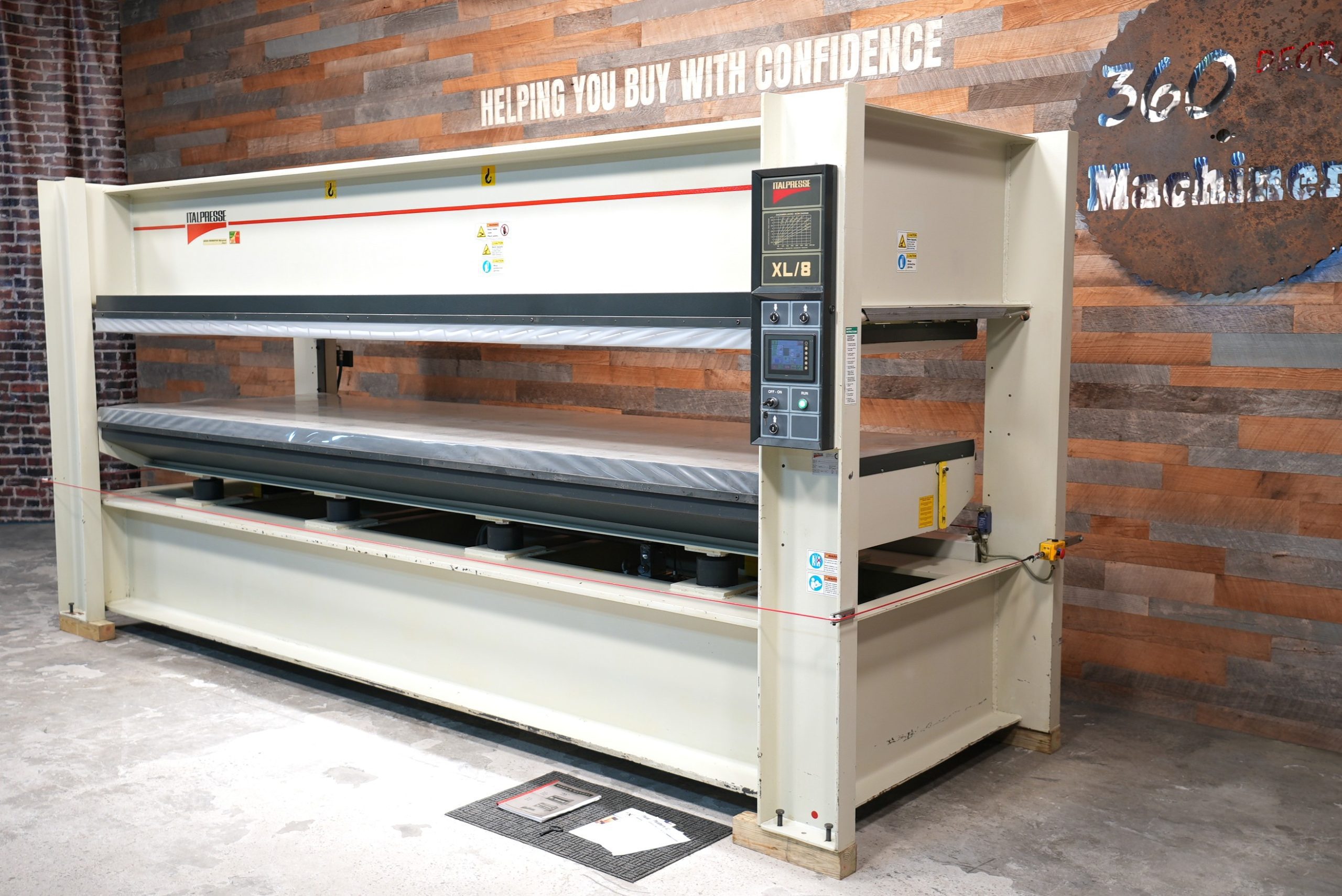

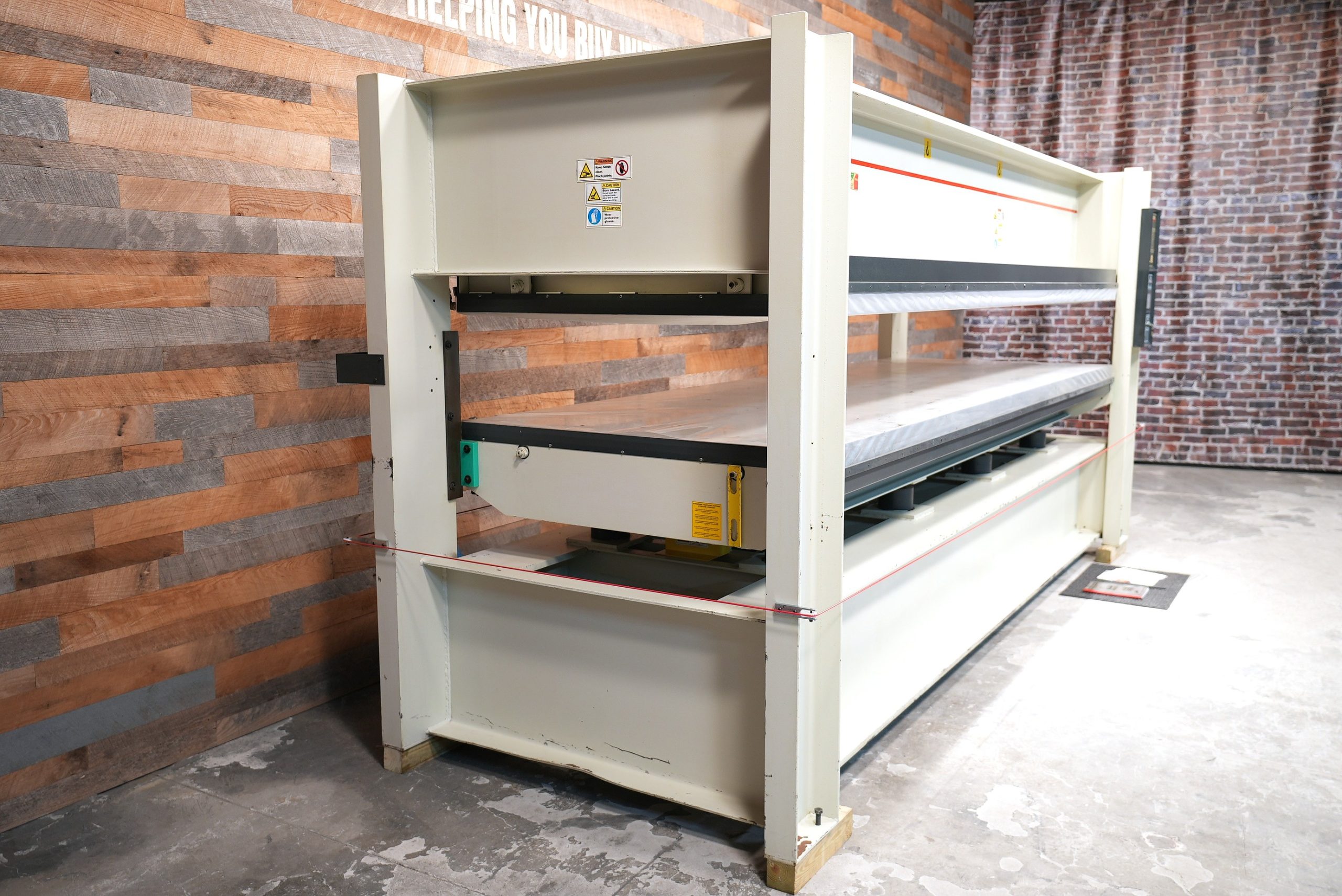

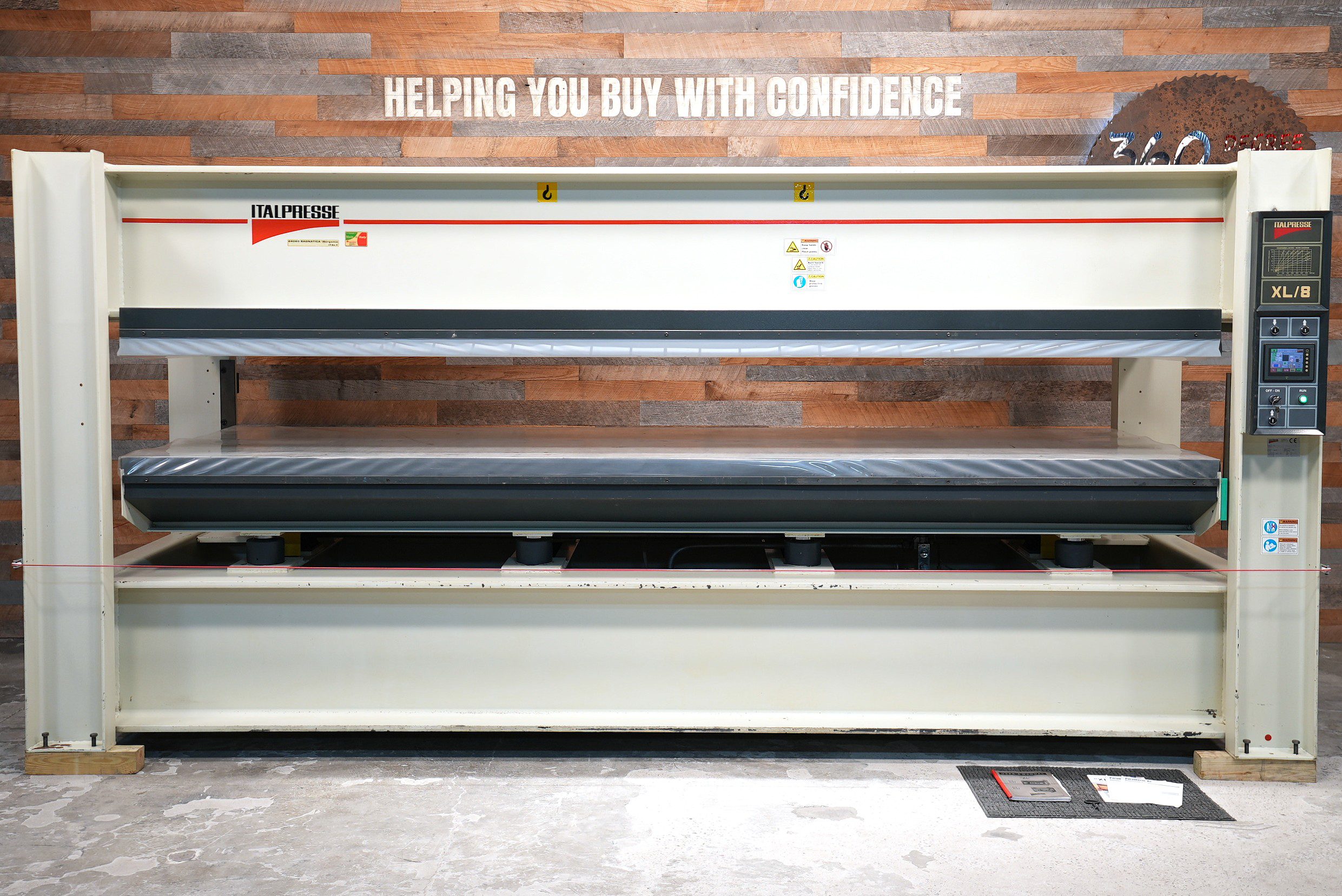

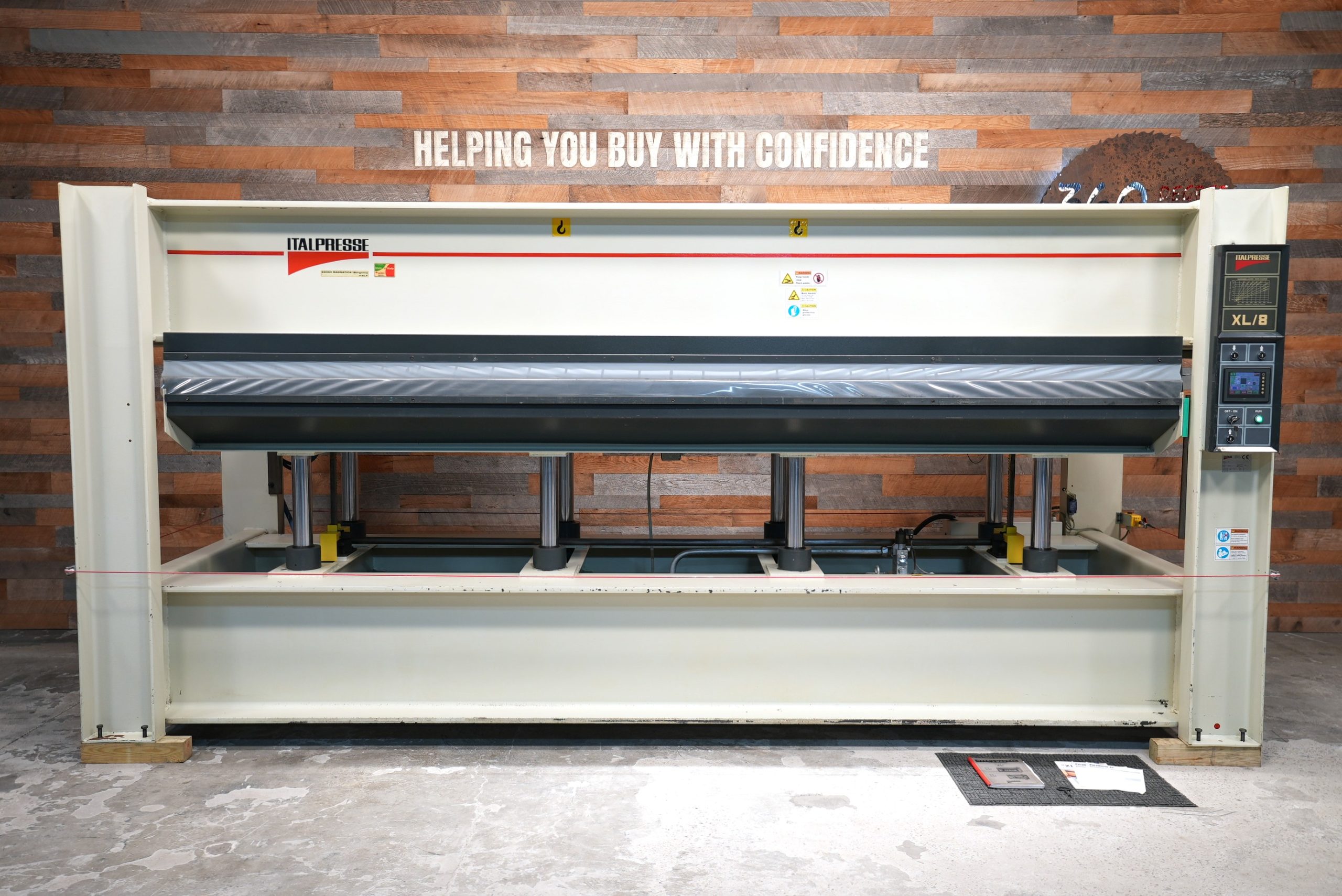

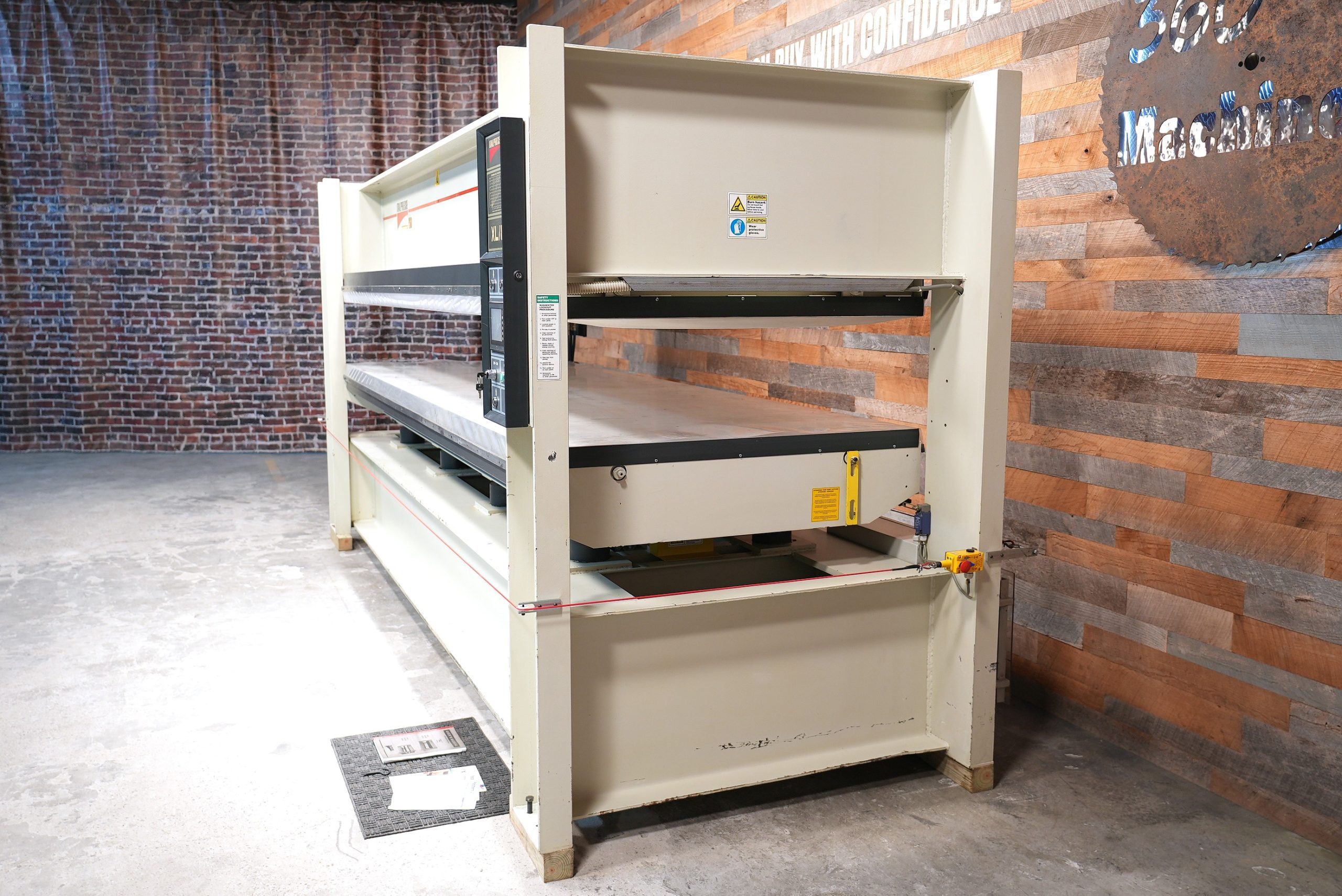

Italpresse XL8 Hot Press (1400 X 4200 mm Capacity)

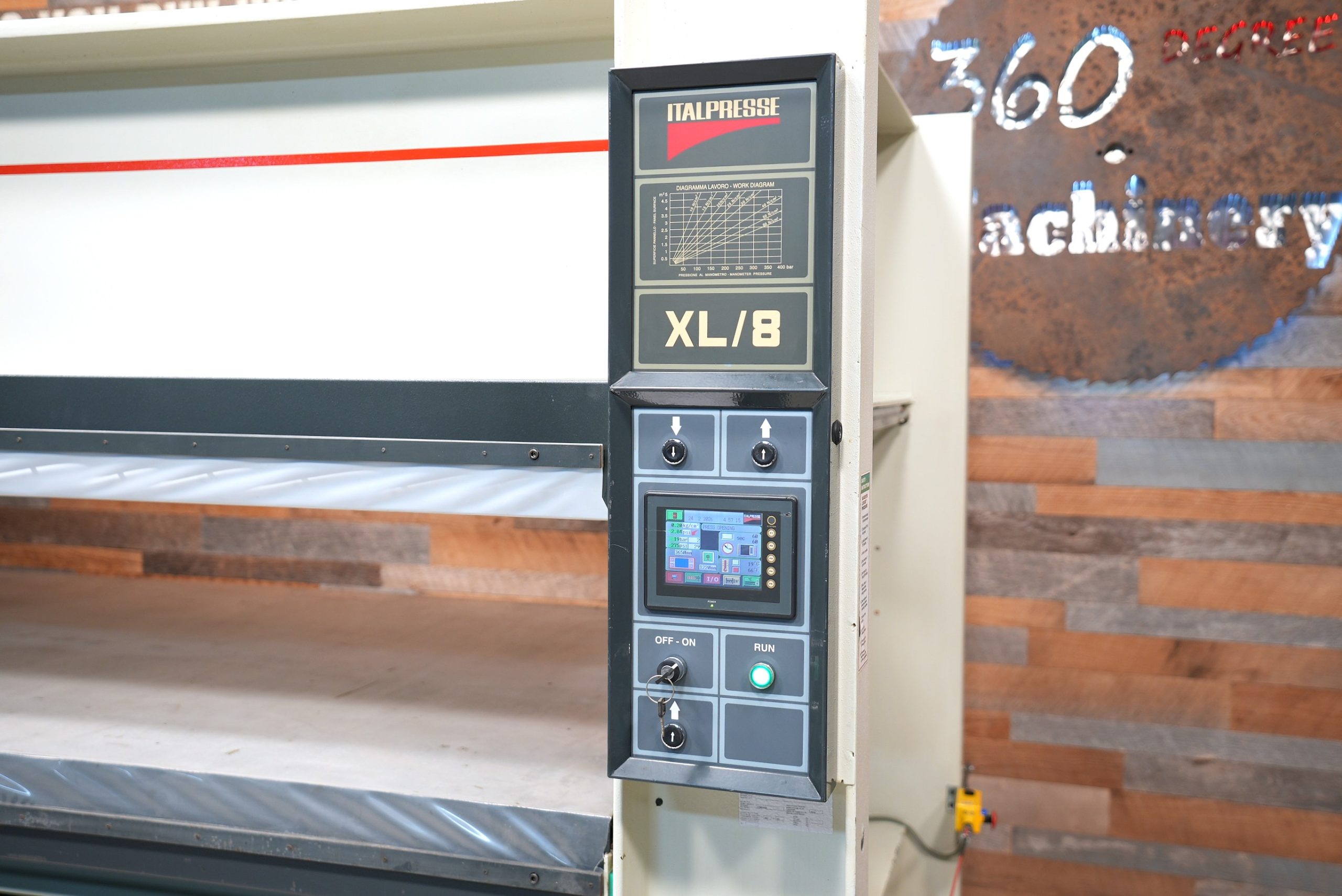

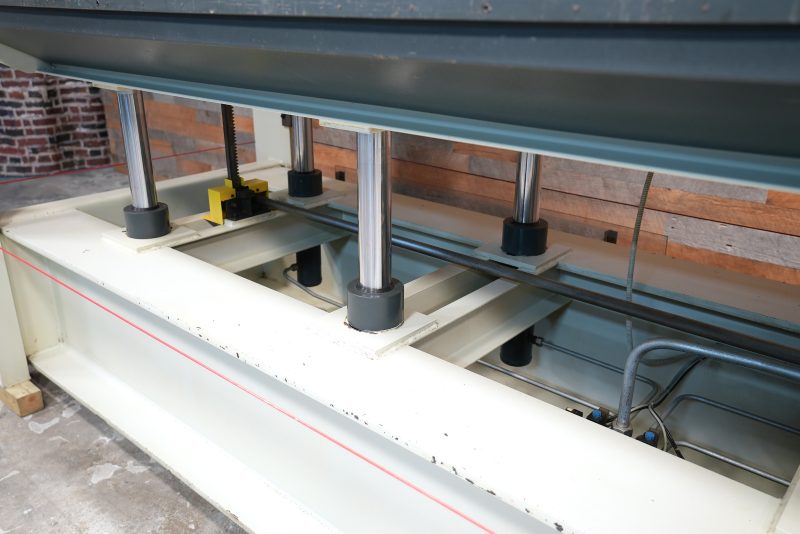

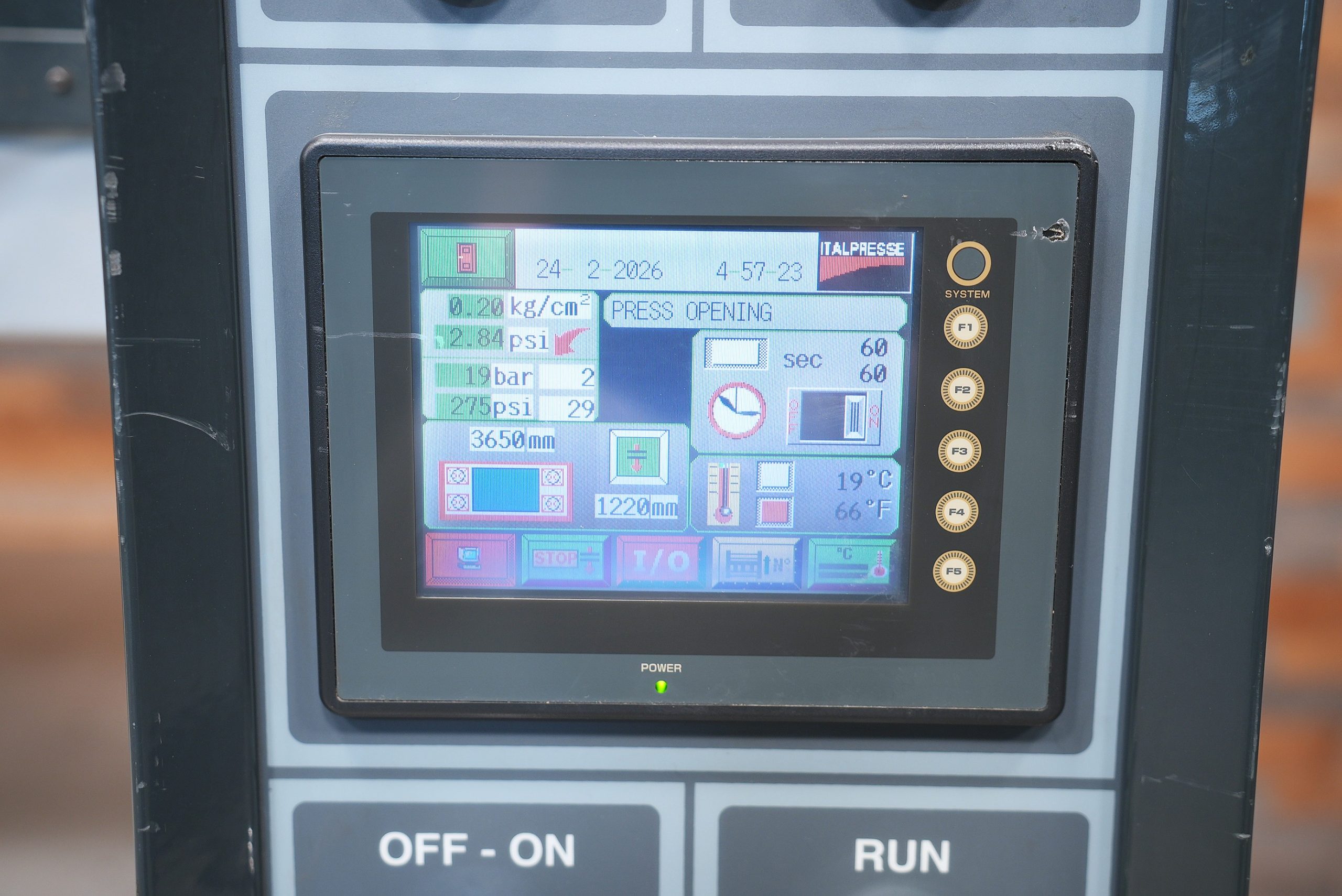

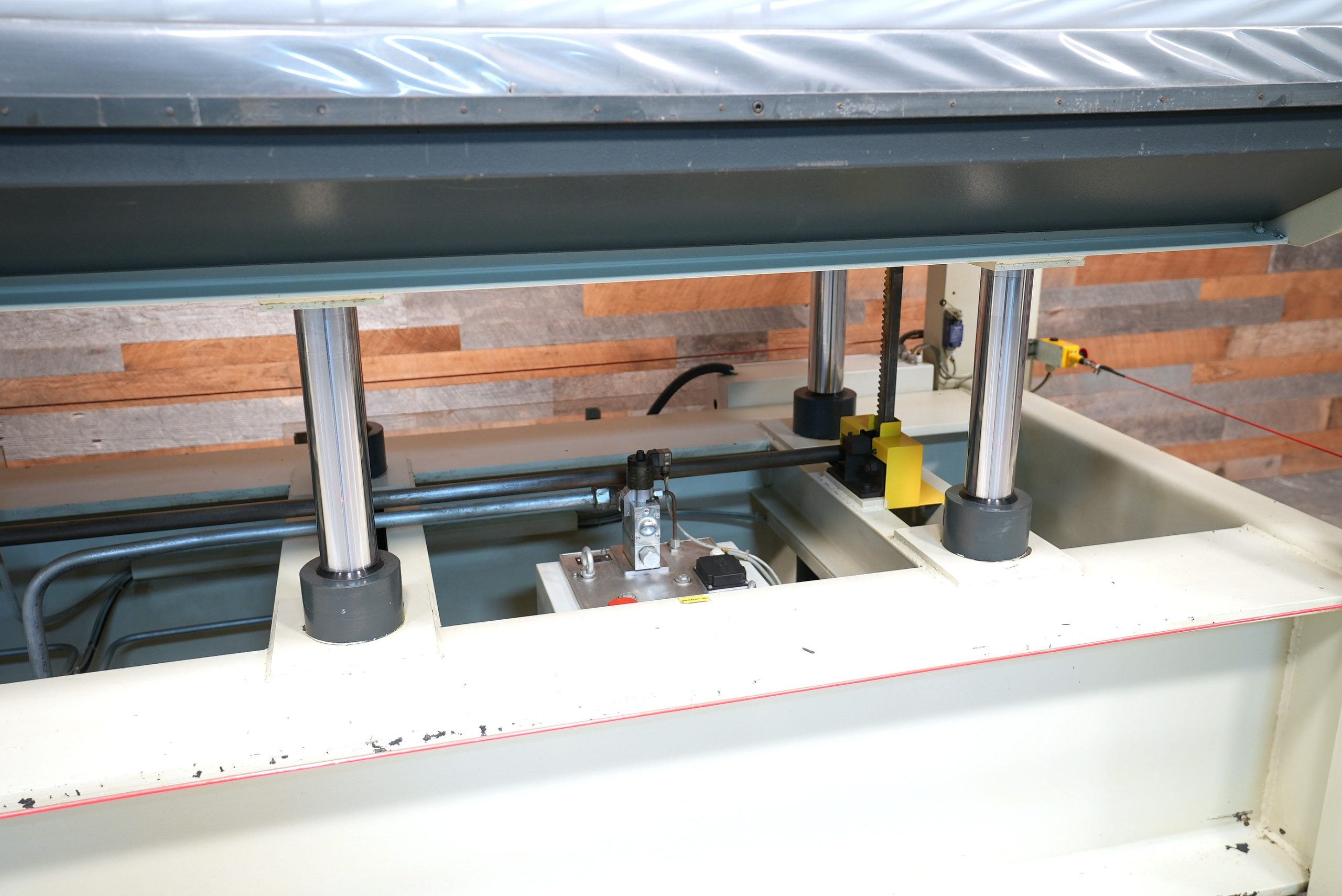

Lower use 2009 Italpresse XL8 Hot Press. Easy to use touchscreen enables you to control temperature, pressure, time, and allows you to use all (8) 85 mm hydraulic pistons, (6), or (4) depending on how long of a panel you are pressing. Essentially you can lock out the left, right, or both the left and right pistons. Please see below for specs.

Maximum length – 4200 mm/165.3543″
Maximum width – 1400 mm/55.1181″

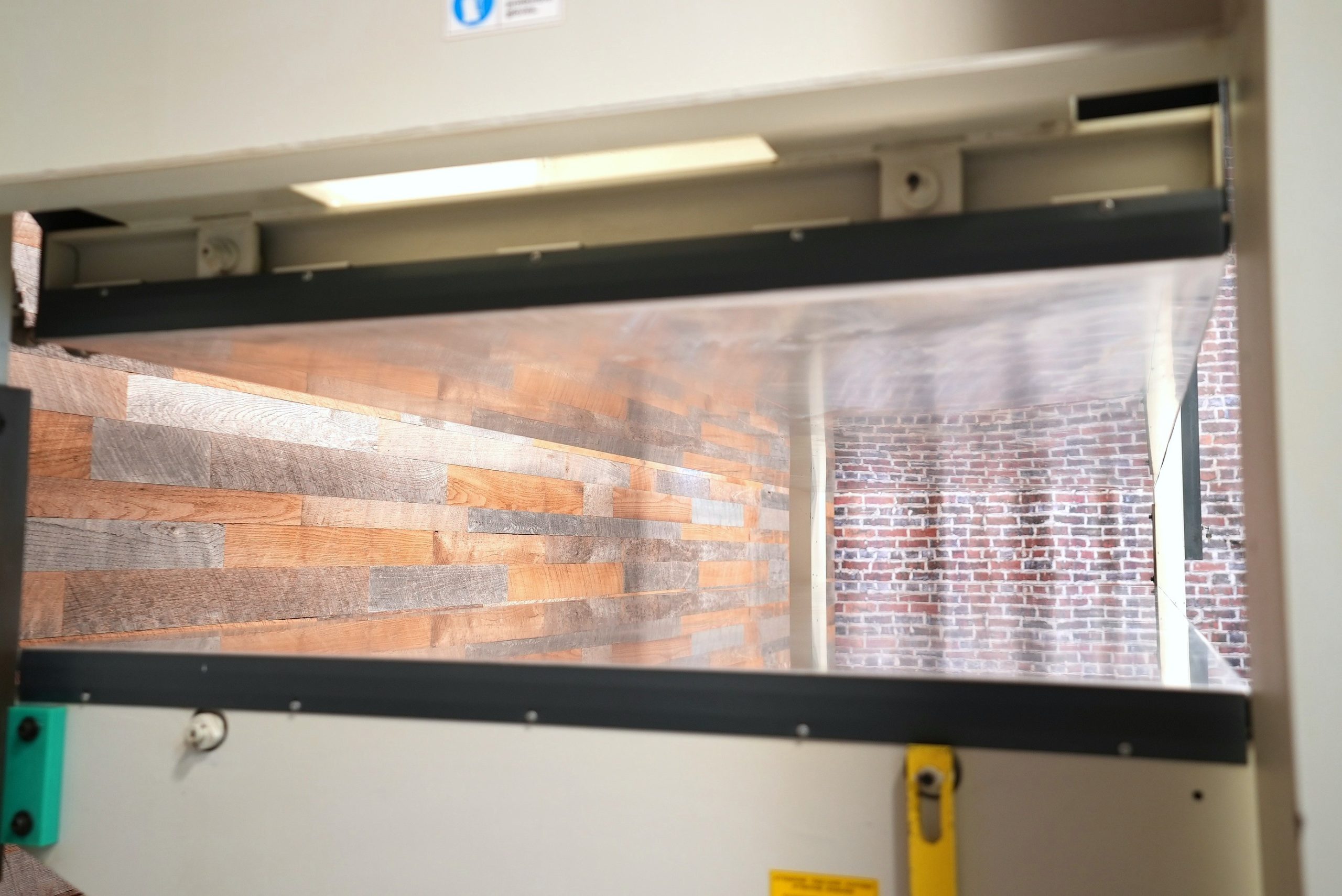

Max Daylight – 390 mm/15.353″
Total number of pistons – 8
Maximum pressure in kg/cm2 – 4.4 kg/cm2
Minimum pressure – 20 Bar/290 PSI
Maximum pressure – 351 Bar/5,090 PSI (example: If you set the press to 44.87 PSI on a 4,200 x 1,200 mm panel total pressure will be 5,075 PSI)
Maximum temperature – 120 degrees Celsius/248 degrees Fahrenheit

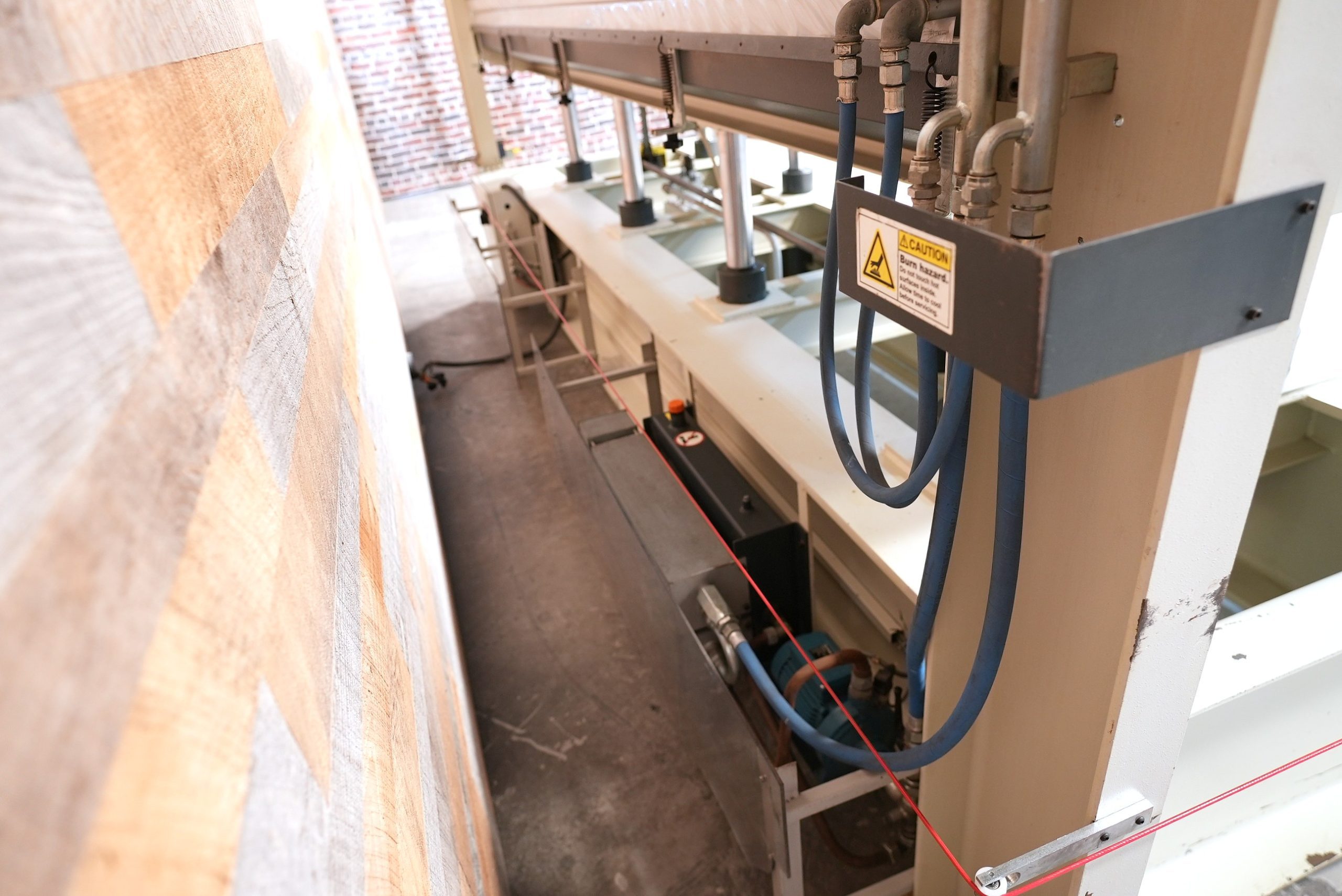

Heating Type – Hot Oil
Machine weight – 8,450 KG

This fully functional machine has been fully cleaned, checked, and is ready to work from the time you receive it. This is our guarantee to both you and your company. It is owned by 360 Degree Machinery and located in our inventory in Kingston, TN.
