Hoffmann PU2 Pneumatic Dovetail Routing Machine

Technical data
Power Supply                  120 volts – 8.3 Amps
Air Supply                        90 psi – approx. 0.1 cubic foot/cycle
Motor                               1,000 Watt motor with double front bearing
Motor speed                    35,000 rpm at idle
Collet size                       1/4”
Motor carriage guides     16mm diameter guide rods, precision ground
Operation                         pneumatic – dual cylinder design
Max. routing height          4” – 101mm
Max. material height         5 3/4” – 146mm
Installed router bit             W-2, solid carbide
Available router bits          W-0, W-1, W-2, W-3 and W-4
Dimensions W/D/H           31 1/2” x 29 1/2” x 59”
Weight                              262lbs.

Hoffmann PU2 Machine Overview:
Production-duty, freestanding dovetail routing machine with solid cast aluminum table and heavy steel frame. Machine is designed to rout a single dovetail keyway with each machining cycle. For Dovetail Keys sizes W-0,W-1, W-2, W-3, and W-4.

Highlights:
Large work surface is designed to be at a comfortable working height, the router motor is controlled by a contactor and a 4” dust collection port is located at the back for connection to a central dust collection system.

Operation:

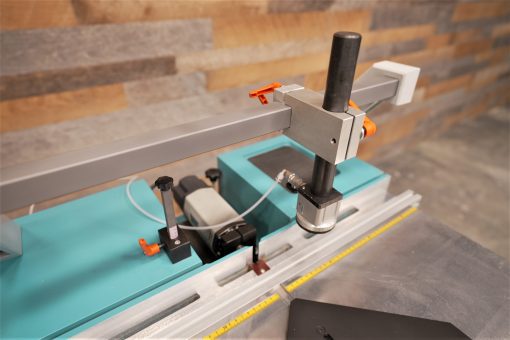

The keyway location is adjusted by positioning the guided center fence plate on the machine table; the keyway length (routing height) is adjusted by setting a height-stop rod to the desired setting.

Pressing the pneumatic foot pedal starts the machining cycle:
> Pneumatic clamp secures work-piece and motor is switched on
> Router head advances until pre-set height is reached
> Router head returns to home position and motor is switched off
> Pneumatic clamp releases work-piece

Output is approx. 16 routing strokes per minute, which translates into 2 completely processed rectangular frames. These numbers include material handling, but obviously depend on routing depth, feed speed, material flow and operator performance as well. Flow control valves on the main pneumatic cylinder allow the operator to adjust the upward and downward feed rate independently, depending on the material being processed. A 4″ diameter dust collection port in the back is used to connect a central dust collection system.

The supplied router bit is solid tungsten carbide, made to exacting specifications. Depending on the routing depth and the material to be routed, the useable cutter life is approx. 10,000 strokes, often times even more. Every machine is shipped with a tool kit and set-up jig, which allows a router bit change in only minutes.
