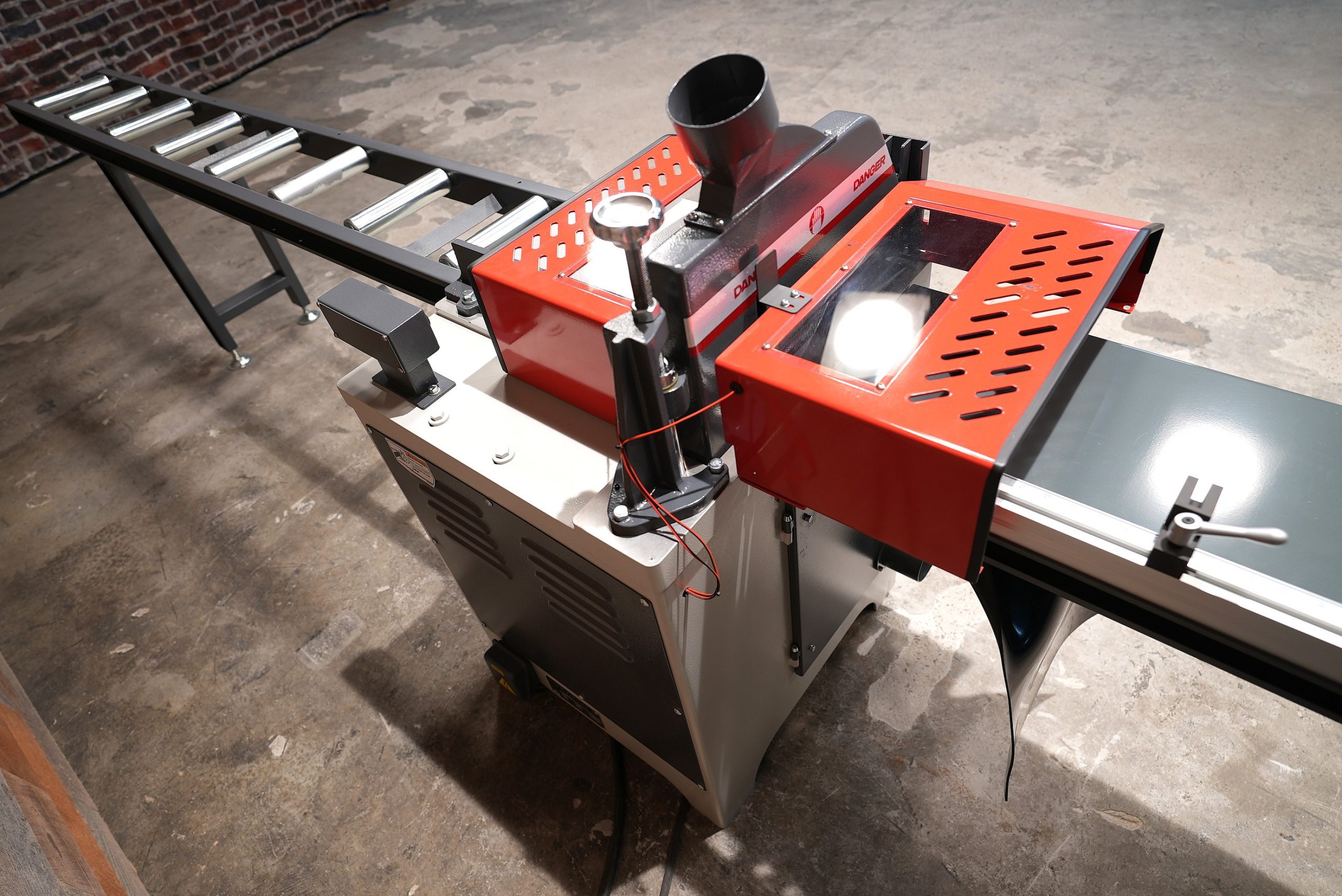

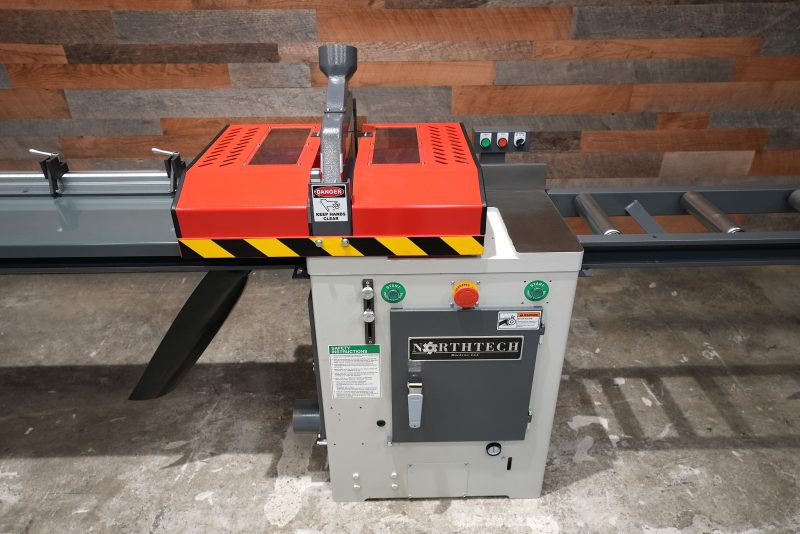

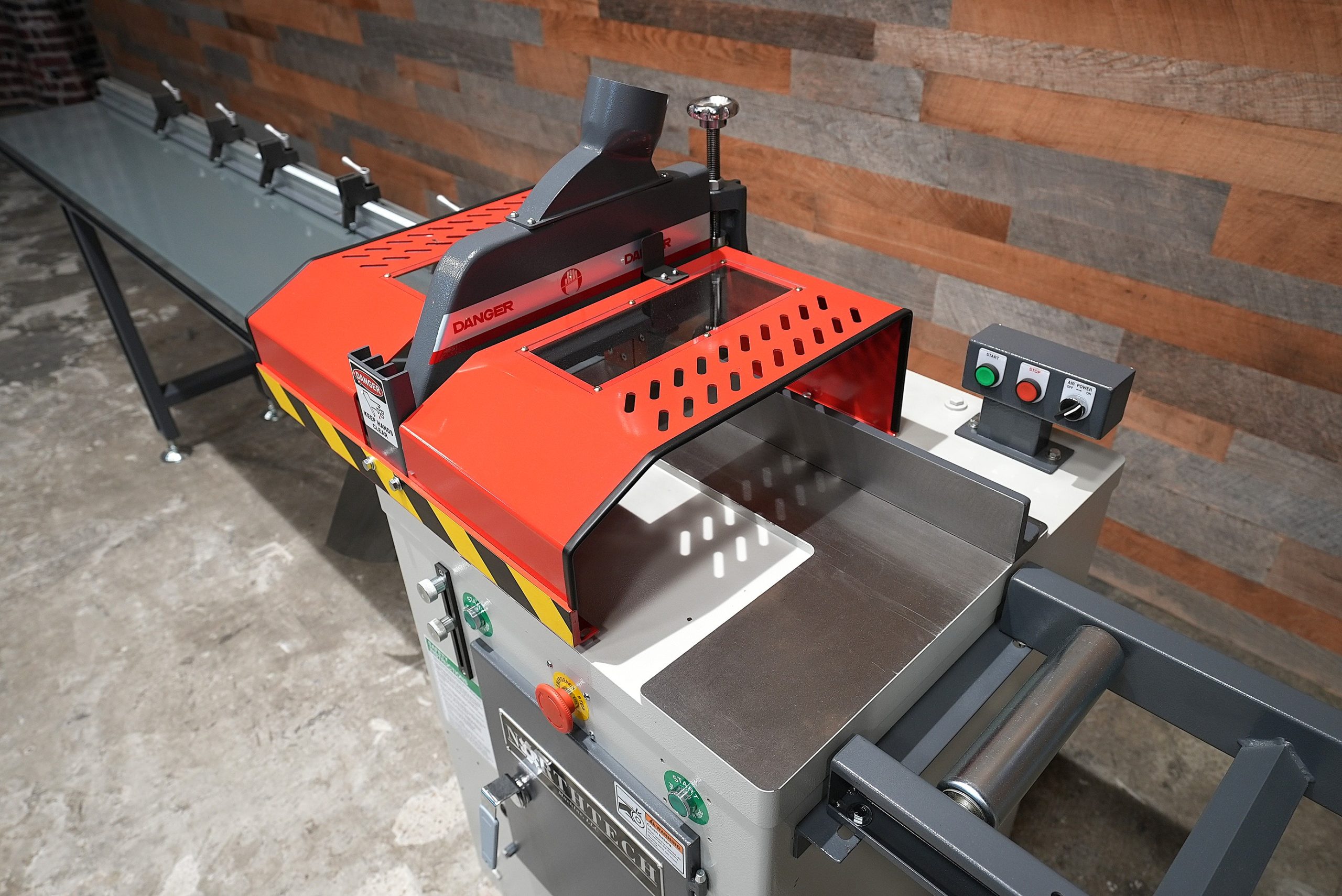

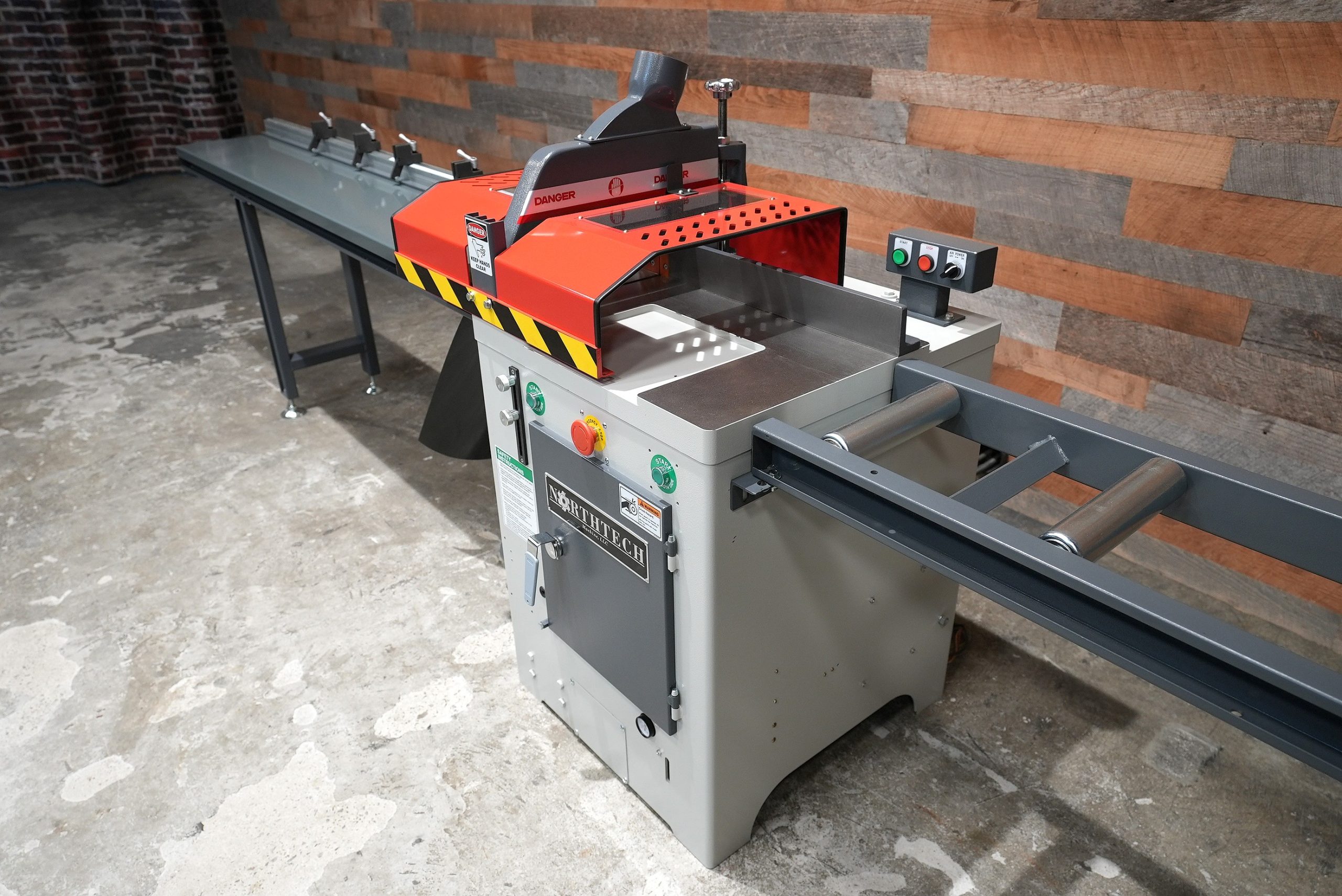

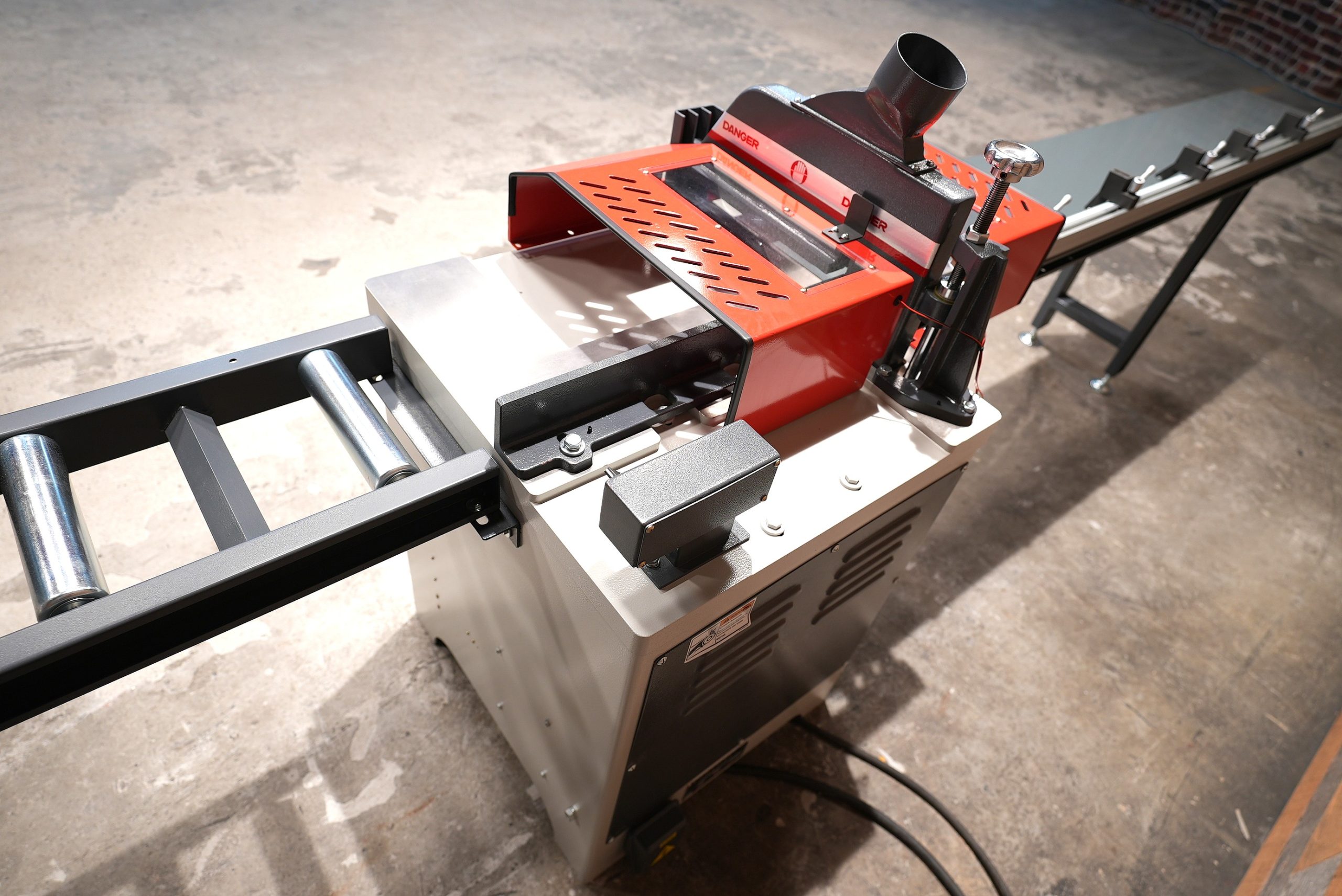

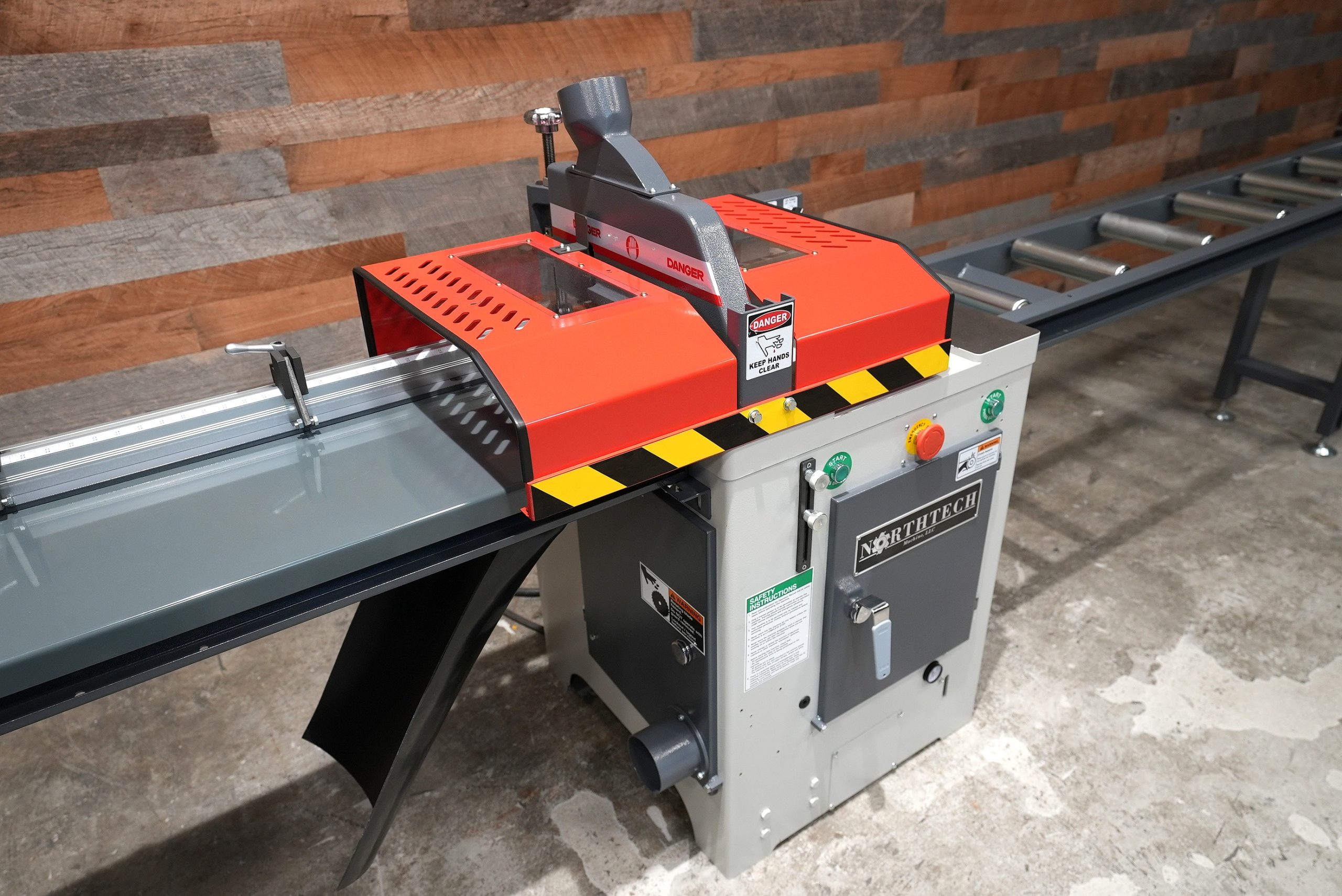

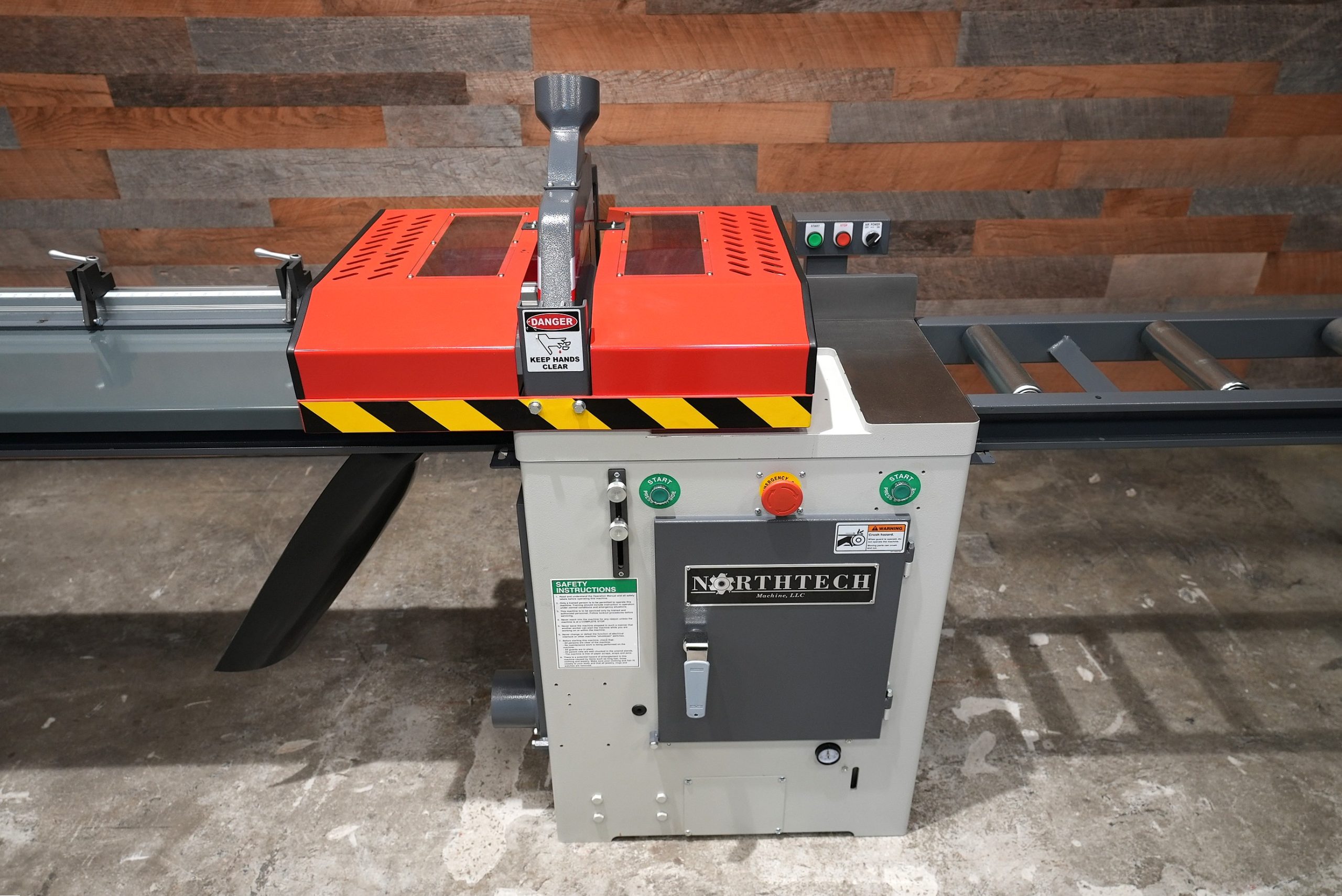

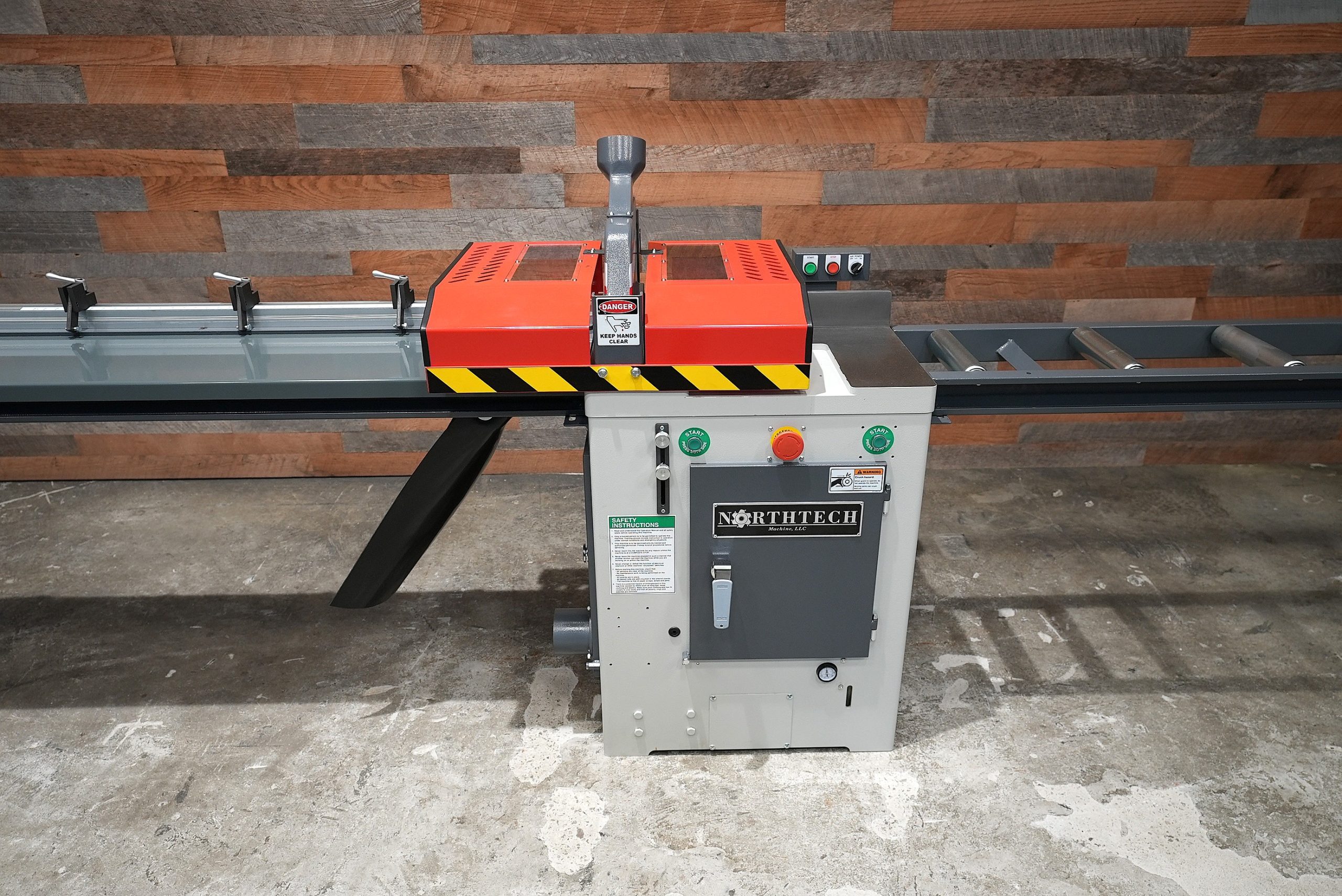

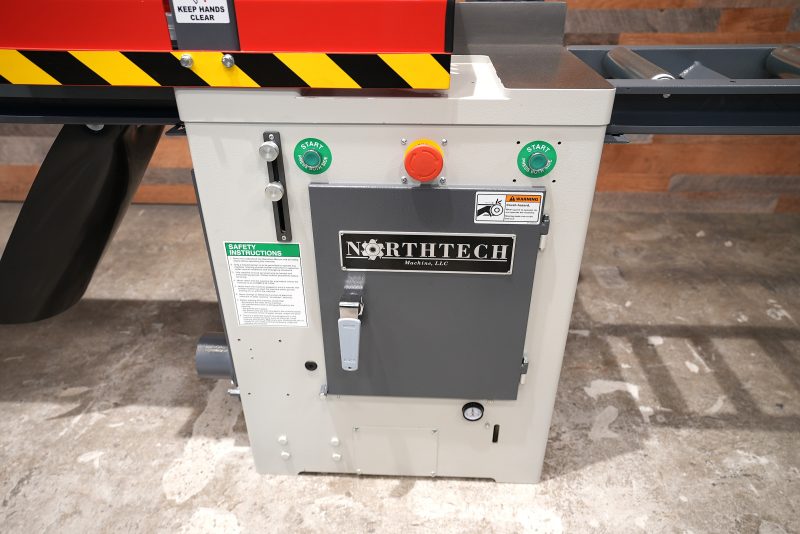

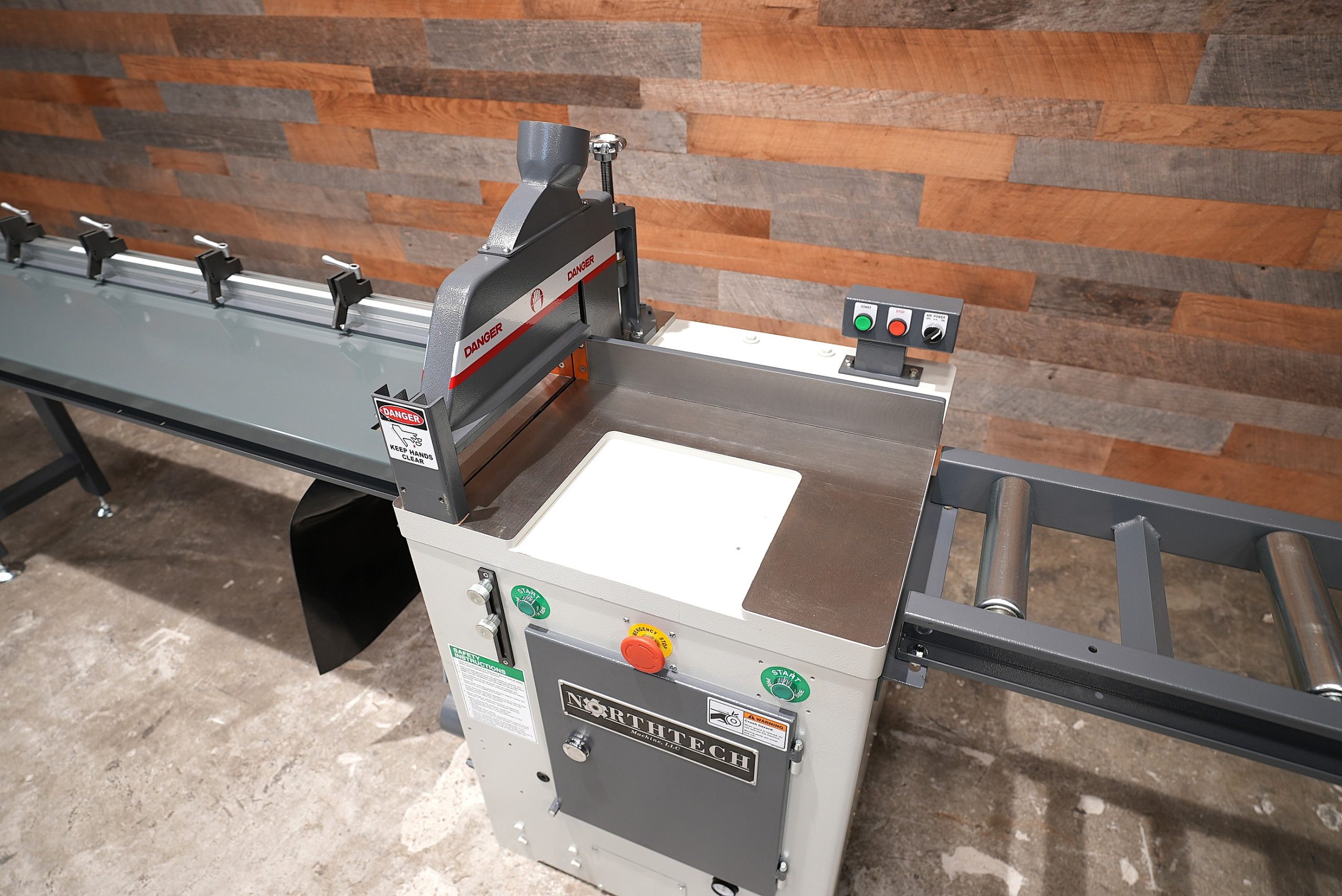

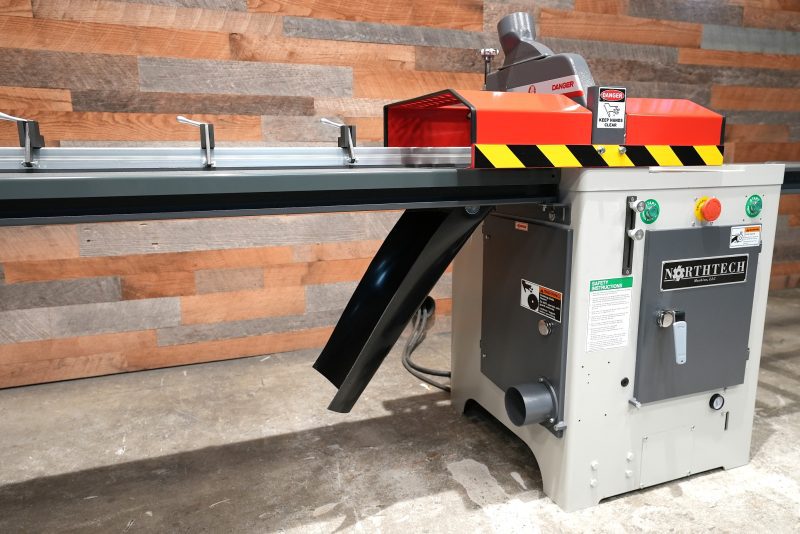

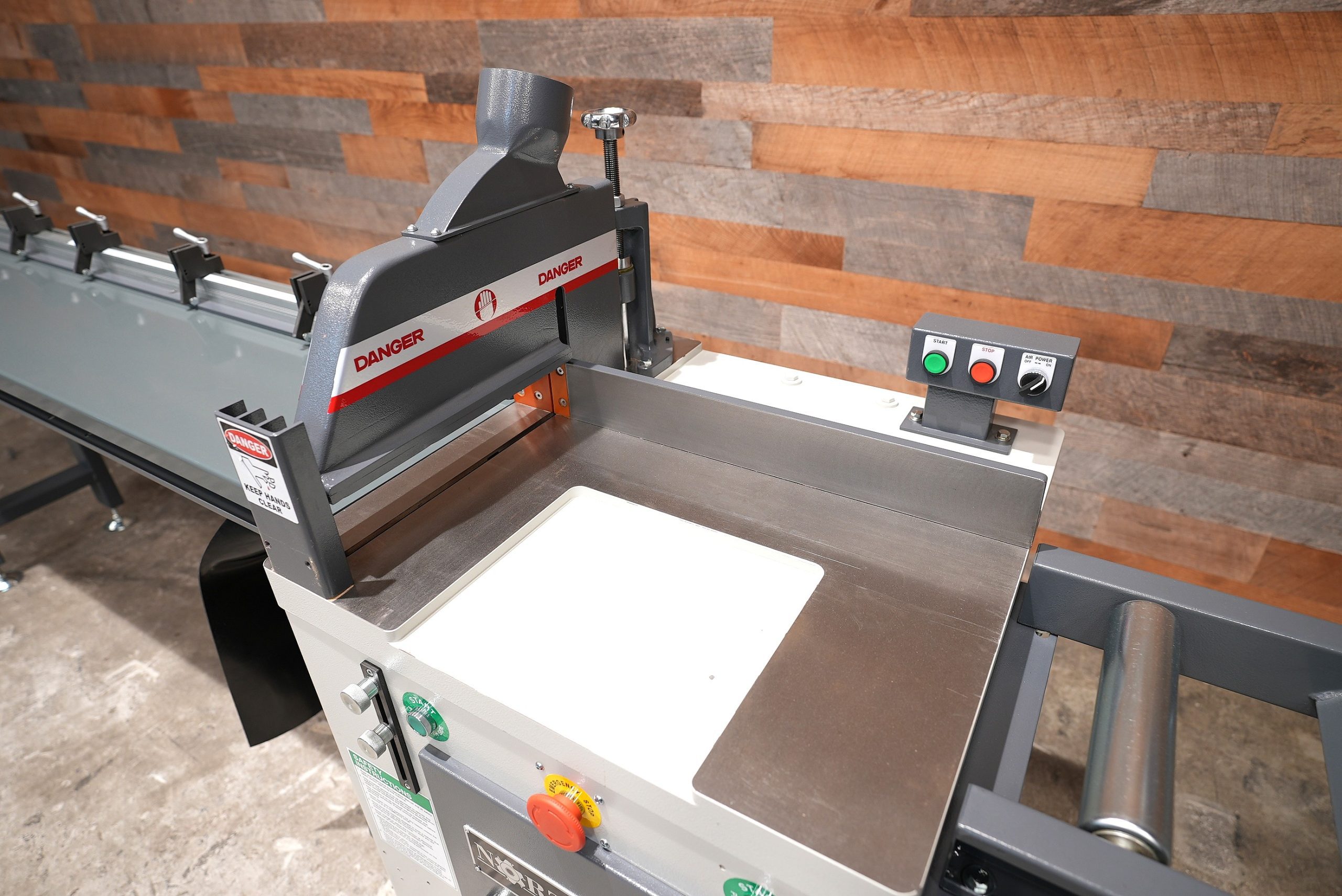

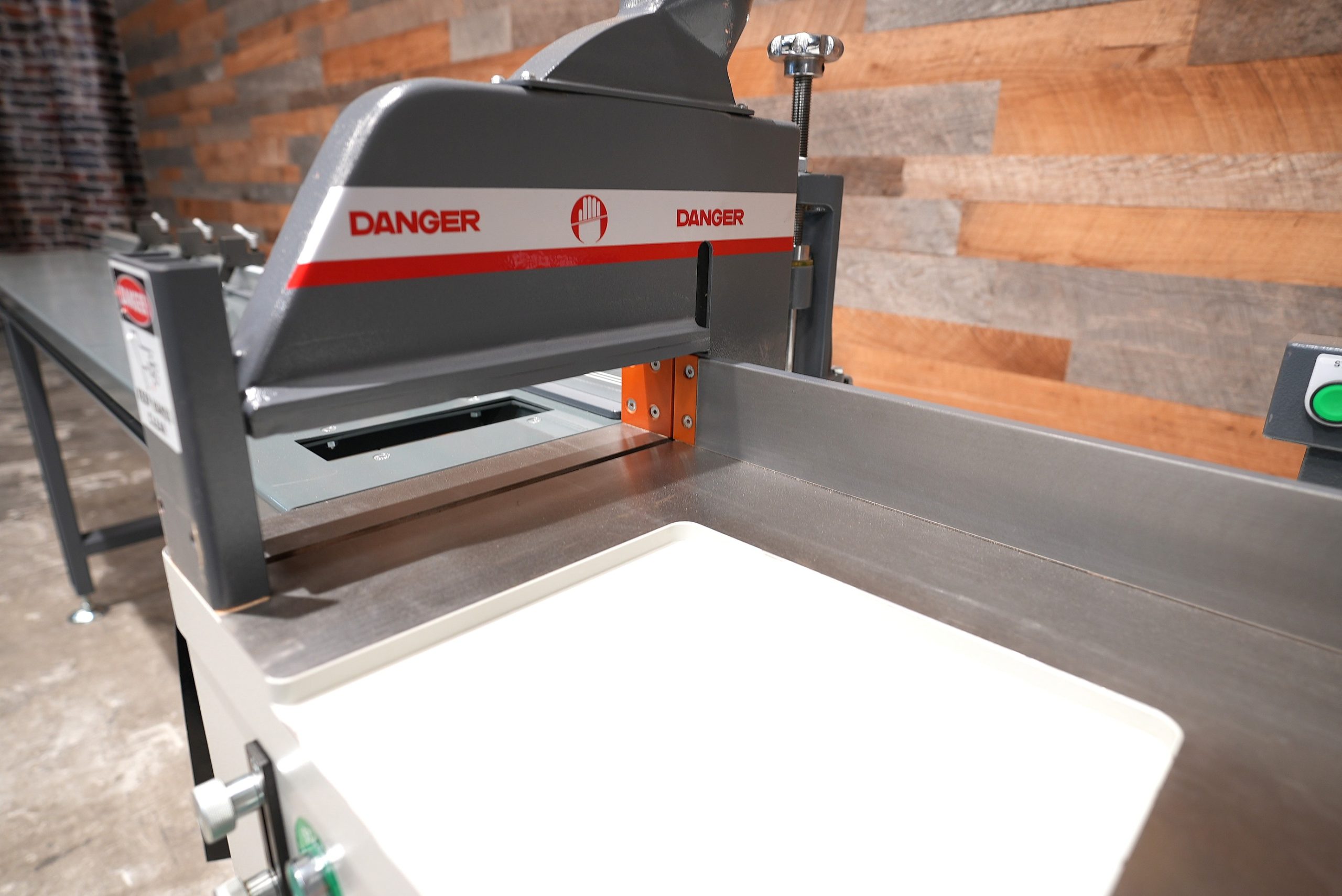

NT-UCS18 Up Cut Saw
PRODUCT DIMENSIONS
• Max cutting capacity: 1″ x 13″, 2″ x 12″, 3″ x 11″, 4″ x 10″
FEATURES

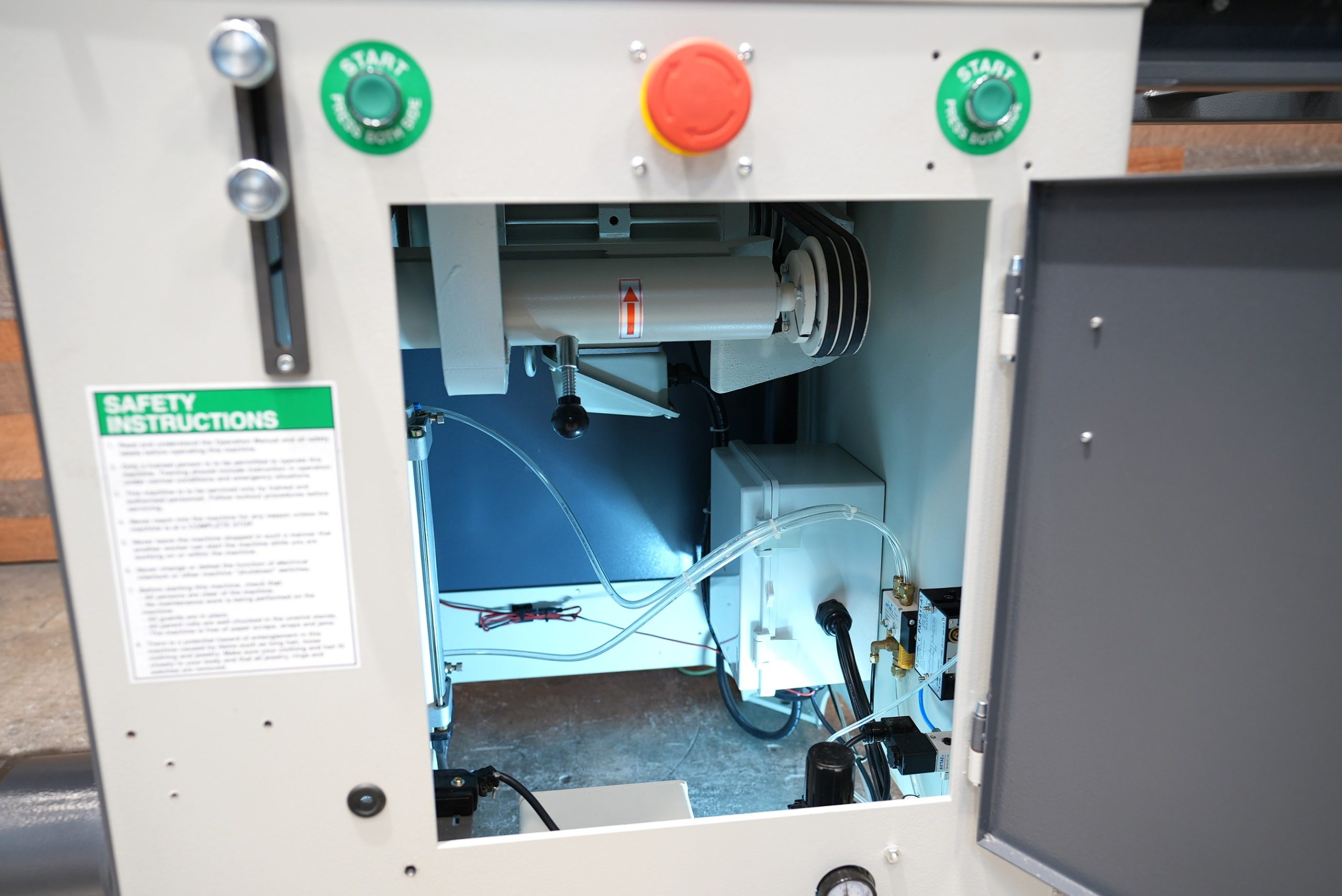

• 10HP motor, 3PH 230V with 24V magnetic controls, 3600 RPM

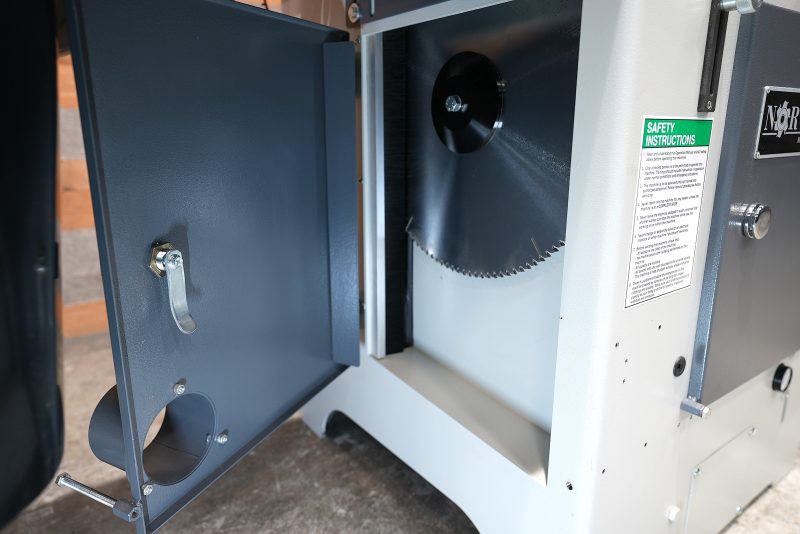

• 18” 120T Carbide tipped blade with included
• 1” Saw arbor diameter

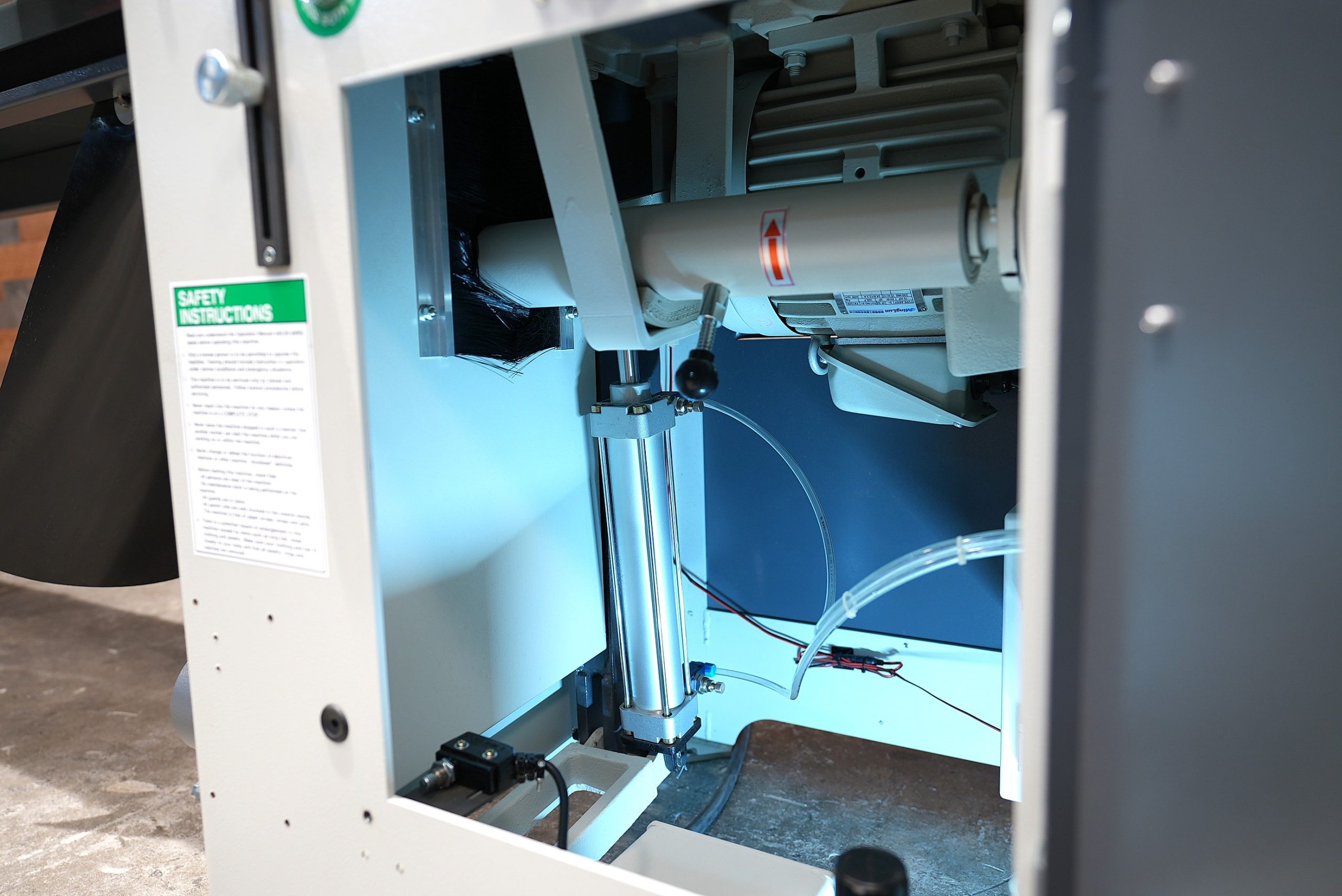

• Cycle operation: Pneumatically adjustable up to 45 cycles/minute
• Table size: 26” x 27-1/4”
• Quick access on front of the machine to adjust blade stroke

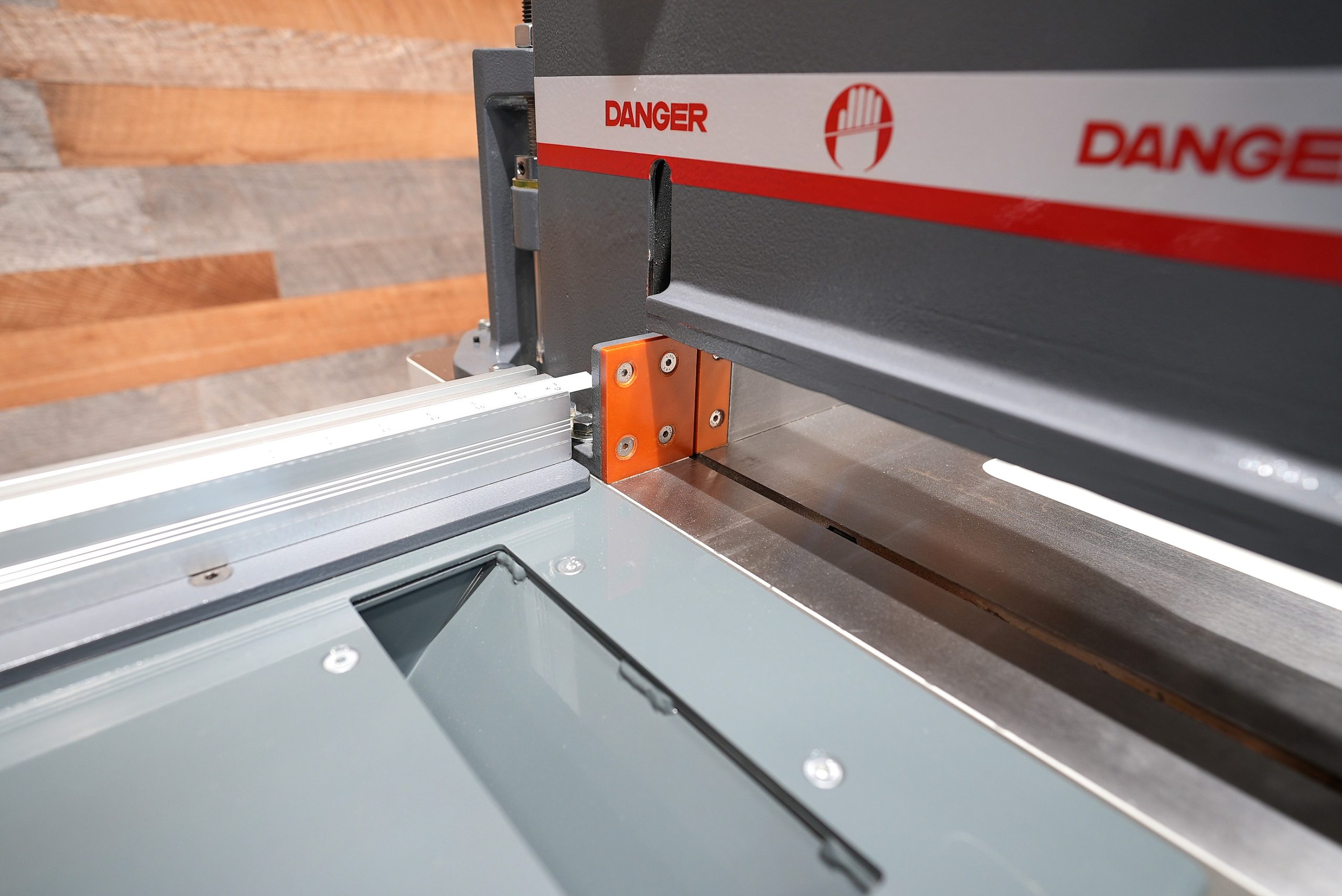

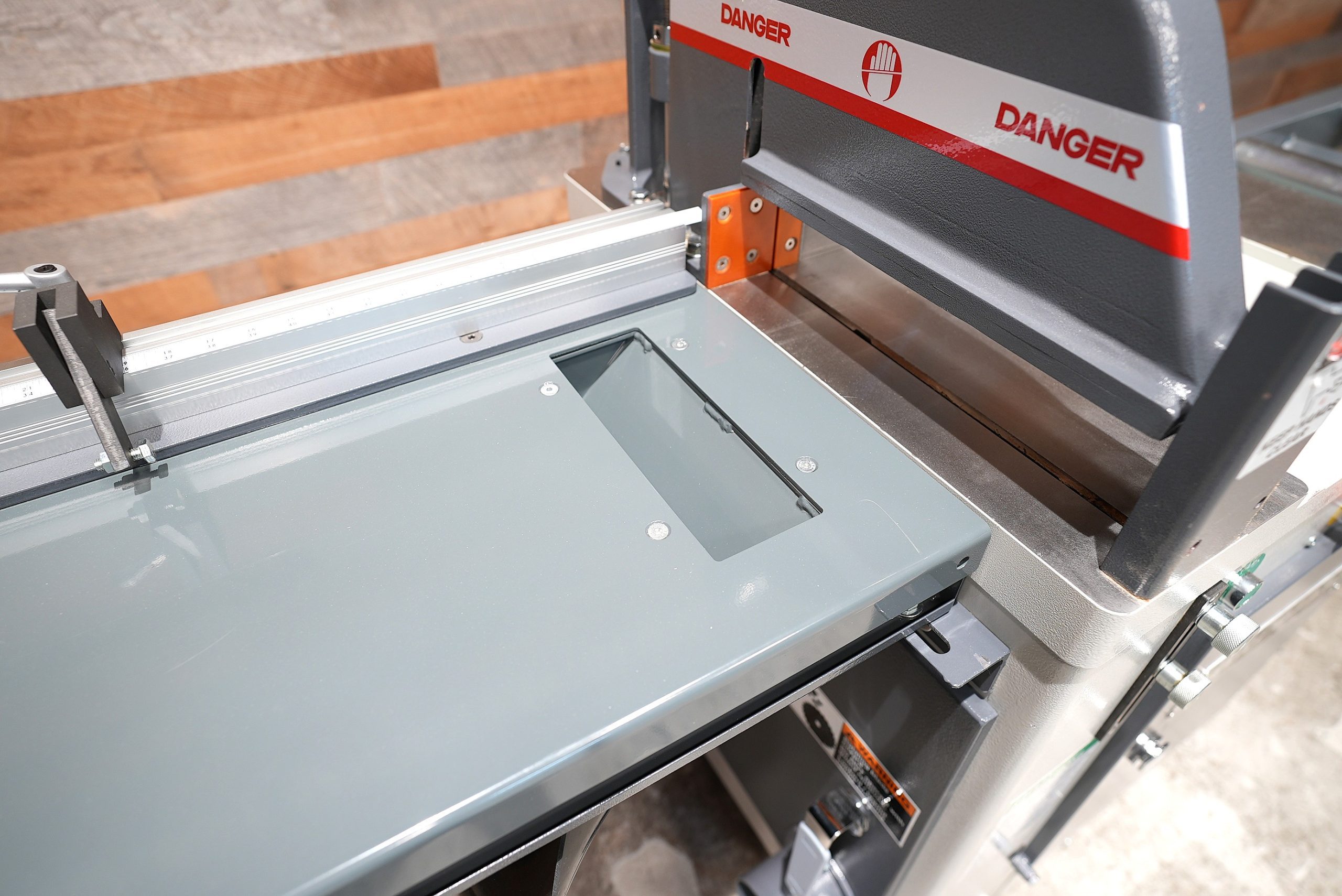

• Adjustable fence 2″ x 25″
• Amperage requirements: 230V/460V 60HZ, 3PH: 24A/12A
• Dust requirements: (2) 4″ dust port requiring 436 CFM at point of extraction
• Net / Gross weight: 730lbs / 860lbs
• Machine / Packing dimensions (LxWxH): 26″ x 28″ x 50″ / 40″ x 48″ x 55″
• (1) Operation and Parts Manual included
• Warranty is one year parts
OPTIONS

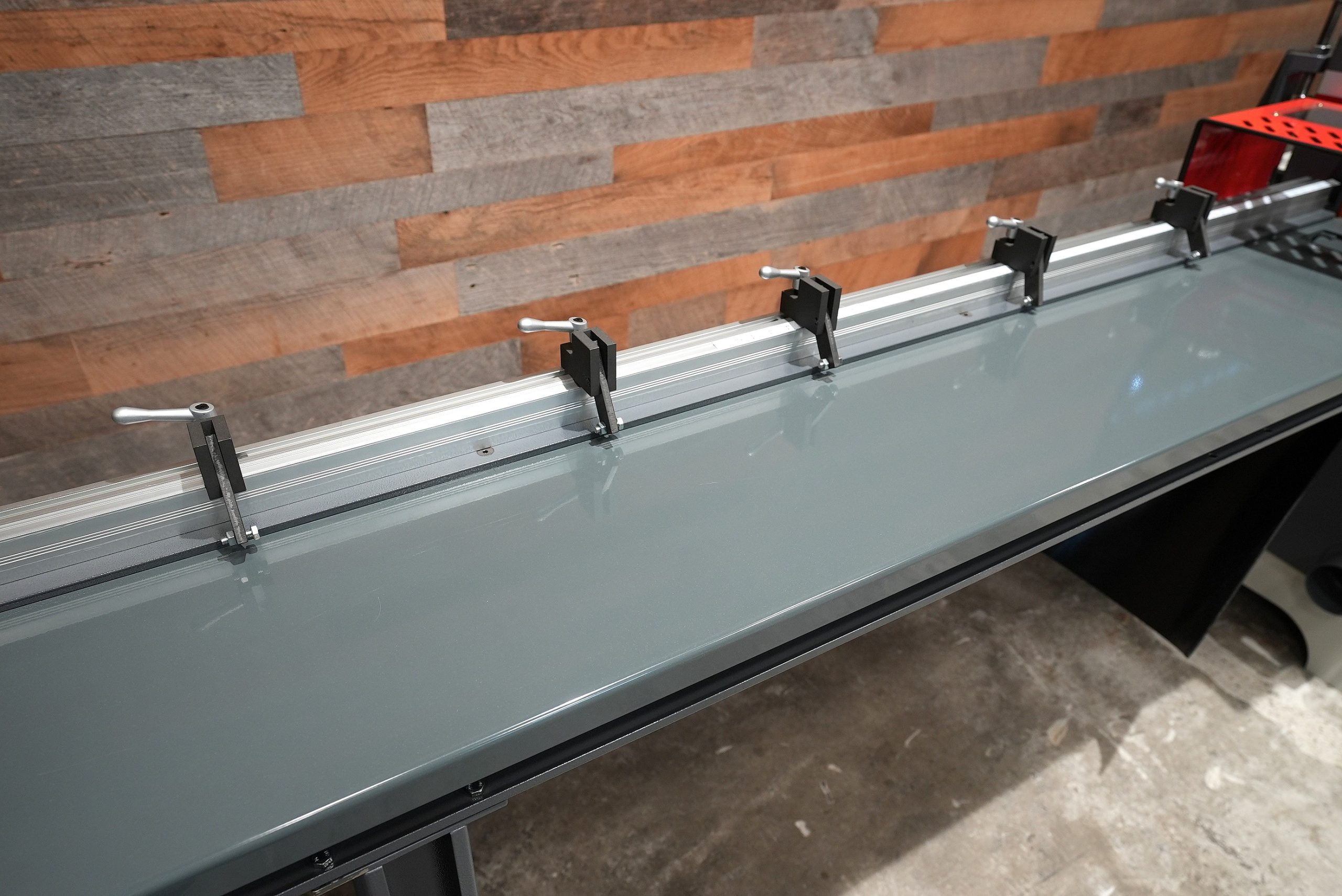

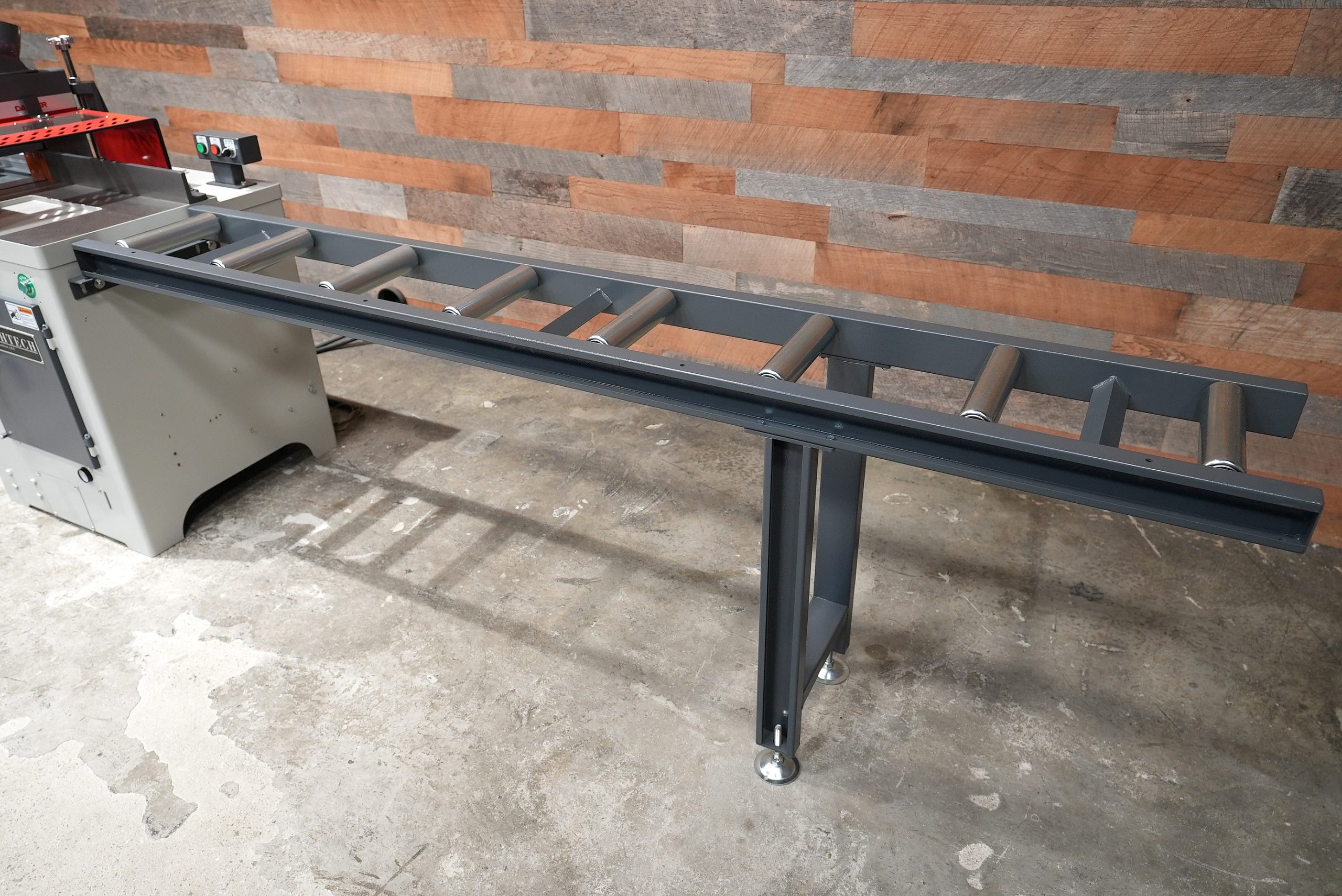

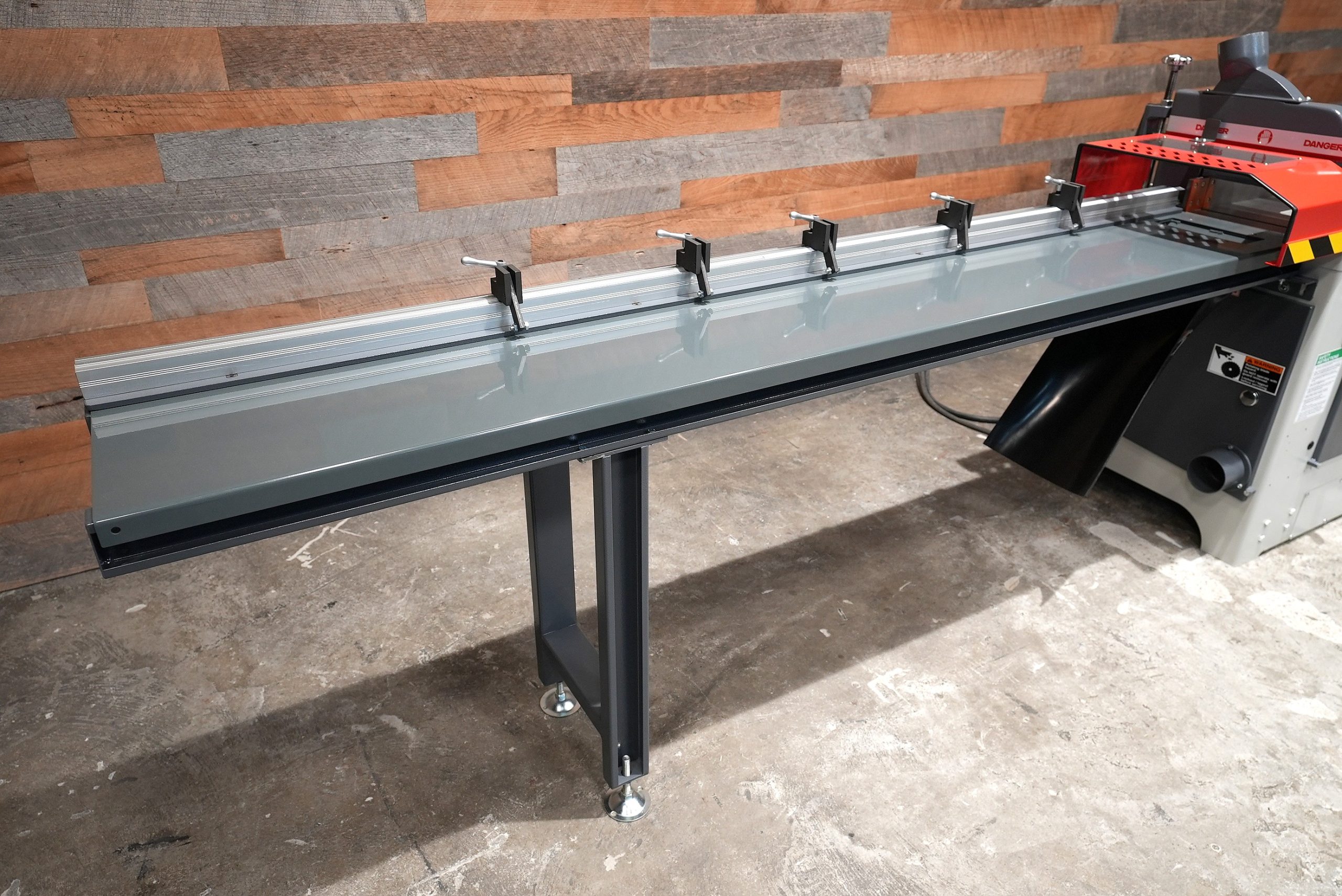

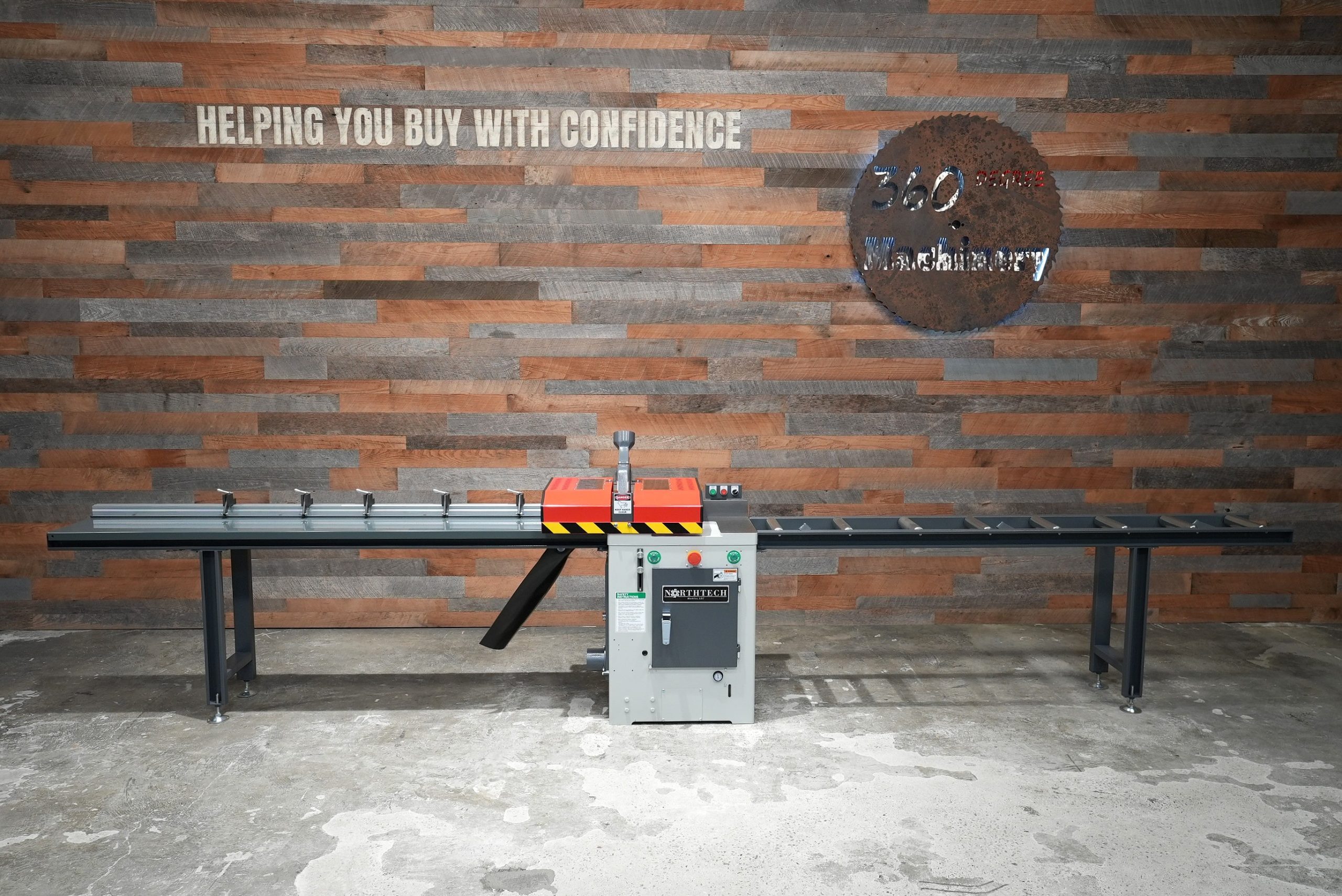

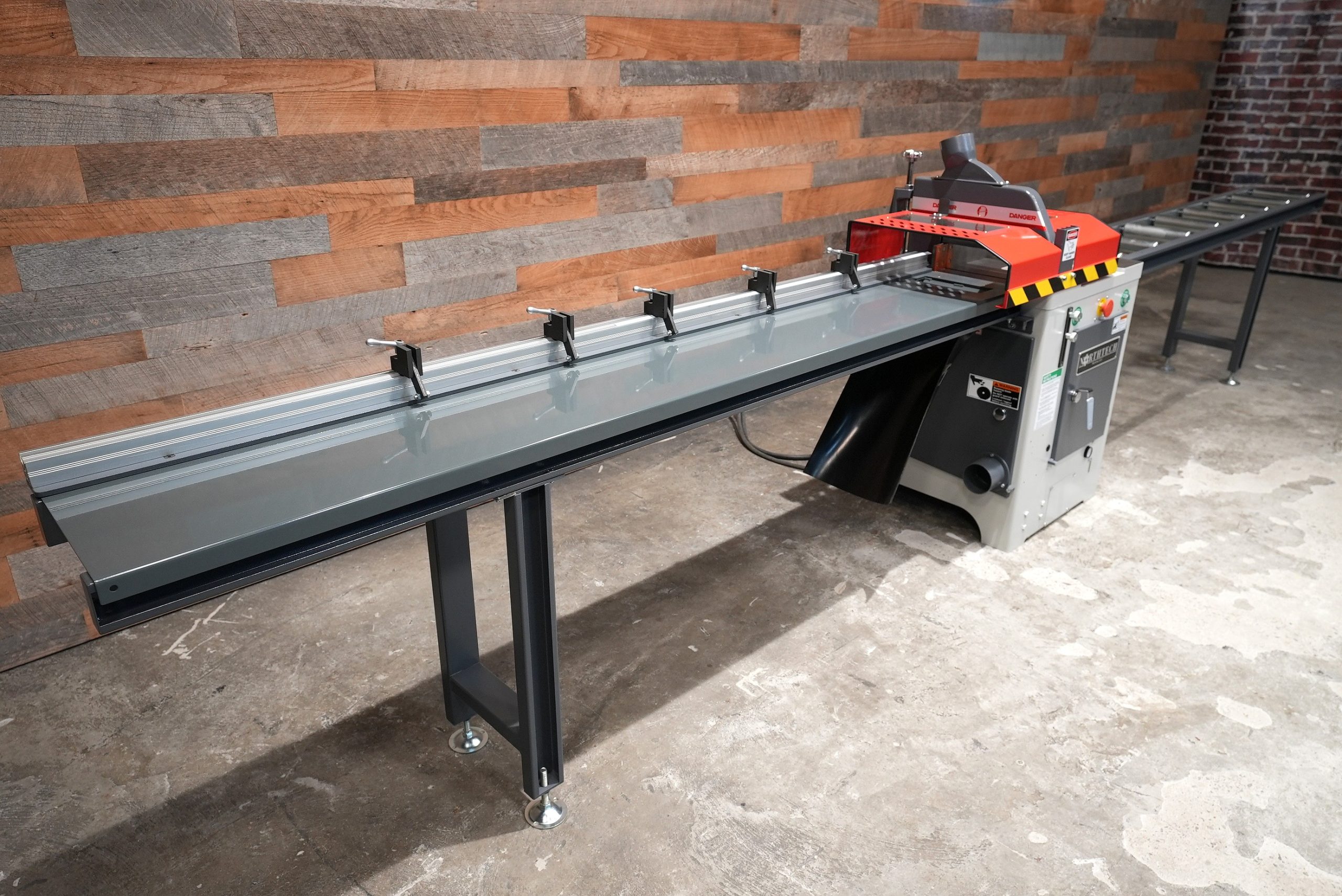

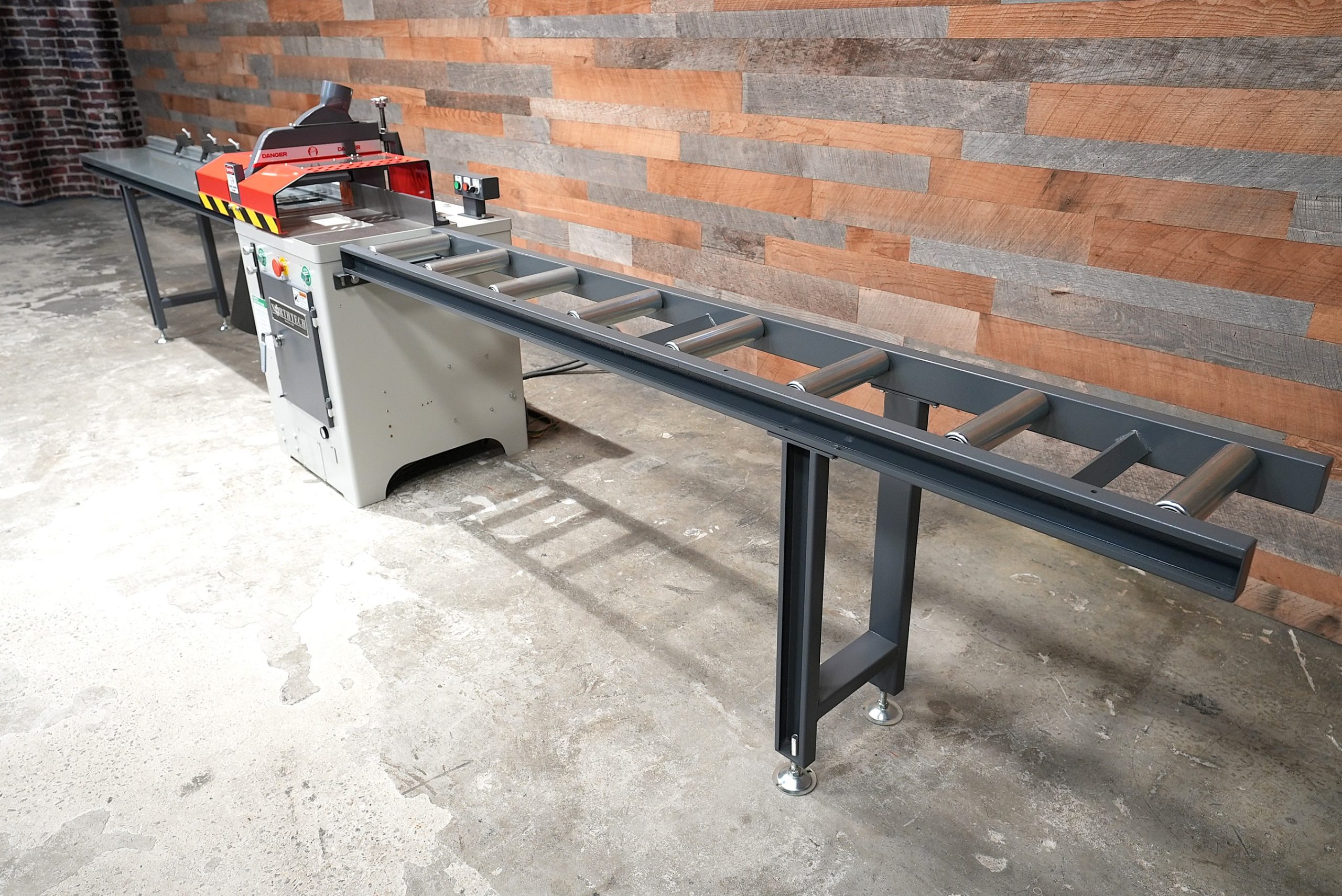

• 8’ infeed without fence and 8’ outfeed with fence, (2) legs, (1) gravity flip stop (UCS18-5-14A) . . . $ 2,445.00
• 8′ Solid top table powder coated for outfeed conveyor with chute (UCS18-5-32) . . . $ 647.00
• (4) Gravity flip stop (UCS18-5-12) . . . $ 79.00 X (4)

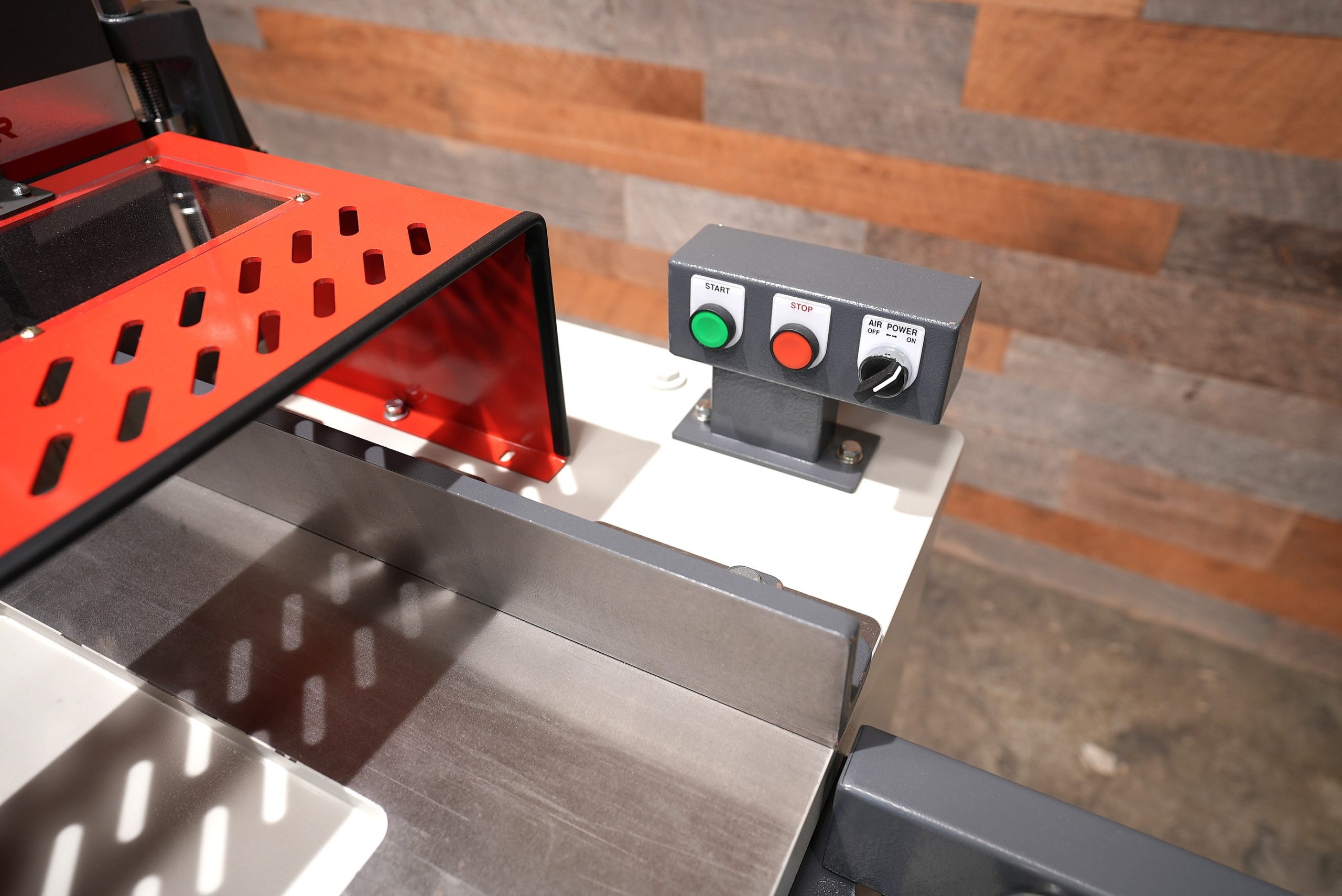

• Two handed push button actuation in place of foot pedal (UCS18-5-25) . . . $ 875.00

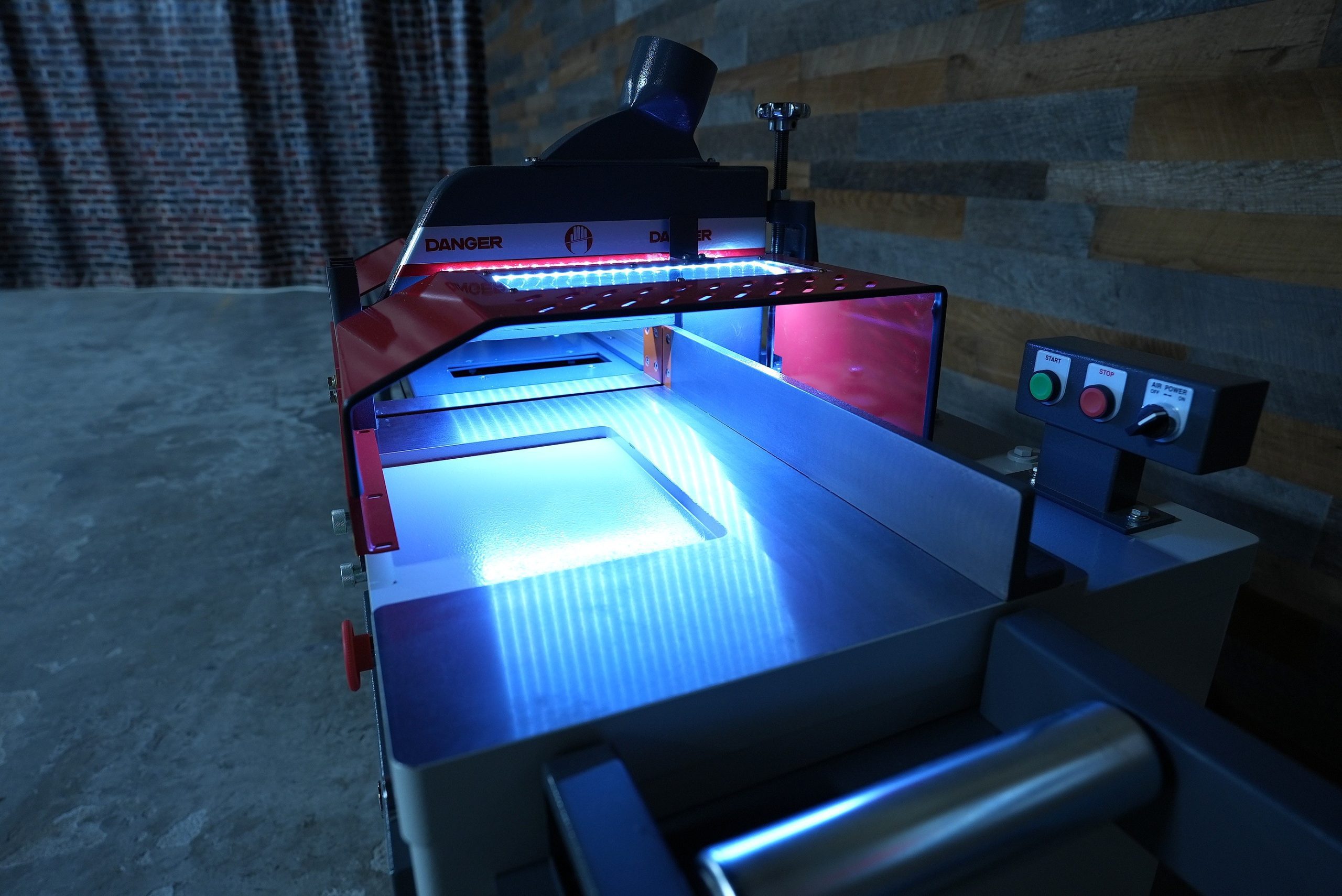

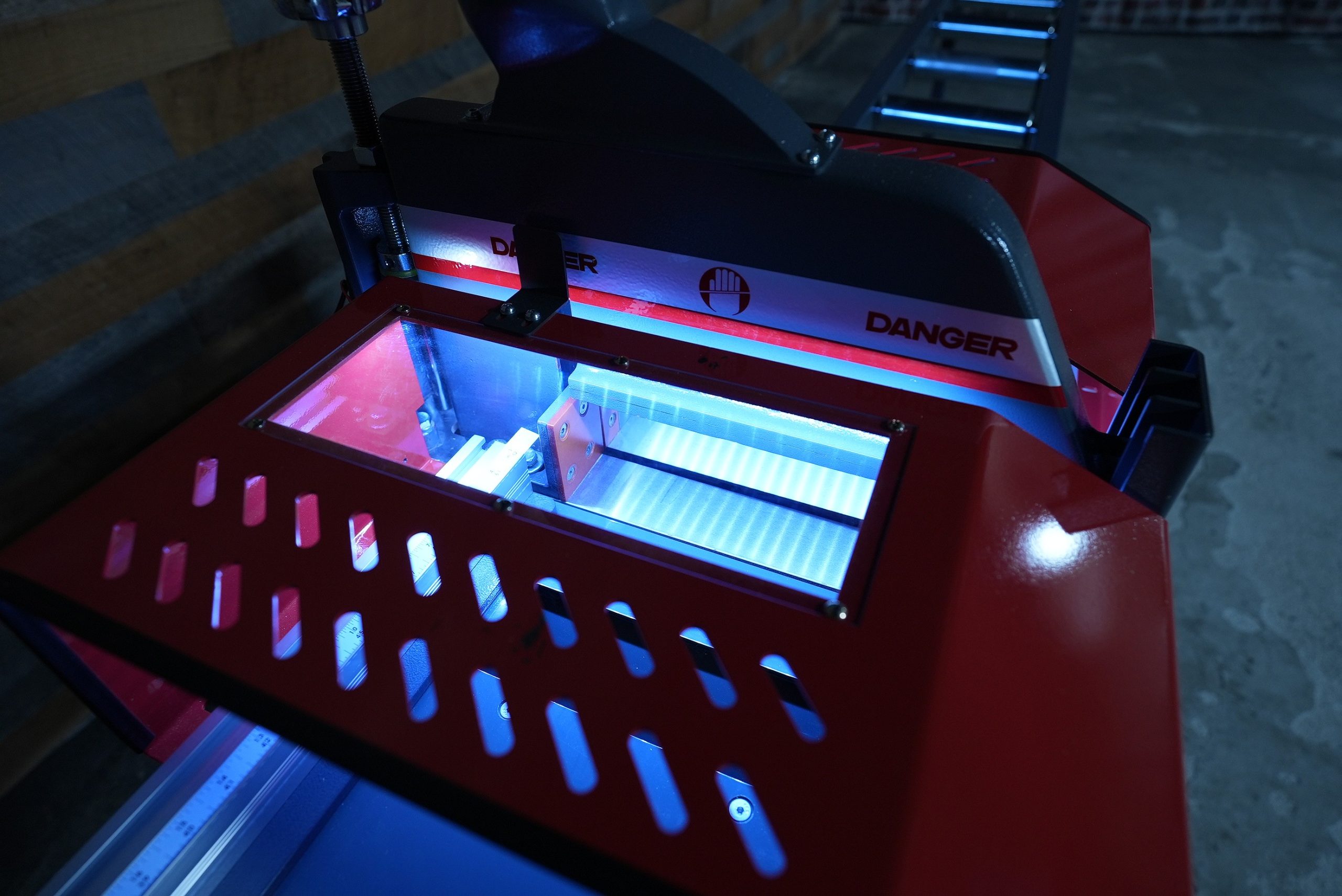

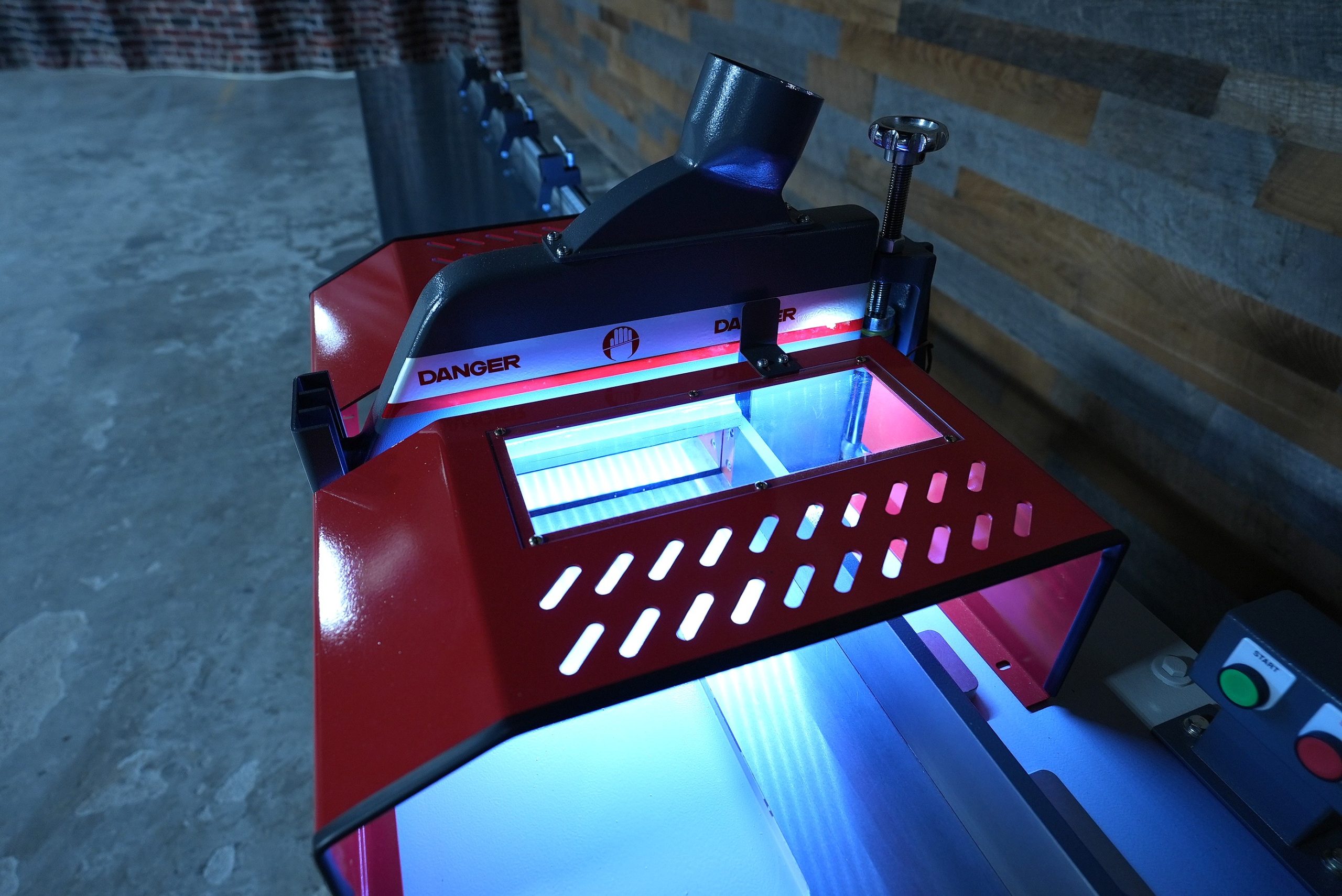

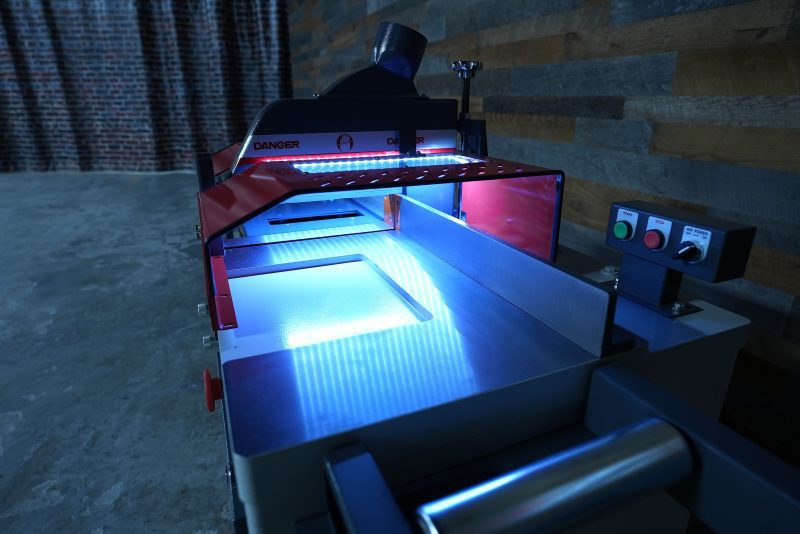

• Illuminated safety guard for clear visibility of cut zone (UCS18-5-28) . . . $ 275.00
