5′ x 12′ Phenolic grid vacuum table
6.6 kW Router
(7) Vertical drills and (2) horizontal double drills
Saw blade in the x-axis
Rake to push parts off onto outfeed extension.
10-position side mounted tool holder
Dual 6.4 kW vacuum pumps
Windows based PC controller (Xilog Plus)
Handheld remote controller
230/460 V, 3-Phase
Shipping Weight: Approximately 8,000 Lbs

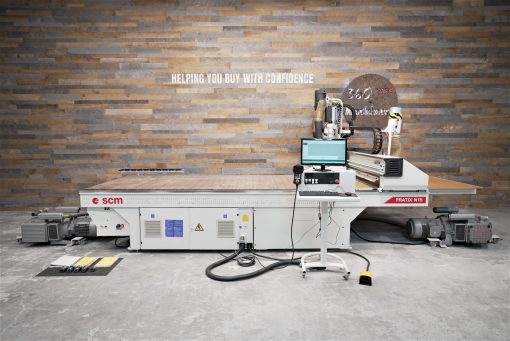

2010 SCM Pratix N15 CNC Router (5’X12′ W/Rake)

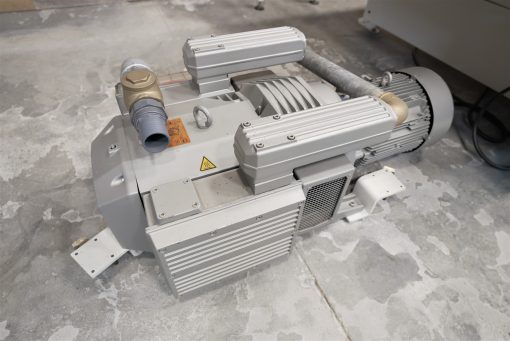

The SCM Practix is very compact considering it’s capabilities. This offloading machine has a working area of 5’X12′ yet has a footprint of around 21.5′ X 8′ (minus computer stand). Both of it’s 6.4 KW Becker Vacuum pumps sit under the machine to save space. The main spindle is 6.4 KW and rated up to 24,000 RPM and has a 10-position side mounted tool holder. There are (7) Vertical drills and (2) horizontal double drills as well as a Saw blade in the x-axis (saw blade not included). The vacuum table is zoned and there are pop up pins for easy material loading. The machines runs off a Windows based PC controller and a held remote.
This fully functional machine has been fully cleaned, checked, and is ready to work from the time you receive it. This is our guarantee to both you and your company. It is owned by 360 Degree Machinery and located in our inventory in Kingston, TN.
