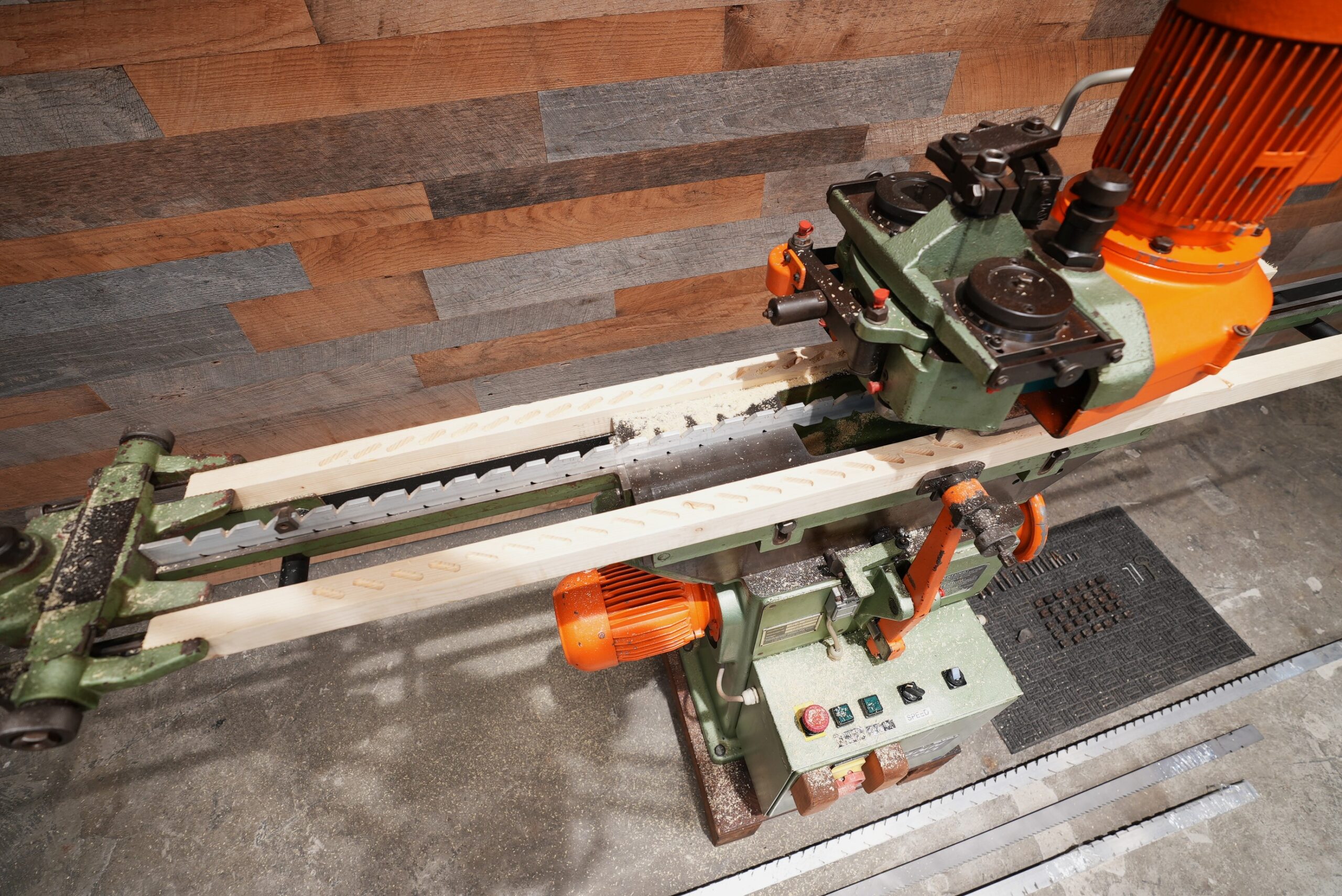

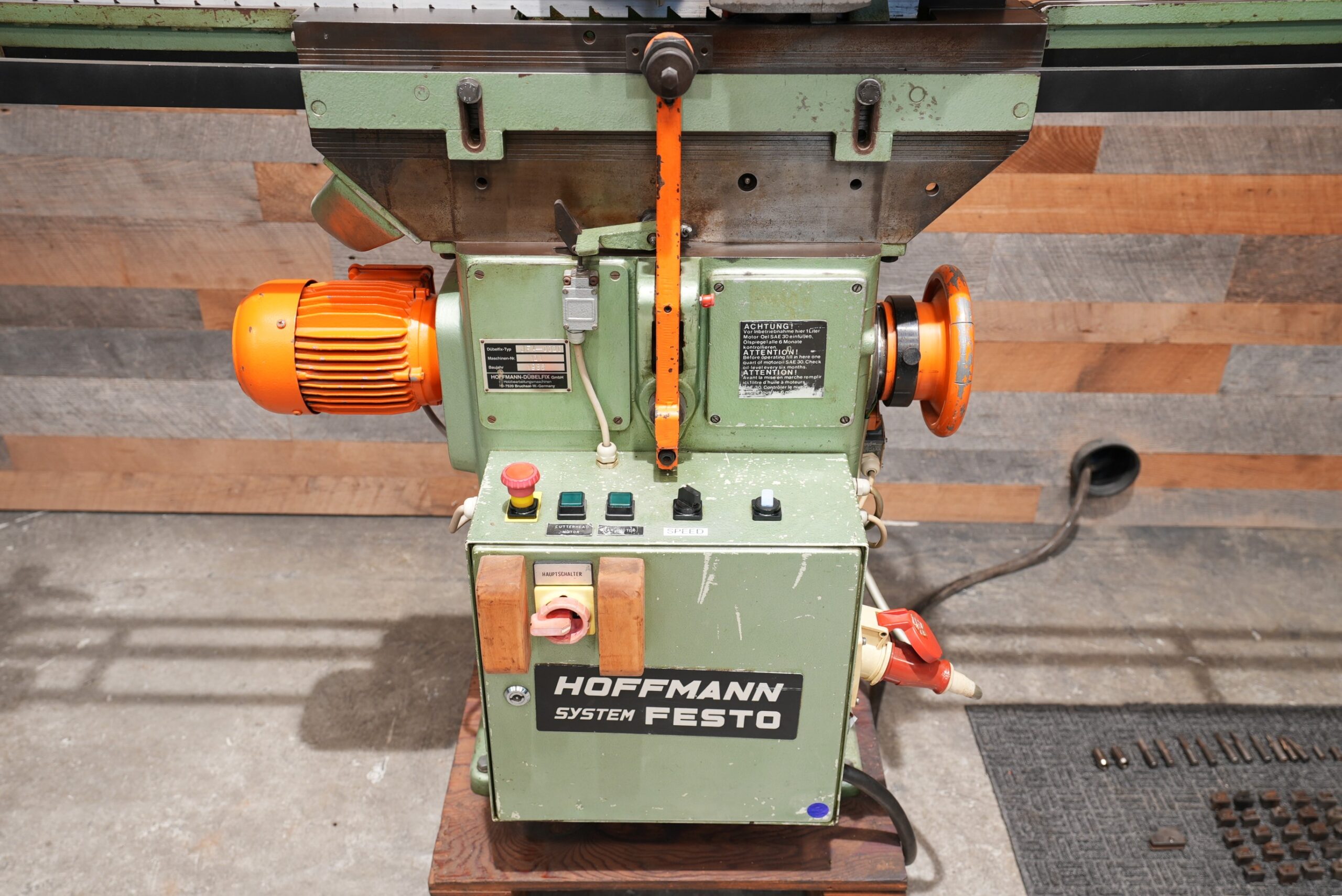

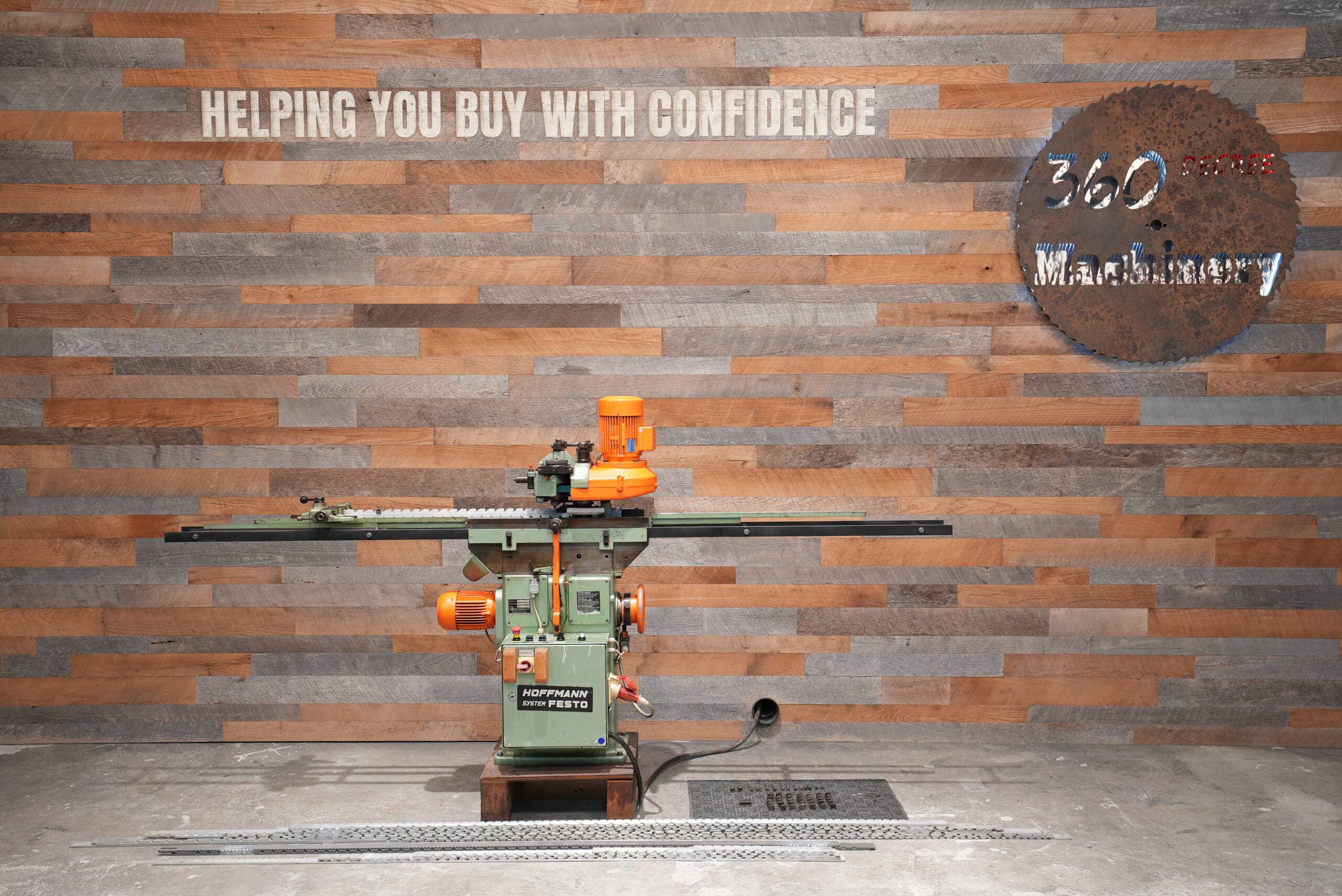

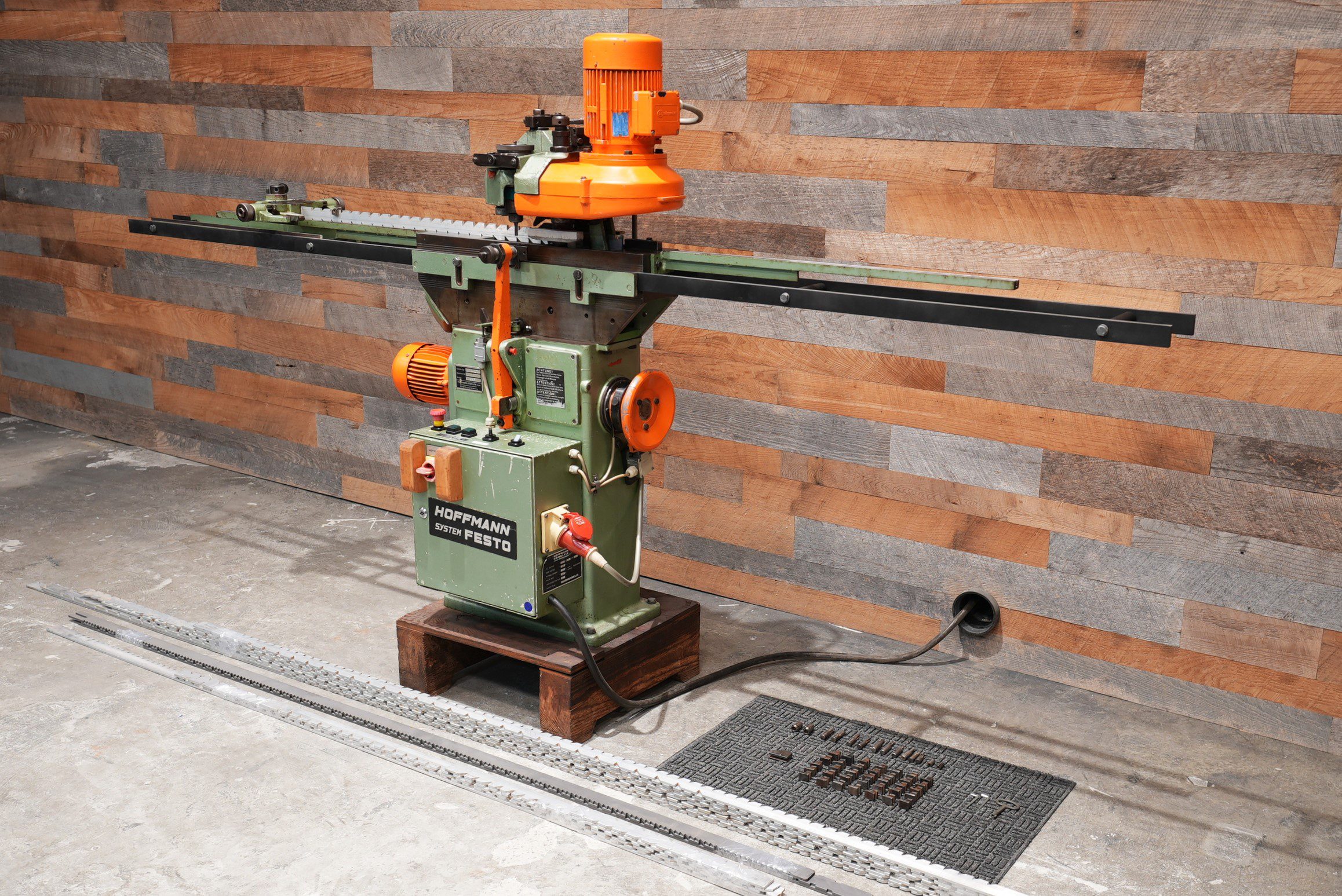

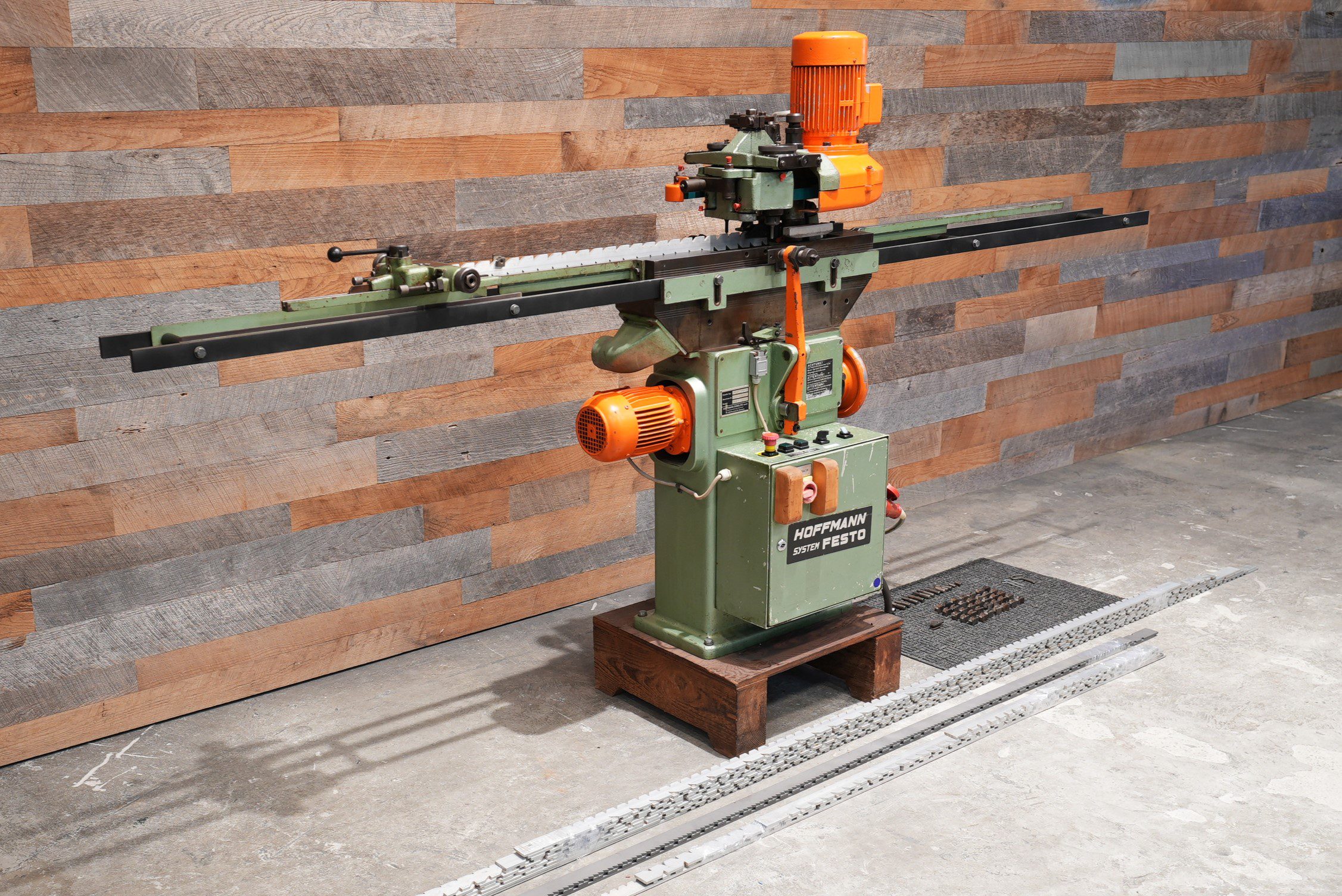

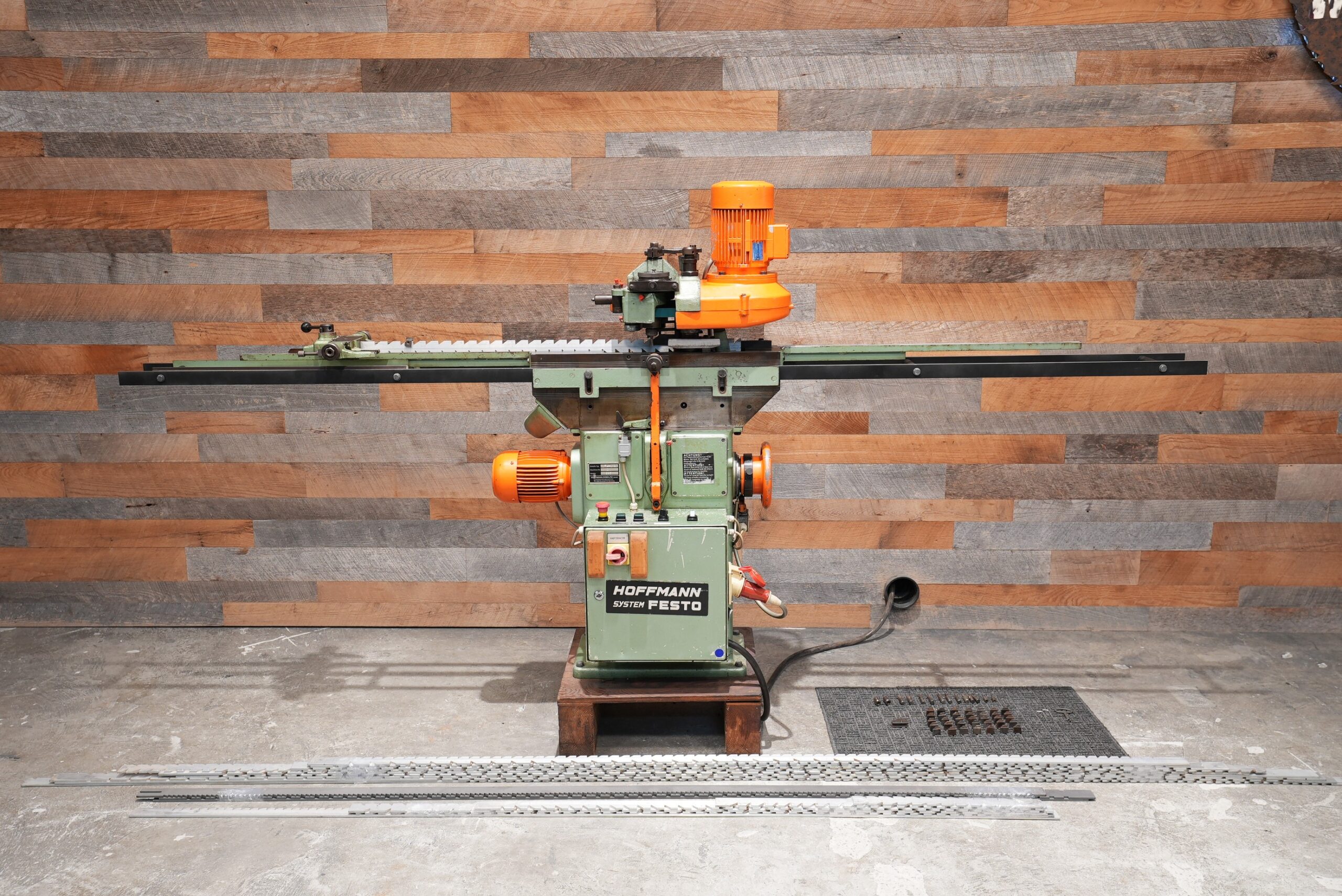

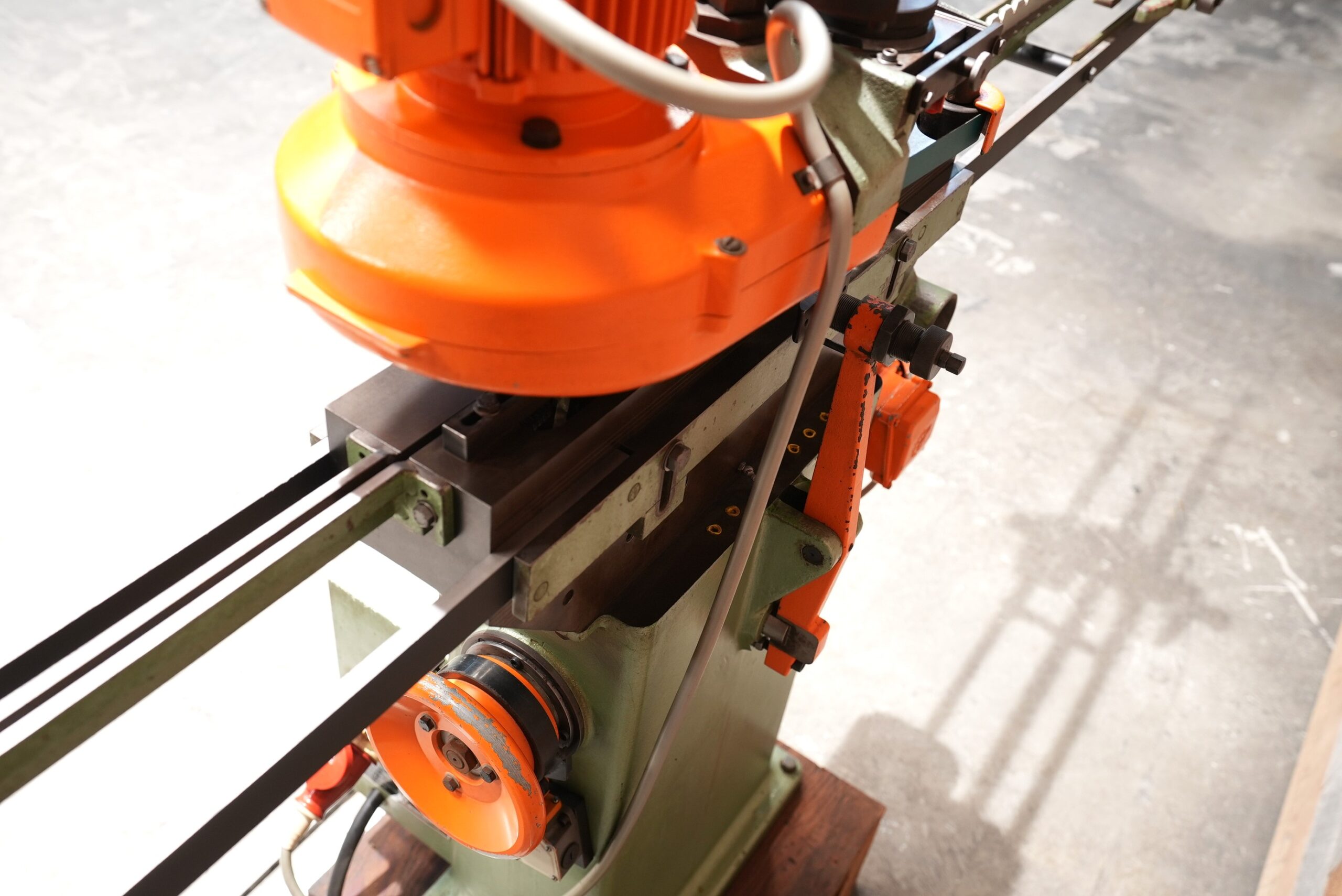

1986 Hoffmann Festo JFA-0020 Louver Groover W/18 Templates

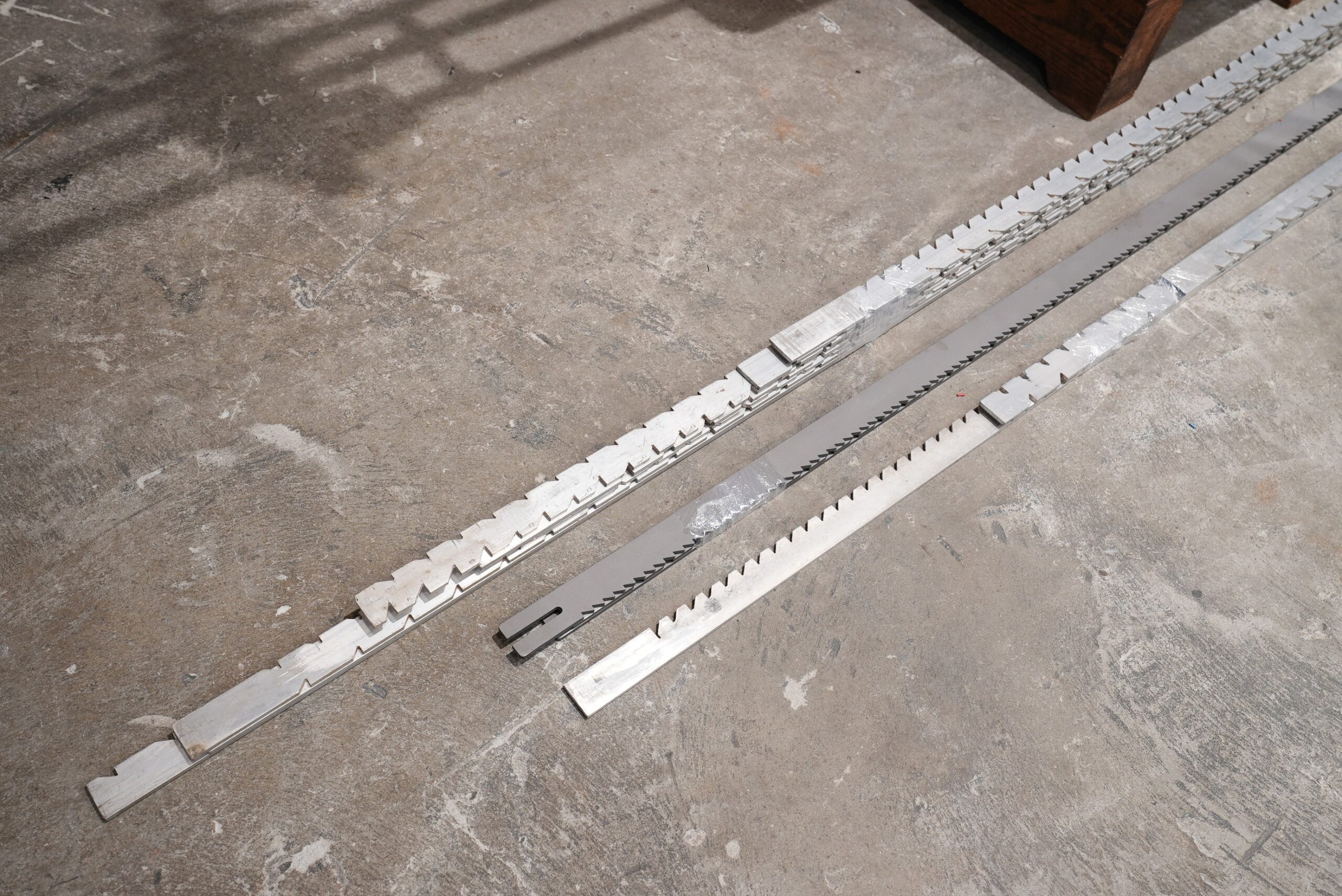

This is a really fine example of a Hoffmann Festo JFA-0020 Louver Groover. What also sets it apart are the 18 templates that come with it…….which are even rarer than the machine itself.

Machine length 122″ overall
2.2KW/3hp 220/440V/3-Phase spindle motor drive
Min workpiece size 3/4″ wide x 1″ high
Max workpiece size 2″ wide x 6″ high
Max length of slot mortise 2-1/4″
Mortise angle range 0 to 45 degrees
Spindle speed 18,000 rpm
Standard slot spacing 1-1/4″ and 1-1/2″
(2) vertical slot routing spindles
Belt drive to spindle arbors
Machine slot mortises right and left hand parts at same time
Automatic cycle advance of parts with rack type guide
96″ length capacity on rack

This fully functional machine has been fully cleaned, checked, and is ready to work from the time you receive it. This is our guarantee to both you and your company.
