ADVANTAGES
Maximum cutting precision

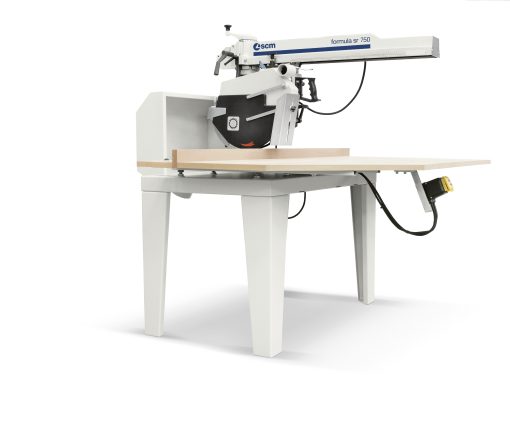

The cast-iron structure provides the arm with the maximum solidity and rigidity for the maximum cutting precision. The interchangeable sliding ways allow the operator a simple and rapid replacing, in case of wear, without direct intervention on the arm.
Precision and smoothness
The 8 sliding bearings on the guides grant the best carriage smoothness and optimal support for a perfect cutting result.
Longlasting functionality
The mechanisms of which the machine is equipped, such as the protection cover on the arm column support, protect the mechanical parts from dust, guaranteeing the best operation over time.
Technical data
| sr 900 | sr 750 | sr 650 | ||
|---|---|---|---|---|
| Blade diameter | mm | 400 | 350 (400 opz.) | 350 (400 opz.) |
| Blade tilting | -45° ÷ +45° | -45° ÷ +45° | -45° ÷ +45° | |
| Max. cutting depth with 90°/45° blade | mm | 120/83 | 120/83* | 120/83* |
| Max. cross-cut capacity | mm | 900 x 20 | 750 x 20 | 640 x 20 |
| Three-phase motor starting from | 4 (4) kW-50 (60) Hz | 3 (3) kW-50 (60) Hz | 3 (3) kW-50 (60) Hz |
