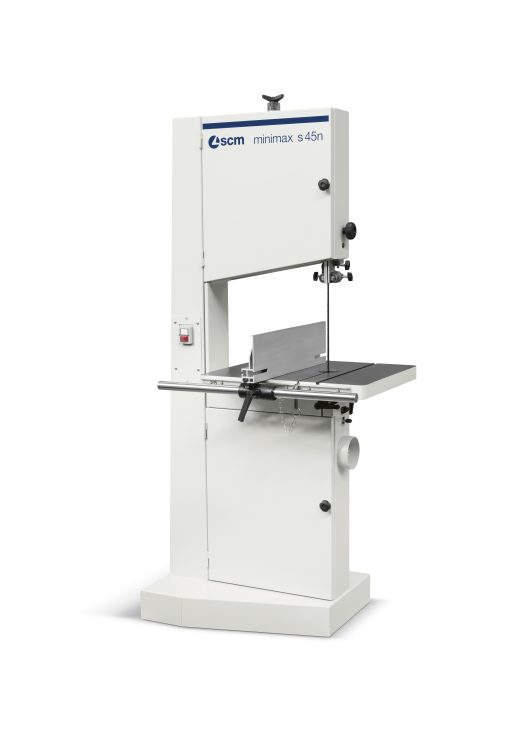

SCM minimax s 45n 18″ Bandsaw (1-Phase)
$3,785.00
Truly this is the best 18″ single phase bandsaw we can find when you consider price, resaw height, power, and it’s beefy structure. PLUS it’s backed by SCM!
Professional band saw for woodworkers and craftsmen workshops.
The minimax s 45n is an SCM Group made 2.5hp motor bandsaw. With over 20 years of service to the American Market and produced on the same line as the world-famous combination machine line, the S45N is a great saw for custom furniture makers. Some features include a large cast iron table, an easy to remove aluminum hi-low fence and large balanced wheels creating a fly wheel effect.
Click Here to Download Minimax s45n_Product Brochure
ADVANTAGES
Solidity and sturdiness

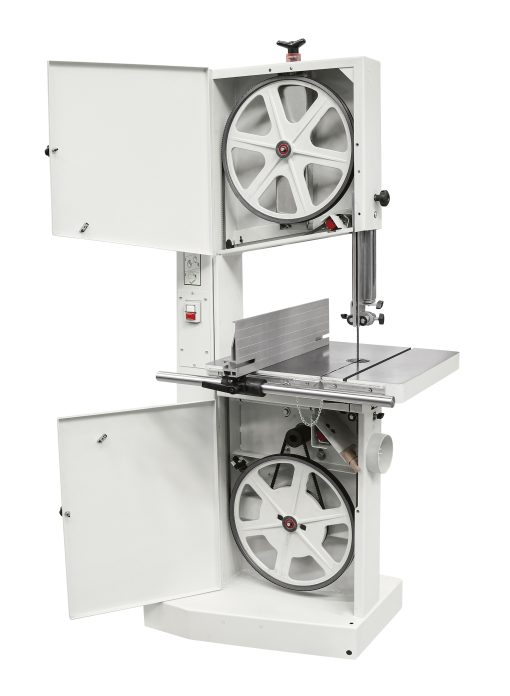

Very thick, cast iron wheels, as well as the worktable, running on sealed for life ball bearings.
Safety first

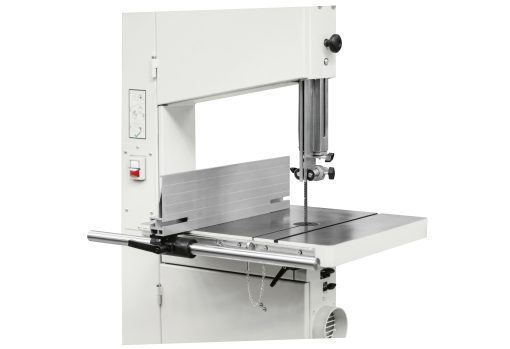

Safe machining with telescopic blade protections with rack and pinion blade cover.
Perfect results
A perfect cut result is assured by the top and bottom high precision blade guides. Practical machines suitable also to perform straight and tilted cuts on wood, plastic and aluminum.
Technical data
| s 45 n | ||
| Worktable dimensions | 520 x 600 | mm |
| Cast iron saw wheels diameter | 450 | mm |
| Max. cutting height | 300 | mm |
| Max. cutting width | 440 | mm |
| Worktable tilting (no CE) | 0° ÷ 20° (45°) | |
| Three-phase motor power | 3 (3,6) kW – 50 (60) Hz |
ACM
| Model | s 440p (1-Phase), s 540p (1-Phase), s 640p (1-Phase), s 640p (3-Phase), s 740p (3-Phase), s 940p (3-Phase) |
|---|
