|Cutting Capacity||3/8” – 2-3/8”|
|Maximum Material Removal||3mm|
|Cutter Set Included||1” & 2” only|
|Minimum Length of Stock||12″|
|Cutterhead Drive Motor||5HP|
|Cutterhead Speed||3,000 RPM|
|Feed Speeds||20, 30, 43, 53 FPM|
|Overall Dimensions||36-1/4 x 30 x 39-1/2”|
|Main Motor||5HP, 3Ph 220V/440V Prewired 220V (20/10 Amp)|
|Net Weight||660 lbs.|
|Gross Weight||770 lbs.|

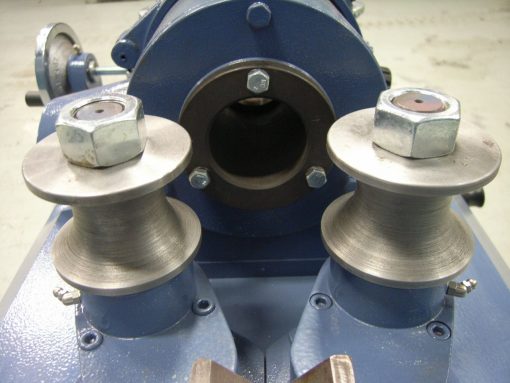

Oliver 7660 Round Rod Milling Machine
- Highly efficient design for maximum production.
- Independent cutter head and feed motor provide unmatched performance with a maximum feed rate of 52 feet per minute.
- 4-feed rates allow greater versatility of material and applications.
- Feed can be reversed for quick stock removal in the case of a jam.
- Fully guarded hood provides a safe work station.
- Wide range of capacity from 3/8” to 2-1/4” with optional cutter sets.
- Includes 1” and 2” cutter sets.
- Built-in 4” dust port allows efficient dust management.
- Magnetic controls for safer operation.
- Powerful three phase 5HP TEFC cutter head and 2HP TEFC feed motor.
