Tilting saw unit with a 250 mm blade and a maximum blade projection from table at 90° of 80 mm. The saw unit can be raised and tilted using convenient hand-wheels. The anodized aluminum sliding table, with a 1200 mm stroke, slides next to the blade, thus ensuring better cutting precision.

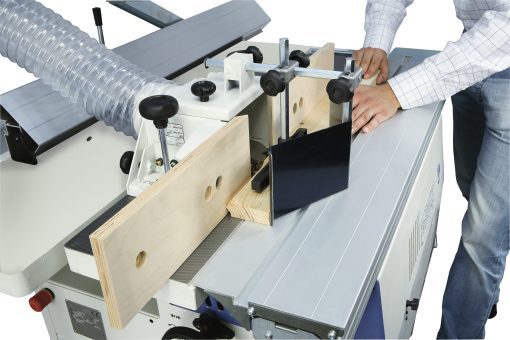

Maximum flexibility in spindle shaper tool use, with the unit with 2 speed (5000/7500 rpm). The machines have a spindle shaper fence with micrometric adjustment, a feature which is particularly useful on profiling jobs. Tenoning is easy too, thanks to the aluminum sliding table, the right speed setting and the special protection hood (option).
Practical and ergonomic

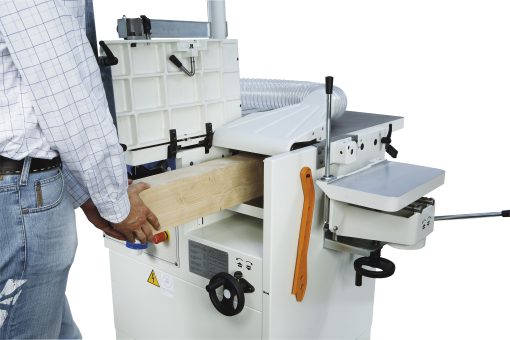

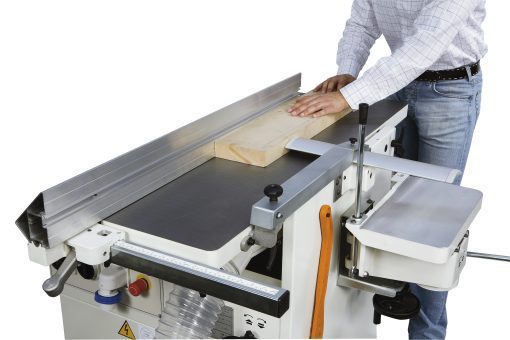

To keep the machine compact and make machining easier, the surfacing table opens towards the inside of the machine. Thanks to an efficient feed system, the thicknessing unit can process wood up to 200 mm thick.
Genius machines have a rich equipment of CE safety available as standard, such as the spindle protection to carry out machining on curved and shaped profiles.
|Cutterhead working width||mm / inches||260 /10|
|Jointer bed length||mm / inches||1040 / 41|
|Max. sawblade diameter||mm / inches||250 / 10|
|Sawblade arbor size||mm / inches||16 / ⅝|
|Max. sawblade projection from table at 90°/45°||mm / inches||75/60 2.95/2.36|
|Cutting width on parallel fence (Rip capacity)||mm / inches||500 / 20|
|Max. useful spindle length||mm / inches||75 / 3|
|Max. tool diameter when profiling||mm / inches||160 / 6.25|
|Spindle moulder speed||rpm||4000/6500|
|(3x) Single-phase motors||Hp||2.5|
