Power without compromises
The 4 standard speeds of the shaper unit are ideal for any type of machining, from moulding to routing and tenoning
Unrivalled cutting finishing
Optimal support also for larger pieces, with the new sliding table 360 mm wide. Exceptional precision and smoothness: to secure the guides it is not used glue, since the thickness could affect sliding. They are secured with a procedure of aluminum riveting.
Ready 3 UP
The programming of the work becomes simple and effective with the electronic mobile control panel with a 4” LCD color screen. Working mode: manual, semi-automatic and automatic with a memory capacity of up to 99 programs.
“Flex One” shaper fence
Automatic adjustment of the entire fence according to the tool diameter. The “Flex” exclusion system (SCM solution) is user-friendly with precise re-positioning.
| TECHNICAL SPECIFICATIONS | |
| Main motor power | 8 HP – 6 kW |
| max. useful spindle length | 90mm (3.5”)* – 125mm (5”) optional *70mm ( 2.75”) with 3/4″ spindle |
| Capacity, under the nut, with interchangeable spindle | 85 mm (3.31”) |
| spindle moulder speeds (at 50 Hz) | 4000 – 7000 – 9000 – 12000 rpm |
| max. tool diameter when profiling | 210 mm (8.25”) |
| max. diam. of tool lowered under the table at 90° | 240 mm (9.44”) |
| Spindle moulder available with following diameters: | 30 – 32 – 35 – 40 – 50 mm 3/4″ – 1″ – 1 1/4″ |
| Diameter of exhaust outlets: – at the base – tenoning hood |
120 mm (4.69”) 120 mm (4.69”) |
| Installation requirements | |
| Nominal extraction air consumption | 1050 m3/h (600 CFM) |
| Air exhaust speed | 20 m/s (66 ft/s) |
| Electrical requirements
***subject to change; must be verified prior to installation*** |
220 V – 60 Hz – 3 ph |
STANDARD EQUIPMENT
- Extruded anodized aluminium sliding table (dimensions 1200 x 360 mm) sliding on high precision hardened steel guideways, which are fixed by means of mechanical bending system
- Spindle moulder reverse rotation
- Ready 3 UP control: the programming of the work becomes simple and effective with the electronic mobile control panel with a 4” LCD color screen. Working mode: manual, semi-automatic and automatic with a memory capacity of up to 99 programs
- Electric pre-setting for feeder (see electrical requirements)
- Device for angular cutting with 2 flip-over stops
TOOLING INCLUDED
- Qty. 1 1 ¼” spindle
- Shaper push handle
- Spare belts
- Toolbox: Wrenches, allen wrenches, user manual, spare parts catalog
MACHINE CONFIGURATION
- 10.19.96 USA safety regulations version

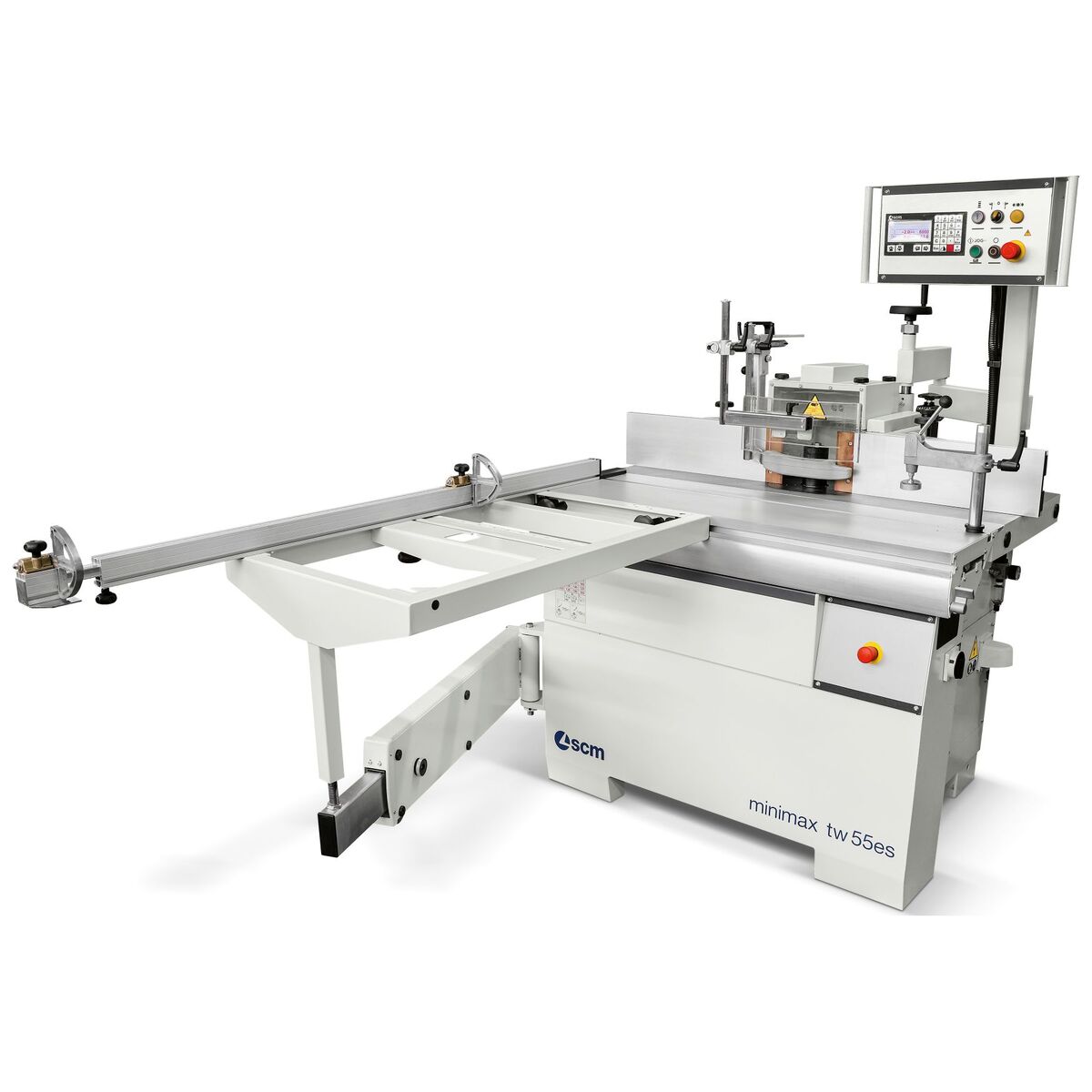

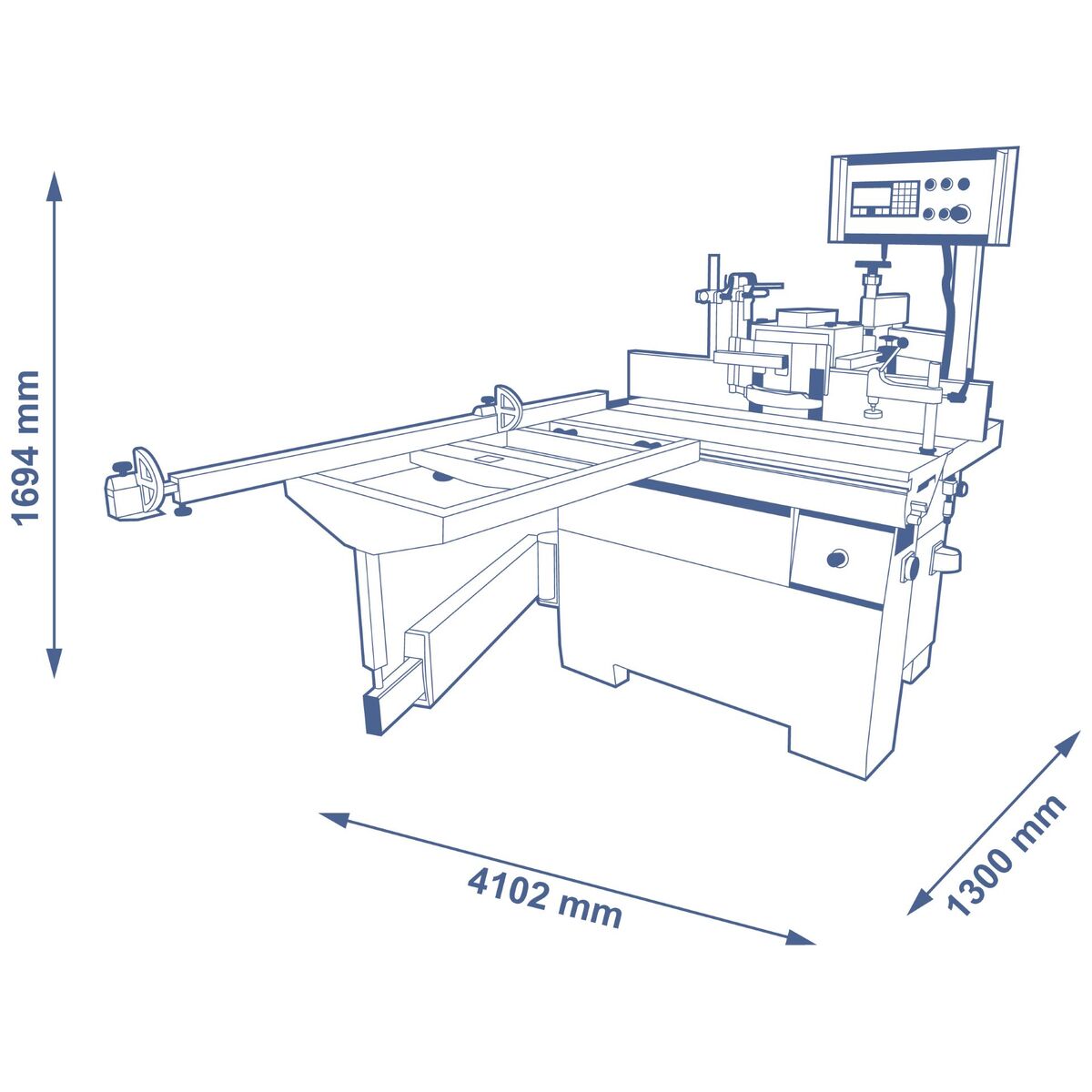

- R0.21.88 minimax tw 55es Usa/Canada version
Shaper with sliding table and fixed or tilting spindle with devices in conformity with USA-Canada safety regulations and complete with:- self-braking motor
- 93.07.51 220 volt
- 93.12.15 Frequency 60 hz
- 55.52.00 READY 3 UP version complete with:
upper mobile control panel
“Flex One” spindle moulder fence:- automatic movement of the entire fence with respect to the tool diameter
- manual adjustment of the infeed table, by means of handwheel (w/ mechanical readout)
- rapid exclusion system from the work table
- aluminium tables with connecting bars
- 240 mm max. tool diameter
- 58.02.26 Tiltable spindle moulder 90° ÷ 45°
equipped with fixed handwheel with gravitational numerical readout of spindle moulder tilting - 13.13.25 Spindle moulder shaft of 1 1/4″
- 21.13.19 Locking by countersunk socket screw
- 08.69.13 Seaworthy packing for “READY 3 UP” version
- 10.99.91 Machine language: ENGLISH
*Does not include power cable
