SCM minimax me 40EVO Edgebander (3-Phase) Price Includes Freight & Install
$56,475.00

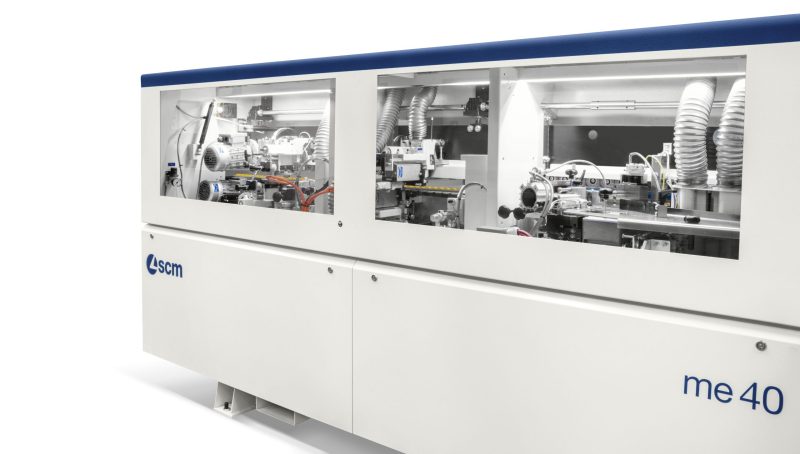

The Minimax ME 40EVO is a 3-phase automatic edgebander with great flexibility for both thin and thick edges. It intends to bridge the gap between a traditional midsize edgebander and the more robust equipment used in the Classical line of products. One of the key features is the pre-mill. There is no competition in the U.S. market for such a versatile machine with pre-mill that is so economical!

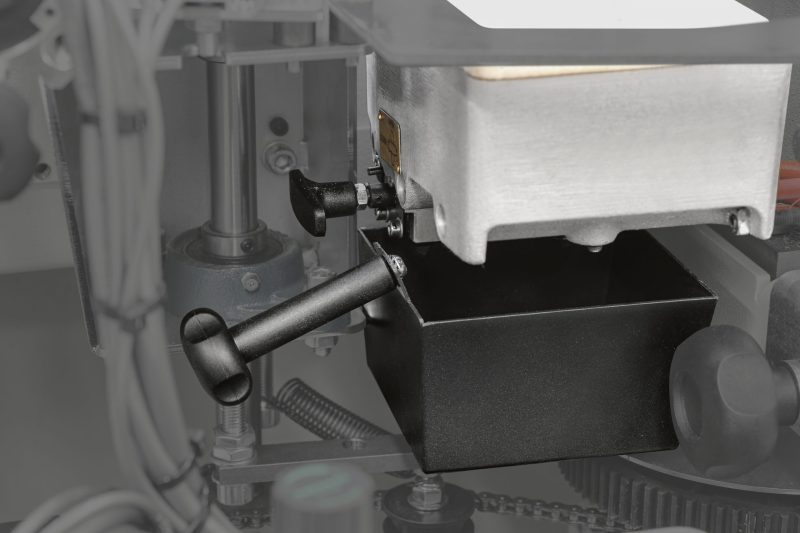

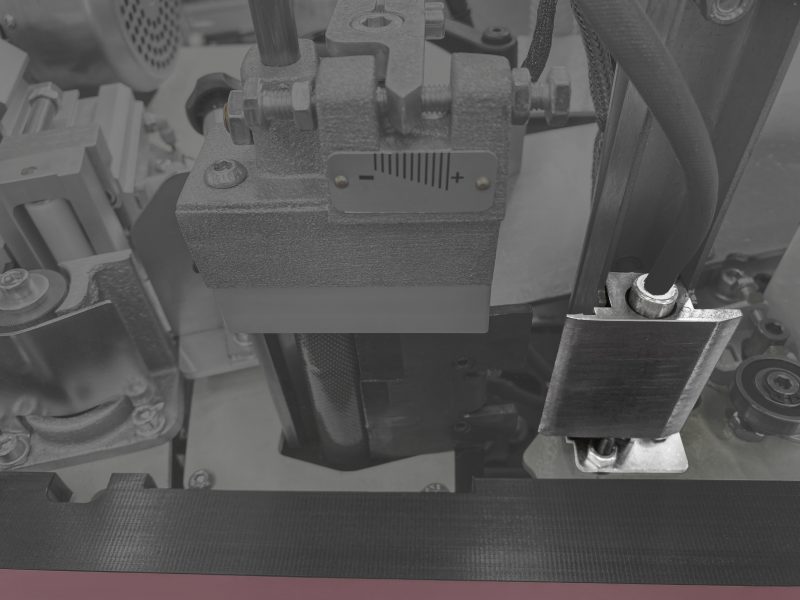

What sets the ME 40EVO apart from other Minimax Edgebanders is the included glue scraping unit. This unit eliminates any excess glue in the joint between panel and edge, improving panel cleaning. The automatic on/off system is controlled via the Eye-S, a touch screen control panel loaded with features to make edge banding applications easy. The Eye-S also allows you to choose the type of material you’re working with, set the height and thickness of material, and adjust the glue temperature and type.

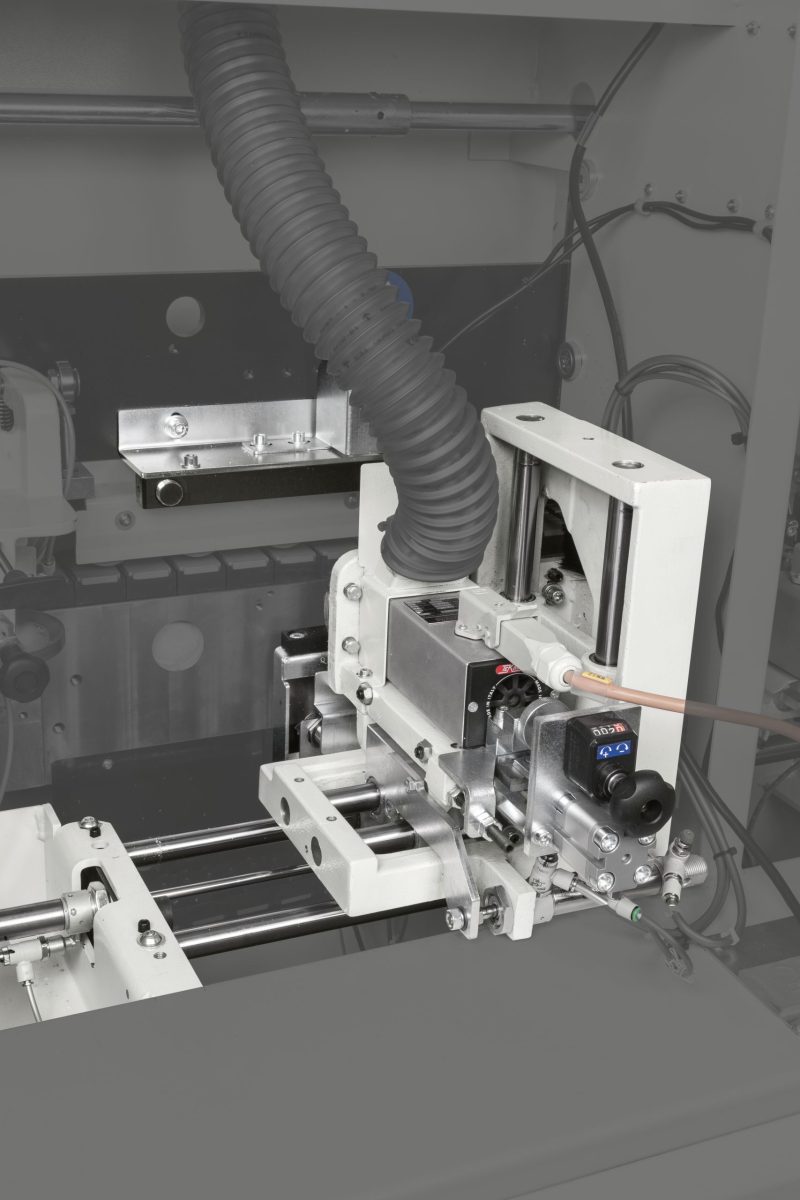

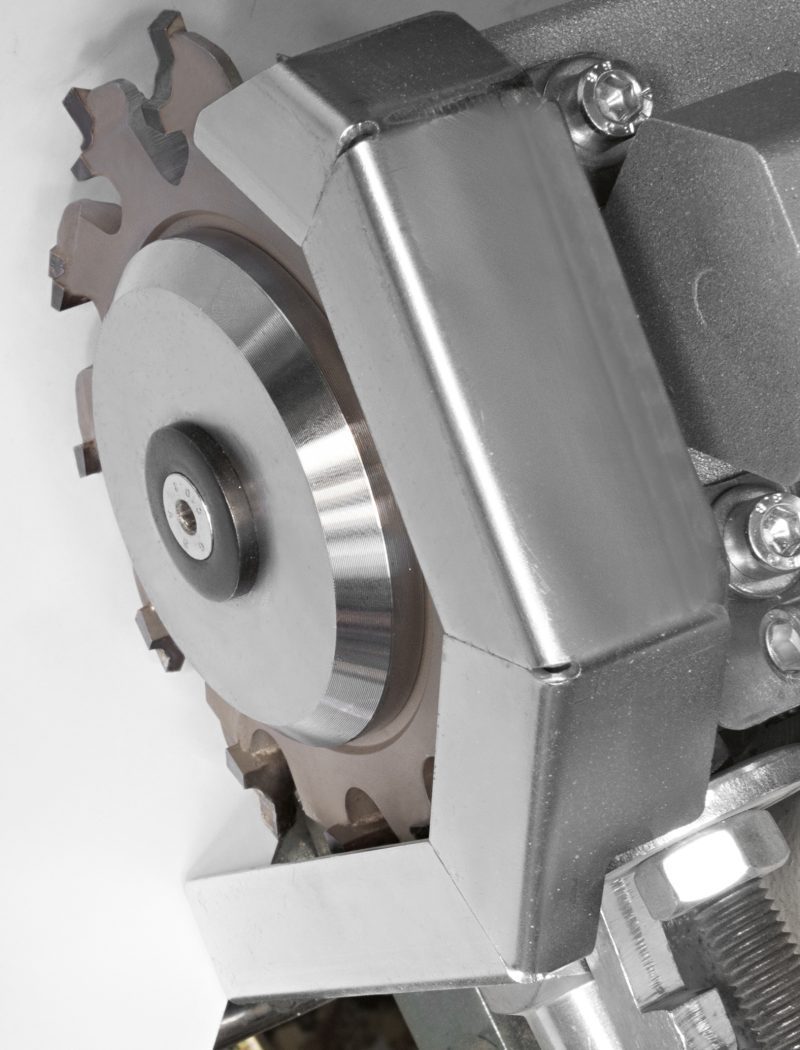

The Minimax ME 40EVO pre-mill unit utilizes two 80 mm diameter diamond tools with opposing rotation and timed intervention that corrects any panel imperfections caused by the saw cutting process and panel storage. This allows for a clean edge and a good lineal finish during the pre-mill process. Pre-milling comes with an independent exhaust and air blower for cleaning the panel.
Designed for a perfect finish, the ME 40EVO eliminates transfer marks onto the workpiece. 9 meter/min panel feed speed with track movement for increased productivity. Monitoring of the panel position is done by an encoder for total work cycle control.

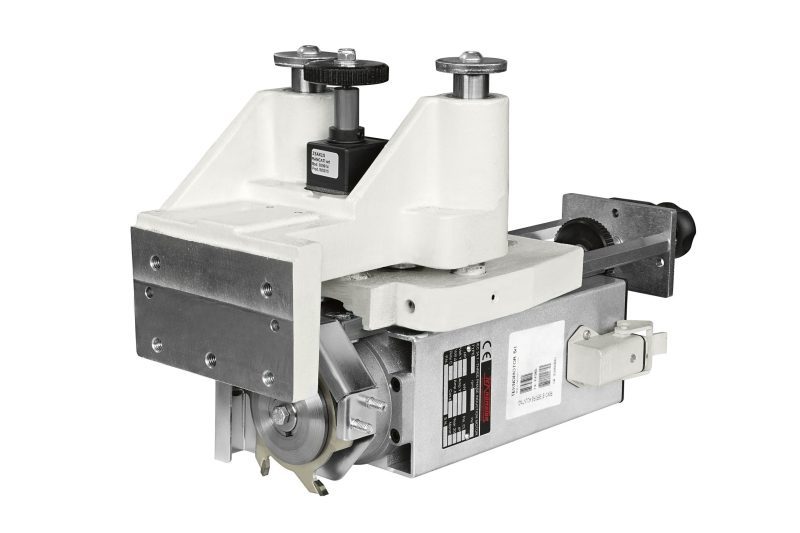

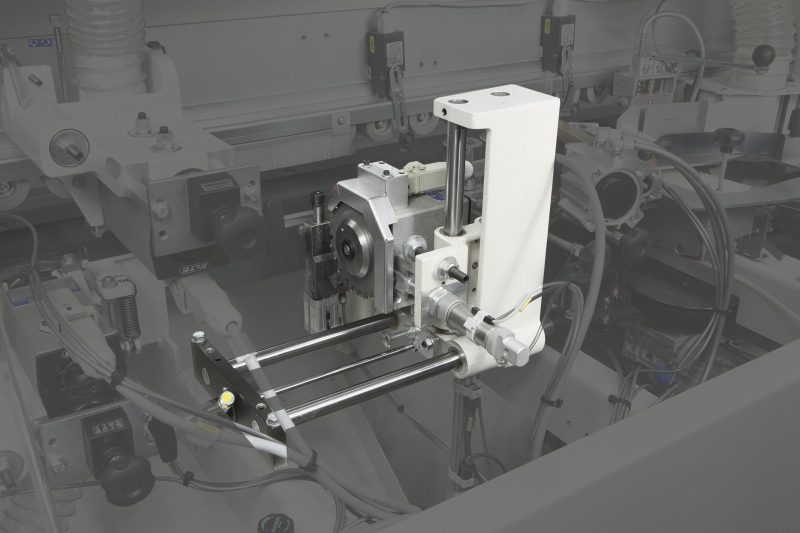

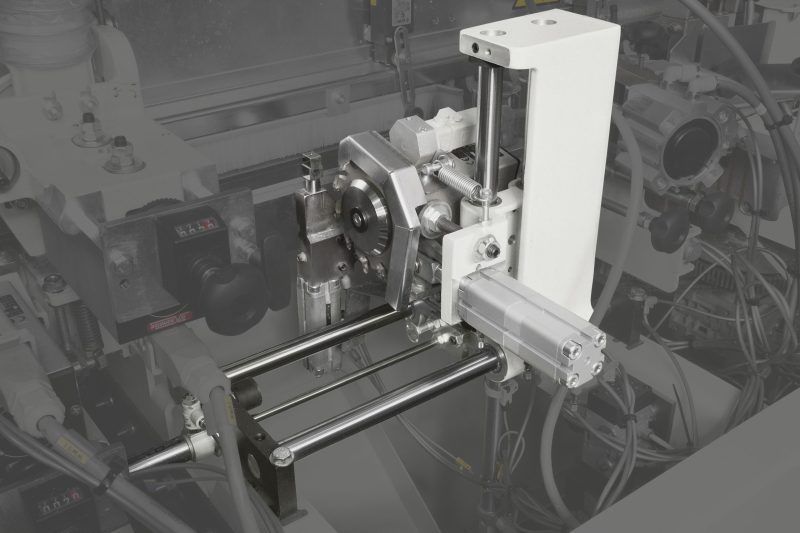

The two stage full corner rounding end-cutting unit cuts and rounds the edge in a single pass at the end of the panel. Driven directly from the control panel, it is possible to work with only the end cutting function for thin tape, and 3 mm thick banding or wood. This is the first unit in its class to have this advanced engineering, this small of a footprint, and overall capabilities at a price point that allows the small to medium-sized shop to compete.
*Photos may include optional equipment.
Advertised Price Configuration:

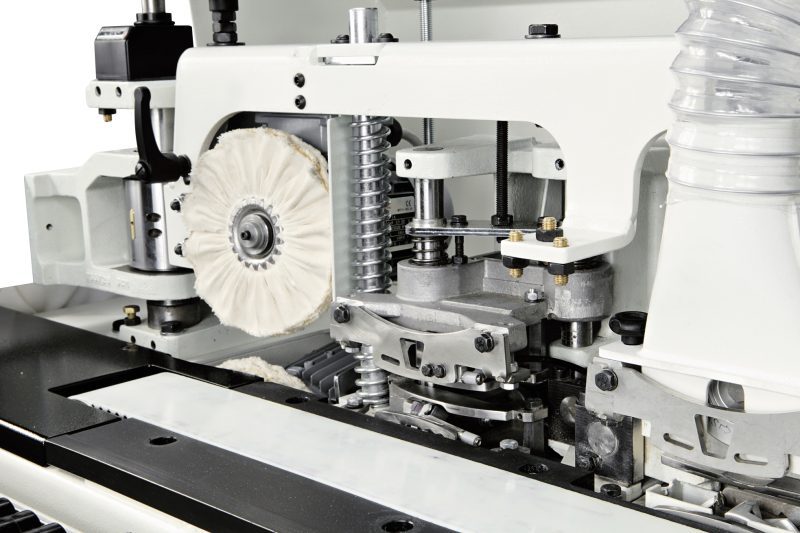

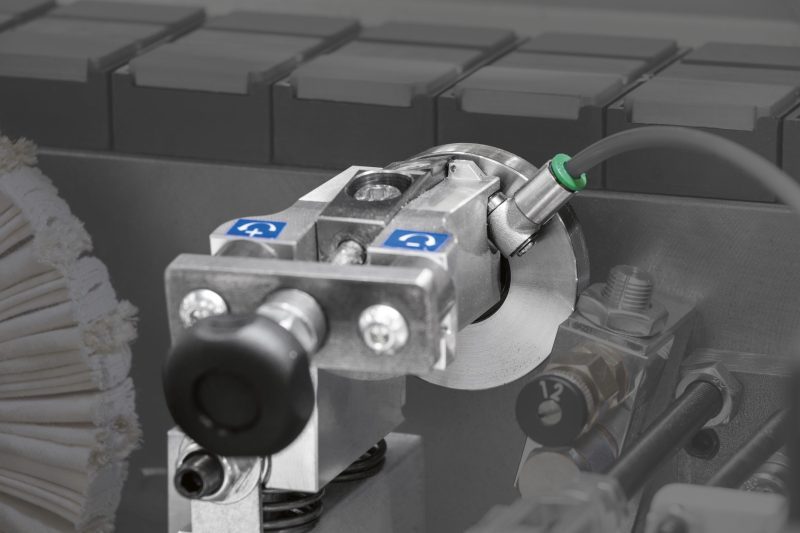

*ME 40EVO – 3ph, 10″ EYE-S touch screen control, Automatic strip magazine, Anti-adhesive spray, Glue pot w/Fast unloading, internal lighting Units: Dual pre-mill, End trim, Corner rounding, Top/bottom trim and Profile scrape w/multiradius 1-2mm, Glue Scraping, Buffing (Price Includes Freight & Install)

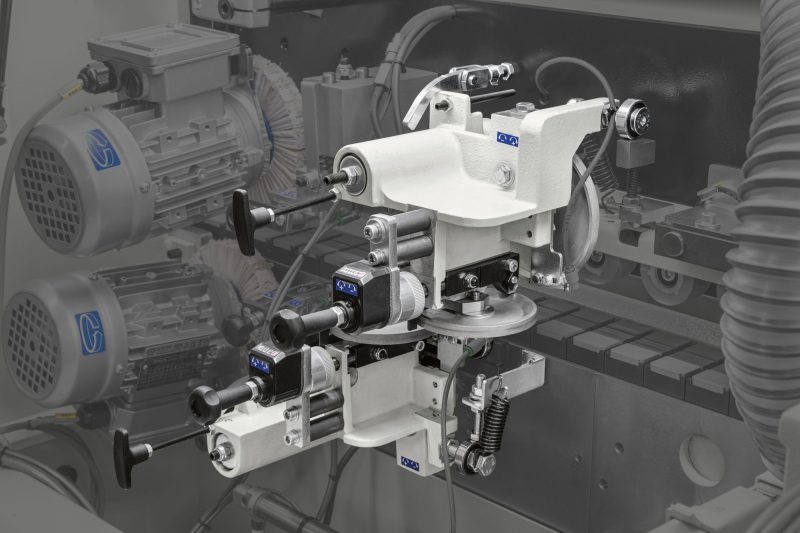

Impeccable finish New rounding unit with rigid structure for a unique quality of work in its segment. The particularly affordable price distinguishes it as the most competitive edge bander with round on the market!
High productivity 9 m/min panel feed speed with track movement for an increased productivity. Monitoring of the panel position by encoder for a total work cycle control.
Brillant idea The end-cutting unit with “Radius” allows you to make a radius on the corners of the edged panel without the need of the operator to have to finish by hand at a later stage: brilliant idea to a finished product of high quality.
Technical data
me 40
Work table dimensions
mm
3465 x 710
Min. ÷ max. thickness of rolled edges
mm
0,4 ÷ 3
Max. thickness of edges in strips
mm
5
Min. ÷ max. panel height
mm
8 ÷ 50
Min. panel length/width
mm
190/110
Feed speed
m/min
9
Additional information
Models
me 40ETR w/Radius Feature, me 40ETR HP w/Corner Rounding
