Pillar MMTX: 6-Axis CNC Miter Machine for Unmatched Cabinet Door Production
Elevate your woodworking shop to new heights with the Pillar MMTX, a dual-carriage, 6-axis CNC machining center designed for high-volume cabinet door manufacturing. This award-winning machine, honored with the 2004 IWF Challengers Award, produces 400-500 mitered doors per 8-hour shift with a single operator, delivering precision mortise and tenon joints that set the standard for quality. With its ability to handle MDF, paper-wrapped, and vinyl-wrapped profiles, the MMTX eliminates the need for inlays, profiling, or sanding, saving time and costs. Its robust design and advanced automation make it the ultimate solution for cabinetmakers seeking to dominate production.
Standout Features and Advantages
-

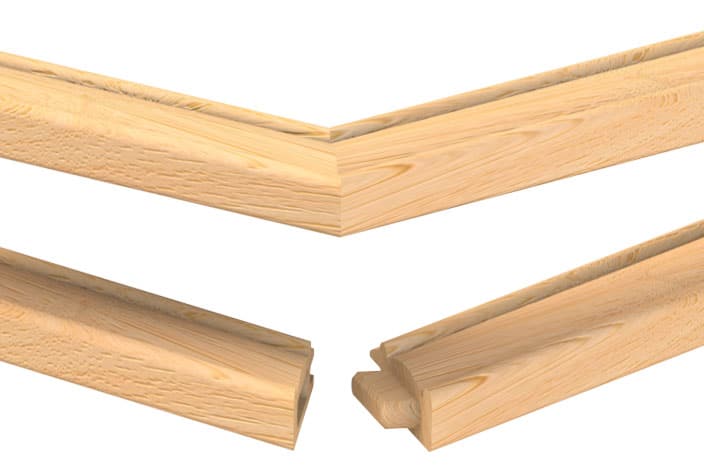

- 6-Axis CNC Mastery: Dual carriages, each with three CNC-controlled axes (X, Y, Z), ensure tear-out-free mortise and tenon cuts with unmatched precision.
- High-Capacity Output: Crafts 400-500 doors per shift, ideal for large-scale cabinet shops aiming to maximize productivity.
- Material Versatility: Processes MDF, paper-wrapped, and vinyl-wrapped profiles, eliminating the need for inlays and reducing tooling costs by over 50%.
- Dual Work Zones: Two loading stations per carriage enable pendulum processing, ensuring uninterrupted production flow.
- Advanced Control: A 15″ touchscreen with intuitive software supports .xml file imports and barcode scanning (optional reader) for rapid program changes.
- Heavy-Duty Build: Weighing 3,200 lbs. with a welded steel frame, it’s engineered for durability in demanding environments.
Perfect For
The Pillar MMTX is tailored for:
- Large-scale cabinet shops requiring high-volume mitered door production.
- Manufacturers seeking to streamline processes by eliminating profiling and sanding.
- Workshops needing a robust, versatile CNC machine for diverse material types.
Technical Breakdown
| Feature | Specification |
|---|---|
| Machine Type | 6-axis CNC miter, mortise, and tenon machining center |
| Production Capacity | 400-500 doors per 8-hour shift |
| Material Compatibility | MDF, paper-wrapped, vinyl-wrapped, solid wood |
| Work Zones | 2 per carriage (4 total) |
| Axes Control | 6 CNC axes (X, Y, Z per carriage) |
| Spindles | 7.5 HP tenon, 7.5 HP miter, 3 HP mortise |
| Electrical | 3-phase, 208-230V, 60 cycles, 30 amps |
| Compressed Air | 90 PSI at 15 CFM |
| Dust Collection | 2 x 4″ ports, 1 x 6″ port, 1480 CFM total |
| Dimensions | 110″ W x 52″ D x 72″ H |
| Weight | 3,200 lbs. (approx.) |
| Display | 15″ industrial touchscreen |
| Software Tools | Parametric programming, online diagnostics |
Smart Software & Interface
The Pillar MMTX’s 15″ touchscreen is a command nexus, enabling program setup in seconds. Its open-architecture software integrates with design tools via .xml files or barcodes (optional reader required), ensuring a fluid workflow. Key features include:
- Visual guides for mortise and tenon placement across multiple profiles.
- Multiple tool paths for customizable cuts.
- Secure access and online diagnostics (with an internet connection).
Why Pillar Excels
Built in Salt Lake City, Utah, every Pillar MMTX reflects American engineering excellence, backed by a one-year warranty and free online training. Pillar’s award-winning legacy, including the 2004 IWF Challengers Award, ensures unmatched reliability and support, trusted by woodworking professionals across the nation.
Request Your Customized Quote from 360 Degree Machinery
Ready to lead in mitered door production? Click the “Add to quote” button above or call 630-229-6705 to request a customized quote for the Pillar MMTX today!
