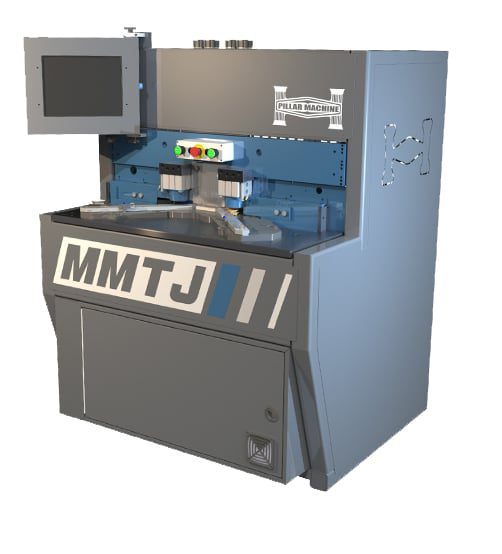

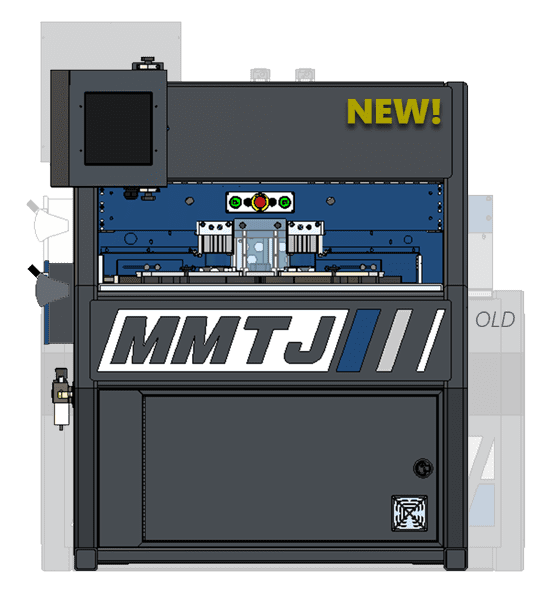

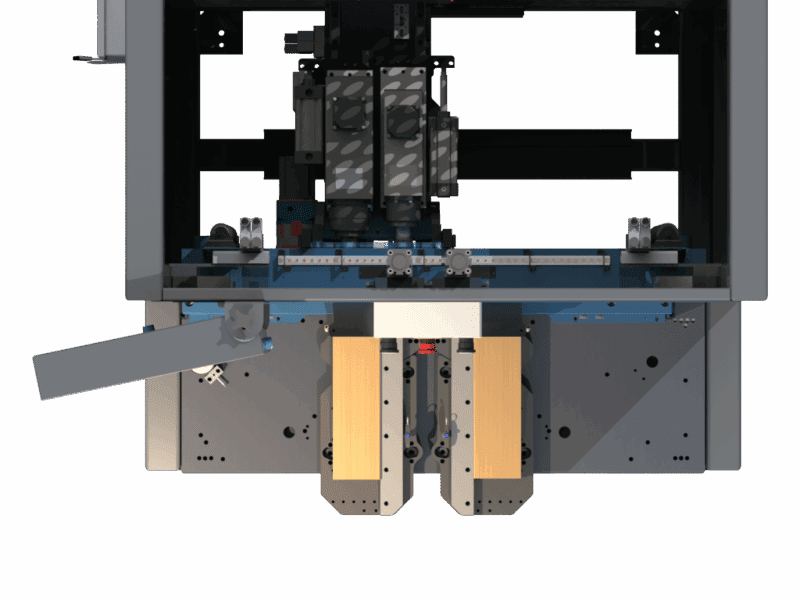

Pillar MMTJ: 3-Axis CNC Miter Machine for Cabinet Door Excellence
Ignite your woodworking shop’s potential with the Pillar MMTJ, a full 3-axis CNC machining center engineered for high-volume cabinet door production. Awarded the 2004 IWF Challengers Award, this machine crafts 200-275 mitered doors per 8-hour shift with one operator, delivering precision mortise and tenon joints for unmatched quality. Its 2024 slim shaker package allows processing of parts as narrow as 1/2″, perfect for modern slim shaker profiles in paper-wrapped or solid wood. With a compact footprint and advanced features, the Pillar MMTJ is the ultimate choice for cabinetmakers seeking efficiency and versatility.
Standout Features and Advantages
- 3-Axis CNC Precision: Servo-driven X, Y, and Z axes, featuring rack-and-pinion and ball screw systems, ensure precise mortise and tenon cuts across diverse profiles.
- High-Volume Output: Produces 200-275 doors per shift, making it ideal for scaling production without requiring additional labor.

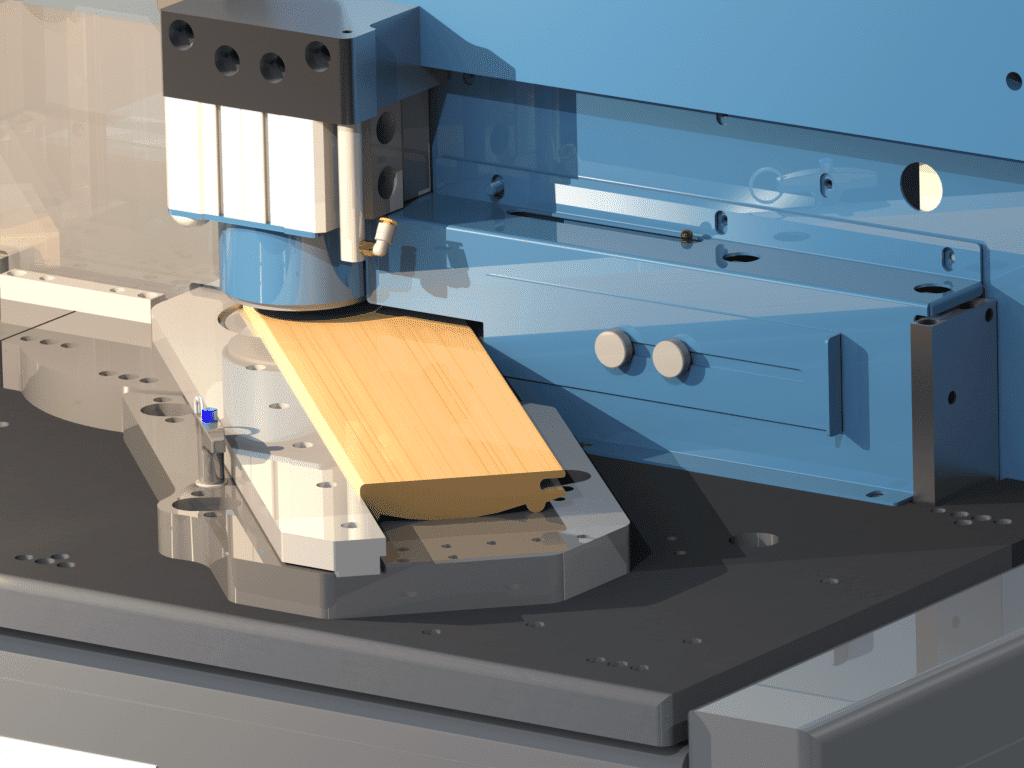

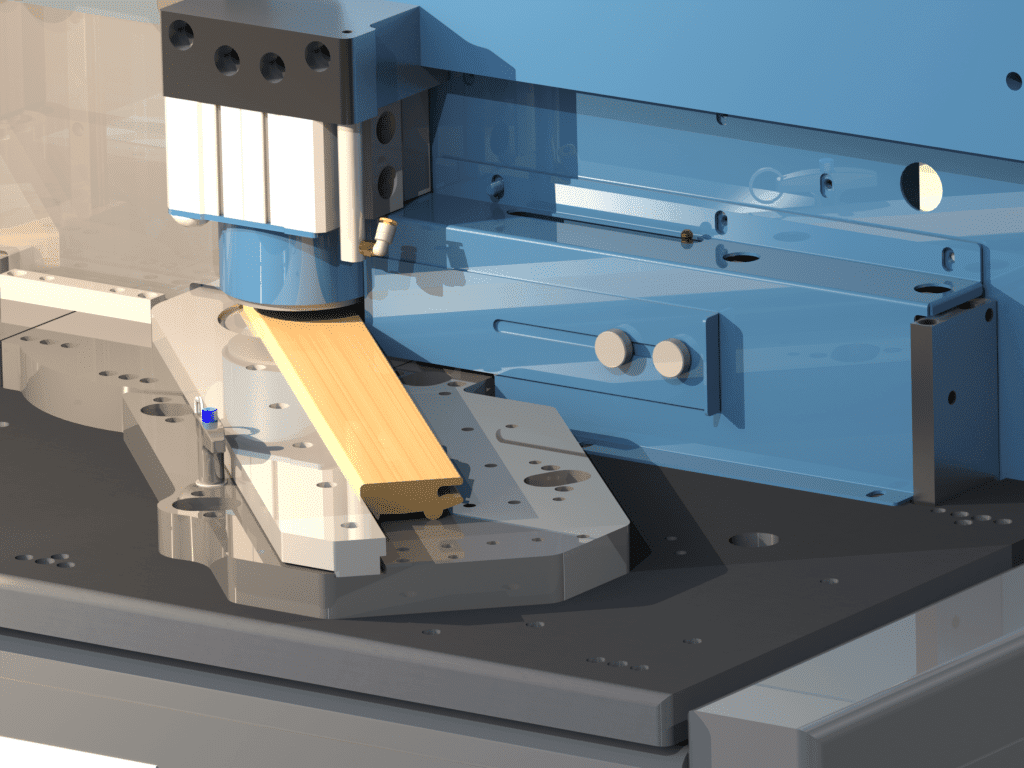

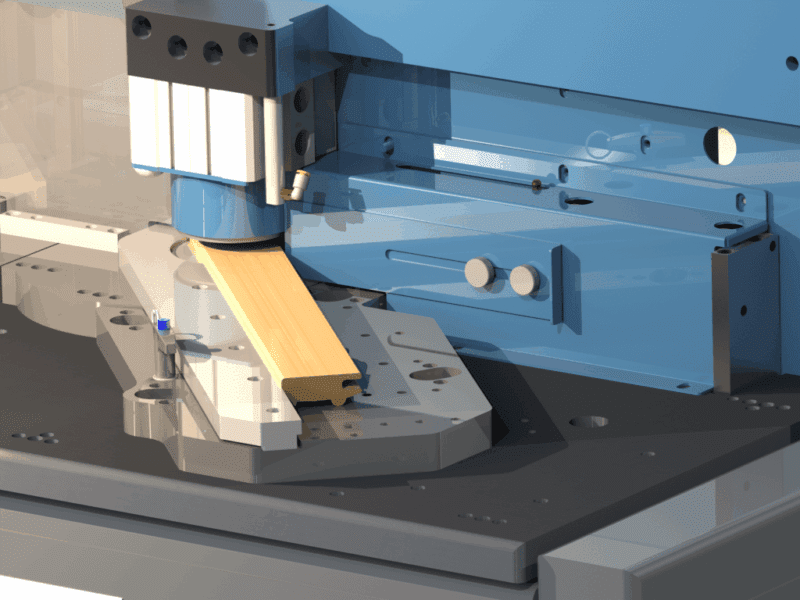

- Slim Shaker Capability: 2024 upgrade handles parts down to 1/2″ wide, perfect for sleek, modern cabinet designs.

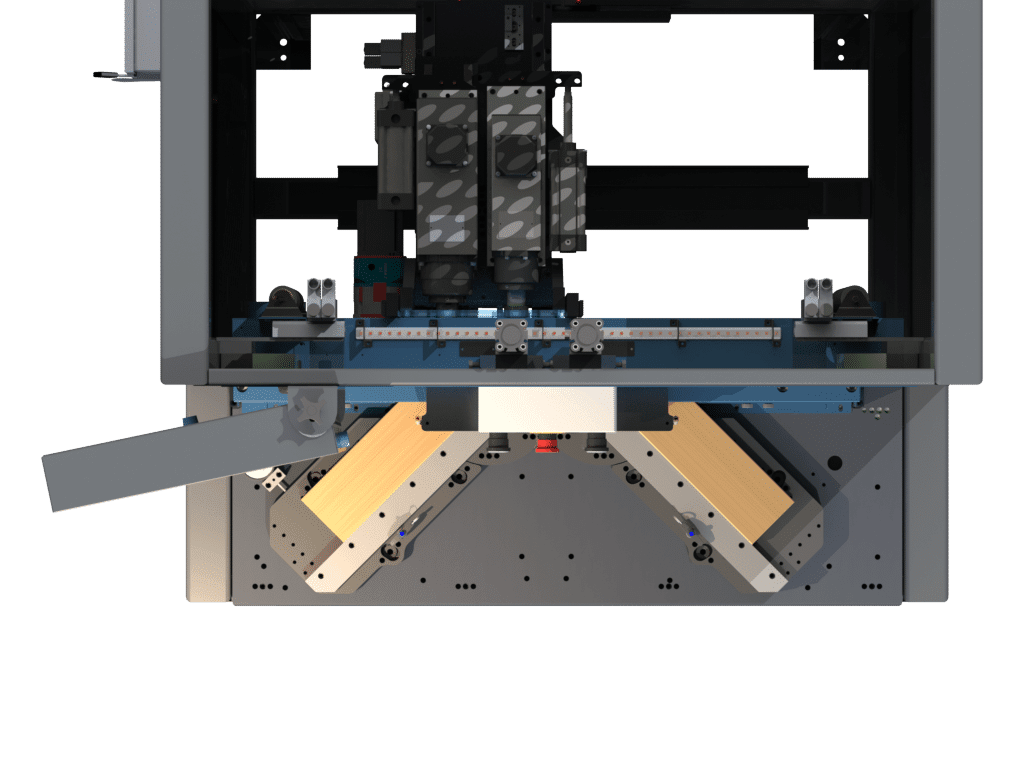

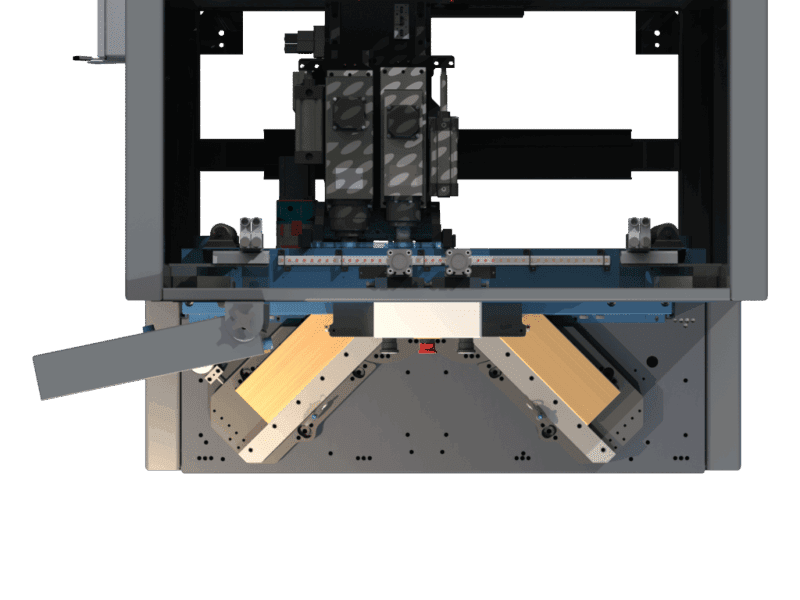

- Dual Work Zones: Two zones enable pendulum processing, allowing continuous operation by loading one part while machining another.
- Intuitive Control Hub: A 15″ touchscreen with open-architecture software supports .xml file imports and barcode scanning (optional reader) for fast programming.
- Robust Durability: High-precision square rail guides and a welded frame ensure long-lasting performance in demanding environments.
Perfect For
The Pillar MMTJ is tailored for:
- High-volume cabinet shops crafting mitered doors with precision and speed.
- Manufacturers producing slim shaker profiles for modern, minimalist designs.
- Workshops seeking a compact, award-winning CNC solution to boost output.
Technical Breakdown
| Feature | Specification |
|---|---|
| Machine Type | 3-axis CNC miter, mortise, and tenon machine |
| Production Capacity | 200-275 doors per 8-hour shift |
| Material Length | Min: 4.5″; Max: Unlimited |
| Material Width | Min: 0.5″ (with slim shaker package); Max: 3.5″ |
| Material Thickness | Min: 5/8″; Max: 1″ |
| Axes Control | X: Servo rack-and-pinion; Y, Z: Servo ball screw |
| Guides | High-precision square rail guides and bearings |
| Electrical | 3-phase, 208-230V, 60 cycles, 20 amps |
| Compressed Air | 90 PSI at 10 CFM |
| Dust Collection | 2 x 4″ ports, 696 CFM total |
| Display | 15″ industrial touchscreen |
| Software Tools | Parametric programming, online diagnostics |

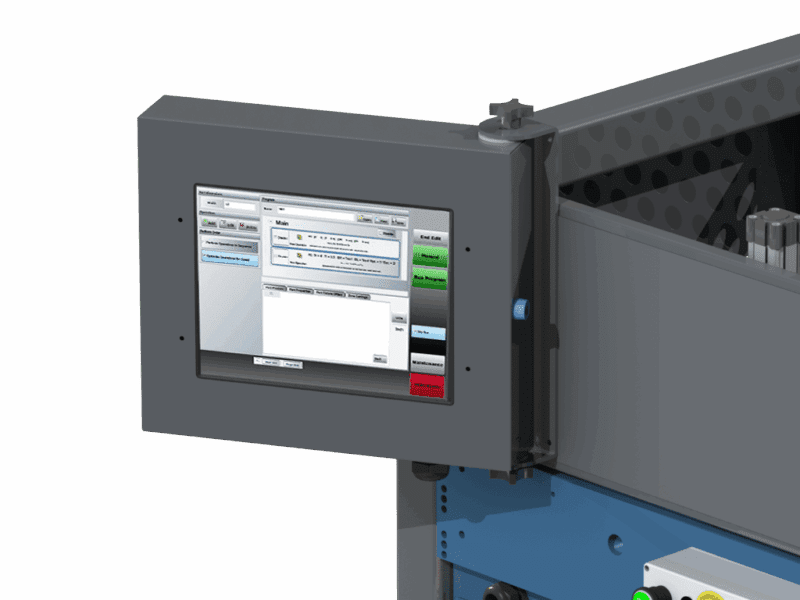

Smart Software & Interface
The Pillar MMTJ’s 15″ touchscreen is a control masterpiece, enabling program setup in under a minute. Its open-architecture software integrates with design tools via .xml files or barcodes (optional reader required), streamlining your workflow. Key features include:
- Visual guides for precise mortise and tenon placement.
- Customizable tool paths for varied profiles.
- Secure access and online diagnostics (with an internet connection).
Why Pillar Excels
Built in Salt Lake City, Utah, every Pillar MMTJ reflects American engineering prowess, backed by a one-year warranty and free online training. Pillar’s award-winning innovation and direct factory support ensure your machine delivers enduring value, trusted by woodworking pros for high-quality results.
Request Your Customized Quote from 360 Degree Machinery
Ready to dominate mitered door production? Click the “Add to quote” button above or call 630-229-6705 to request a customized quote for the Pillar MMTJ today!
