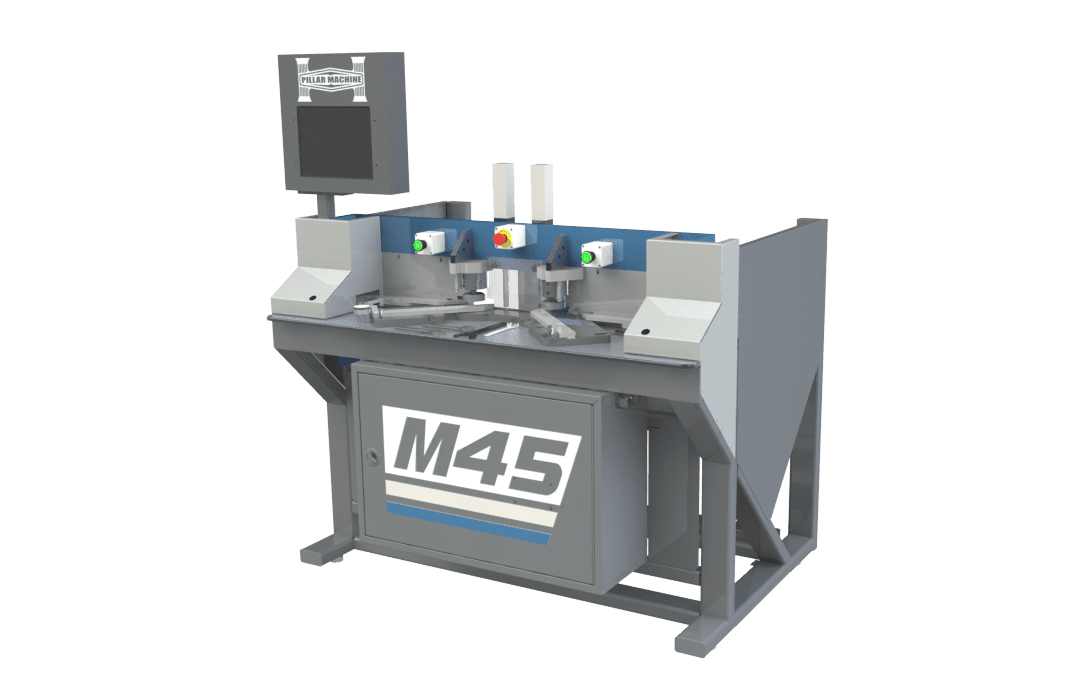

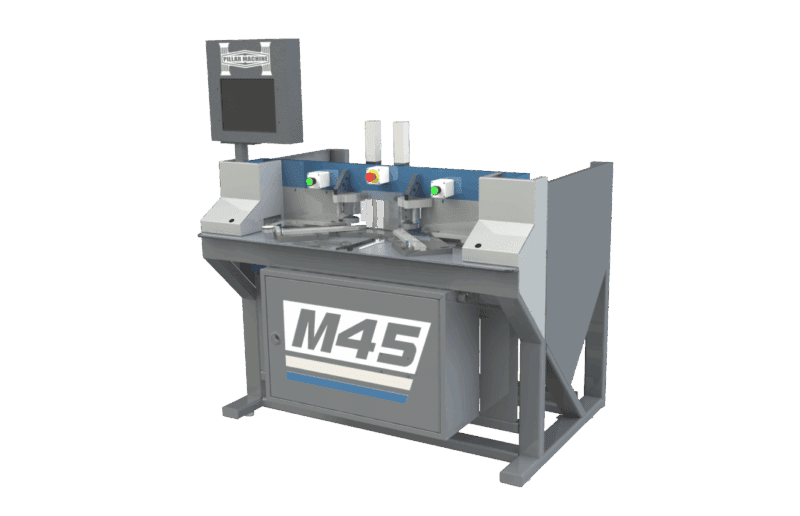

Pillar M45: Miter Machine for Mortise & Tenon Miter Doors
Launch your woodworking shop into a new era of precision with the Pillar M45, an entry-level miter machine engineered for cabinetmakers and furniture artisans. This CNC-driven powerhouse produces perfect 45° mitered joints with mortise and tenon cuts, crafting 150-175 doors per shift with unmatched consistency. Its side pressure clamps ensure every part aligns flawlessly, while its ability to handle MDF, paper-wrapped, vinyl-wrapped, and solid wood makes it a versatile choice for diverse projects. With the Pillar M45, you’ll slash setup times, reduce tooling costs, and create stunning, durable doors that elevate your reputation.
Standout Features and Advantages
- Impeccable 45° Miters: Side pressure clamps lock parts against the fence for precise, tear-out-free cuts every time.
- Material Versatility: Effortlessly processes MDF, wrapped profiles, and solid wood, ideal for custom and production work.
- Cost-Saving Design: Cuts tooling maintenance by over 50% by eliminating end coping, saving you time and expense.
- High Output: Produces 150-175 mitered doors per 8-hour shift, perfect for scaling your shop’s productivity.
- Intuitive Control: A 15″ touchscreen with user-friendly graphics streamlines programming for operators of all levels.
- Rugged Build: Constructed with a welded steel frame for enduring performance in busy shop environments.
Perfect For
The Pillar M45 is tailored for:
- Cabinet shops and furniture makers crafting high-quality mitered doors with precision.
- Entry-level users seeking an affordable, reliable machine to jumpstart miter production.
- Workshops aiming to eliminate inlays, profiling, and sanding for a streamlined workflow.
Technical Breakdown
| Feature | Specification |
|---|---|
| Machine Type | Miter, mortise, and tenon machine |
| Production Capacity | 150-175 doors per 8-hour shift |
| Miter Angle | 45° |
| Material Compatibility | MDF, paper-wrapped, vinyl-wrapped, solid wood |
| Clamping System | Side pressure clamps for alignment |
| Display | 15″ industrial touchscreen |
| Software Tools | Parametric programming, online diagnostics |
| Build | Welded tubular steel frame |
Smart Software & Interface

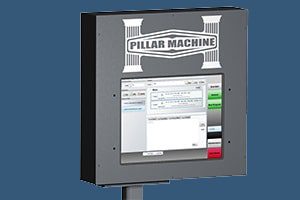

The Pillar M45’s 15″ touchscreen is a hub of simplicity and power, enabling program setup in under a minute. Its open-architecture software supports .xml file imports or barcode scanning (optional reader required) for effortless design integration. Key features include:
- Visual guides for part sizing and mortise/tenon settings.
- Customizable tool paths for tailored miter and tenon cuts.
- Secure access and online diagnostics (with internet).
Why Pillar Excels
Handcrafted in Salt Lake City, Utah, every Pillar M45 embodies American engineering excellence, backed by a one-year warranty and free online training. Pillar’s commitment to durability and innovation, paired with direct factory support, ensures your machine delivers lasting value. Trusted by woodworking pros, it’s a reliable choice for scaling your production.
Request Your Customized Quote from 360 Degree Machinery
Ready to craft stunning mitered doors? Click the “Add to quote” button above or call 630-229-6705 to request a customized quote for the Pillar M45 today!
