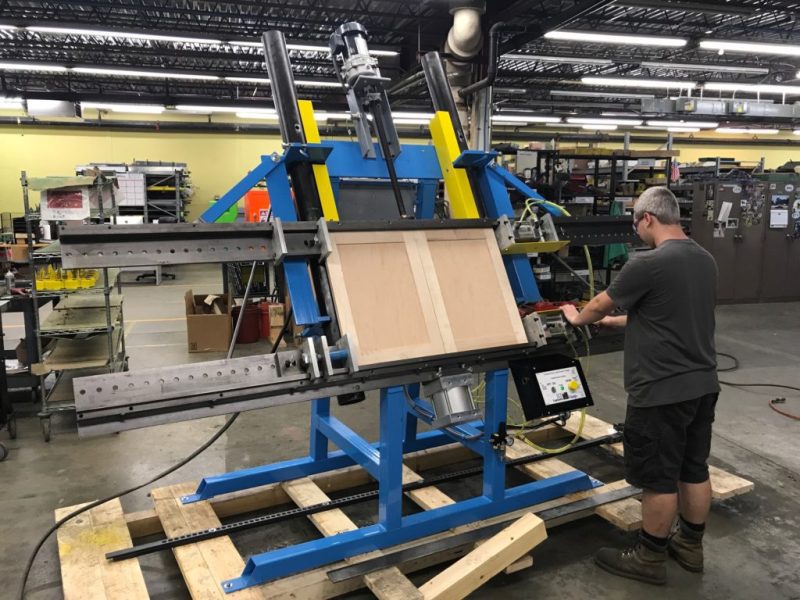

JLT 78B-CDFC: Heavy-Duty Cabinet Door & Frame Clamp
Enhance your woodworking shop’s efficiency with the JLT 78B-CDFC, a heavy-duty 2-way pneumatic clamp designed to square and secure cabinet doors and face frames with unmatched precision. With a generous 48″ x 94″ capacity, this machine handles single or multiple door assemblies, making it ideal for cabinetmakers and furniture manufacturers. Its all-welded steel construction ensures durability, while adjustable vertical and horizontal strokes deliver perfect alignment every time. Backed by a lifetime warranty on welded components, the JLT 78B-CDFC is a reliable cornerstone for high-quality woodworking production.
Standout Features and Advantages
- 2-Way Pneumatic Clamping: Combines vertical and horizontal clamping to square and secure doors and frames with precision.
- Large Capacity: 48″ x 94″ workspace accommodates single or multiple cabinet door and face frame assemblies.
- Adjustable Precision: Vertical and horizontal speed/stroke adjustments ensure tailored clamping for diverse projects.
- Safe Operation: Two-hand pneumatic cylinder activation prioritizes operator safety during high-volume production.
- Uncompromising Durability: All-welded steel frame with a lifetime warranty on welded components for long-lasting performance.
- Operator-Friendly Design: Intuitive controls make setup and operation straightforward, even for less experienced users.
Perfect For
The JLT 78B-CDFC is tailored for:
- Cabinet shops needing precise, high-volume door and face frame assembly.
- Furniture manufacturers seeking reliable clamping for consistent, square joints.
- Workshops aiming to streamline production with a durable, versatile clamp.
Technical Breakdown
| Feature | Specification |
|---|---|
| Machine Type | 2-way pneumatic cabinet door and frame clamp |
| Capacity | 48″ x 94″ |

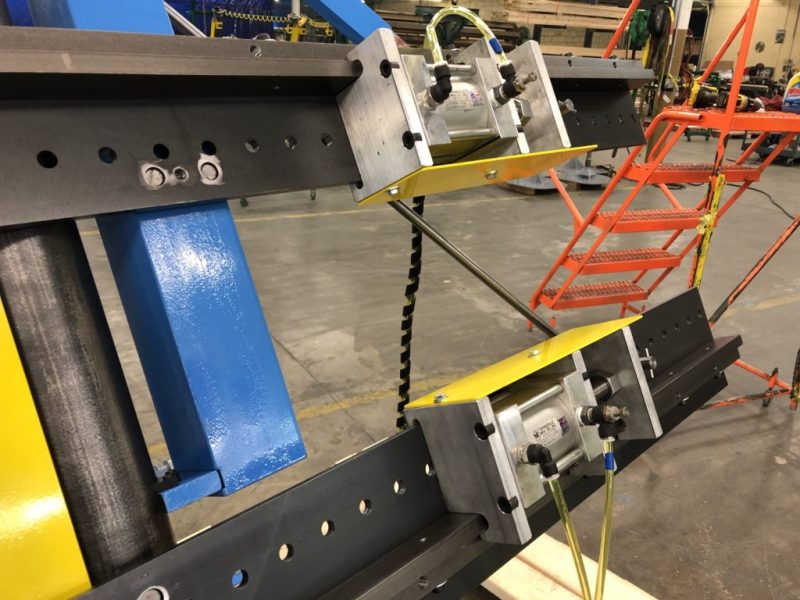

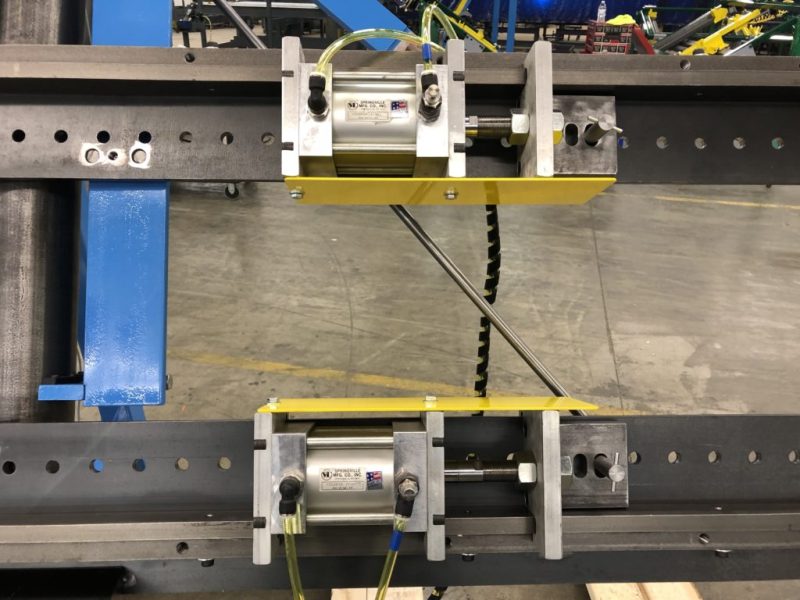

| Clamping System | Vertical and horizontal pneumatic |

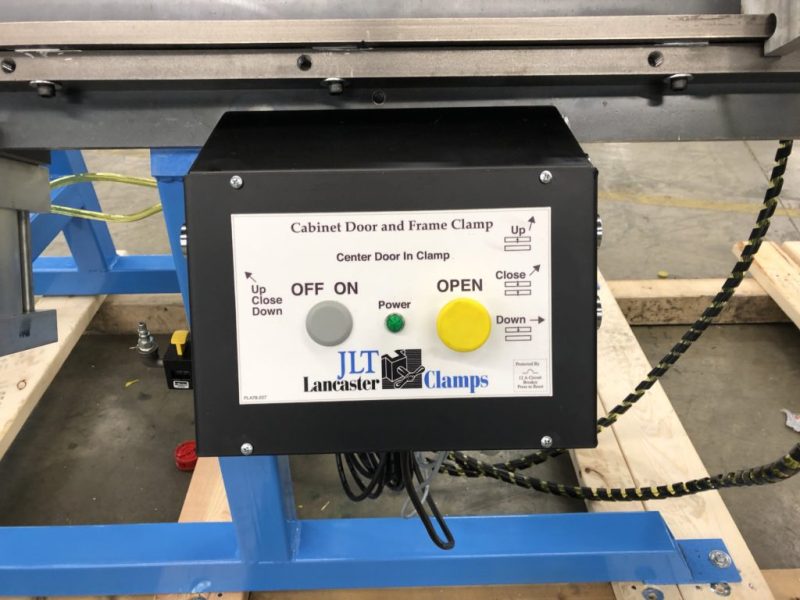

| Controls | Two-hand pneumatic cylinder activation |
| Adjustments | Vertical and horizontal speed/stroke |
| Construction | All-welded steel with lifetime warranty on welded components |
| Footprint | 120″ L x 91″ H x 50″ W |
Why JLT Excels
Built in the USA by James L. Taylor, every JLT 78B-CDFC reflects a century-long legacy of woodworking excellence, backed by a lifetime warranty on welded components. Trusted by professionals for reliability, JLT delivers durable, high-performance solutions for your shop.
Request Your Customized Quote from 360 Degree Machinery
Ready to perfect your cabinet assembly? Click the “Add to quote” button above or call 630-229-6705 to request a customized quote for the JLT 78B-CDFC today!
