- 38″ x 97″ Maximum capacity.
- Minimum 9″ Clamping Capacity.
- Includes (4) Vertical Clamps & (2) Horizontal Clamps.
- (2) Total Squaring Sections for Clamping and Squaring of Multiple Cabinet Doors
- Each clamp includes the JLT Dial Control System for fine adjustments, which is simple and easy to use.
- This innovative Dial Control System allows for adjustments in BOTH directions while the door is under clamping pressure
- Precise and Accurate Squaring for both Miter and Stile & Rail Cabinet Doors
- Precisely Clamp and Square MDF or HDF Doors too!!
- Easy to use, Single Lever Operation.
- Fast Changeovers
- 60 Degree Working Angle

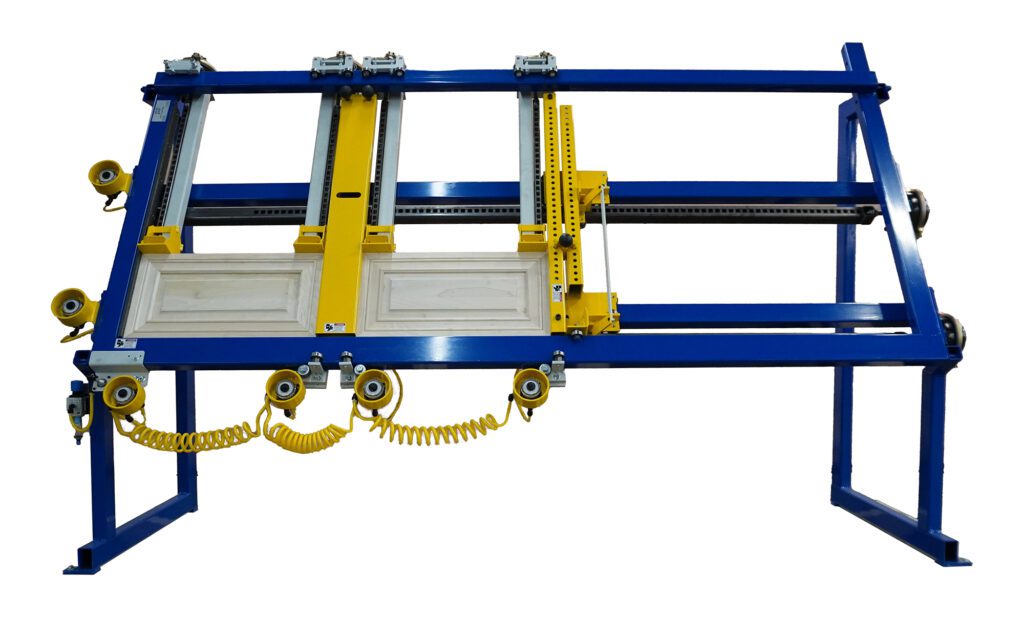

JLT #717C-CHBB Large Capacity Double Miter Door Clamp
Features:
- 38″ x 96″ Maximum capacity.
- Minimum 9″ Clamping Capacity.
- Includes (4) Vertical Clamps & (2) Horizontal Clamps.
(2) Total Squaring Sections for Clamping and Squaring of Multiple Cabinet Doors (Each is 38″W x 46″L)
- Each clamp includes the JLT Dial Control System for fine adjustments, which is simple and easy to use.
- This innovative Dial Control System allows for adjustments in BOTH directions while the door is under clamping pressure
Precise and Accurate Squaring for both Miter and Stile & Rail Cabinet Doors
- With our optional UHMW Border Package, Precisely Clamp and Square MDF or HDF Doors too!!
- Easy to use, Single Lever Operation.
- Fast Changeovers
- 60 Degree Working Angle
Enhanced Features from the Tried & True #79K Design:
- Intuitive Pin System allows even Quicker and Easier setup than ever before.
- Cylinders Located in the back of the machine to Provide Operator with Additional Working Space.
- Redesigned Jaws with Thumb Plate for Increased Efficiency.
- Thicker Push Bars Decrease Daily Wear and Tear.
Machine Footprint: 120″L x 76″H x 42″W
